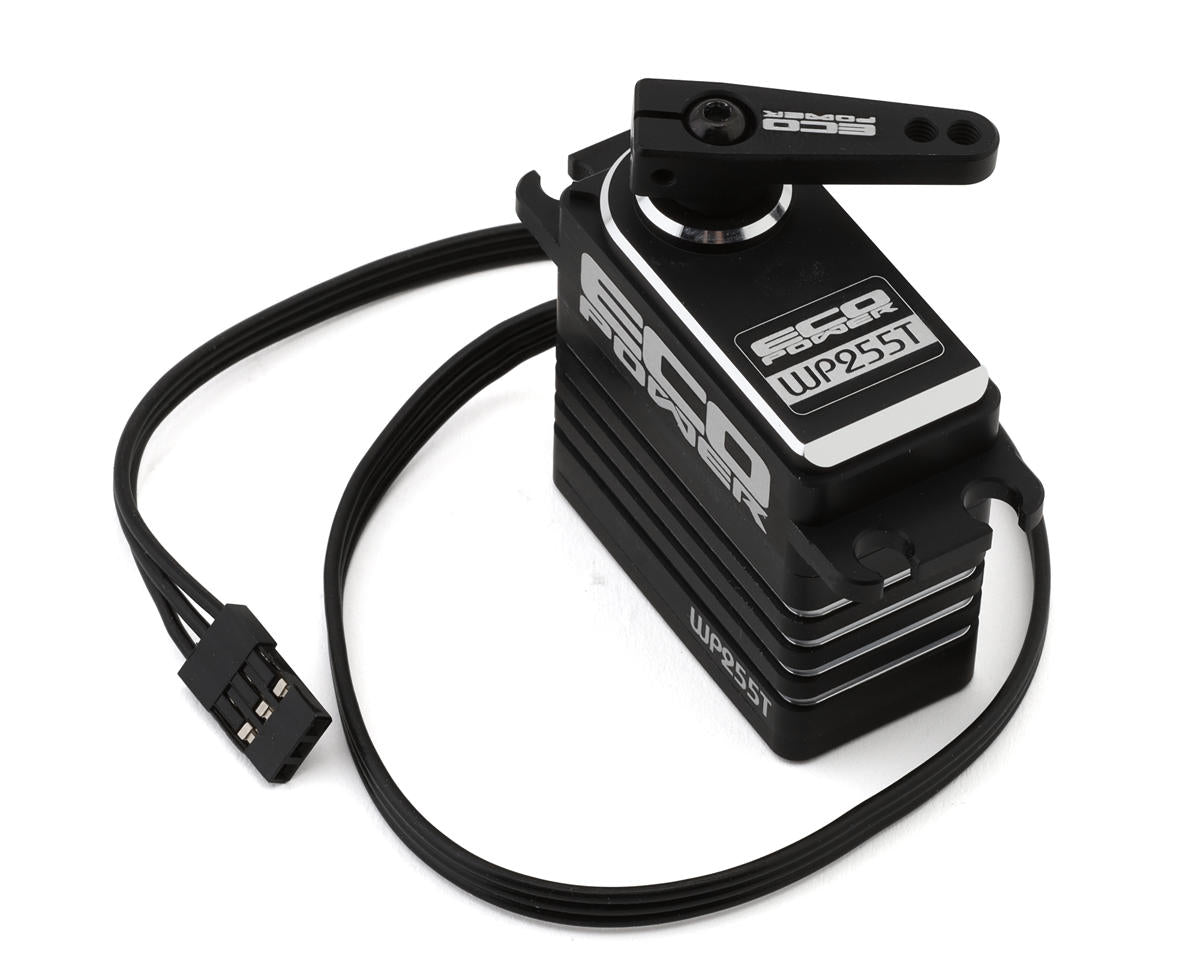

EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV)

The EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo delivers powerful, responsive steering for demanding surface vehicles. It provides 681oz-in of dynamic torque at 7.4V, a 0.12/60° sec operating speed, a full metal geartrain, and a waterproof gasket system rated to one meter.

Features

• Brushless Digital motor type
• Dynamic torque of 574oz-in (41.3 kg-cm) at 6.0V, 681oz-in (49 kg-cm) at 7.4V, and 758oz-in (54.5 kg-cm) at 8.4V
• Operating speed of 0.14/60° sec at 6.0V, 0.12/60° sec at 7.4V, and 0.10/60° sec at 8.4V
• Full metal geartrain with Lifetime Gear Warranty
• Aluminum heat sink case
• Waterproof gasket system rated to one meter
• 25T output shaft
• Suitable for 1/10, 1/8 & 1/7 surface applications

Specifications

• Operating Voltage: 4.8-8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.55in (39.5x20x39.25mm)
• Weight: 2.7oz (76.6g)

Includes

• (1) Lifetime Gear Warranty
• (1) WP255T High Torque Metal Gear Brushless Servo
• (1) Aluminum Clamping Servo Horn (25T)

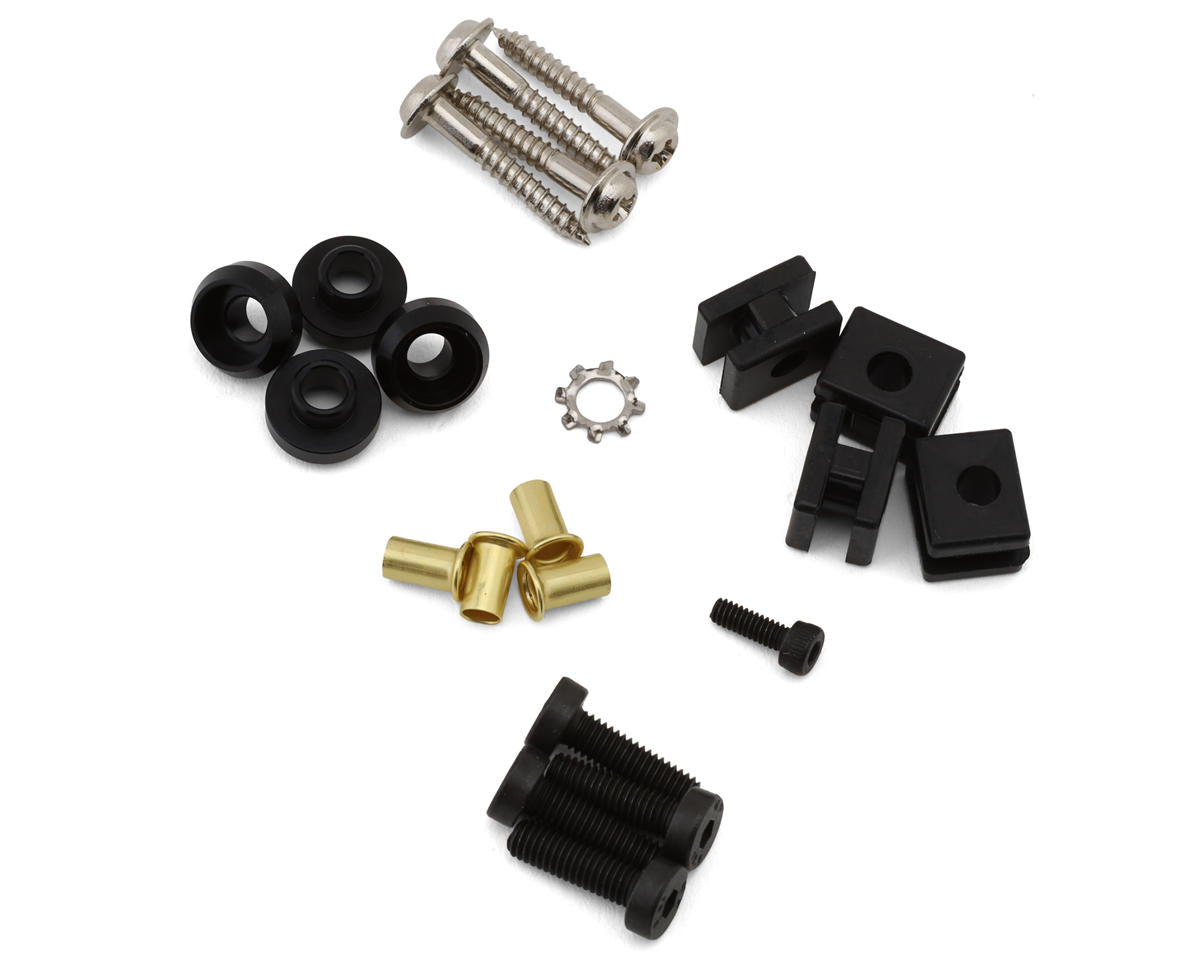

• Servo Hardware & Grommets
