EcoPower WP200T-TI Waterproof High Torque Titanium Gear Brushless Servo

The EcoPower WP200T-TI is a waterproof, high-voltage digital servo built for 1/10-1/8 scale bashing platforms, rock crawlers, boats, and other surface applications. Its brushless motor, titanium gears, and aluminum middle black case provide a durable setup for demanding use.

Operating at 6.0V, the WP200T-TI delivers 467oz-in (34.2 kg-cm) of dynamic torque and 0.11/60° sec speed. At 8.4V, it delivers 578oz-in (41.6 kg-cm) and 0.09/60° sec speed. The waterproof design is rated for submersion up to 1 meter.

Features

• Brushless motor
• High voltage circuitry
• Titanium gears with Lifetime Gear Warranty
• Aluminum middle black case
• 25T output shaft

Specifications

• Application: 1:10-1/8 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.11/60° sec
• Operating Speed @ 8.4V: 0.09/60° sec
• Dynamic Torque @ 6.0V: 467oz-in (34.2 kg-cm)
• Dynamic Torque @ 8.4V: 578oz-in (41.6 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Titanium w/Lifetime Gear Warranty
• Weight: 61g
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 40.2x20x48.5mm
• Length (Bottom to Mount): 27.5mm

Includes

• WP200T-TI Waterproof High Torque Titanium Gear Brushless Servo
• Aluminum clamping servo horn

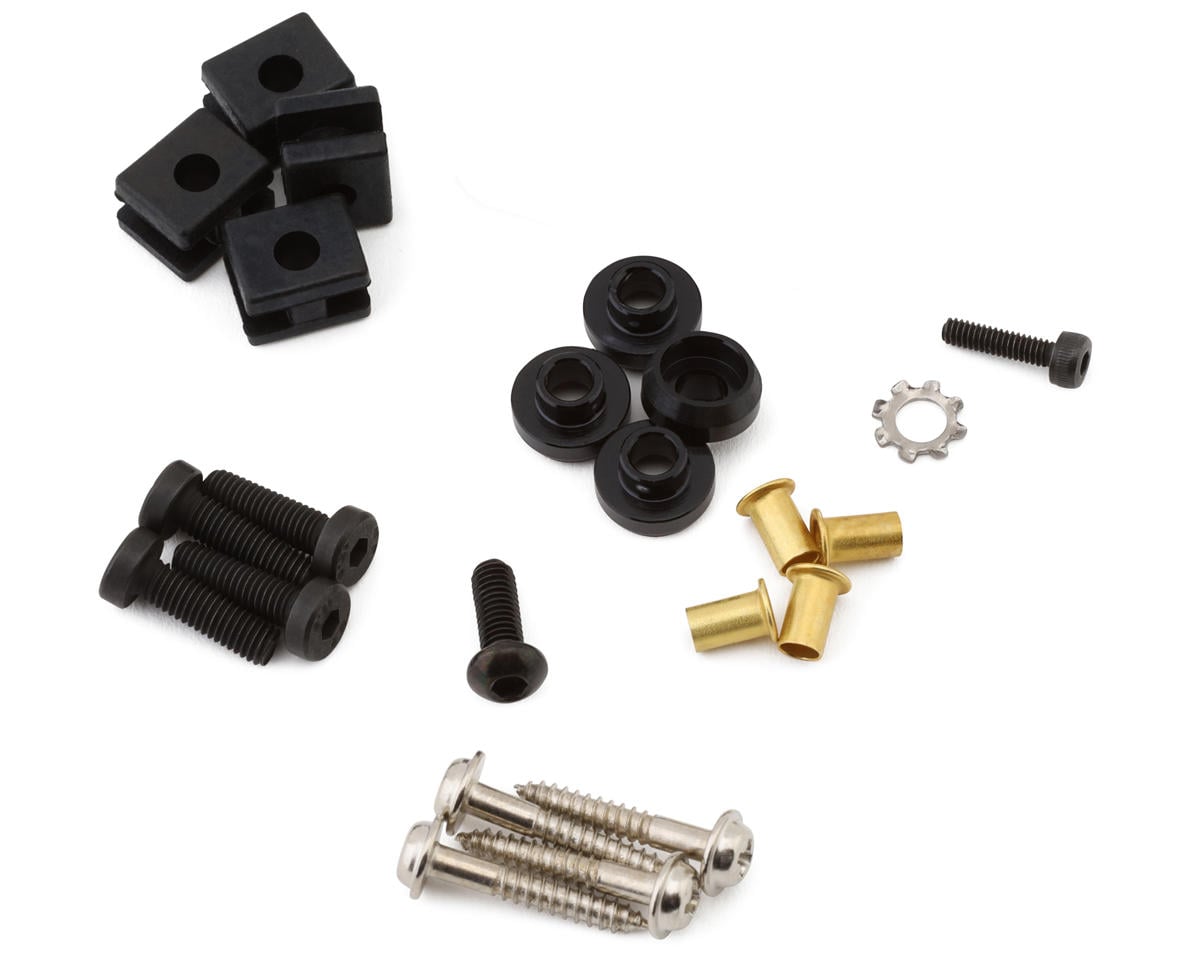

• Servo hardware and grommets
• Lifetime Gear Warranty
