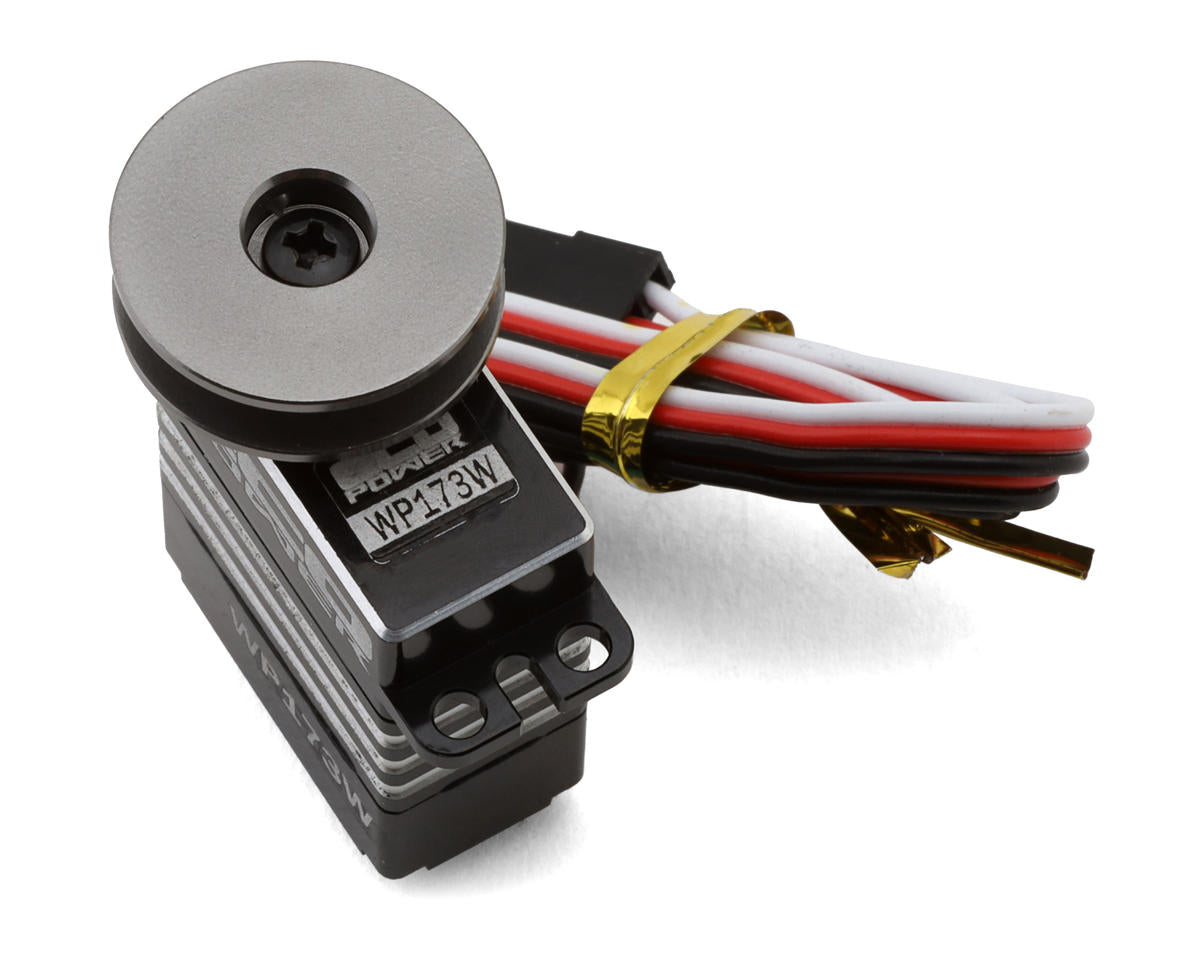

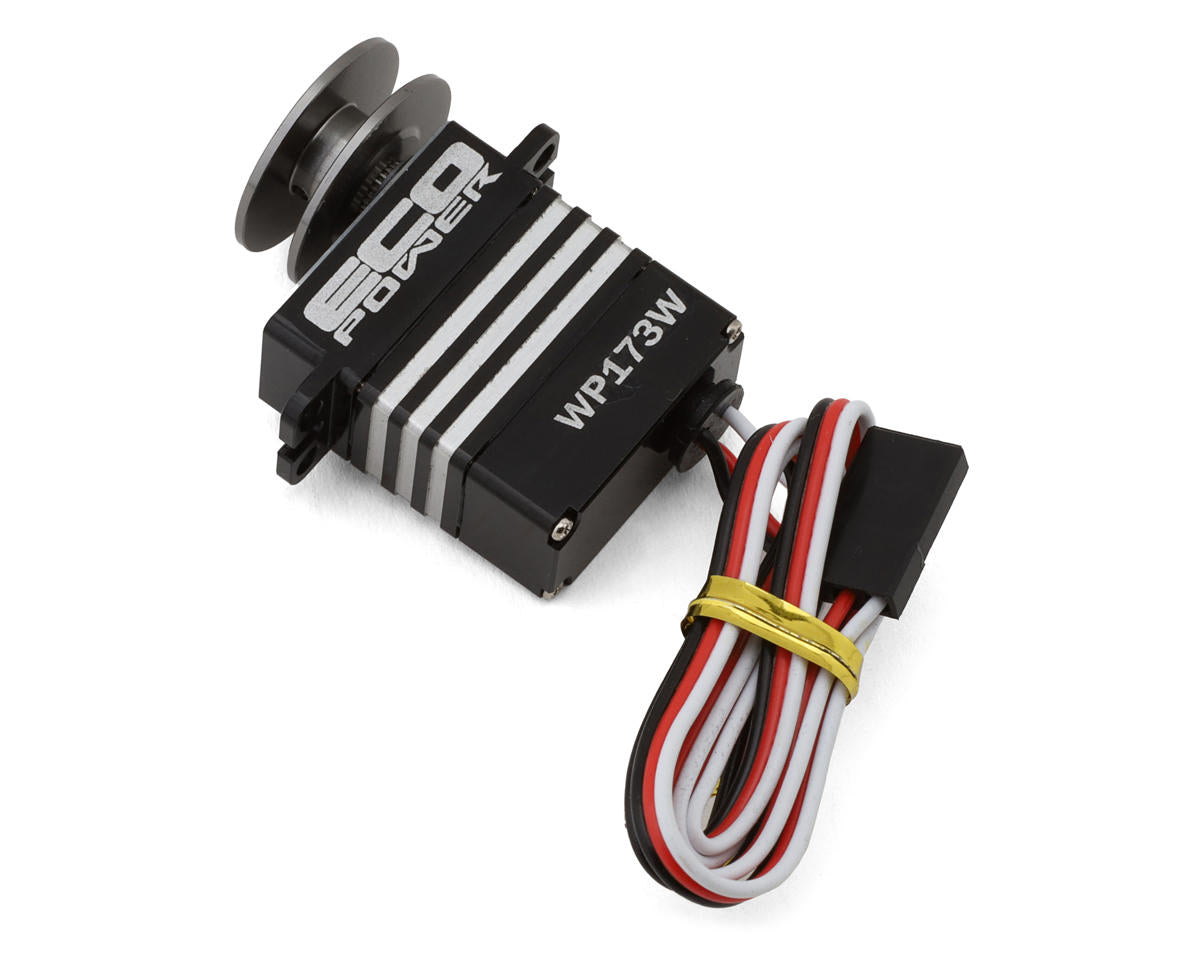

EcoPower WP173W Aluminum Digital Micro Winch Servo (HV) (Waterproof)

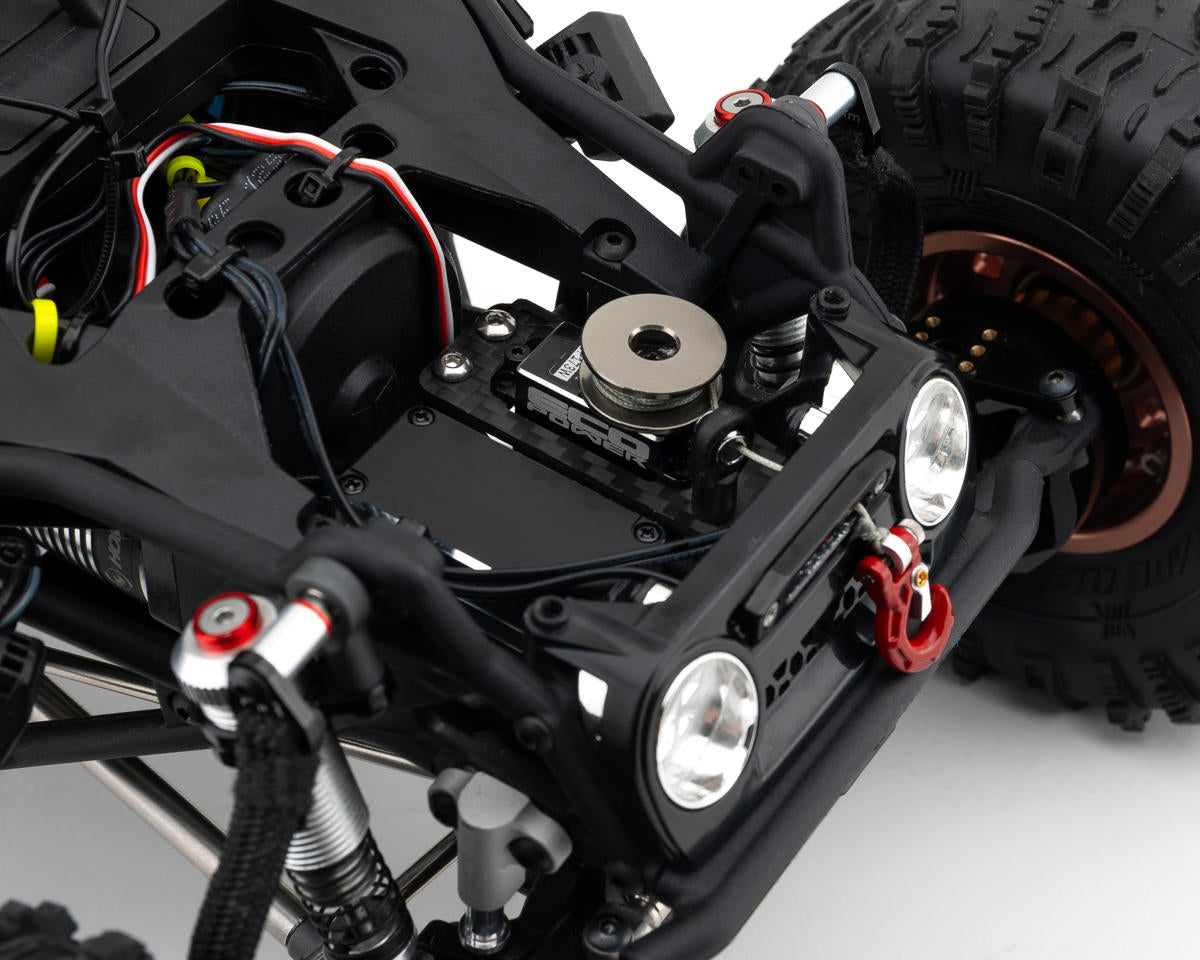

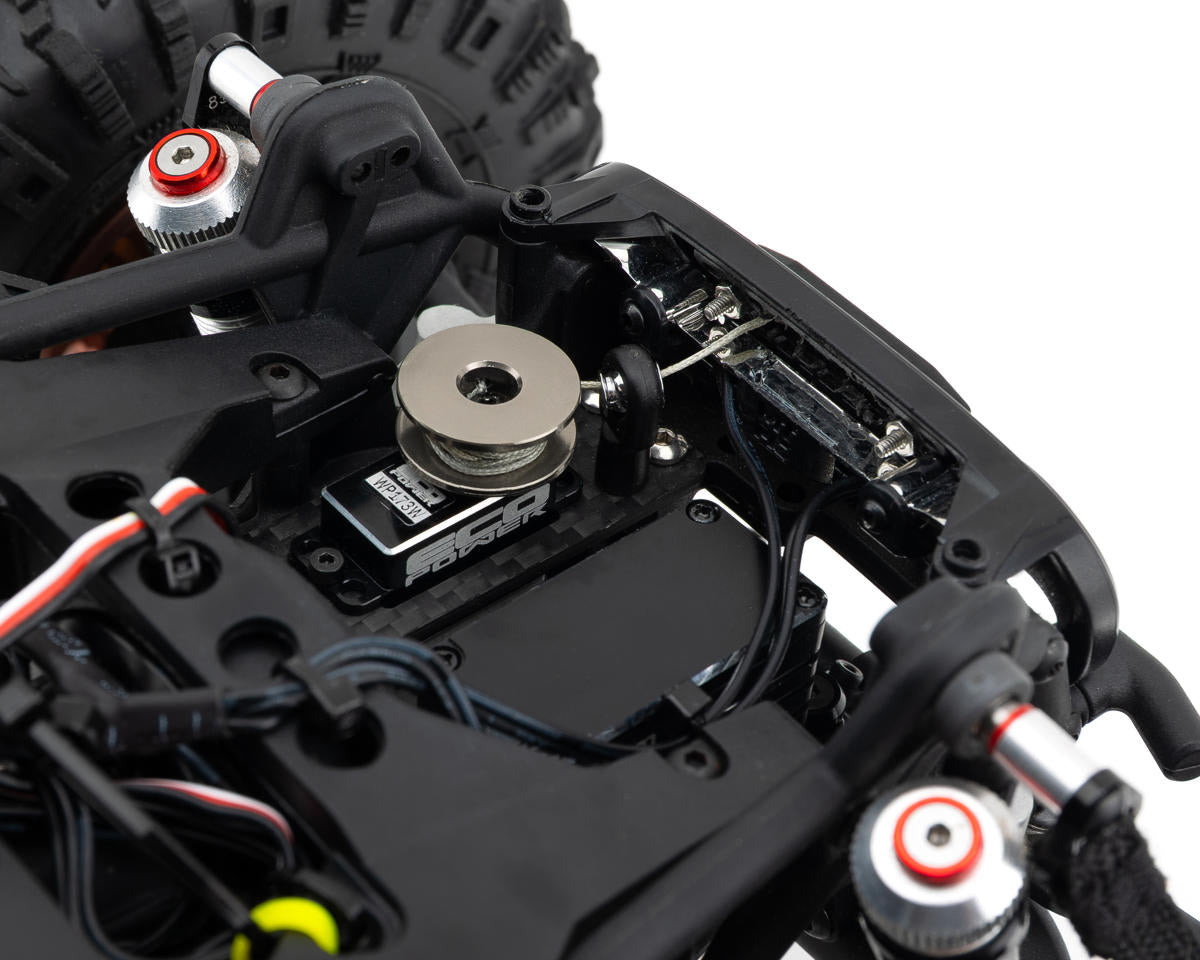

The EcoPower WP173W Aluminum Digital Micro Winch Servo is designed for 1/24, 1/16 and 1/18 scale RC applications. Its 360-degree continuous rotation, low-profile winch spool, winch line and hook provide a dedicated micro winching setup.

The WP173W features an aluminum case, all-steel internal gears, waterproof construction and high-voltage operation from 6V-8.4V. Its Digital Coreless motor and compact size make it a direct upgrade from the EcoPower 173 platform.

Features

• 360-degree continuous rotation
• Custom low-profile winch spool
• All-steel internal gears
• Waterproof construction
• High-voltage compatible up to 8.4V
• Aluminum case
• Compact micro size
• Plug-and-play installation
• Lifetime Gear Warranty

Specifications

• Application: 1/24, 1/16 & 1/18
• Input Voltage: 6V-8.4V
• Speed: @6.0V: 0.09 sec/60°; @8.4V: 0.07 sec/60°
• Torque: @6.0V: 123oz.in (8.9Kg-cm); @8.4V: 173oz.in (12.5Kg-cm)
• Motor: Digital Coreless
• Output Shaft: Mini 25T
• Shaft Diameter: 0.20in (5mm)
• Gear Material: Metal w/Lifetime Gear Warranty
• Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
• Winch Barrel Dimensions (WxH): 0.75x0.26in (19x6.5mm)
• Weight: 0.81oz (23g)

Includes

• WP173W Aluminum Digital Micro Winch Servo
• Aluminum Winch Horn

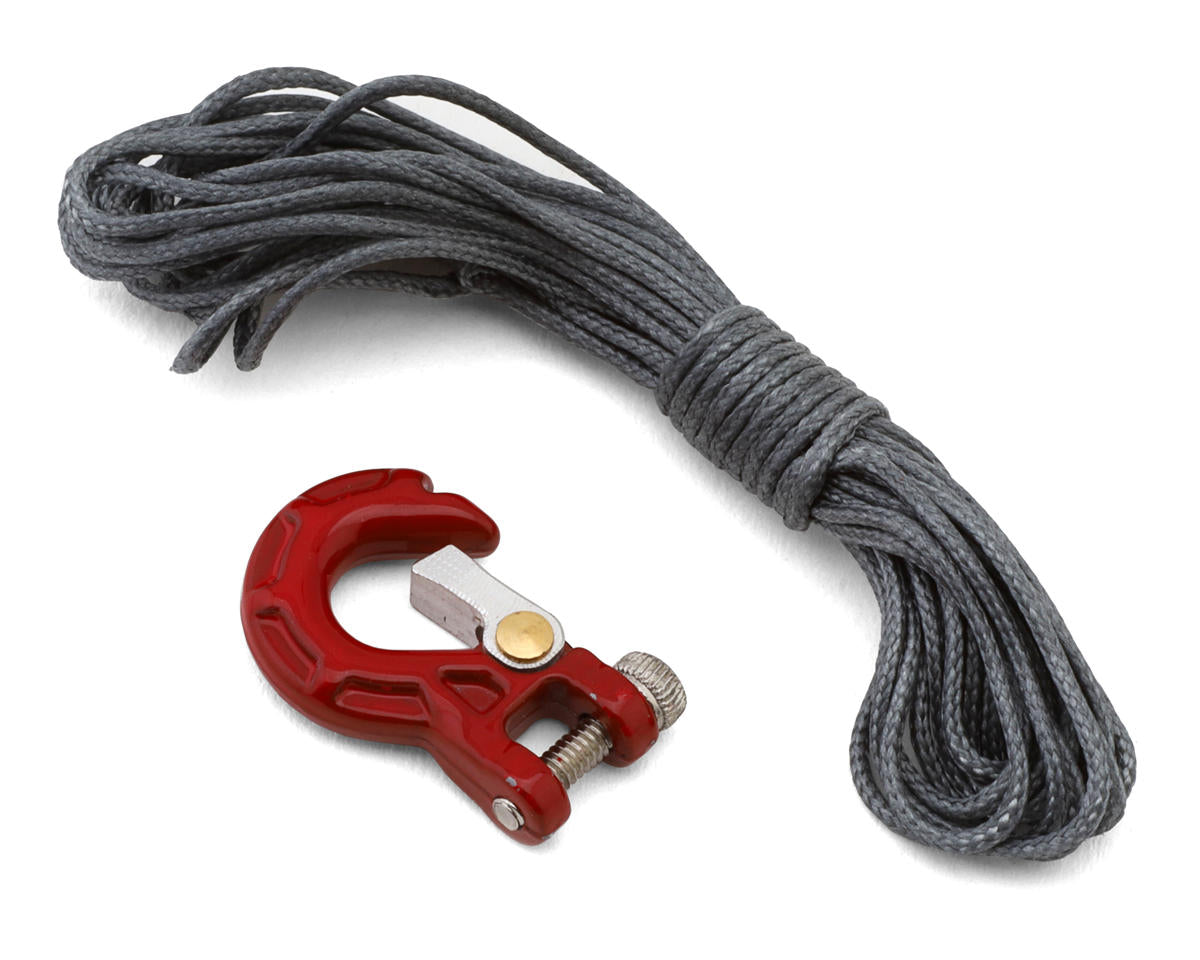

• Winch Hook
• Winch Line
• Mounting Hardware
• Lifetime Gear Warranty

Tech Notes: Do not exceed 8.4 volts as it may damage the servo. Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points.
