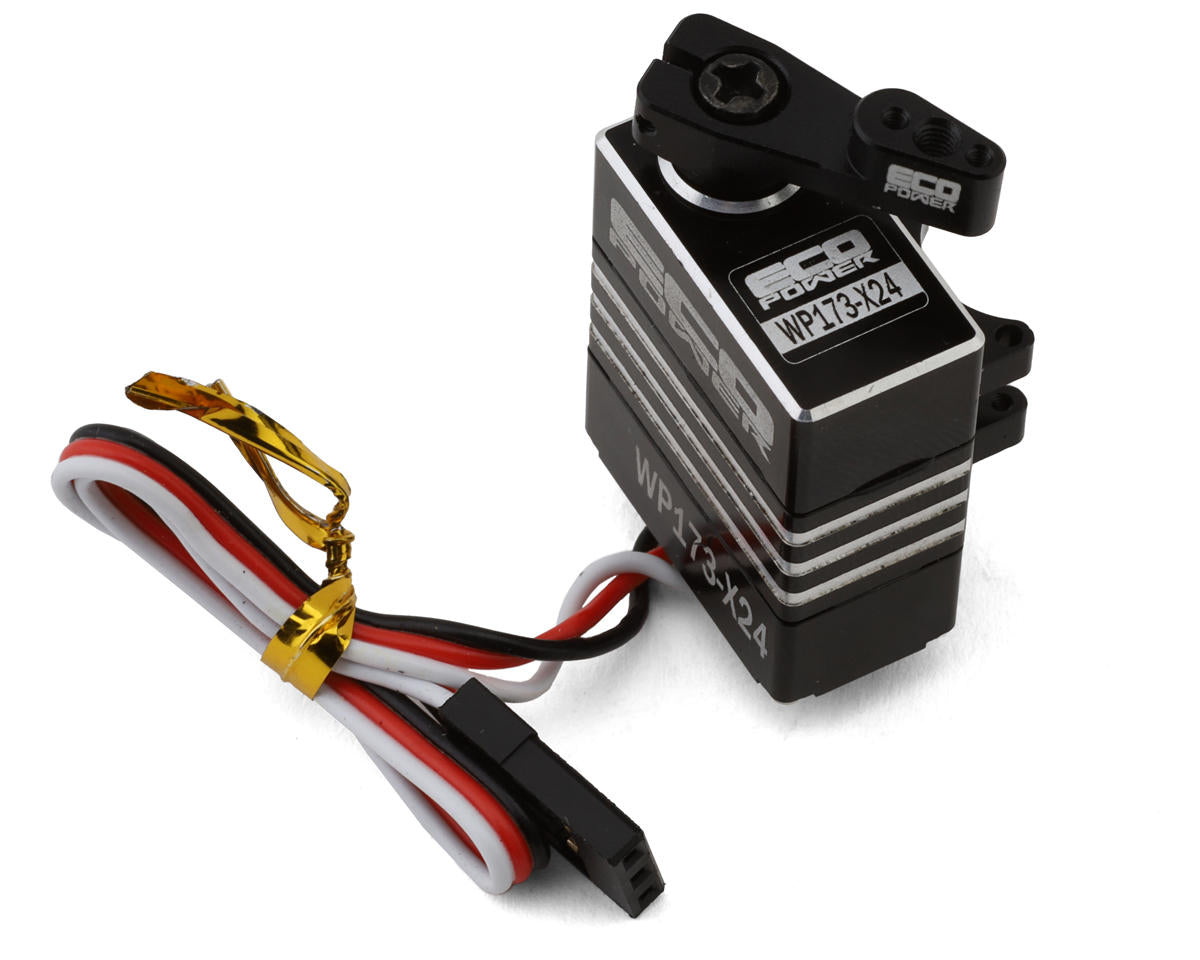

EcoPower WP173-X24 Aluminum Digital Micro Servo Direct Fit For Axial™ SCX24 (HV)

The EcoPower WP173-X24 is an aluminum digital micro servo designed for Axial™ SCX24 platforms, featuring an innovative direct axle and links mount that eliminates the need for a separate servo mount. Its digital coreless motor, metal gears, aluminum case and waterproof design provide a durable upgrade for compatible 1/24 and 1/18 applications.

Features

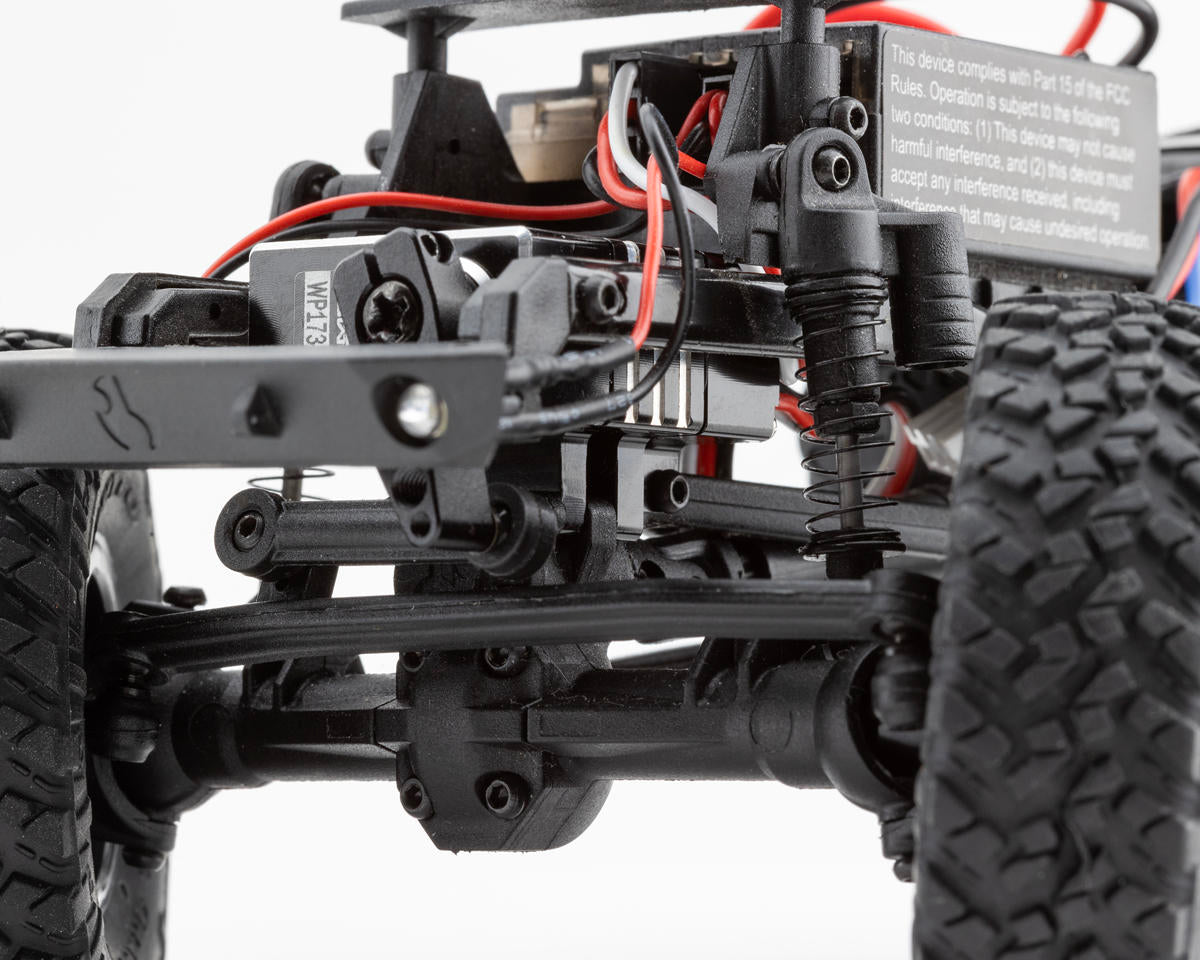

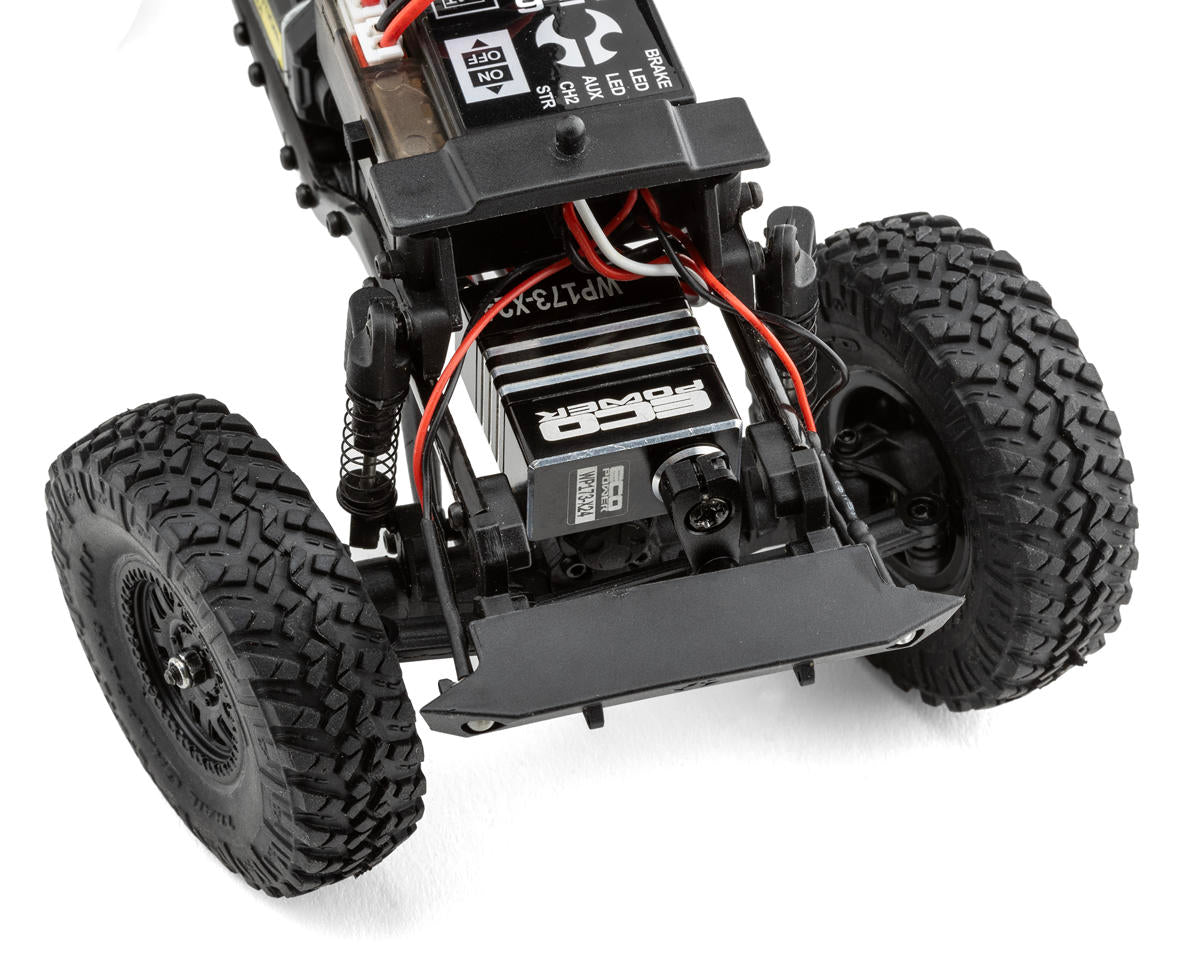

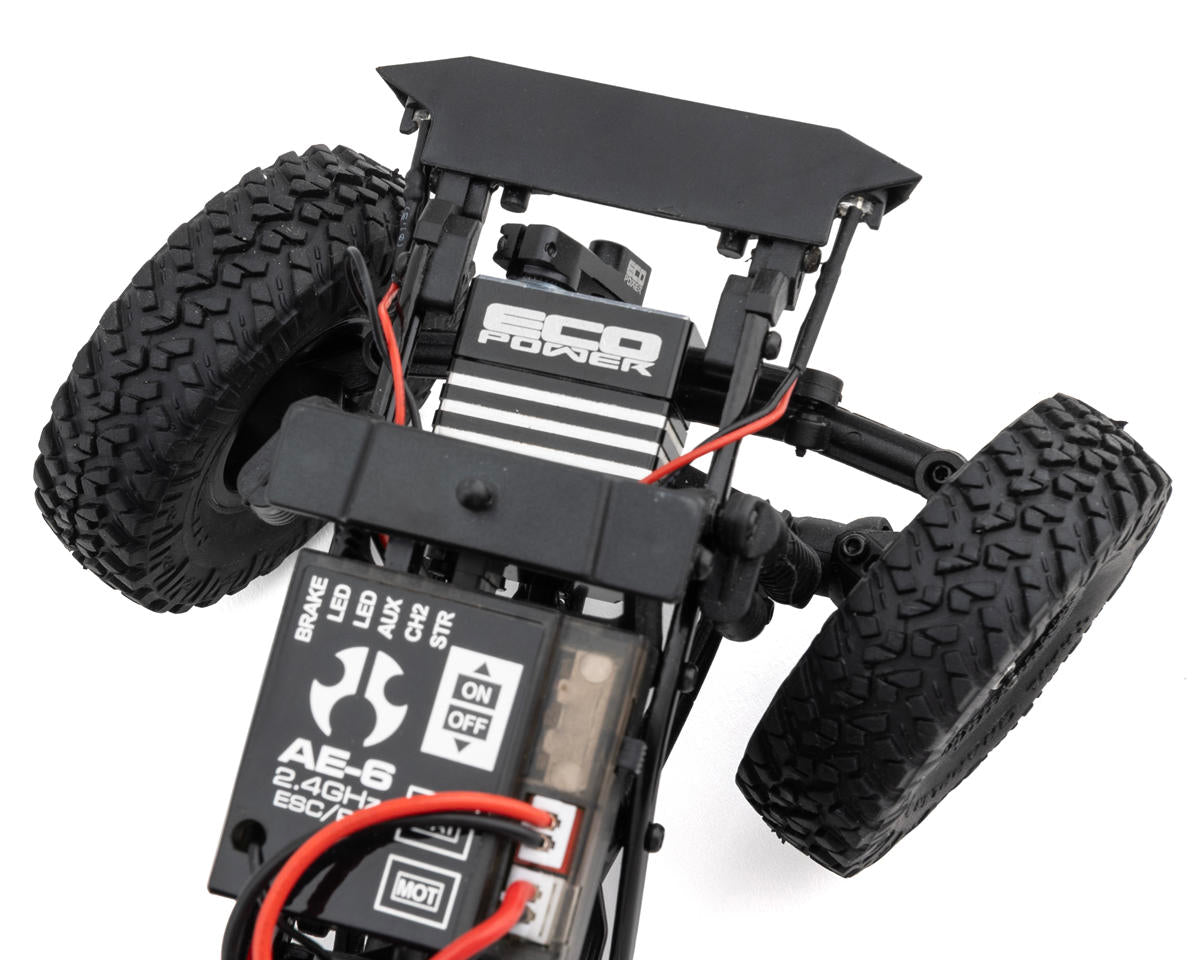

• Direct axle mount for compatible Axial™ SCX24 platforms
• 173oz.in (12.5Kg-cm) of torque at 8.4V
• 0.07 sec/60 at 8.4V
• High-voltage operation from 6V-8.4V
• All CNC-machined aluminum case
• HD all metal gears and output shaft spline
• Mini 25T output shaft
• Digital coreless motor
• Waterproof design
• Lifetime gear warranty
• 1-year warranty

Specifications

• Application: 1/24 & 1/18
• Input Voltage: 6V-8.4V
• Speed @6.0V: 0.09 sec/60
• Speed @8.4V: 0.07 sec/60
• Torque @6.0V: 123oz.in (8.9Kg-cm)
• Torque @8.4V: 173oz.in (12.5Kg-cm)
• Motor: Digital Coreless
• Output Shaft: Mini 25T
• Gear Material: Metal w/Lifetime Gear Warranty
• Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
• Weight: 16g

Includes

• (1) Lifetime Gear Warranty
• (1) WP173-X24 Aluminum Digital Micro Servo
• (1) Aluminum Servo Horn

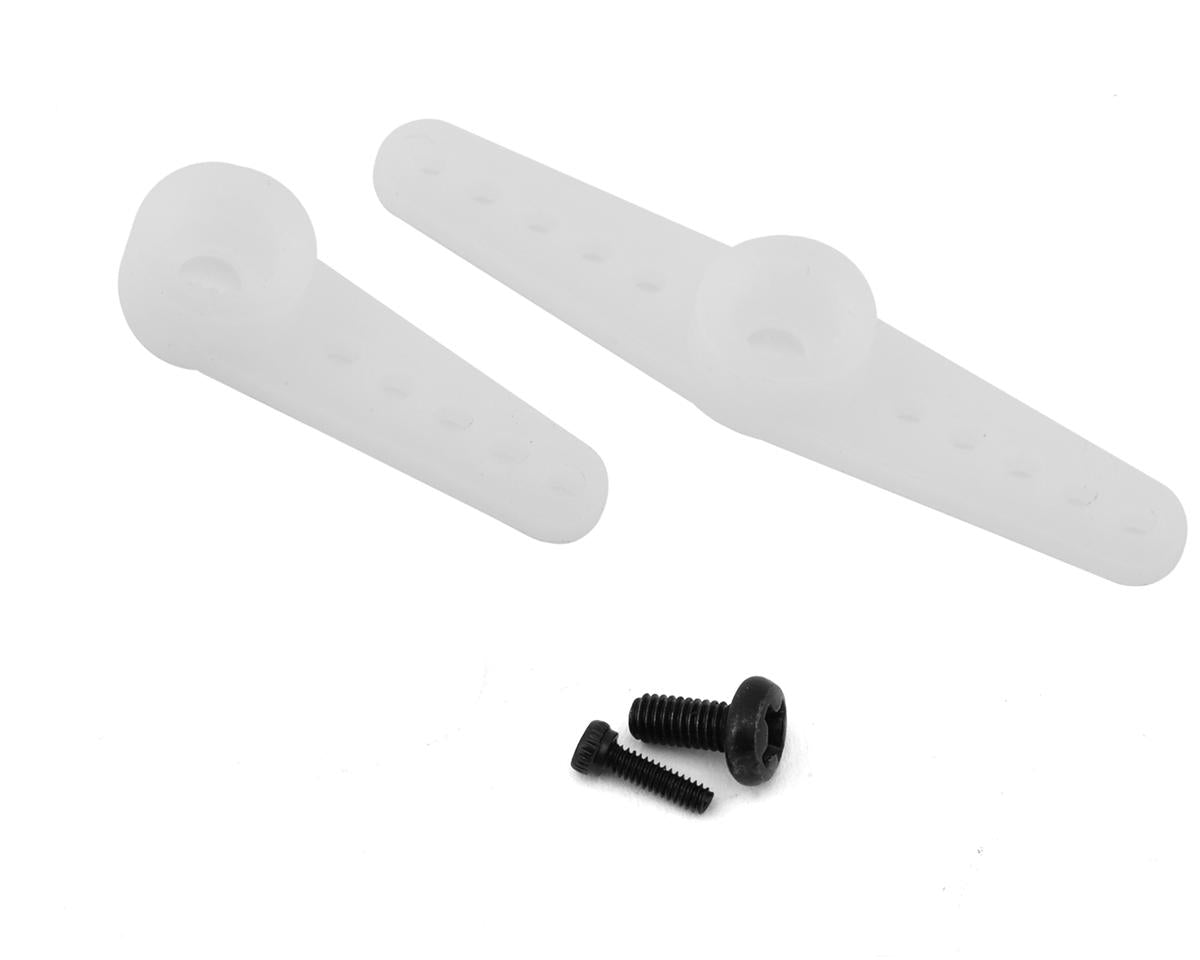

• (2) Composite Servo Horns

Compatibility Notes

• Compatible with all SCX24 platforms and wheelbase except the Deadbolt version.
• Do not exceed 8.4 Volt, as it might damage the servo.
• Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points.
