EcoPower WP173 Aluminum Digital Micro Servo (HV) (Waterproof) for ARRMA™ Groms,

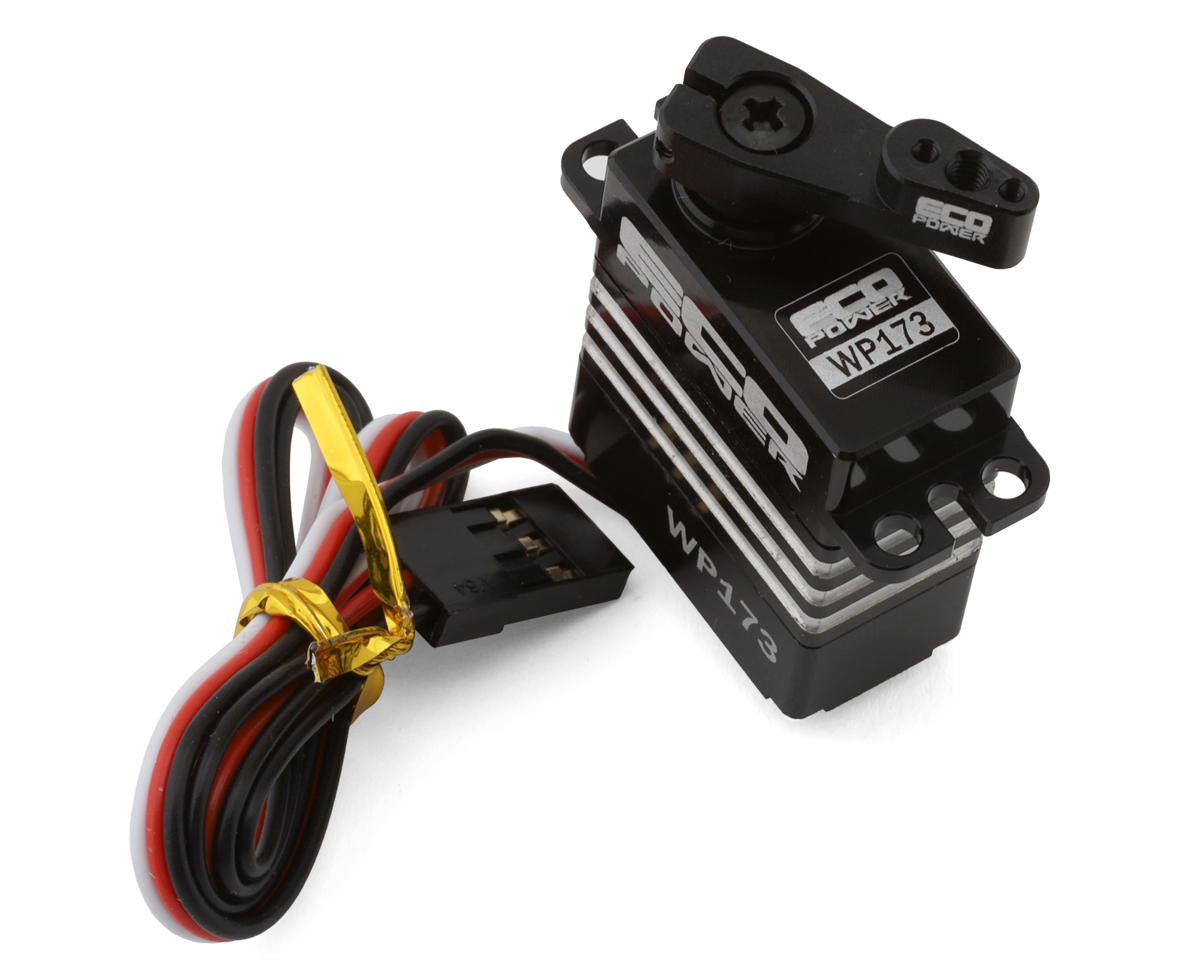

The EcoPower WP173 is a waterproof aluminum digital micro servo for 1/24, 1/16 and 1/18 scale RC models. It features a digital coreless motor, metal gears, a full metal gear ball bearing and a Mini 25T output shaft.

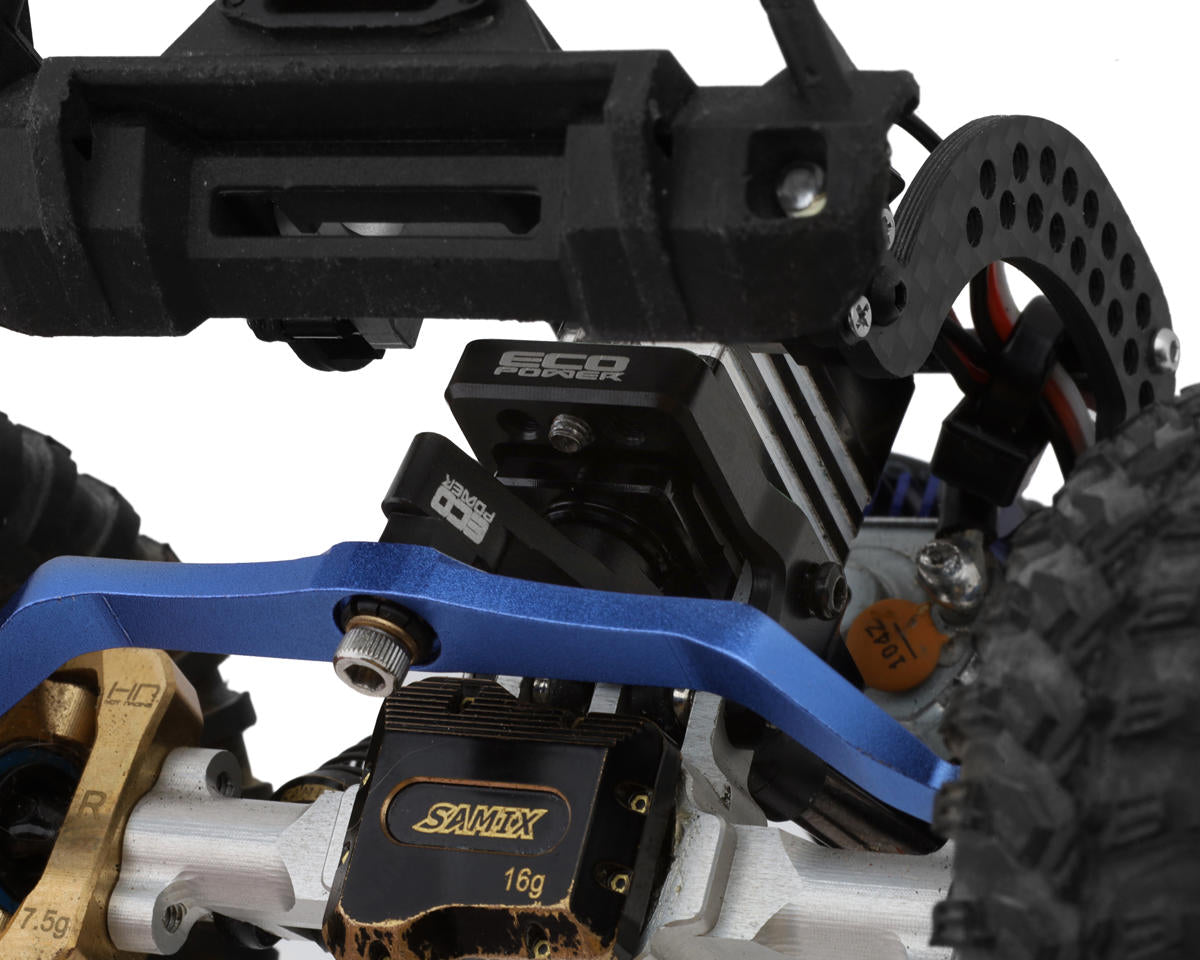

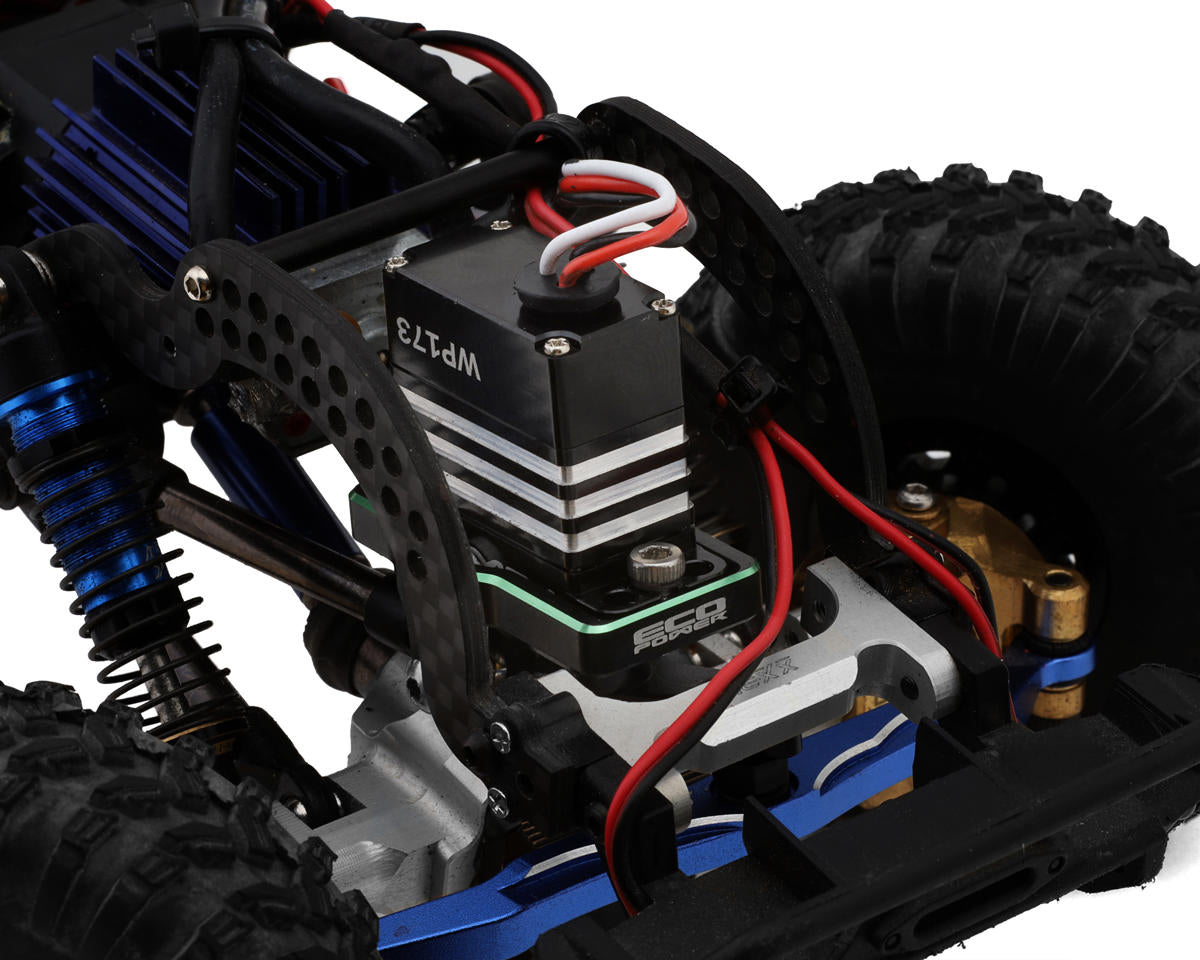

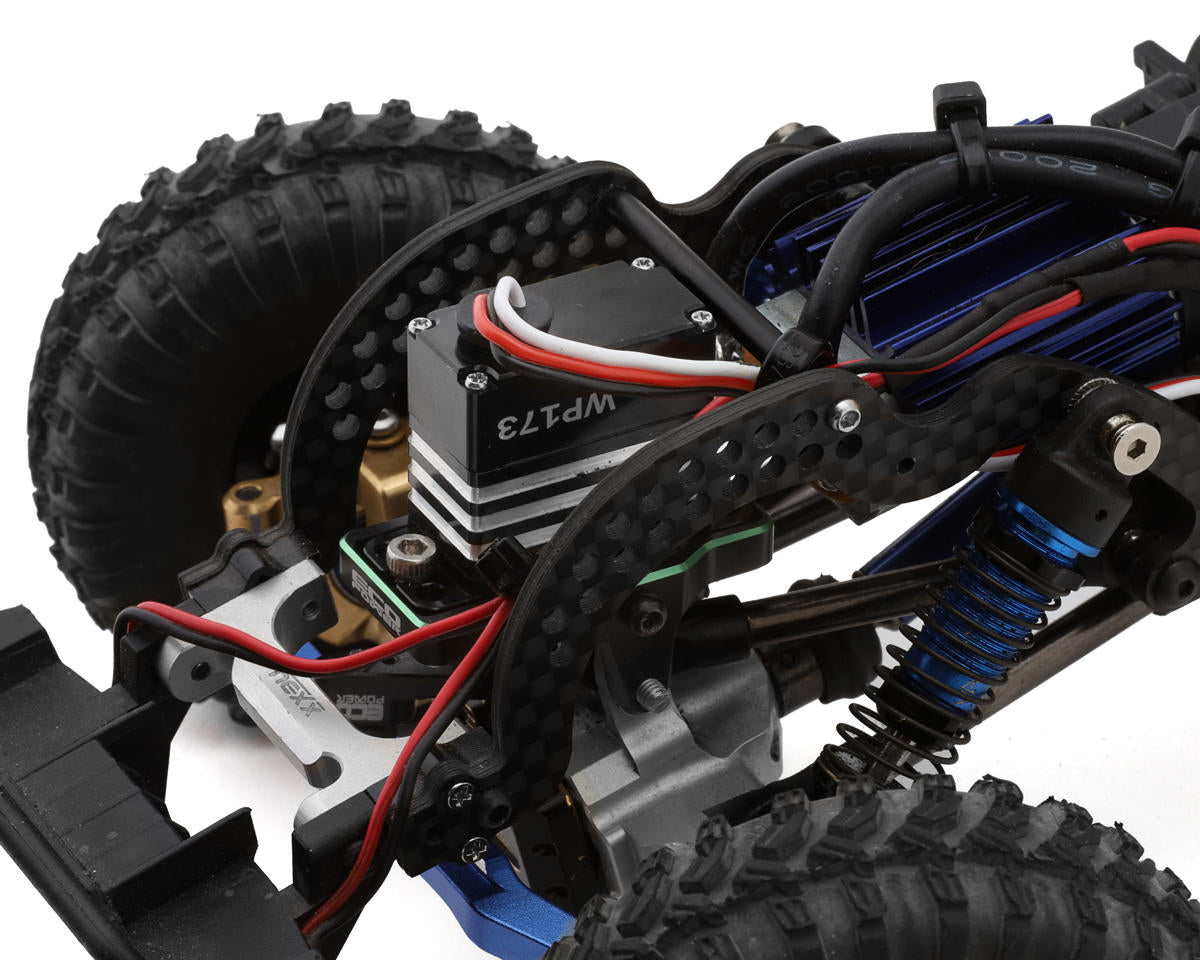

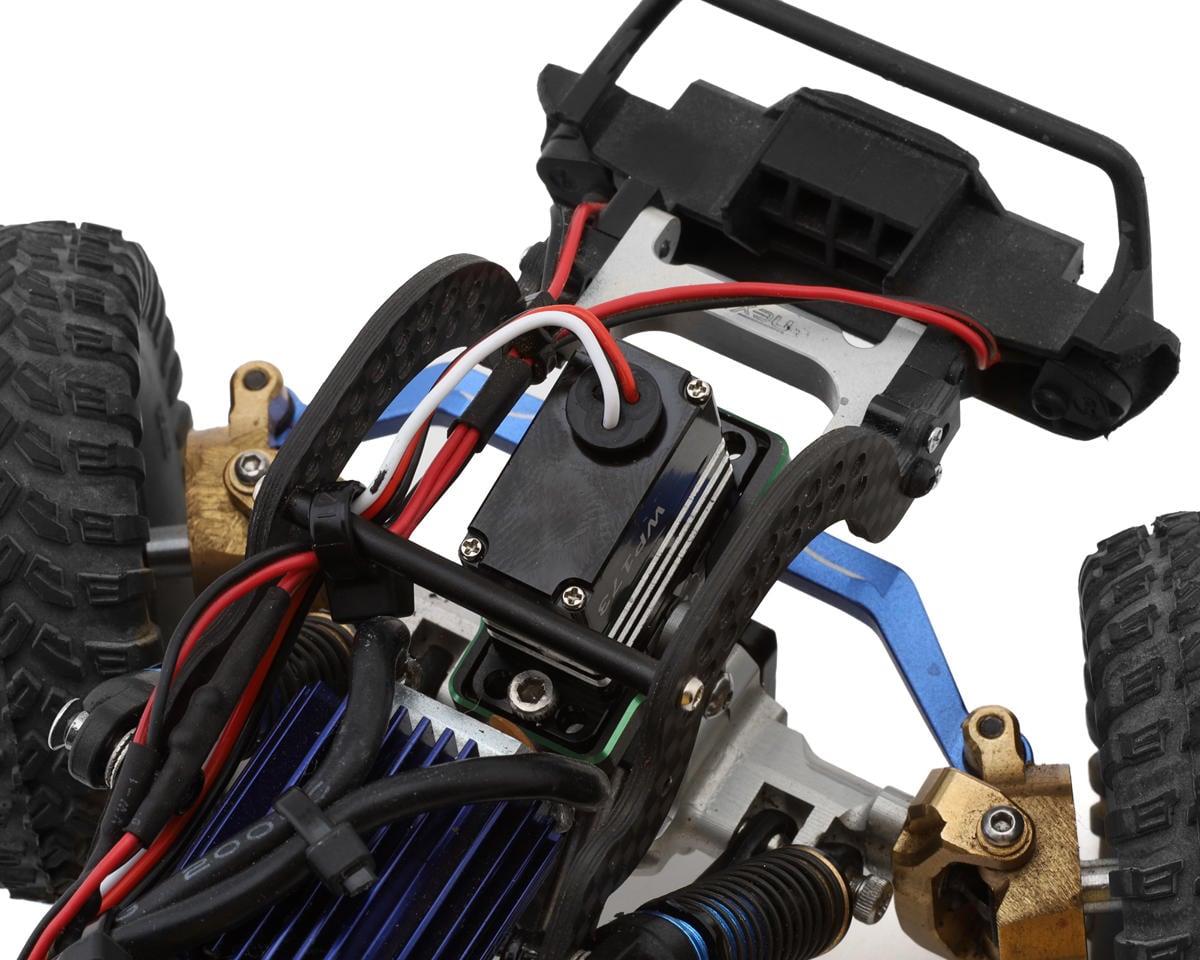

Designed for compact vehicles including ARRMA™ Grom™ platforms, Losi™ NASCAR models and other mini vehicles, the WP173 operates from 6V to 8.4V. It delivers 0.09 sec/60° at 6.0V and 0.07 sec/60° at 8.4V, with torque ratings of 123oz.in (8.9Kg-cm) at 6.0V and 173oz.in (12.5Kg-cm) at 8.4V.

Features

• Lifetime Gear Warranty
• High torque and high speed
• Full metal gear ball bearing
• Waterproof aluminum case
• Aluminum servo horn included
• Compatible with most 1/16 and 1/18 scale models
• Digital coreless motor
• Operating voltage range: 6V-8.4V
• Standard twenty-five tooth output shaft
• Aluminum case

Specifications

• Application: 1/24, 1/16 & 1/18
• Input Voltage: 6V-8.4V
• Speed: @6.0V: 0.09 sec/60°; @8.4V: 0.07 sec/60°
• Torque: @6.0V: 123oz.in (8.9Kg-cm); @8.4V: 173oz.in (12.5Kg-cm)
• Motor: Digital Coreless
• Output Shaft: Mini 25T
• Shaft Diameter: 0.20in (5mm)
• Gear Material: Metal w/Lifetime Gear Warranty
• Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
• Weight: 0.81oz (23g)

Includes

• (1) Lifetime Gear Warranty
• (1) WP173 Aluminum Digital Micro Servo
• (1) Aluminum Servo Horn

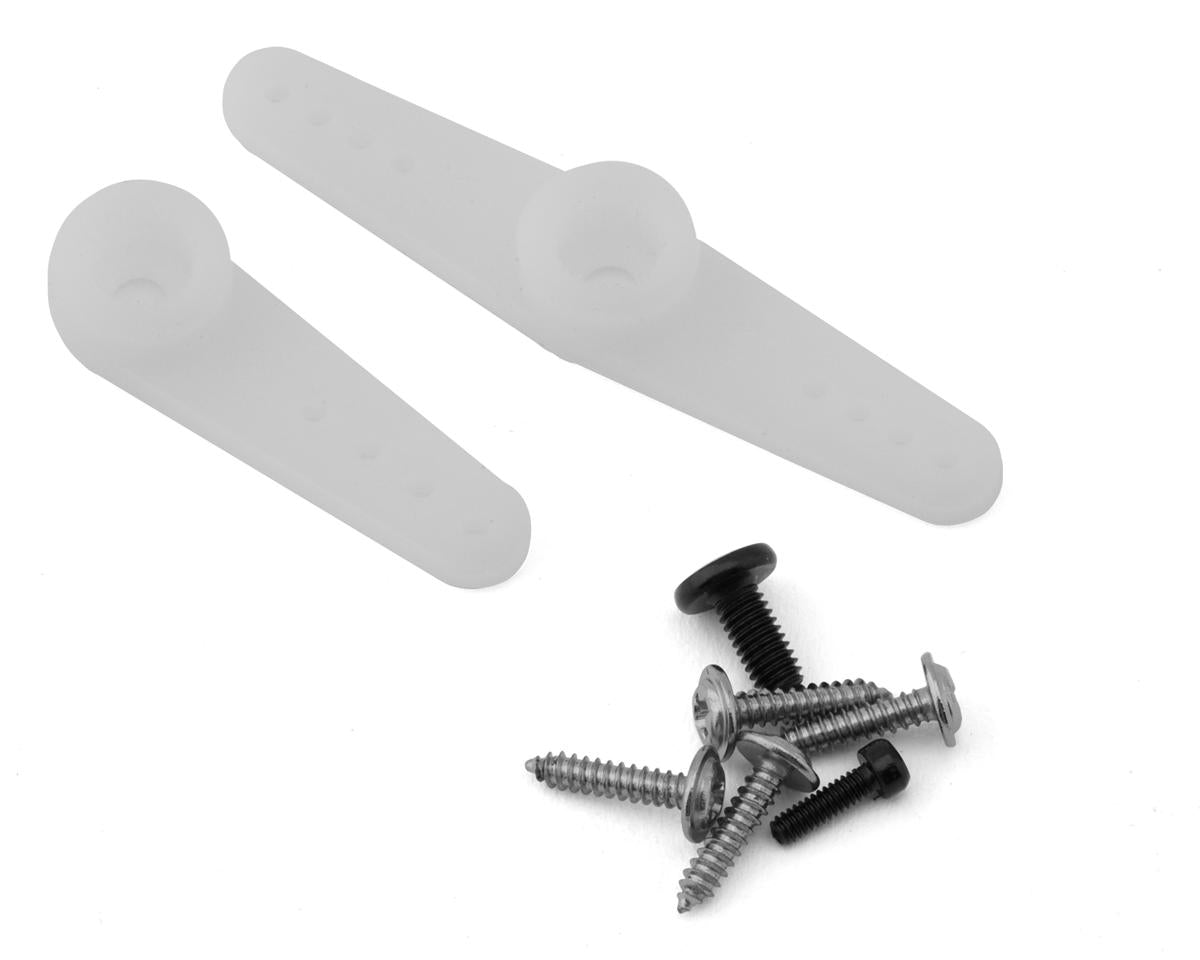

• (2) Composite Servo Horns
• Mounting Hardware

Notes

• For Traxxas® TRX-4M™ 1/18 platforms, the EcoPower CNC-Machined Aluminum Servo Mount (ECP-3072) must be equipped for a precise fit; it is available separately.
• Do not exceed 8.4 volts, as it may damage the servo.
• Although the servo is waterproof, submerging it for longer periods may degrade and decay the seal points.
