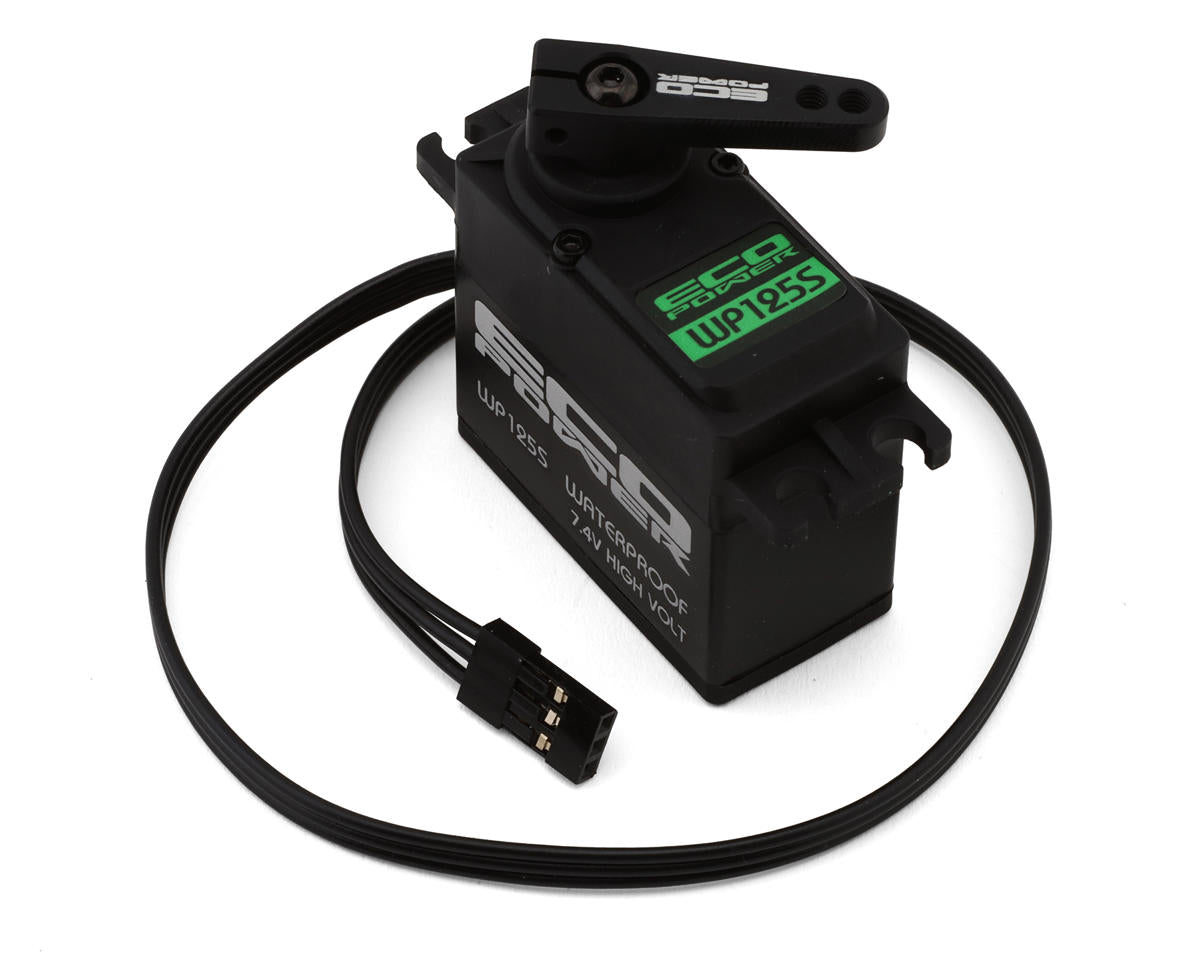

EcoPower WP125S Waterproof High Speed Metal Gear Digital Servo (HV)

The EcoPower WP125S Waterproof High Speed Metal Gear Digital Servo delivers fast response and strong steering torque for 1/10 and 1/8 applications. Its digital circuitry, full steel geartrain, 25T output shaft, and waterproof rating to one meter make it suited to demanding RC use.

Features

• Dynamic torque of 360oz-in (25.9 kg-cm) at 7.4V
• Operating speed of 0.07/60° sec at 7.4V
• 6-8.4V operating voltage
• Full steel geartrain with Lifetime Gear Warranty
• Digital circuitry for precise movement and modern stability systems
• Waterproof rating to one meter
• Coreless motor
• Rugged case design

Specifications

• Application: 1/10 & 1/8
• Operating Voltage: 6-8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.09/60° sec
• Operating Speed @ 7.4V: 0.07/60° sec
• Dynamic Torque @ 6.0V: 285oz-in (20.5 kg-cm)
• Dynamic Torque @ 7.4V: 360oz-in (25.9 kg-cm)
• Motor Type: Coreless
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.53in (39.5x20x38.9mm)
• Weight: 2.51oz (71.1g)

Includes

• WP125S Waterproof High Speed Metal Gear Digital Servo
• Aluminum Clamping Servo Horn (25T)

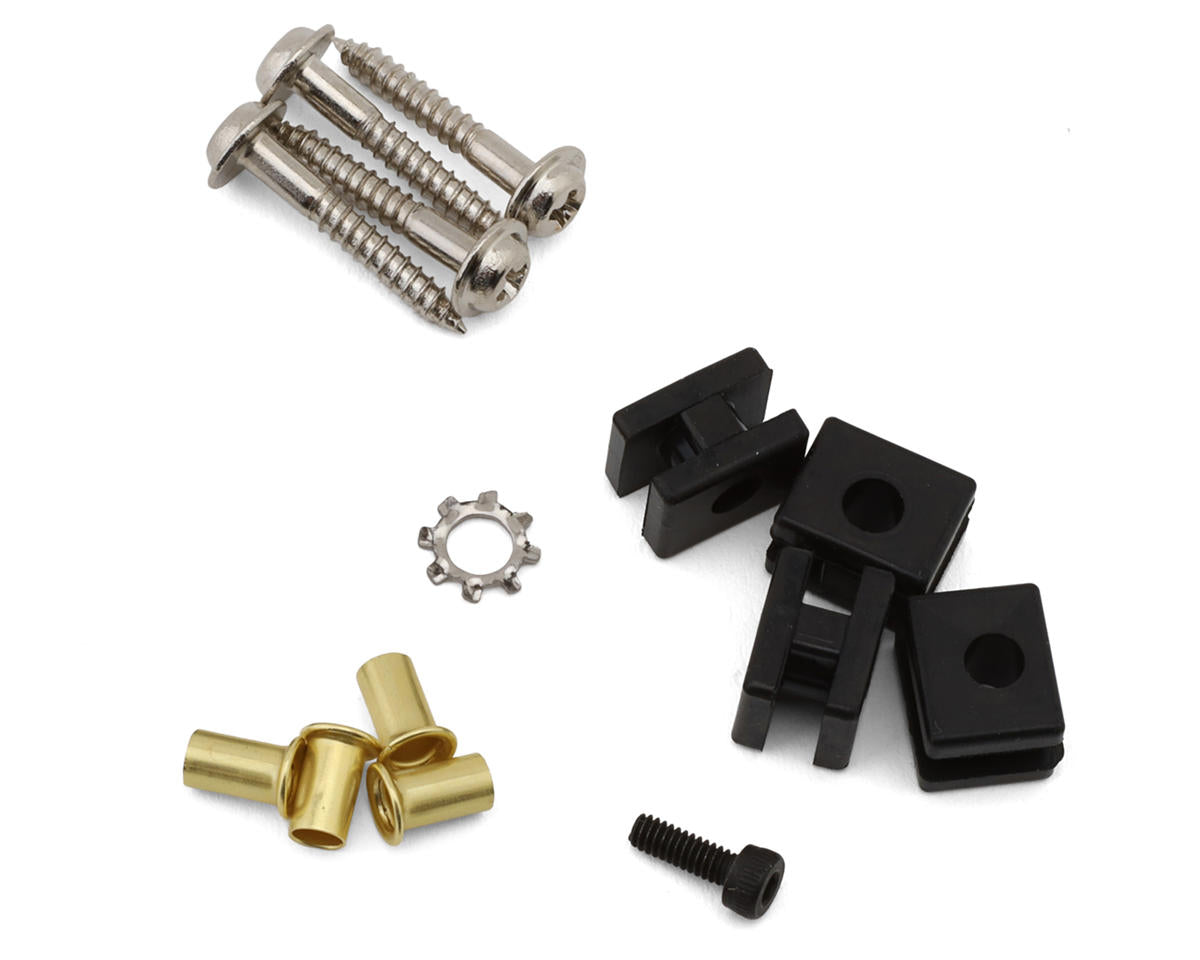

• Servo Hardware & Grommets
• Lifetime Gear Warranty
