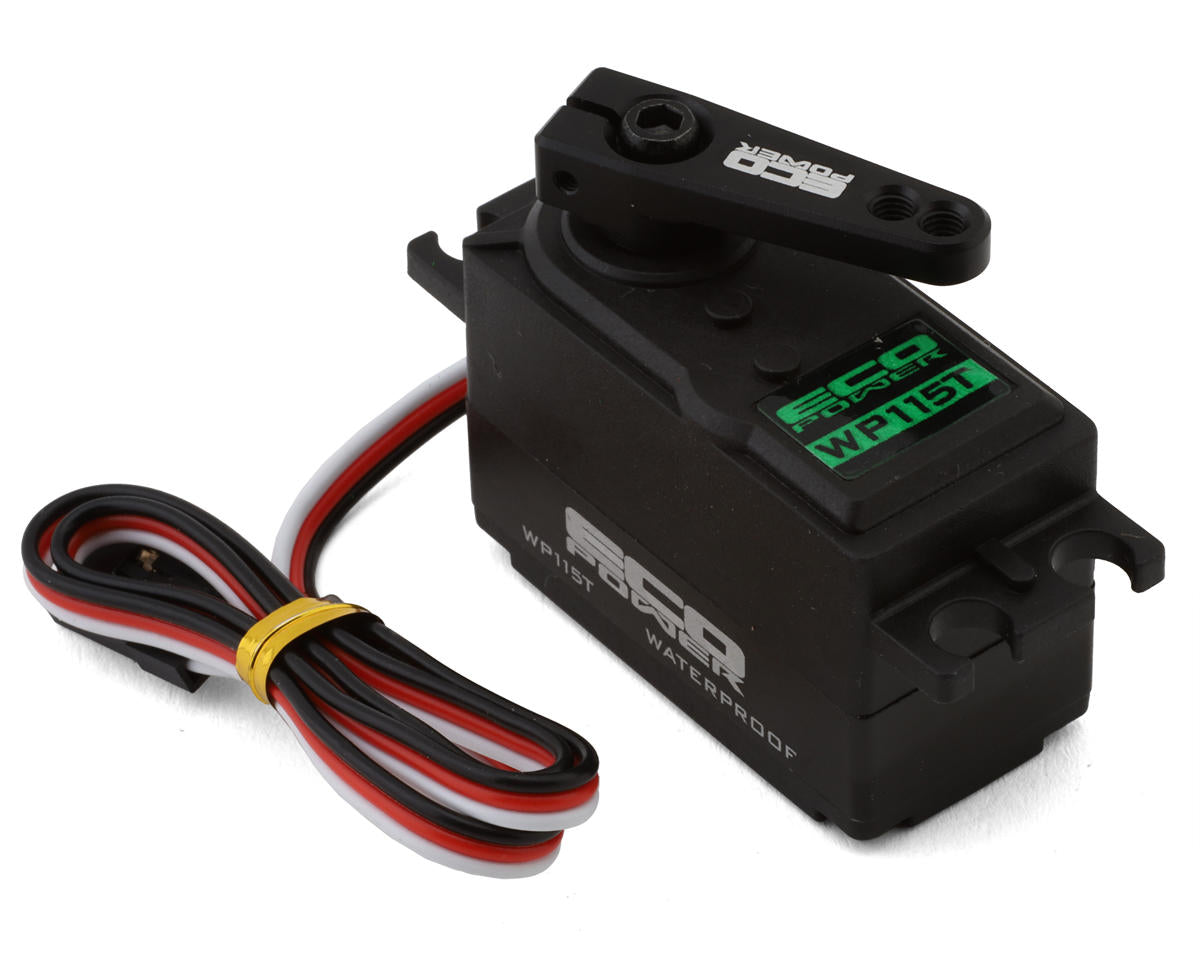

EcoPower WP115T Low Profile Waterproof High Torque Metal Gear Servo

The EcoPower WP115T is a low-profile, waterproof digital servo designed for 1/10 2WD buggies and shift/dig applications. It features a cored DC motor, metal gears, ball bearing control, and 178 oz-in of dynamic torque at 7.4V.

Features

• Low-profile design for 1/10 on-road and off-road applications
• Waterproof digital circuitry
• Dynamic torque up to 178 oz-in (12.8 kg-cm) at 7.4V
• All-metal gear drivetrain with lifetime gear warranty
• Cored DC motor
• 25 Tooth output shaft

Specifications

• Servo Model: 115T
• Operating Voltage: 4.8V - 7.4V
• Operating Speed @ 4.8V: 0.13/60° sec
• Operating Speed @ 6.0V: 0.10/60° sec
• Operating Speed @ 7.4V: 0.08/60° sec
• Dynamic Torque @ 4.8V: 108 oz-in (4.4 kg-cm)
• Dynamic Torque @ 6.0V: 127 oz-in (6.4 kg-cm)
• Dynamic Torque @ 7.4V: 178 oz-in (12.8 kg-cm)
• Motor Type: Cored DC
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 44.5g
• Dimensions: 41.2x20.0x32.8mm (LxWxH)

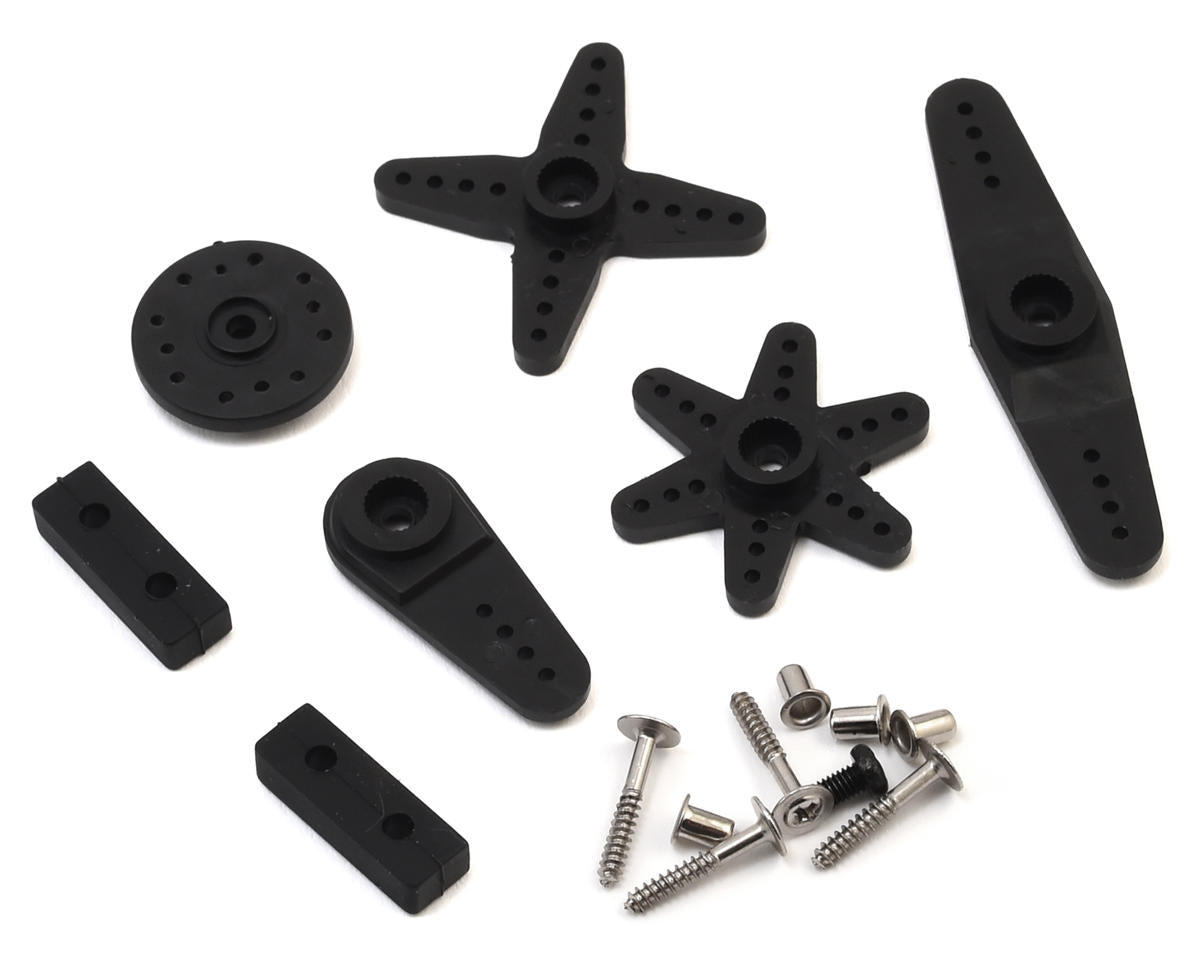

Package Contents

• One servo
• One servo mount set
• Five molded servo horns
• Hardware

Warranty and Setup Note

Includes a 1 Year warranty against manufacturer defects. Warranty does not cover stripped gears or damage caused by abuse. Set your End Point Adjustments when using this servo to help ensure long life and performance.
