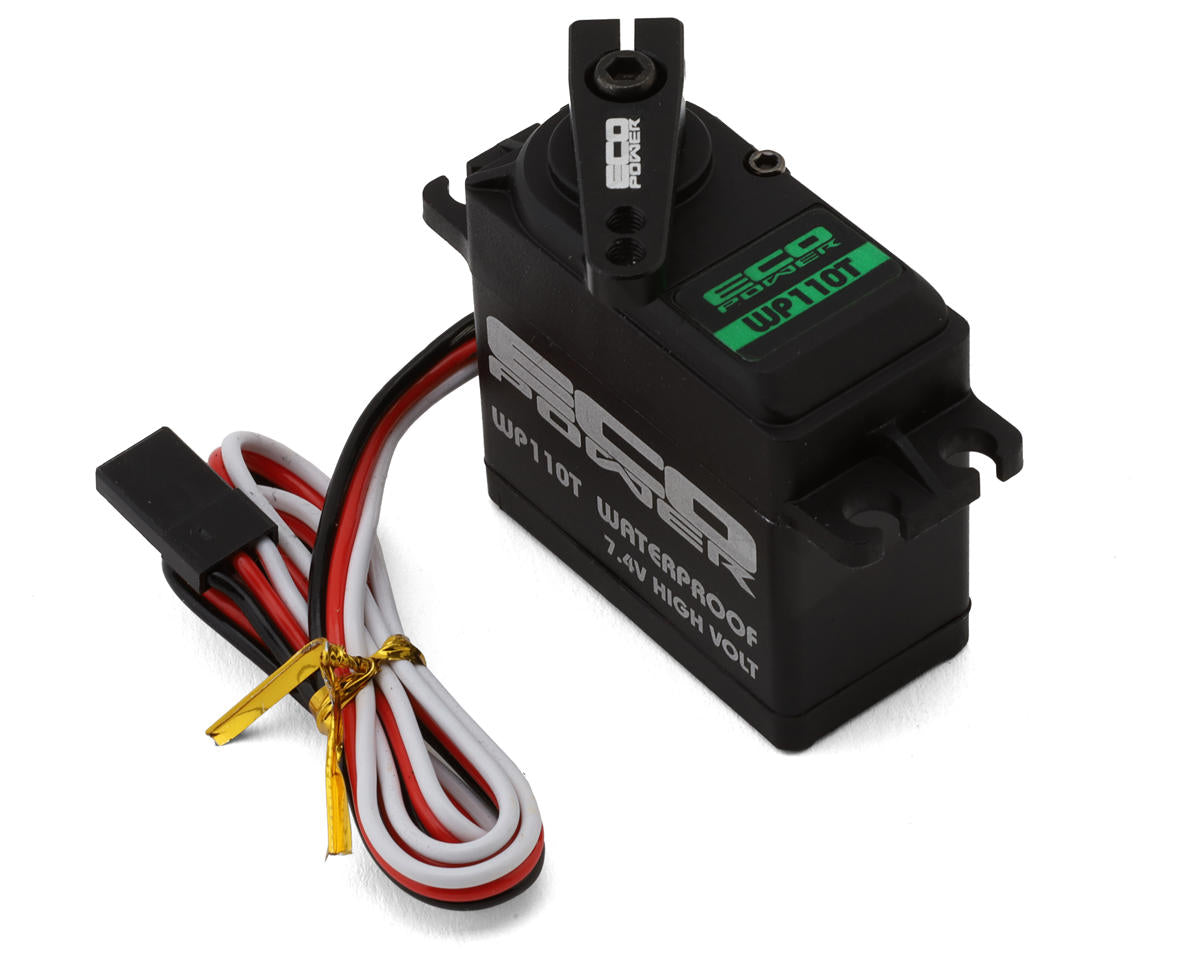

EcoPower WP110T Waterproof High Torque Metal Gear Servo

The EcoPower WP110T is a waterproof, high-torque metal gear servo for 1/10 scale surface applications. It delivers 280 oz-in of dynamic torque at 6.0V, with digital circuitry for compatibility with vehicles using traction control or gyro systems.

Features

• Waterproof up to 1 meter
• Metal gears with Lifetime Gear Warranty
• Cored DC motor
• Dual ball bearings
• Lightweight plastic upper and lower case with black anodized aluminum center case
• Includes one aluminum clamping servo horn

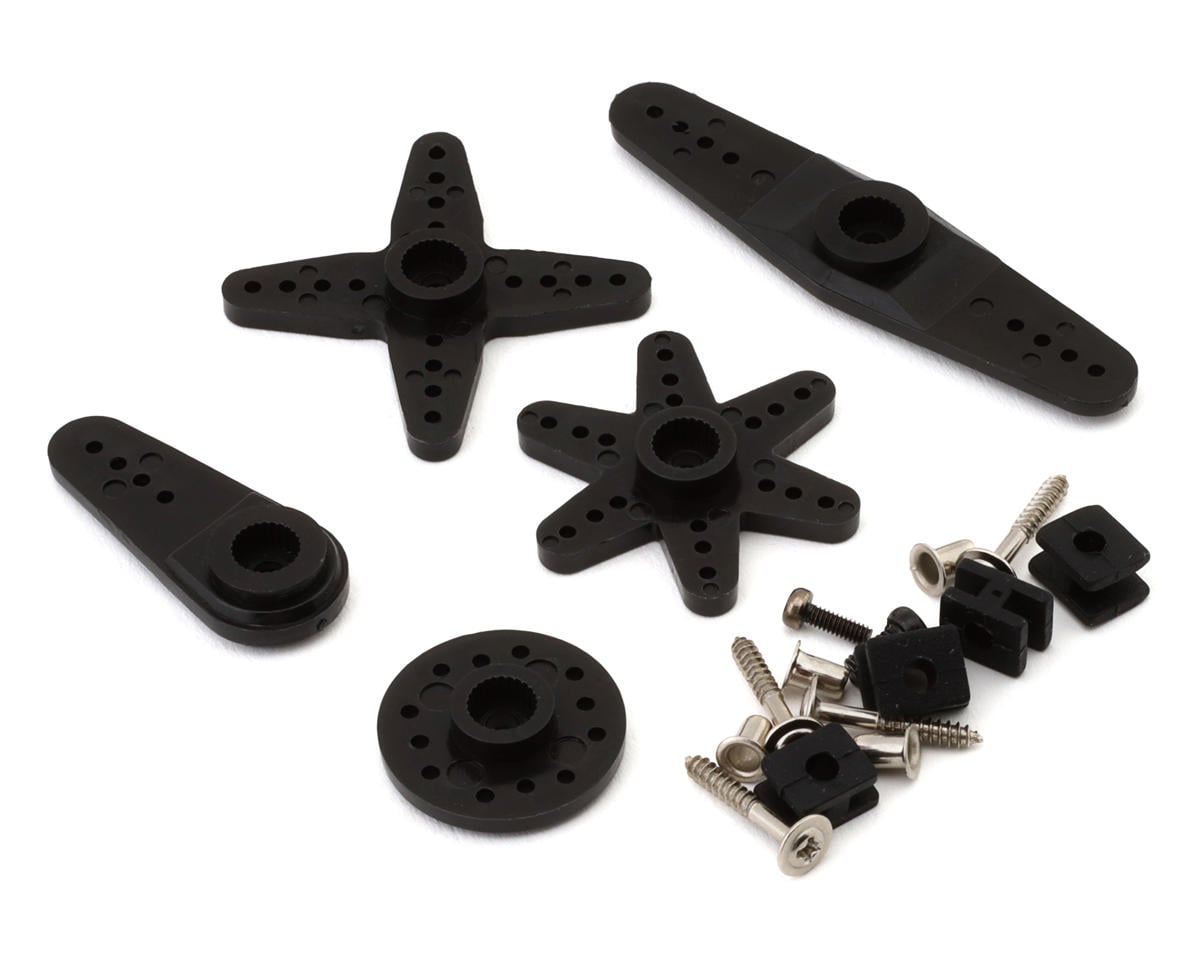

• Includes plastic star, 4-way, dual, single and round arm type servo horns and mounting hardware
• 220mm servo lead
• 1 year warranty against manufacturer defects; warranty does not cover stripped gears or damage caused by abuse

Specifications

• Servo model: WP110T
• Recommended application: 1/10 Scale Surface
• Operating voltage: 4.8V - 7.4V
• Operating temperature: 14° to 140° F (-10 to +60° C)
• Operating speed @ 4.8V: 0.18/60° sec
• Operating speed @ 6.0V: 0.16/60° sec
• Operating speed @ 7.4V: 0.14/60° sec
• Dynamic torque @ 4.8V: 175 oz-in (12.6 kg-cm)
• Dynamic torque @ 6.0V: 280 oz-in (20.1 kg-cm)
• Dynamic torque @ 7.4V: 334 oz-in (23.9 kg-cm)
• Motor type: Cored DC
• Output shaft: 25 Tooth
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 1.87oz (53g)
• Pulse/Frequency: 1520µs / 333hz

Note: Set your End Point Adjustments when using this servo to help ensure long life and performance.
