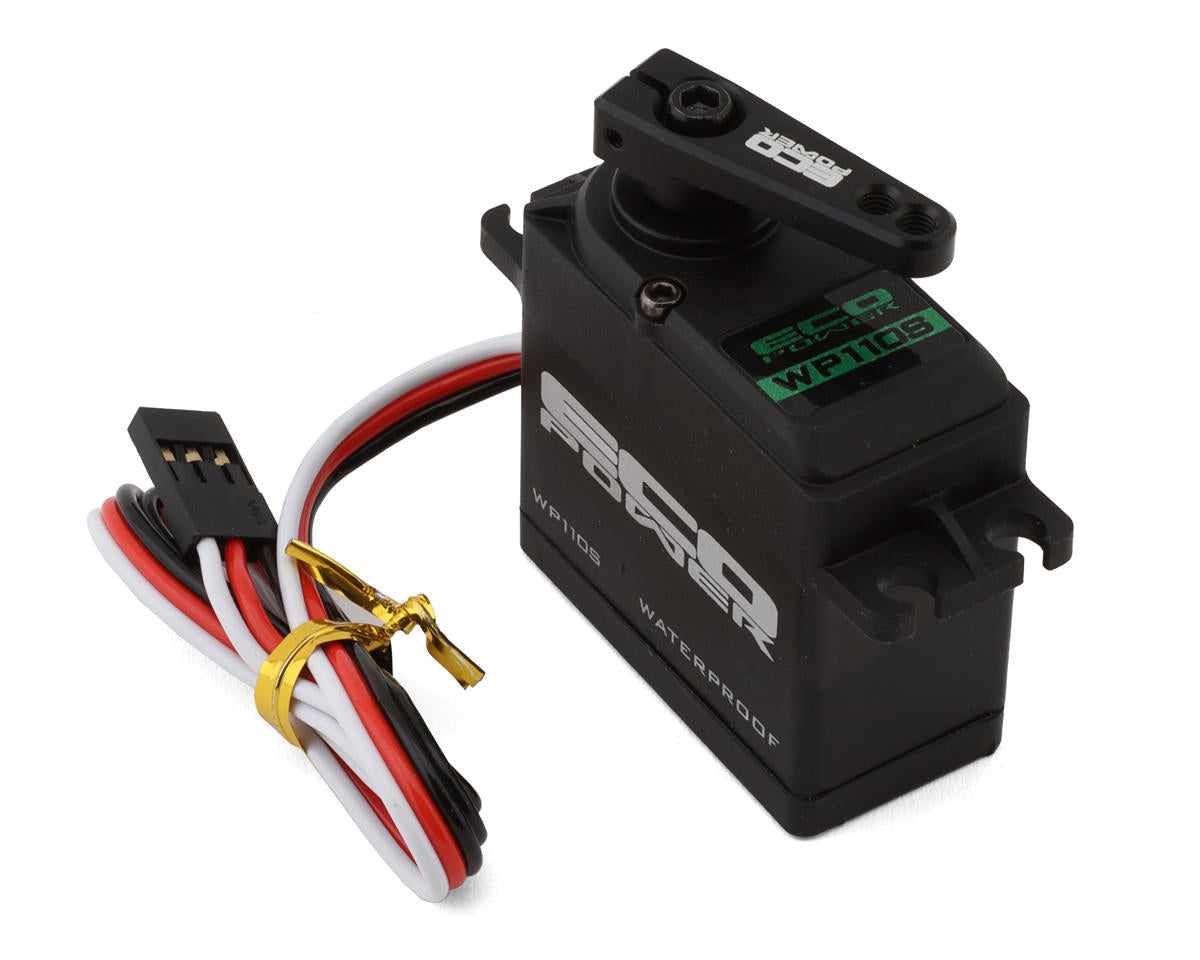

EcoPower WP110S Waterproof High Speed Metal Gear Servo

The EcoPower WP110S Waterproof High Speed Metal Gear Servo is designed for 1/10 scale surface models, including 2WD and 4WD vehicles. Its digital circuitry, cored DC motor and metal gear train deliver 0.09/60° sec operating speed at 7.4V with 280 oz-in (20.1 kg-cm) of dynamic torque.

Features

• Waterproof up to 1 meter
• Operating voltage: 6.0V - 8.4V
• Operating speed: 0.11/60° sec at 6.0V; 0.09/60° sec at 7.4V
• Dynamic torque: 206 oz-in (14.8 kg-cm) at 6.0V; 280 oz-in (20.1 kg-cm) at 7.4V
• Metal gears with Lifetime Gear Warranty
• Cored DC motor and digital circuitry
• Lightweight plastic upper and lower case with black anodized aluminum center case
• Dual ball bearings
• 220mm servo lead
• Recommended application: 1/10 Scale Surface

Specifications

• Model: WP110S
• Operating temperature: 14° to 140° F (-10 to +60° C)
• Output shaft: 25 Tooth
• Weight: 53g
• Pulse/Frequency: 1520Us / 333hz

Included

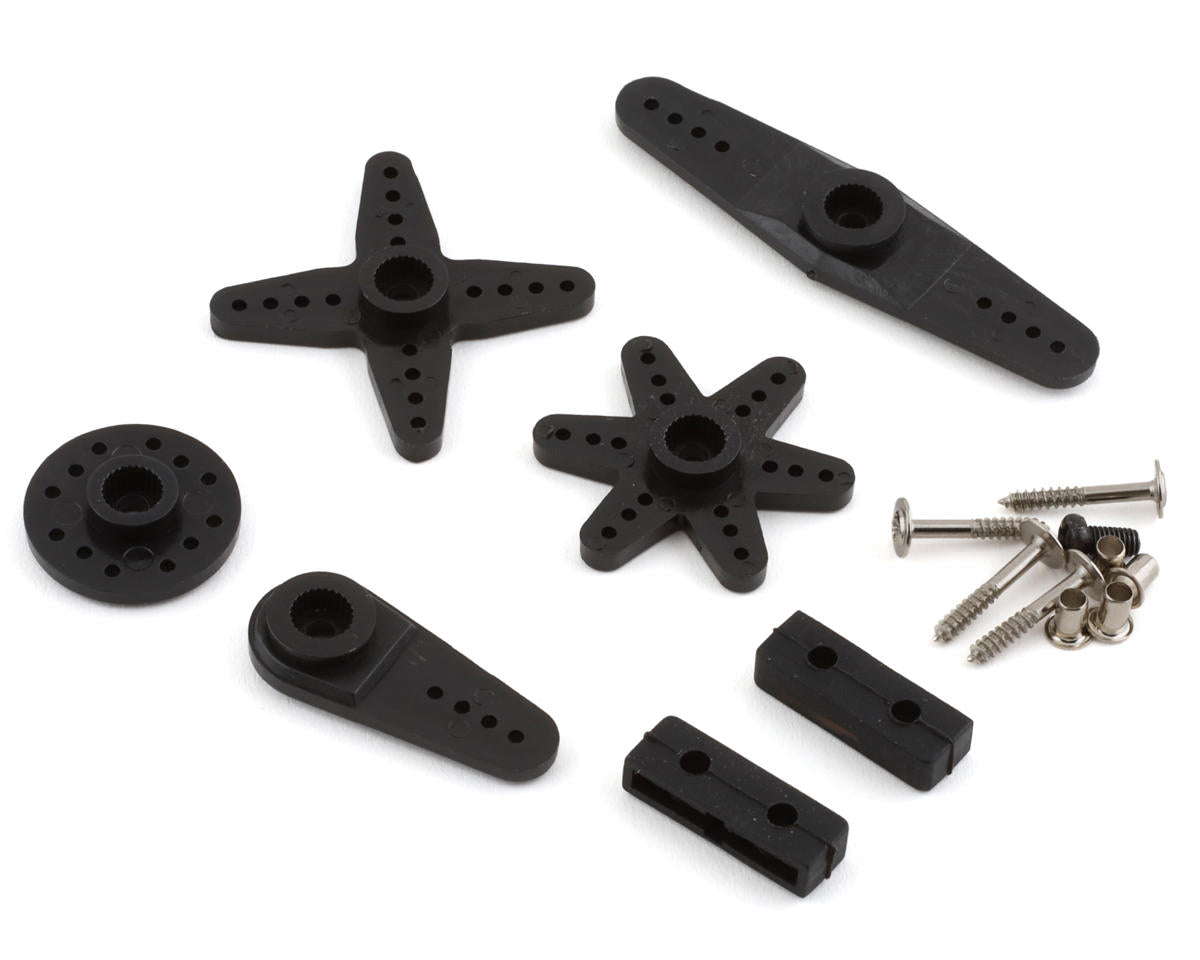

• Plastic star, 4 way, dual, single and round arm type servo horns
• Mounting hardware

The WP110S includes a 1 Year warranty against manufacturer defects. Warranty does not cover stripped gears or damage caused by abuse. Set your End Point Adjustments when using this servo to help ensure long life and performance.
