EcoPower "Electron" Micro 24 Brushless Upgrade Combo (Sensored ESC & Motor)

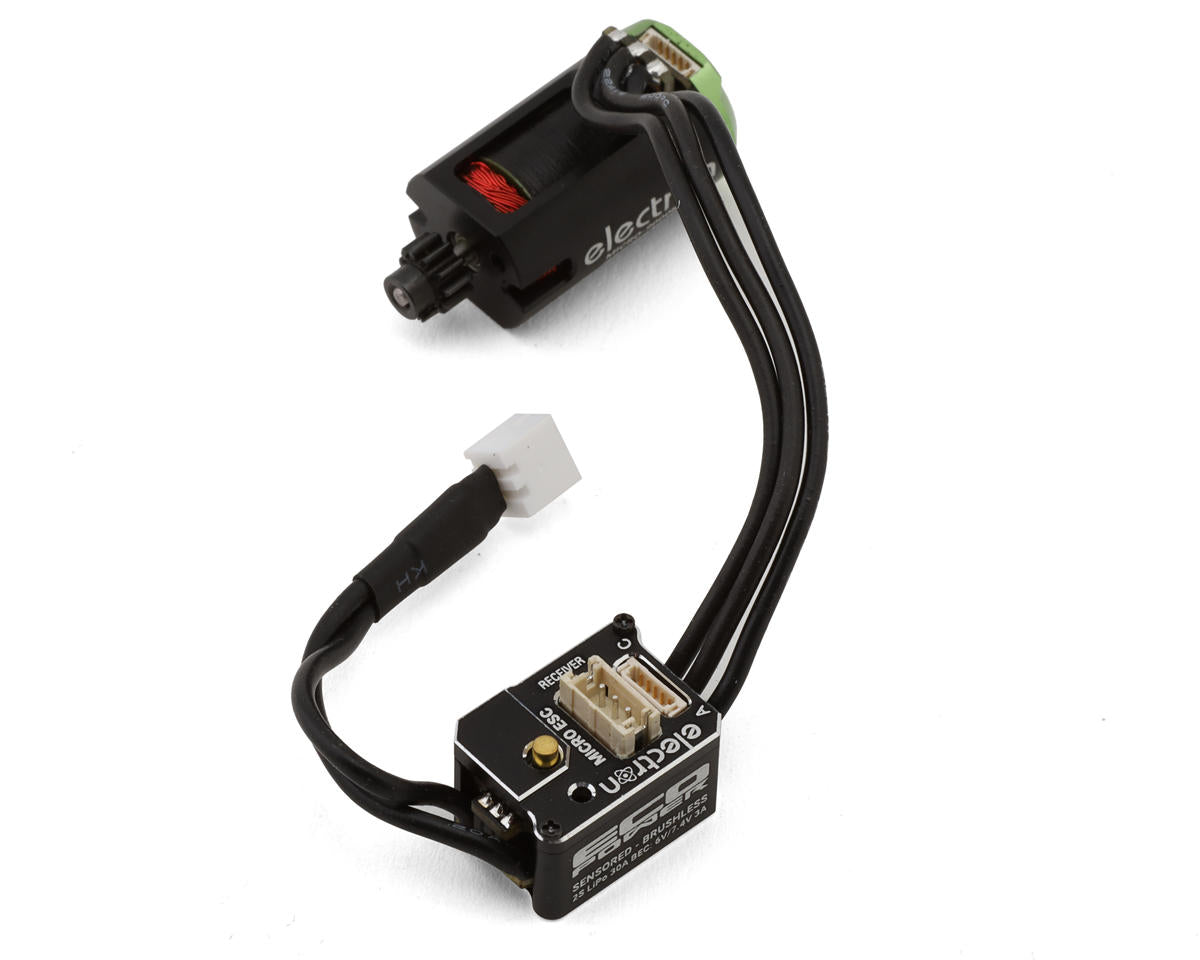

Upgrade Losi Micro-B and Micro-T vehicles with the EcoPower “Electron” Micro 24 Brushless Upgrade Combo. This setup includes a compact 30A sensored brushless ESC and a 9000kV brushless motor for 1/24, 1/27 and 1/28 vehicles.

Features

• Ultra-compact size for tight installations
• 30A continuous current and 80A burst current
• Full CNC aluminum ESC case for heat dissipation
• Sensorless brushless motor compatibility
• LED feedback for calibration, setup and protection status
• Optional program card for tuning settings
• Built-in 6.0V/7.4V 3A BEC
• Supports 2S LiPo input (6.0-8.4V)
• LED-based protection feedback for troubleshooting

ESC Specifications

• Suggested Application: 1/24, 1/27 & 1/28 Vehicles
• Motor Type: Brushless
• Input Voltage: 2S LiPo (6.0-8.4V)
• Continuous Current: 30A
• Burst Current: 80A
• Dimensions (LxWxH): 0.83x0.54x0.44in (21x13.8x11mm)
• BEC Voltage: 6V/7.4V
• BEC Peak Current: 3A
• Battery Connector: PH2.0
• Programming: Button/Program Box

Motor Specifications

• Suggested Application: 1/24, 1/27 & 1/28 Vehicles
• Size: 9000kV
• Type: Brushless - Sensored
• Voltage: 7.4V (2S)
• Adjustable Timing: No
• Connector: Solder Type
• Dimensions (LxD): 0.98x0.59in (25x15mm)
• Shaft Length: 0.28in (7mm)
• Shaft Diameter: 0.08in (2mm)

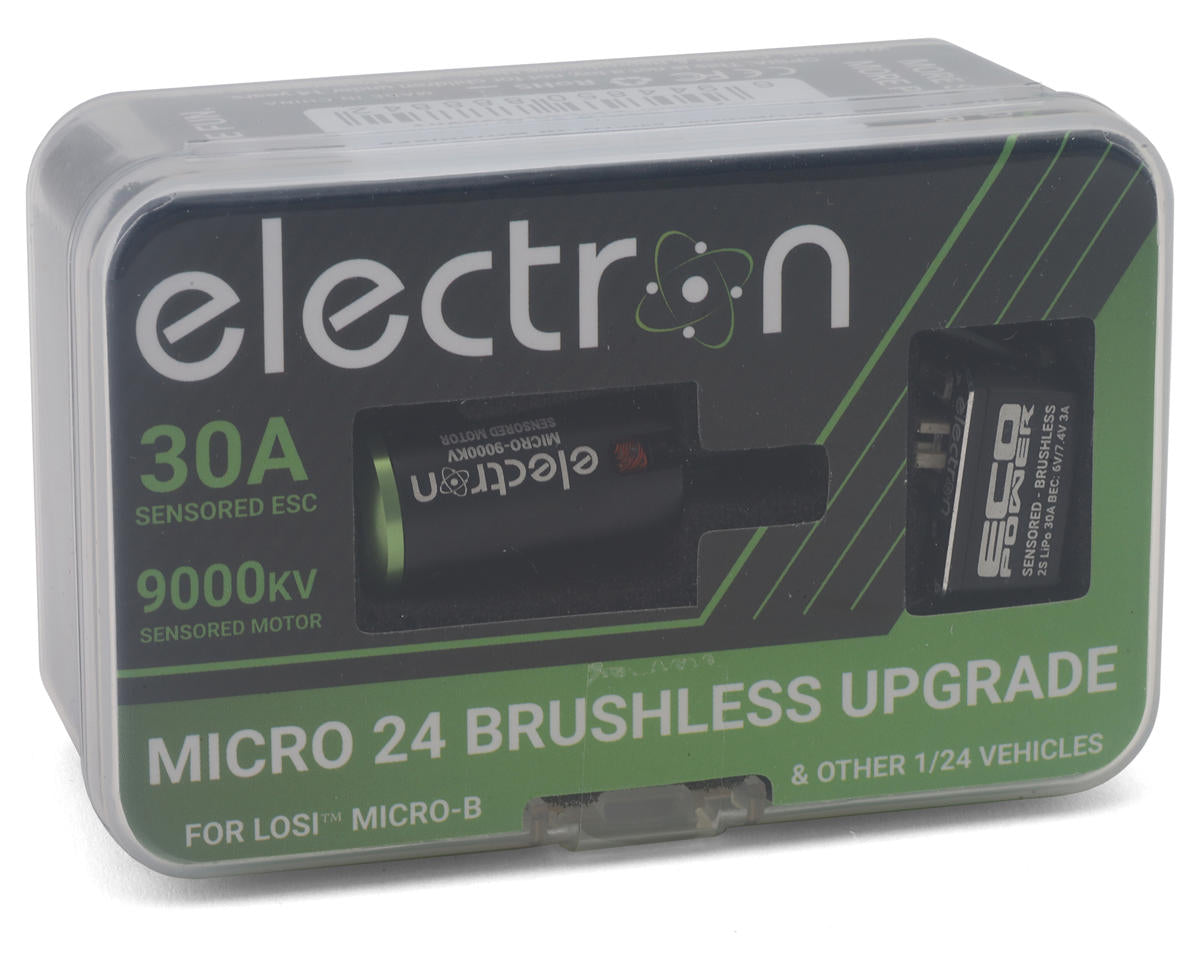

Includes

• (1) EcoPower Electron 30A Brushless ESC

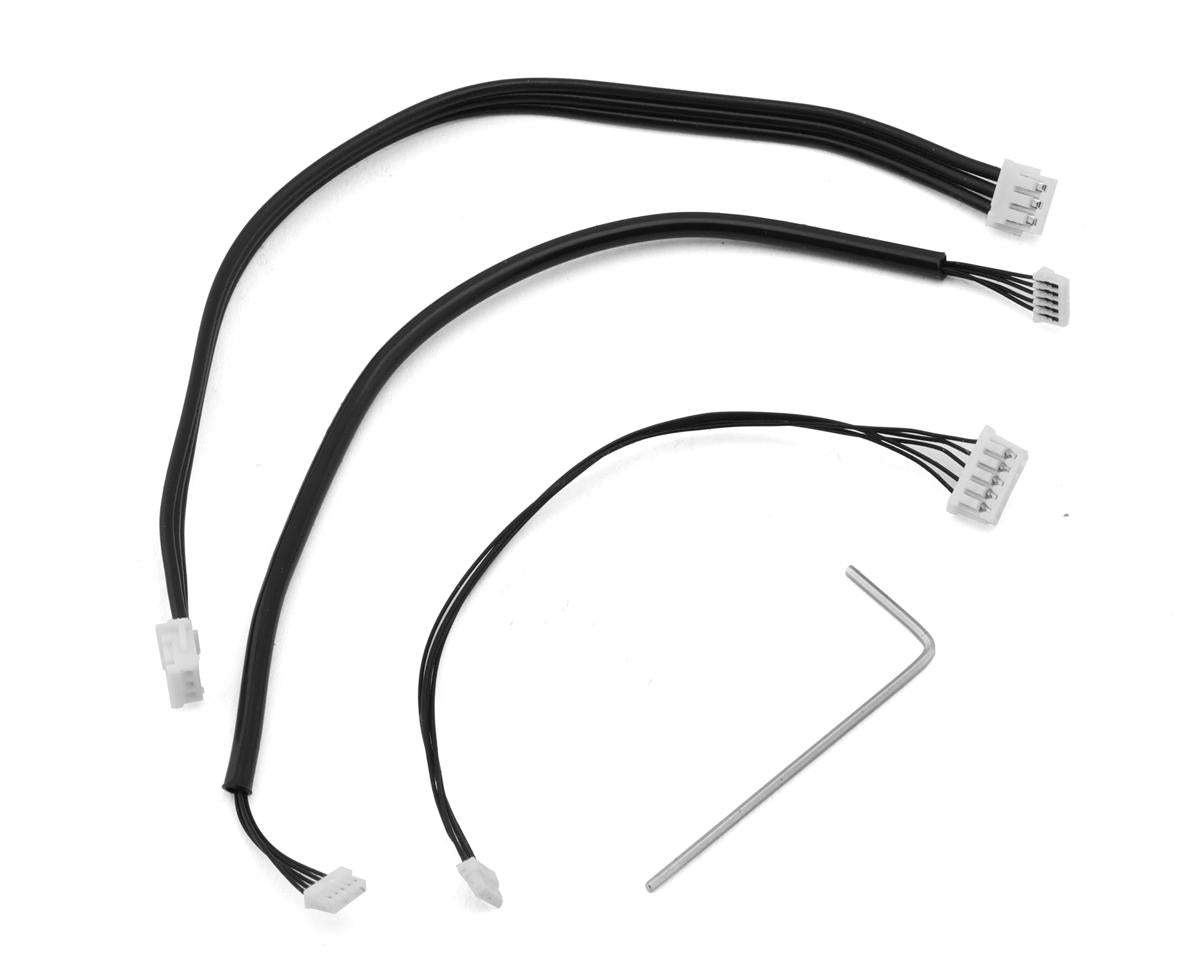

• (1) 100mm BEC Wire
• (1) Sensor Cable
• (1) Hex Wrench
• (1) Pre-soldered ESC Motor Leads
• (1) User Manual
• Note: Micro 24 Program Card includes cable for connecting to full size receivers
