EcoPower "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger

The EcoPower "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger provides dual-channel charging for LiPo, LiHV, and LiFe batteries. It supports 1-6S packs and charge currents of 0.1-16A (x2), with SyncCharging delivering up to twenty-three amps.

An LCD display provides real-time monitoring and detailed battery and charger diagnostics. The intelligent smart connector can automatically set charging parameters for compatible batteries, while cell balancing, external discharging, and DigitalPower mode add charging flexibility. Compatibility with intelligent and non-intelligent batteries is supported.

Built-in over-voltage, over-temperature, short-circuit, and timer protection systems help safeguard the charger and batteries during operation.

Features

• Dual-channel charging capabilities
• SyncCharging delivers up to twenty-three amps
• Supports LiPo, LiHV, and LiFe batteries
• Intelligent smart connector for auto-parameter setup
• LCD display for detailed real-time monitoring
• Compatibility with intelligent and non-intelligent batteries
• Cell balancing and external discharging options
• DigitalPower mode for versatile power output
• Comprehensive safety protection systems
• Displays detailed battery and charger diagnostics

Specifications

• Input Power: AC/DC
• AC Input Voltage: 100-240V
• DC Input Voltage: 7-30V
• LiPo/LiHV/LiFe Cell Count: 1-6S
• NiMH/NiCd Cell Count: LiPo Only
• Pb Battery Voltage: LiPo Only
• Digital Power Supply: 5-29V
• Input Connector: DC XT60/AC 2-Prong Polarized
• Output Connector: XT60
• AC Charge Power: 300W
• DC Charge Power: 350W (x2)
• Discharge Power: 15W (x2)
• Charge Current: 0.1-16A (x2)
• Discharge Current: 0.1-3A
• Balance Current: 1200mAh/Cell
• Dimensions: 5.71x2.99x2.44in (145x76x62mm)
• Weight: 18.7oz (530g)

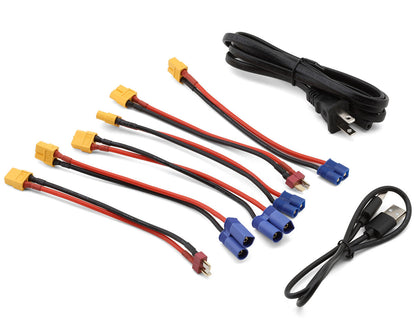

Includes

• (1) EcoPower Electron Dual Intelligent Charger
• (1) AC Power Cord
• (1) USB-A Cable
• (2) XT60 to T-Style Adapters
• (2) XT60 to EC3 Adapters
• (2) XT60 to EC5 Adapters
• (1) Instruction Manual

Firmware note: Firmware software is only supported through Windows 7 and Windows 10 operating systems. Please use the "Resources" tab to update the firmware.
