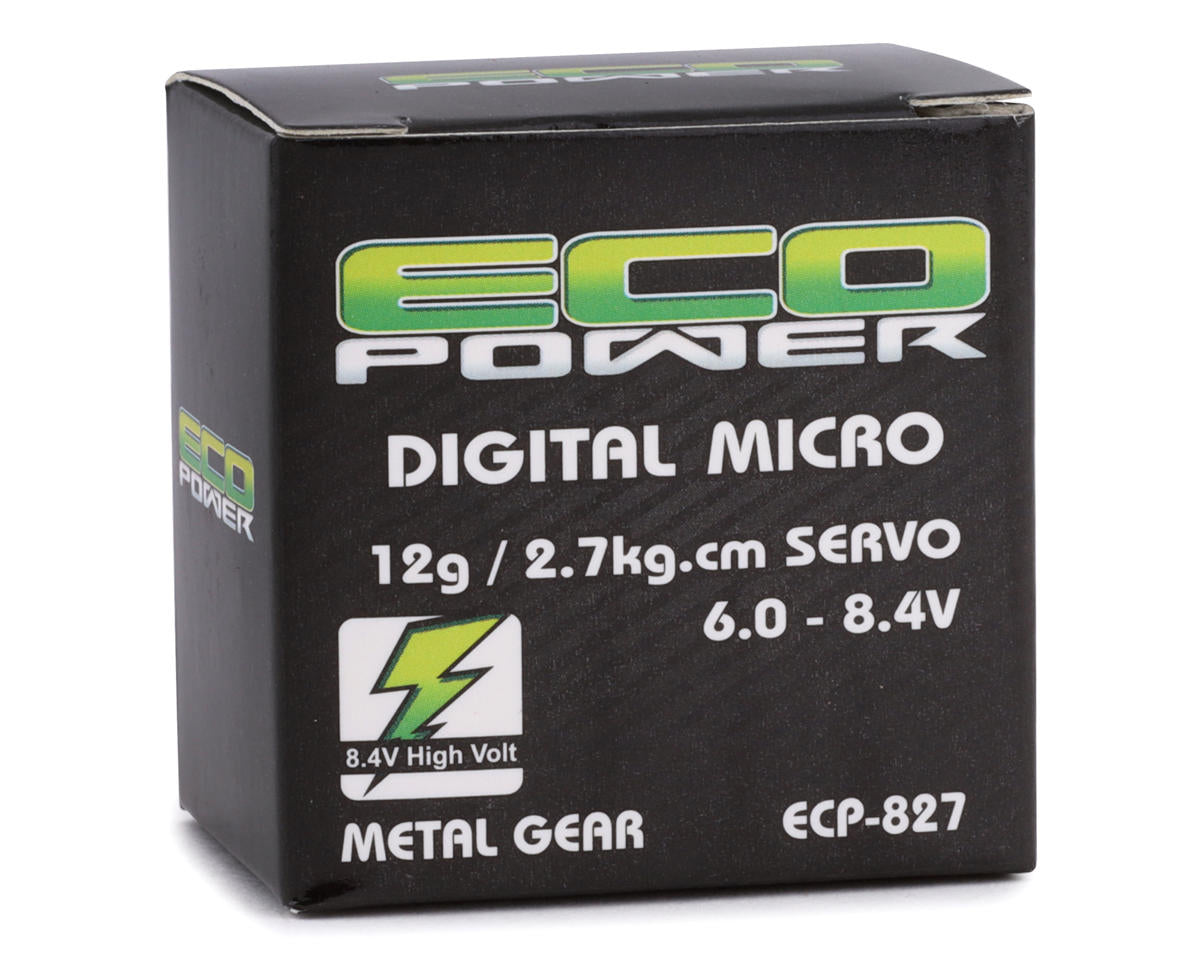

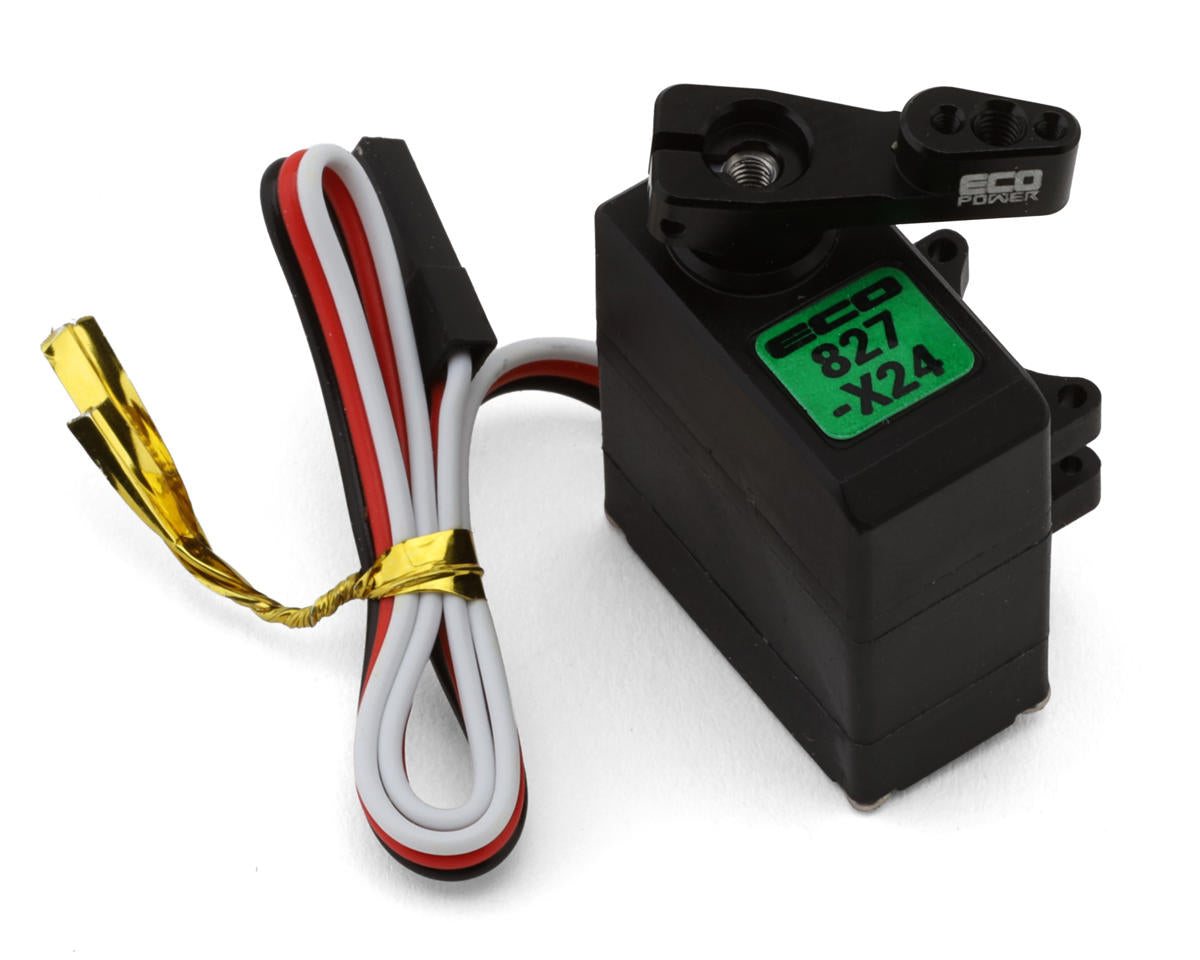

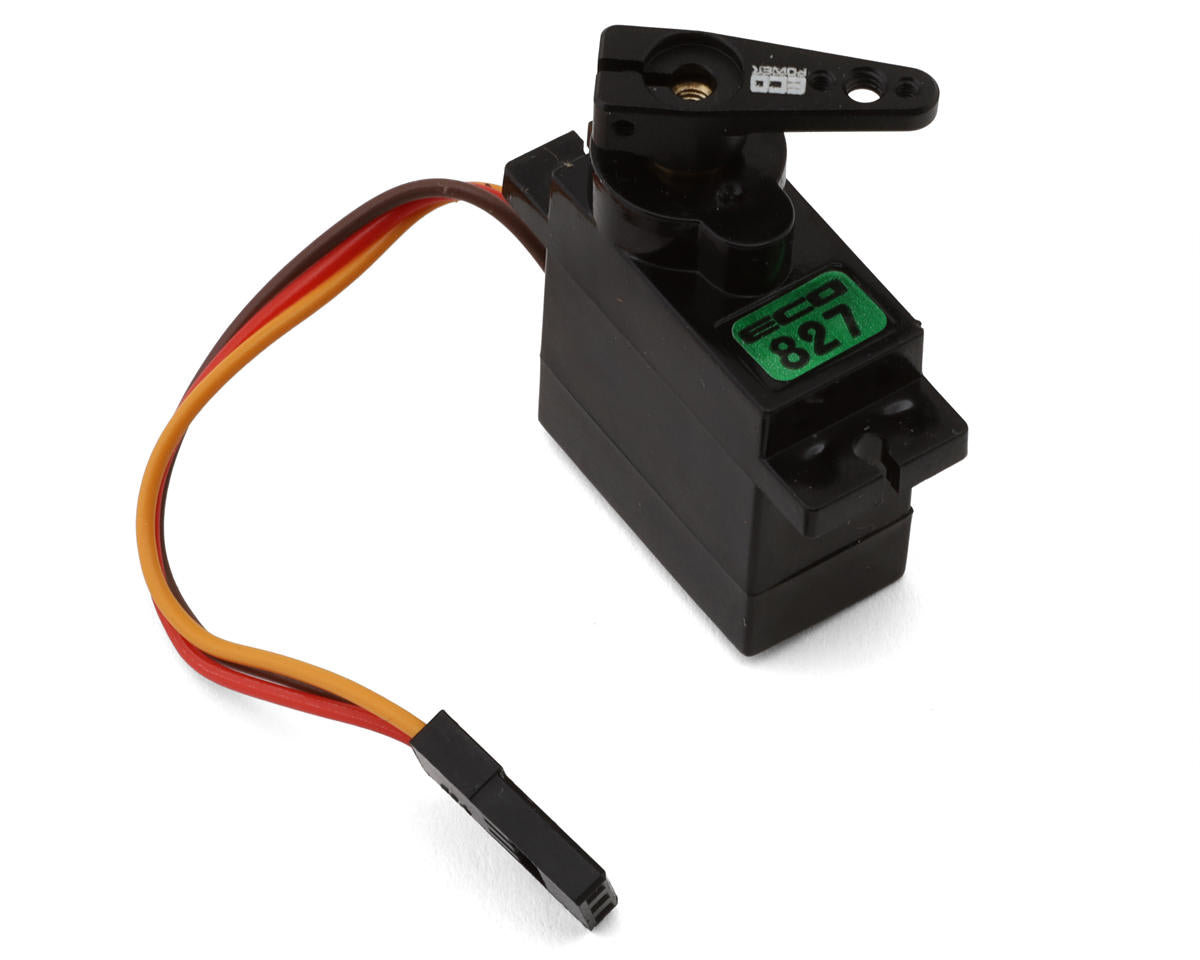

EcoPower 827 12g Digital Metal Gear Micro Servo (High Voltage)

The EcoPower 827 is a 12g digital metal gear micro servo designed for high-voltage applications in small-scale surface and air models. It is suited for SCX10 III Dig and Shift functions, the Axial Capra Dig servo, and other micro servo applications.

Features

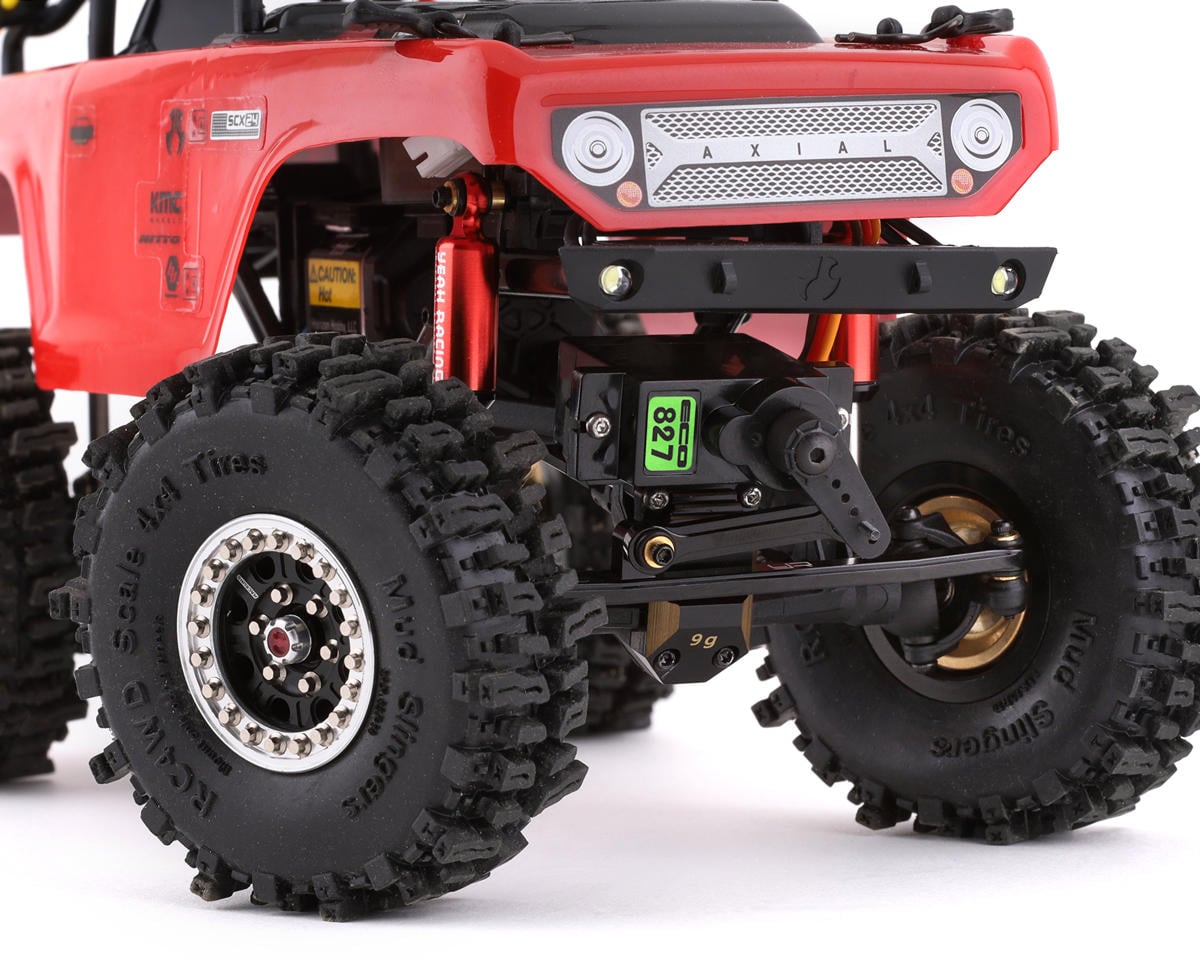

• High-voltage micro servo upgrade for Axial SCX10 III Dig and Shift servos
• Direct replacement for the SX107 servo (SPMSSX107)
• Upgrade option for the Axial Capra Dig servo
• SCX24 steering servo upgrade when used with an EcoPower, Hot Racing, or Samix servo mount
• Steel gears with a Lifetime Gear Warranty
• Digital circuitry
• 20T spline
• 275mm servo lead

Specifications

• Operating Voltage: 6.0V to 8.4V
• Operating Speed: @6.0V: 0.12 sec/60; @8.4V: 0.10 sec/60
• Torque: @6.0V: 29.1oz-in (2.1kg-cm); @8.4V: 37.5oz-in (2.7kg-cm)
• Weight: 12g
• Gears: Steel
• Spline: 20T
• Motor Type: Cored DC
• Application: Small Scale Surface & Air

Includes

• EcoPower 827 servo
• Molded adaptor for Axial Servo Saver with 12mm flat head screw

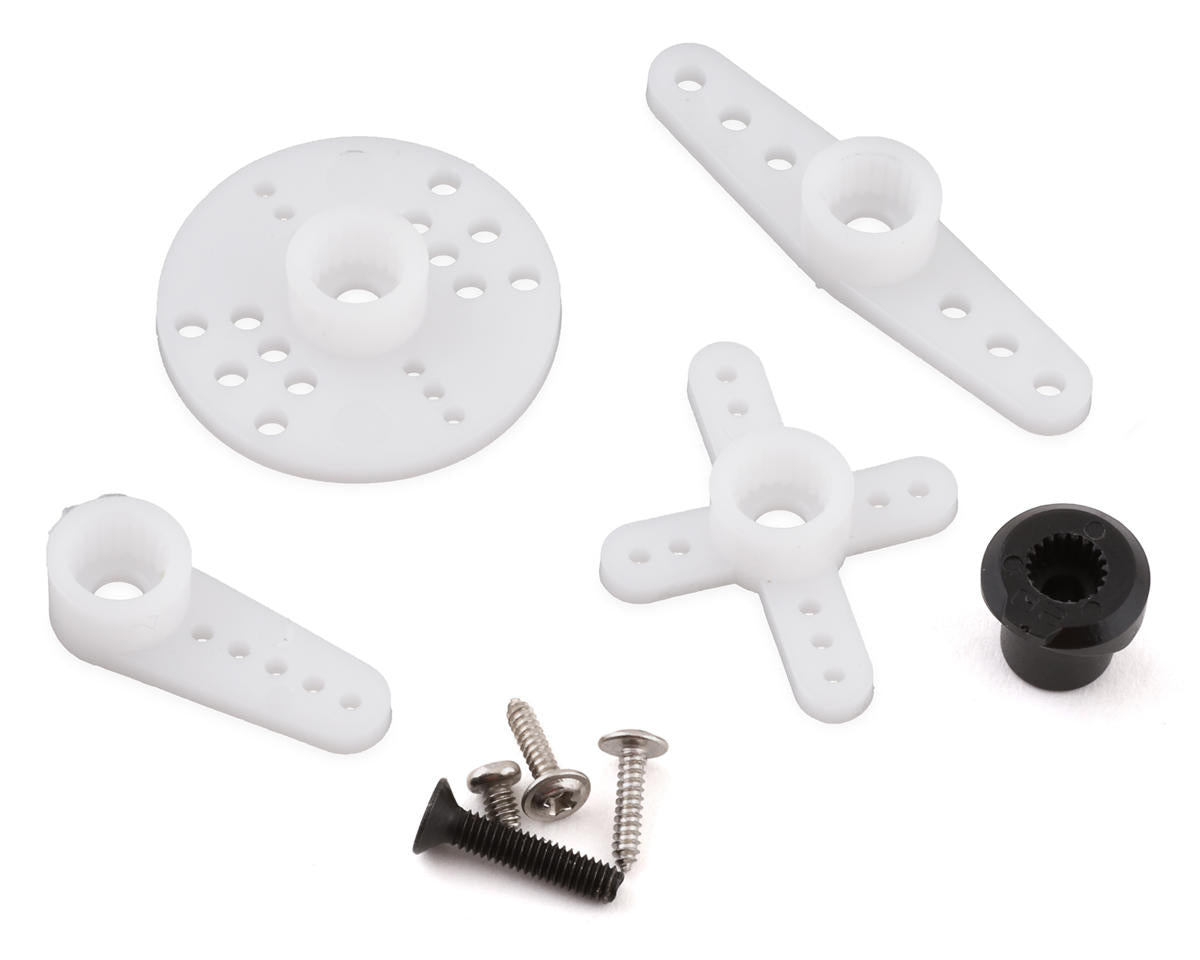

• Molded servo horns with M2.5 mounting screw
