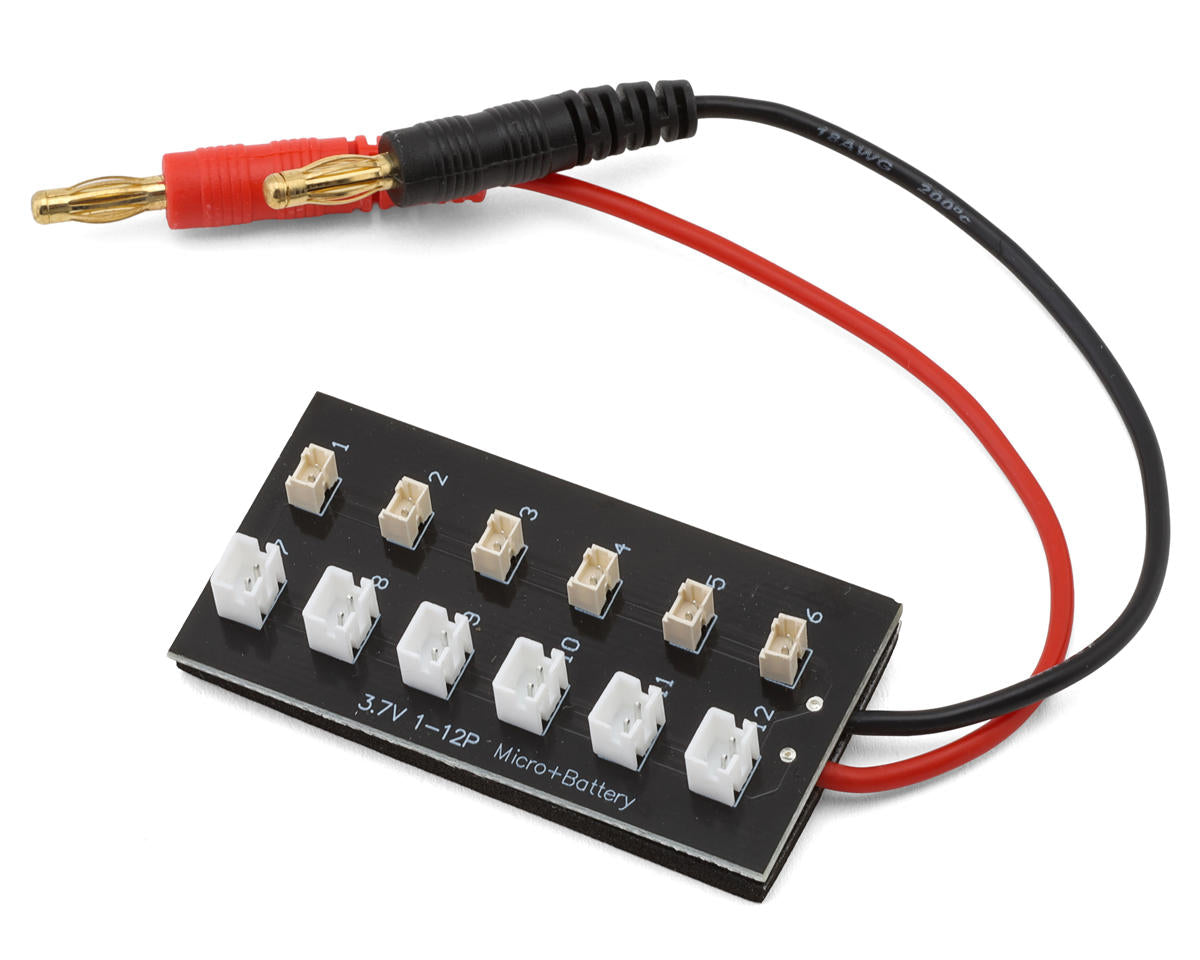

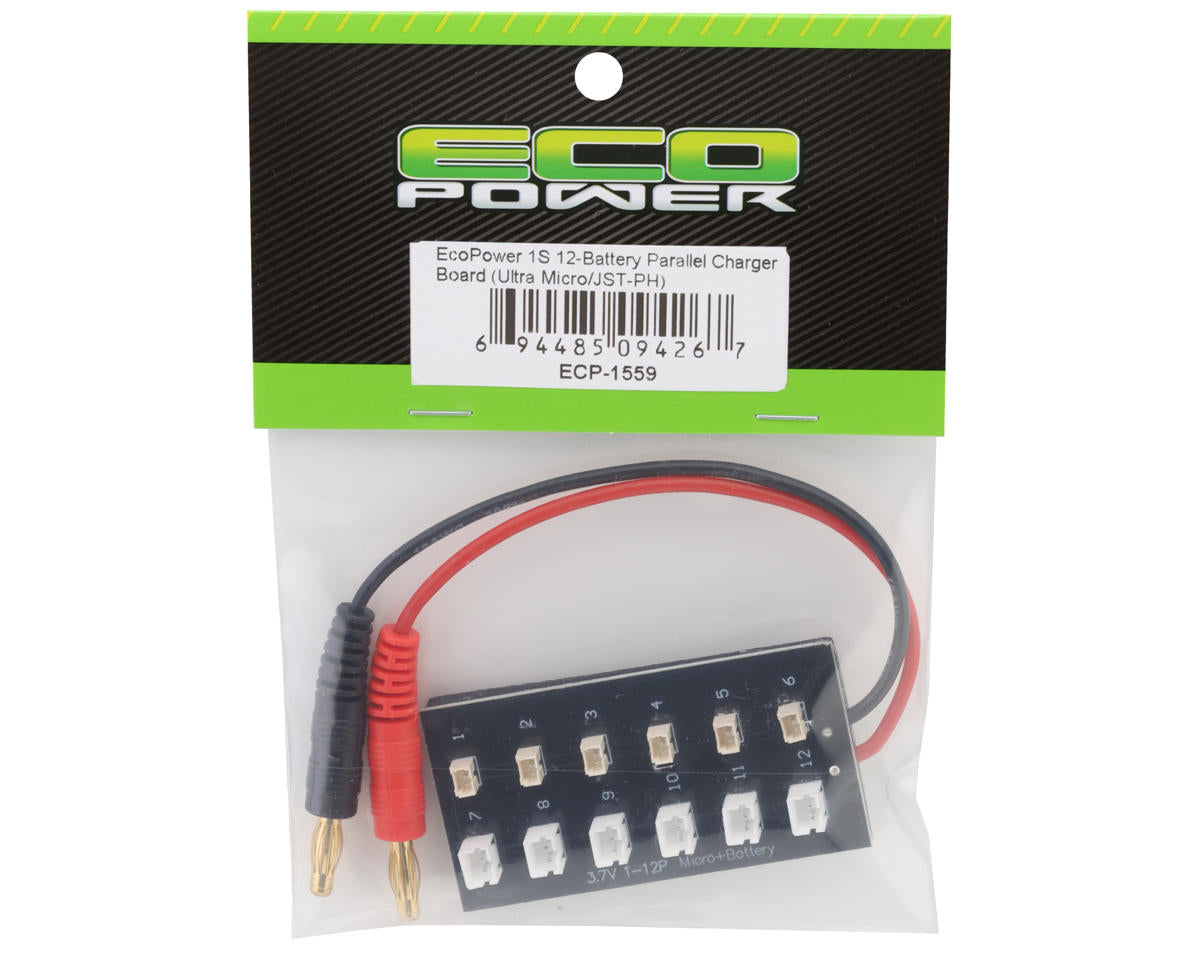

EcoPower 1S 12-Battery Parallel Charger Board (Ultra Micro Molex/PH 2.0)

The EcoPower 1S 12-Battery Parallel Charger Board lets you charge up to twelve 1S LiPo batteries at once. It provides six MX (Molex 1.25) connectors, six 2-pin JST-PH (PH2.0) ports, and 4mm gold bullet input connectors for connection to a LiPo-compatible charger.

Features

• Charges up to twelve 1S LiPo batteries at once
• Six MX (Molex 1.25) connectors
• Six 2-pin JST-PH (PH2.0) ports
• 4mm gold bullet input connectors
• Suitable for organizing charging setups for Whoop and ultra micro aircraft batteries

Charging Notes

• Only charge 1S LiPo chemistry batteries.
• Only charge batteries with similar states of discharge, within 0.2V.
• Program the charger to the total capacity of all attached batteries. For example, five 200mAh batteries require a 1,000mAh charger setting.
• Batteries with different mAh capacities may be charged together.

Includes

• (1) 1S 12-Battery Parallel Charger Board (Ultra Micro Molex/PH 2.0)
