DragRace Concepts Redline Sidewinder Pro Mod 1/10 Drag Racing Kit

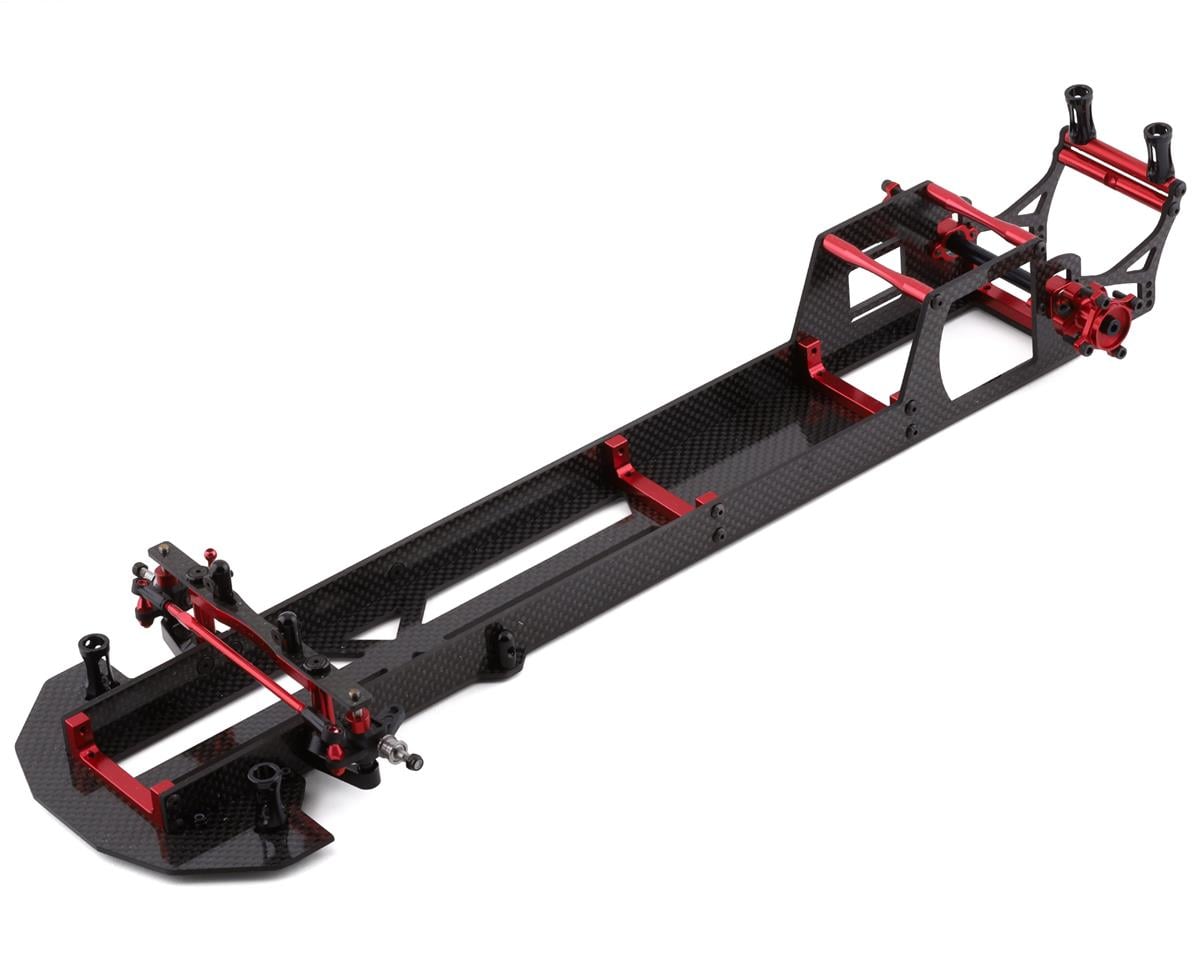

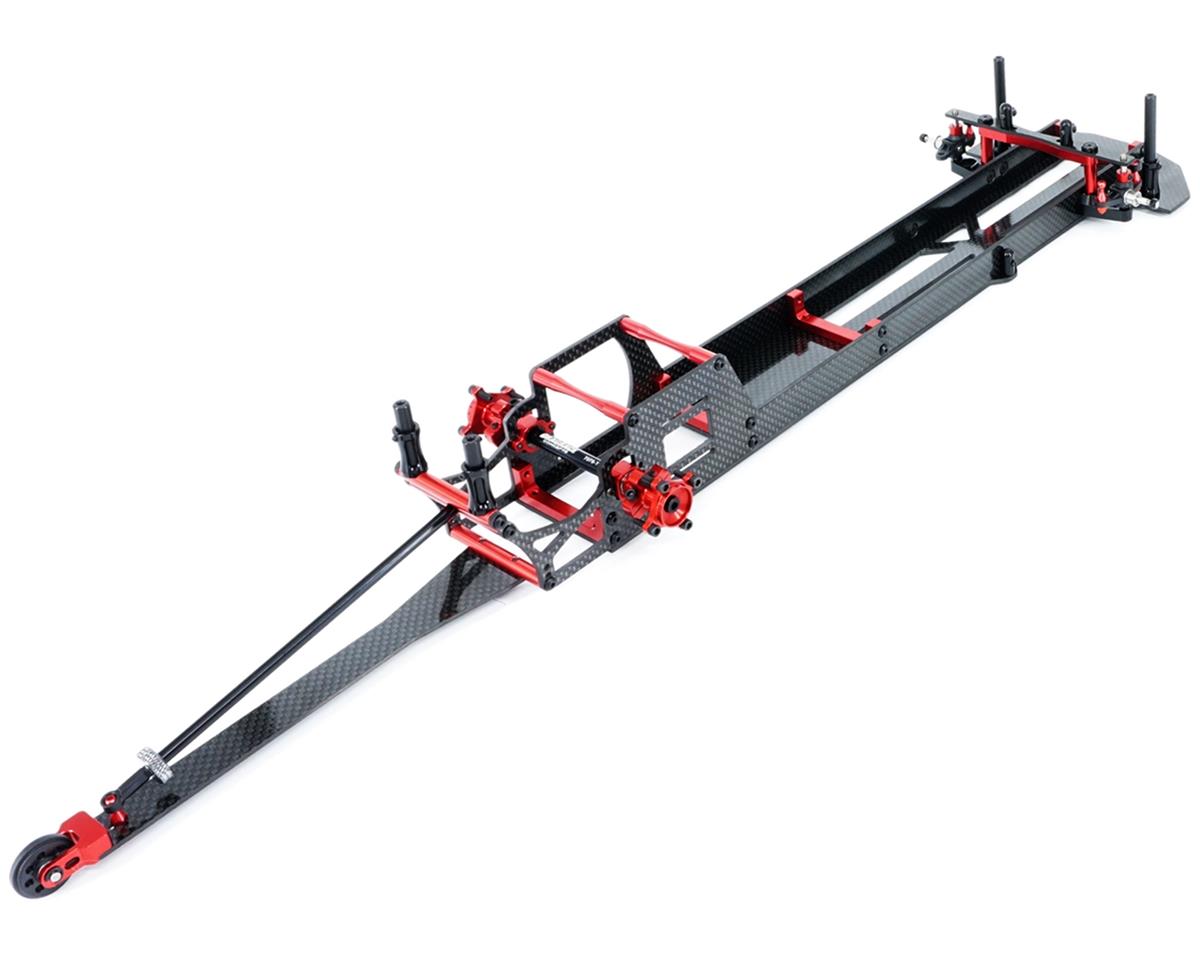

The DragRace Concepts Redline Sidewinder Pro Mod 1/10 Drag Racing Kit is a 12-inch-wheelbase Pro Mod chassis based on the DRC1 platform. Its 90% assembled chassis uses precision-machined 7075 aluminum components, 2.5mm carbon fiber frame rails, and a Sidewinder drivetrain configuration.

Features

• 12" wheelbase Pro Mod kit
• Premium grade, precision-machined 7075 aluminum components
• Updates for 2021 to improve overall performance
• Sidewinder drivetrain configuration with a lighter overall package and unlimited gear ratio options
• Updated rear end configuration reduces weight
• Relocated body mounts offer additional support
• 2.5mm carbon fiber frame rails
• 90% assembled chassis

Specifications

• Wheelbase: 12"
• Construction: 2.5mm carbon fiber chassis
• Components: 7075 high strength aluminum
• Gear ratio: Variable
• Wheel hubs: 4 bolt pattern
• Steering linkage: Included
• Body mounts: Included

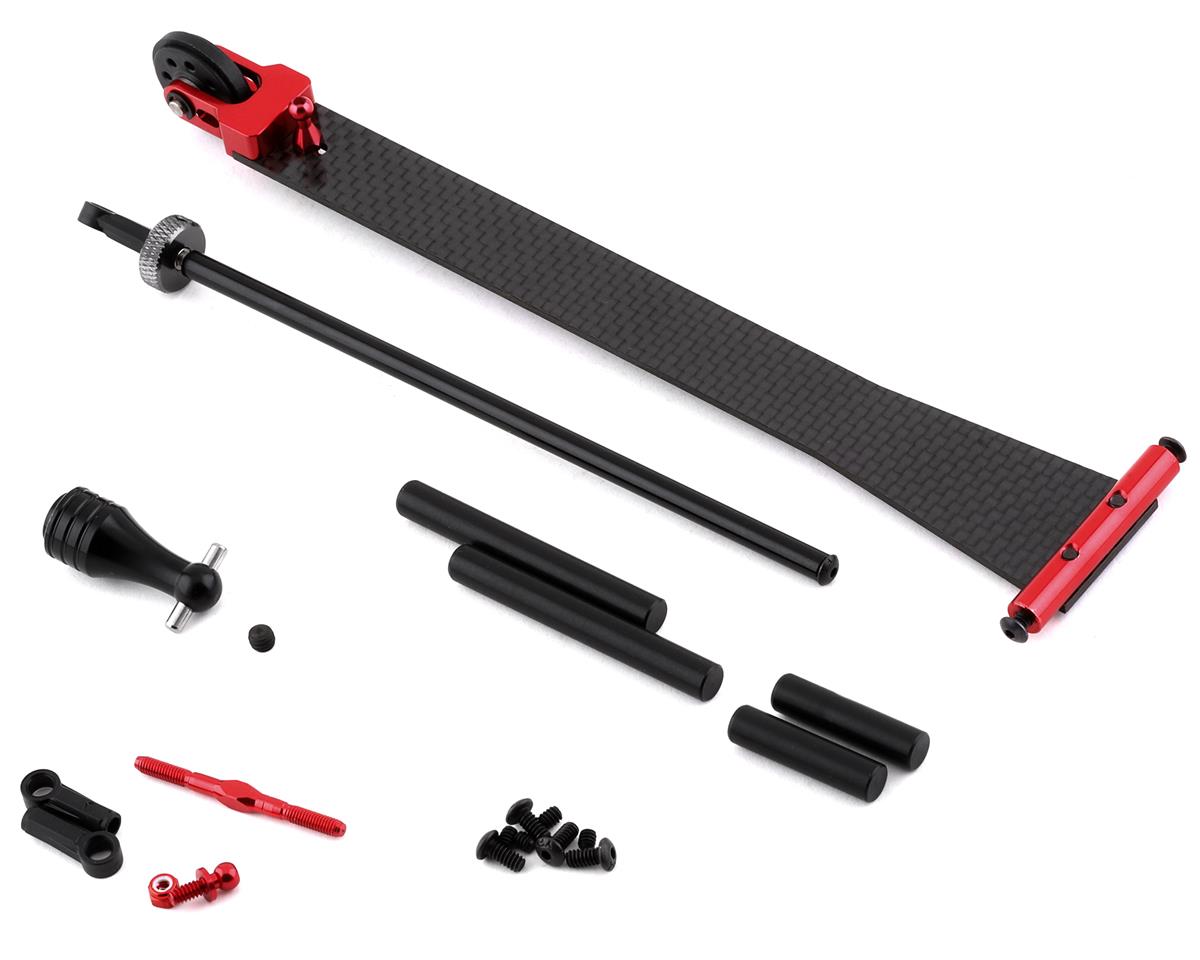

• Wheelie bar: Included

Sidewinder Drivetrain

The Sidewinder layout places the motor perpendicular to the chassis and uses a pinion gear on the motor shaft with a spur gear attached to the back side of the wheel hub. This configuration eliminates extra rotating parts found on an inline chassis and provides variable gear ratio options for matching the pinion and spur gear to the tire diameter.

Sidewinder chassis setup requires attention to left-to-right rear weight balance. A scale board is required to balance the rear of the car by spacing the rear hubs. The drivetrain can also create a climbing effect that may cause the front end to lift, and lead weight may be required at the front of the chassis. The battery position is much farther forward than on an inline car.

Needed to Complete

• ESC and 540 motor
• Micro size steering servo and servo horn
• 2 channel radio system
• 2S shorty LiPo battery and compatible charger
• Foam rear wheels/tires; 2.75" tall tire recommended, including DRC-207 or DRC-208
• Front wheels/tires; DRC Ultra Lock recommended, including DRC-2000 or DRC-2001
• DRC 48P spur gear and pinion
• 12" wheelbase Pro-Mod body
• Tools for assembly
• Threadlock

The finished kit shown in photos is for illustrative purposes only.
