Cayote Crest Modi 540 1/10 Sensored Brushless Motor (9.5T)

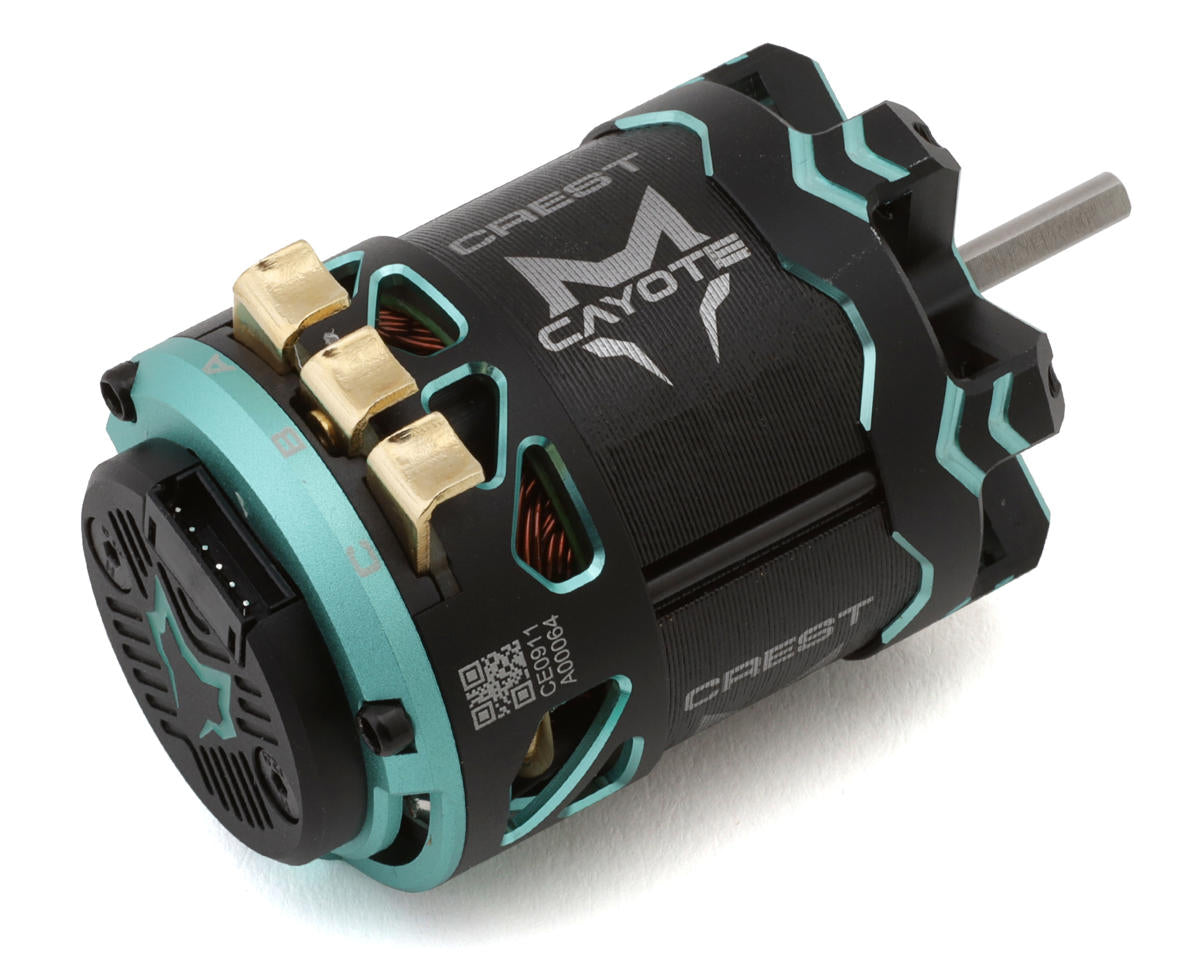

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor (9.5T) features a precision-balanced rotor, high-precision Hall sensors, and linear power delivery for smooth throttle response. Its ventilated end caps and center-exposed stator support airflow and heat dissipation, while the rebuildable construction simplifies maintenance.

Features

• Sensored brushless design for smooth and accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery at all speeds

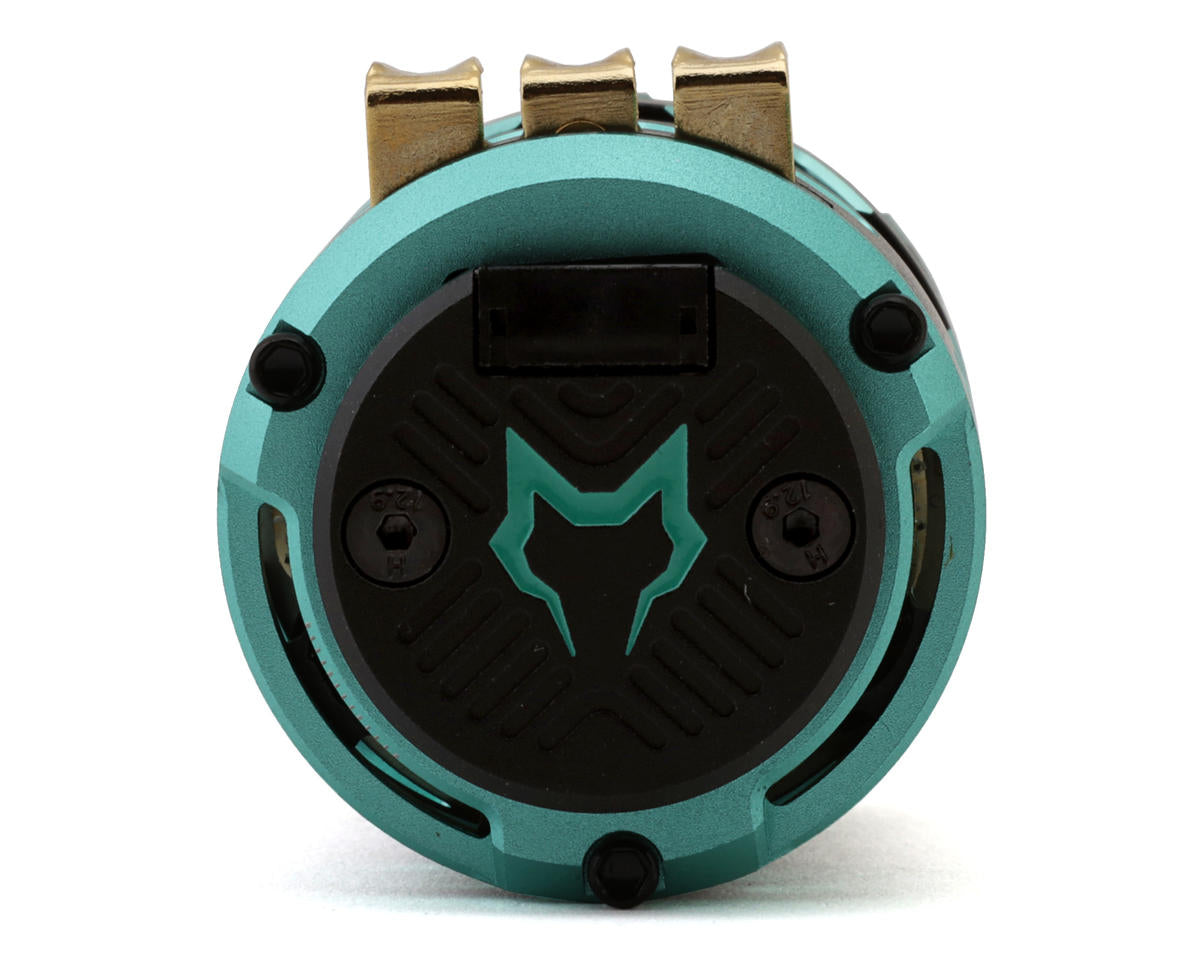

• Large end-cap ventilation holes and a center-exposed stator for cooling
• 220°C high-temp magnet
• Instant torque response and linear power delivery
• Rebuildable construction
• Adjustable timing
• App-controlled tuning system for real-time output adjustments on the track

Specifications

• Suggested Application: 1/10
• Size: 9.5T (3,700kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.78oz (164g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (9.5T)

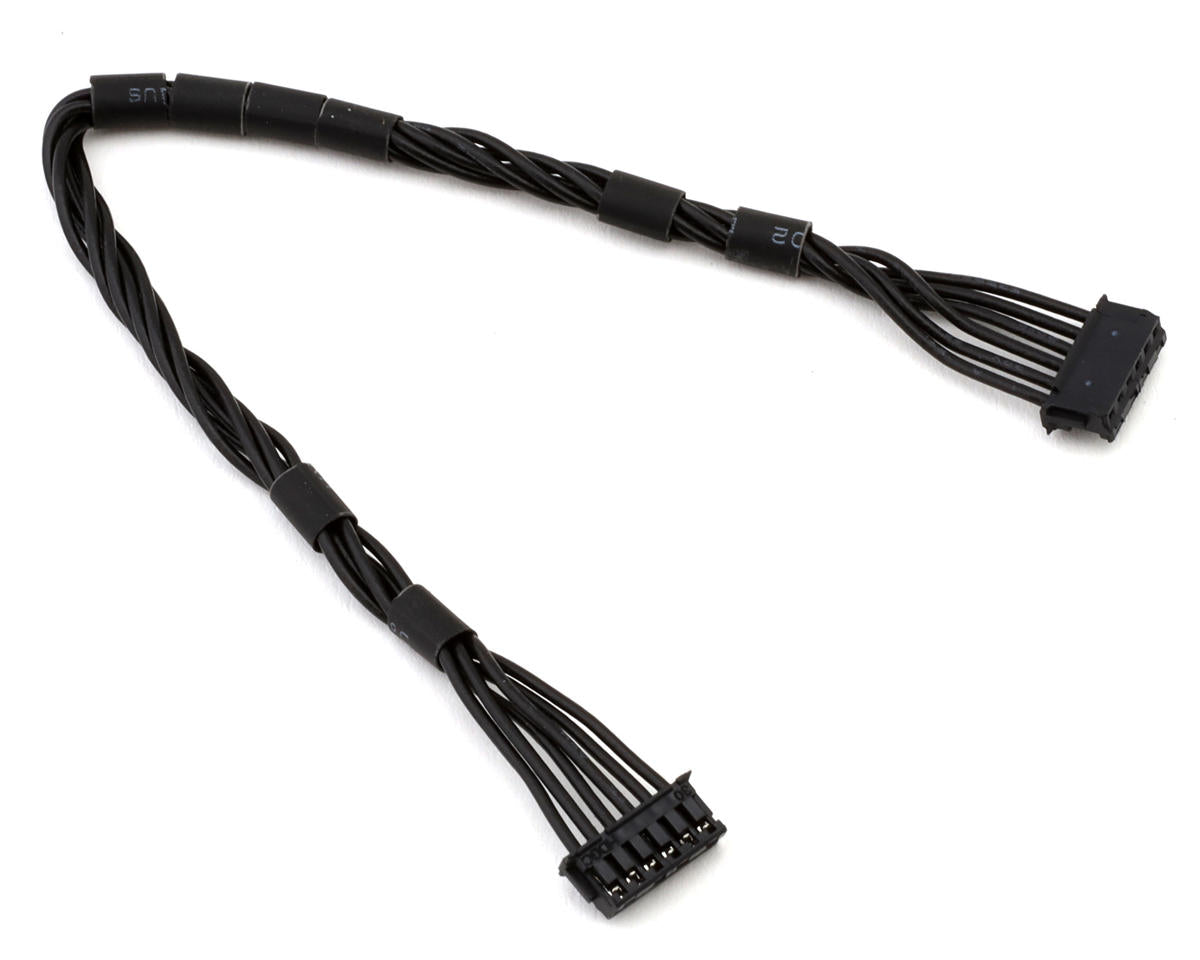

• (1) Sensor Cable

Tech Note: The Infinite Adjustment System is only accessible through the Cayote Team App when used with a compatible Crest X or EVO ESC.
