Cayote Crest Modi 540 1/10 Sensored Brushless Motor (8.5T)

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor delivers smooth, linear throttle response for precise control in RC racing applications. Its high-precision Hall sensors, balanced rotor, exposed stator, and ventilated end caps support consistent power delivery and heat dissipation.

Features

• Sensored brushless design for smooth and accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery at all speeds
• Large end-cap ventilation holes and a center-exposed stator for enhanced cooling
• 220°C high-temperature magnet
• Instant torque response and linear power delivery during acceleration and braking
• Rebuildable construction for maintenance
• App-controlled tuning system for real-time output adjustments when used with compatible Crest X or EVO ESC systems

Specifications

• Suggested Application: 1/10
• Size: 8.5T (5,300kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Adjustable Timing: Yes
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.78oz (164g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (8.5T)

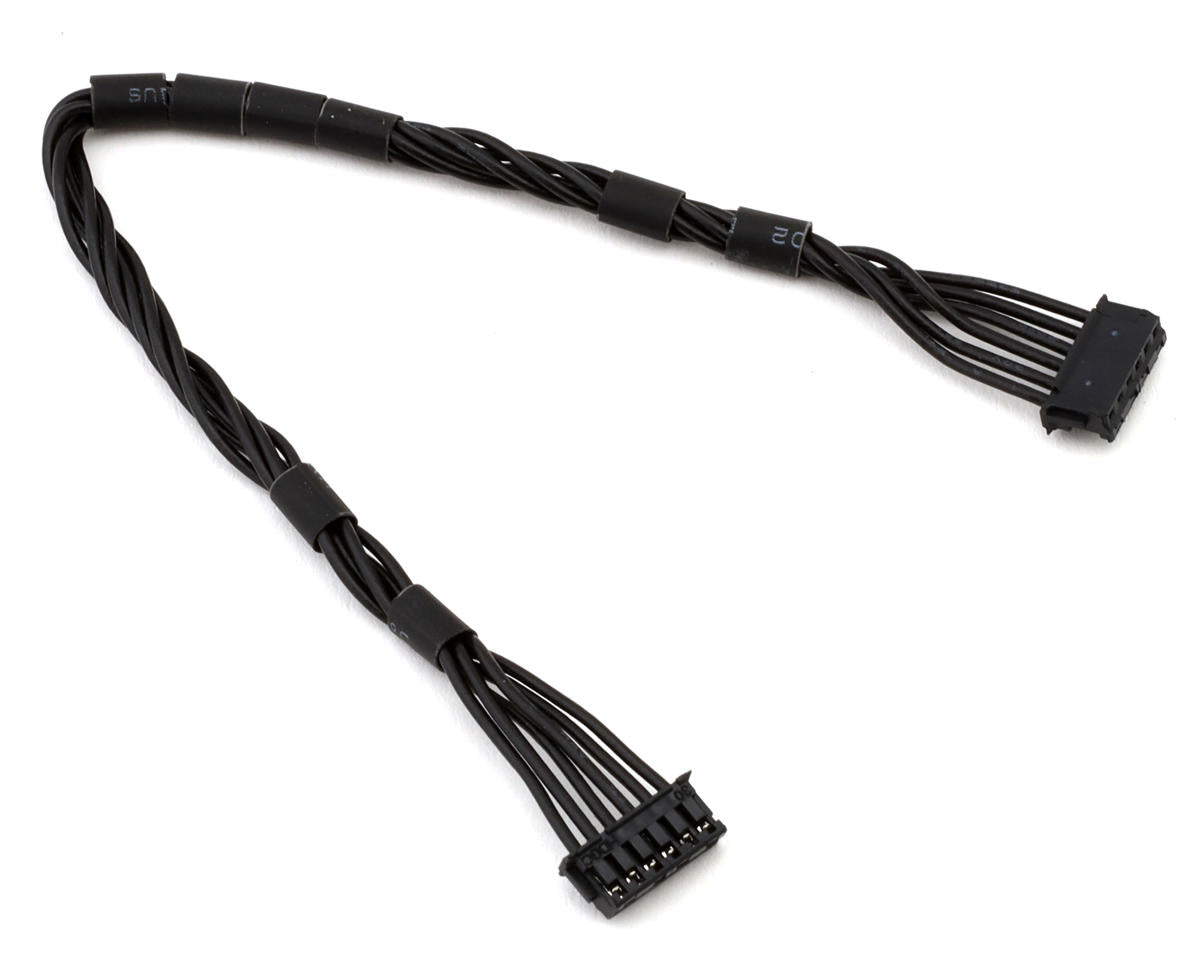

• (1) Sensor Cable

Tech Note: The Infinite Adjustment System is only accessible through the Cayote Team App when used with a compatible Crest X or EVO ESC.
