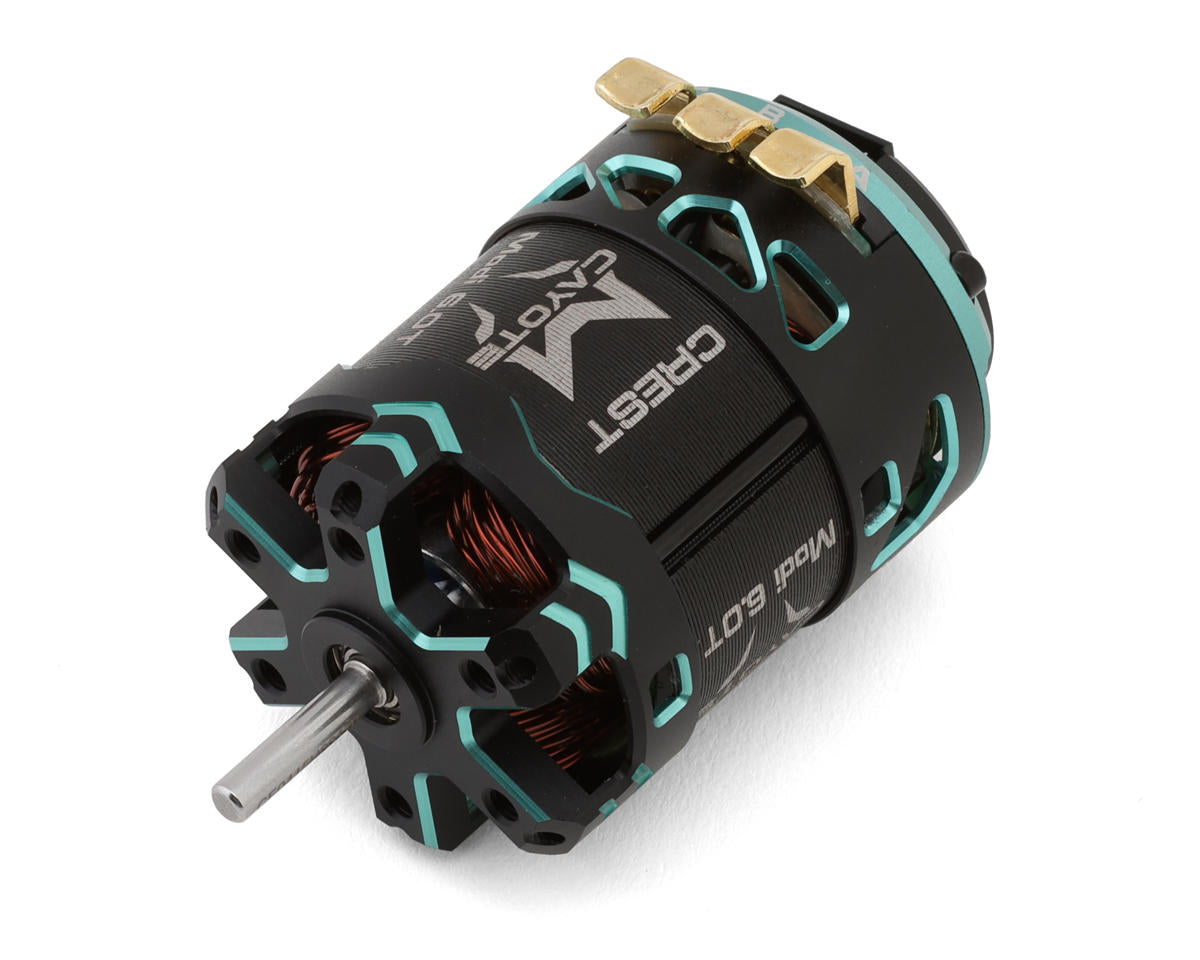

Cayote Crest Modi 540 1/10 Sensored Brushless Motor (6.0T)

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor provides smooth, linear power delivery with high-precision Hall sensors and a precision-balanced rotor. Its ventilated end caps, center-exposed stator, and 220°C high-temperature magnet support consistent operation in demanding applications. The rebuildable construction allows for maintenance, while adjustable timing provides additional setup flexibility.

Features

• Sensored brushless design for smooth, accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery
• Large end-cap ventilation holes and center-exposed stator for cooling and airflow
• 220°C high-temperature magnet
• Instant torque response and linear power delivery during acceleration and braking
• Rebuildable construction
• App-controlled tuning system for real-time output adjustments

Specifications

• Suggested Application: 1/10
• Size: 6.0T (5800kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Adjustable Timing: Yes
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.86oz (166g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (6.0T)

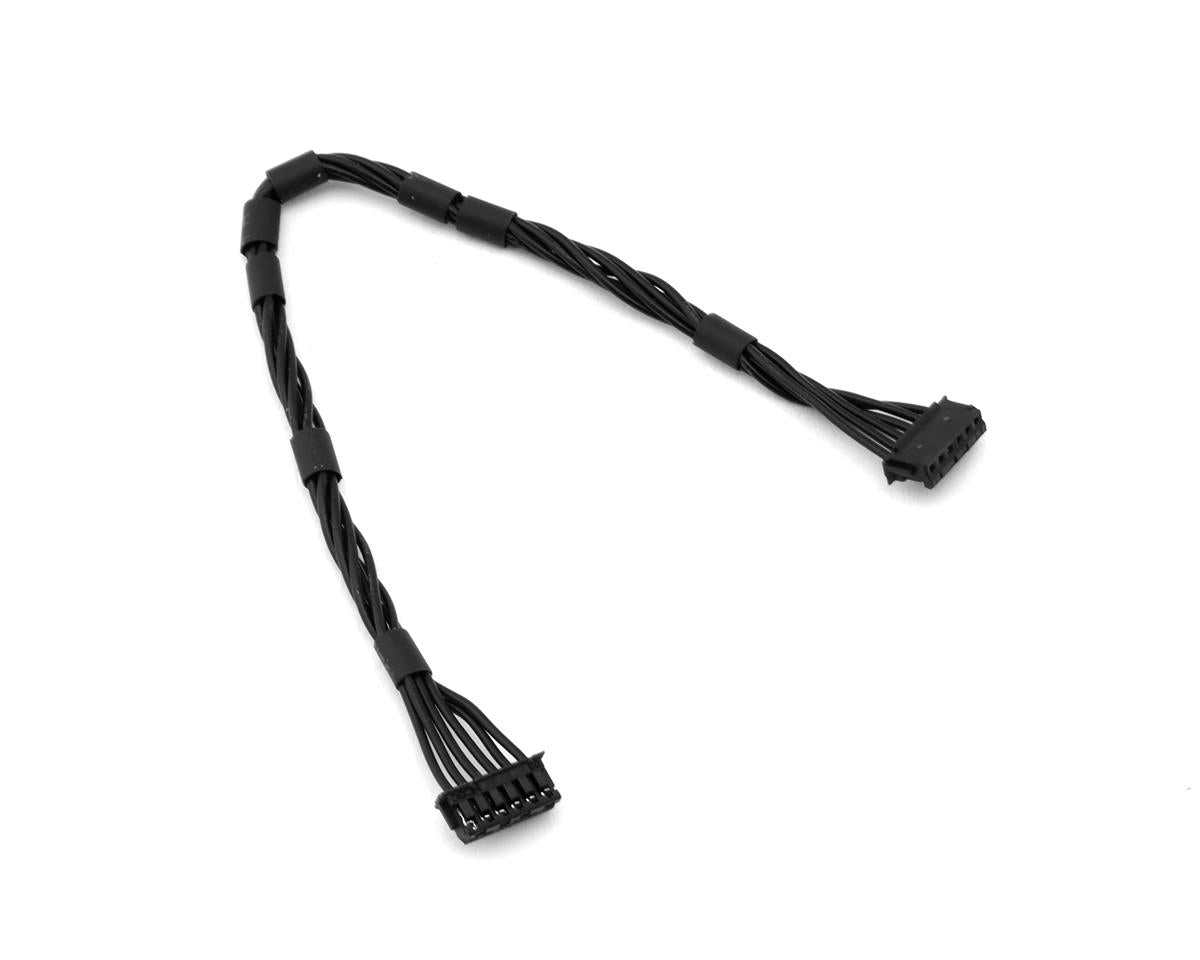

• (1) Sensor Cable

Tech Note: The Infinite Adjustment System is only accessible through the Cayote Team App when used with a compatible Crest X or EVO ESC.
