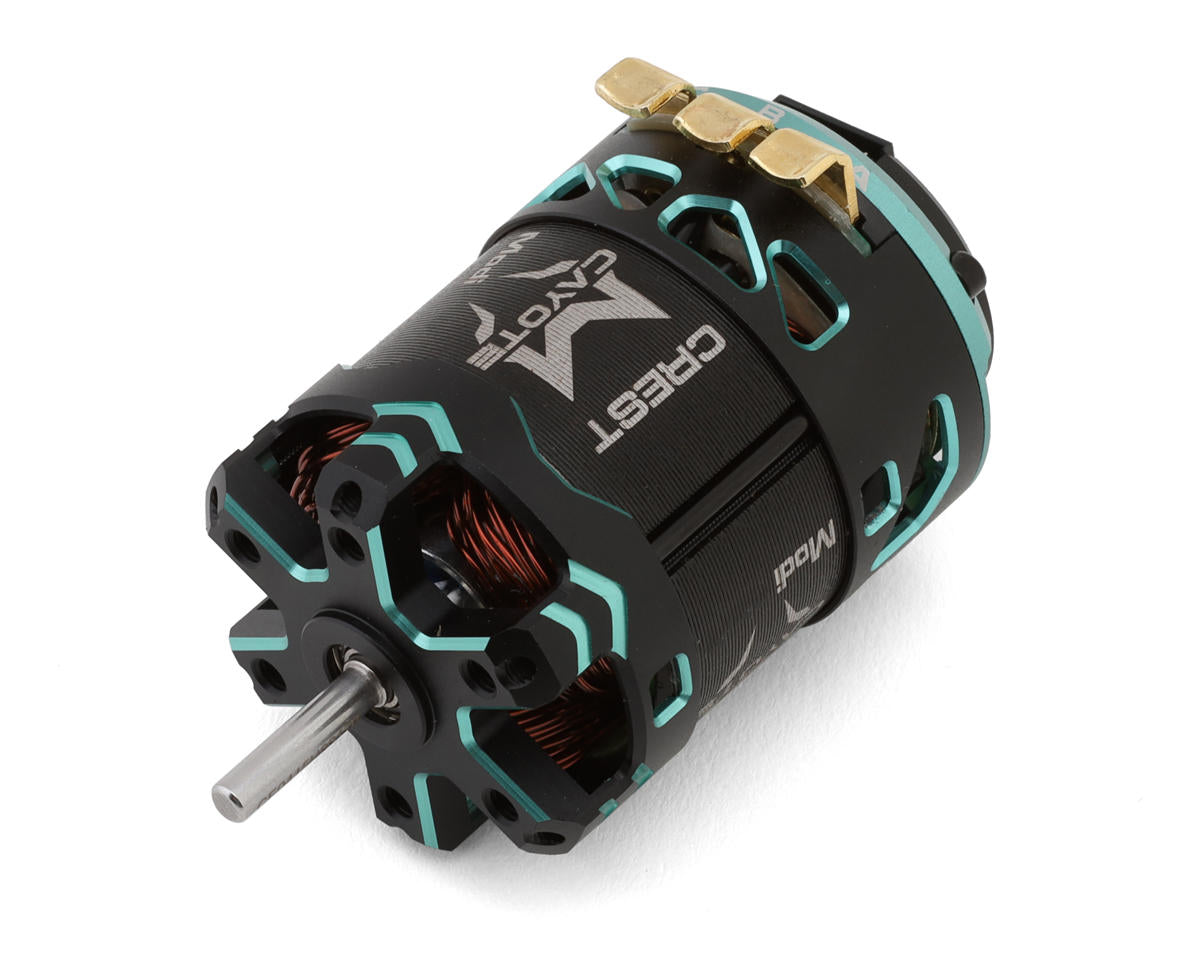

Cayote Crest Modi 540 1/10 Sensored Brushless Motor (5.0T)

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor (5.0T) features a sensored brushless design, high-precision Hall sensors, and a precision-balanced rotor for smooth throttle response and consistent power delivery. Large end-cap ventilation holes and a center-exposed stator support airflow and heat dissipation during operation.

With a 220°C high-temperature magnet, adjustable timing, and rebuildable construction, the Modi 540 is designed for ongoing maintenance and tuning. Its app-controlled output adjustments are available through the Cayote Team App when paired with a compatible Crest X or EVO ESC.

Features

• Sensored brushless design for smooth and accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery at all speeds

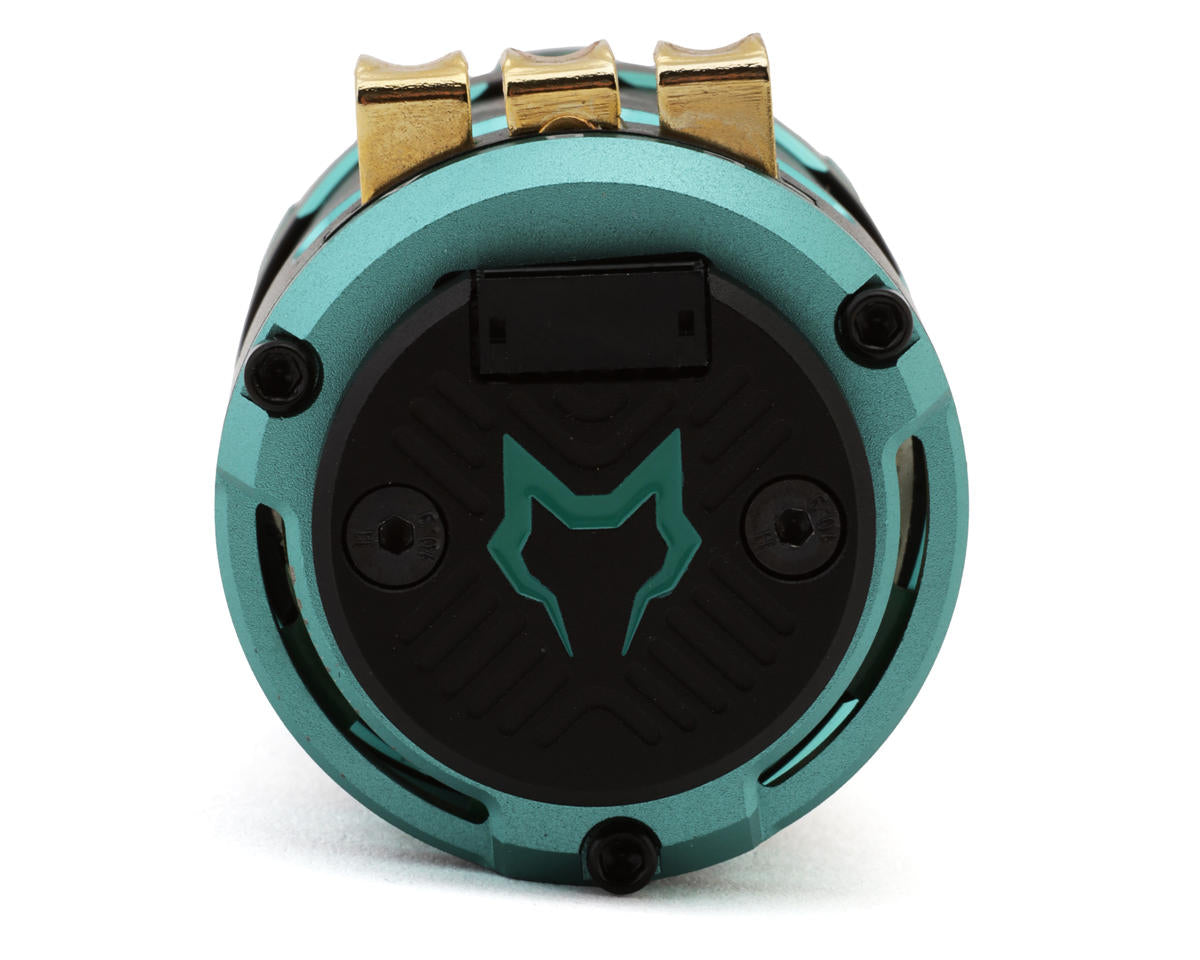

• Large end-cap ventilation holes for cooling
• Center-exposed stator for heat dissipation and airflow
• 220°C high-temperature magnet
• Instant torque response
• Linear power delivery during acceleration and braking
• Rebuildable construction
• App-controlled tuning system for real-time output adjustments

Specifications

• Suggested Application: 1/10
• Size: 5.0T (7050kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Adjustable Timing: Yes
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.82oz (165g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (5.0T)
• (1) Sensor Cable

Tech Note: The Infinite Adjustment System is only accessible through the Cayote Team App when used with a compatible Crest X or EVO ESC.
