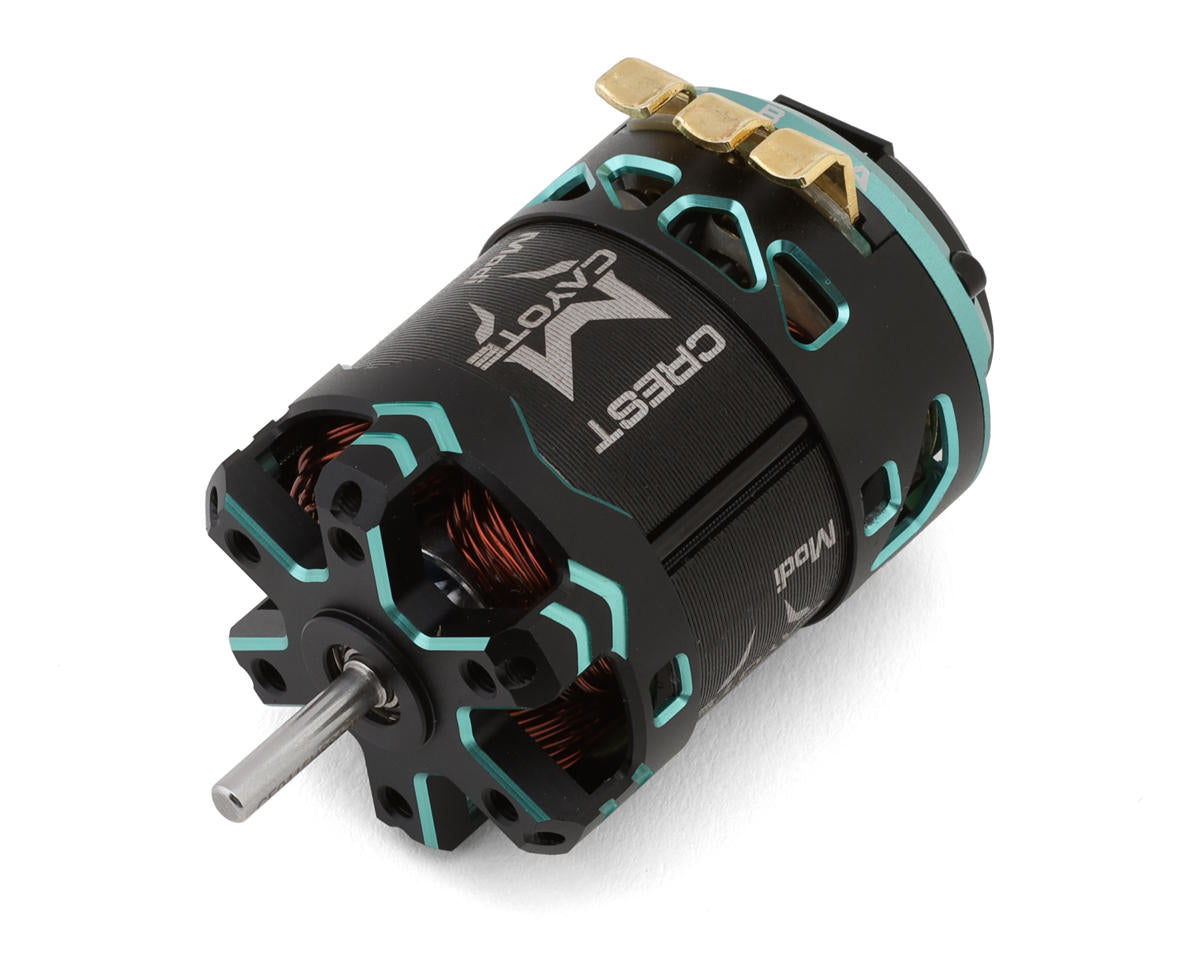

Cayote Crest Modi 540 1/10 Sensored Brushless Motor (4.5T)

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor delivers smooth, linear throttle response for 1/10 applications. Its high-precision Hall sensors, precision-balanced rotor, and 4.5T (7540kV) rating support consistent power delivery, while large end-cap ventilation holes and a center-exposed stator promote airflow and heat dissipation.

Features

• Sensored brushless design for smooth and accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery at all speeds
• Large end-cap ventilation holes and center-exposed stator for cooling and airflow
• 220°C high-temperature magnet
• Instant torque response and linear power delivery during acceleration and braking
• Rebuildable construction for maintenance
• Adjustable timing
• App-controlled tuning system for real-time output adjustments when used with a compatible Crest X or EVO ESC and the Cayote Team App

Specifications

• Suggested Application: 1/10
• Size: 4.5T (7540kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Adjustable Timing: Yes
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.77oz (163.5g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (4.5T)

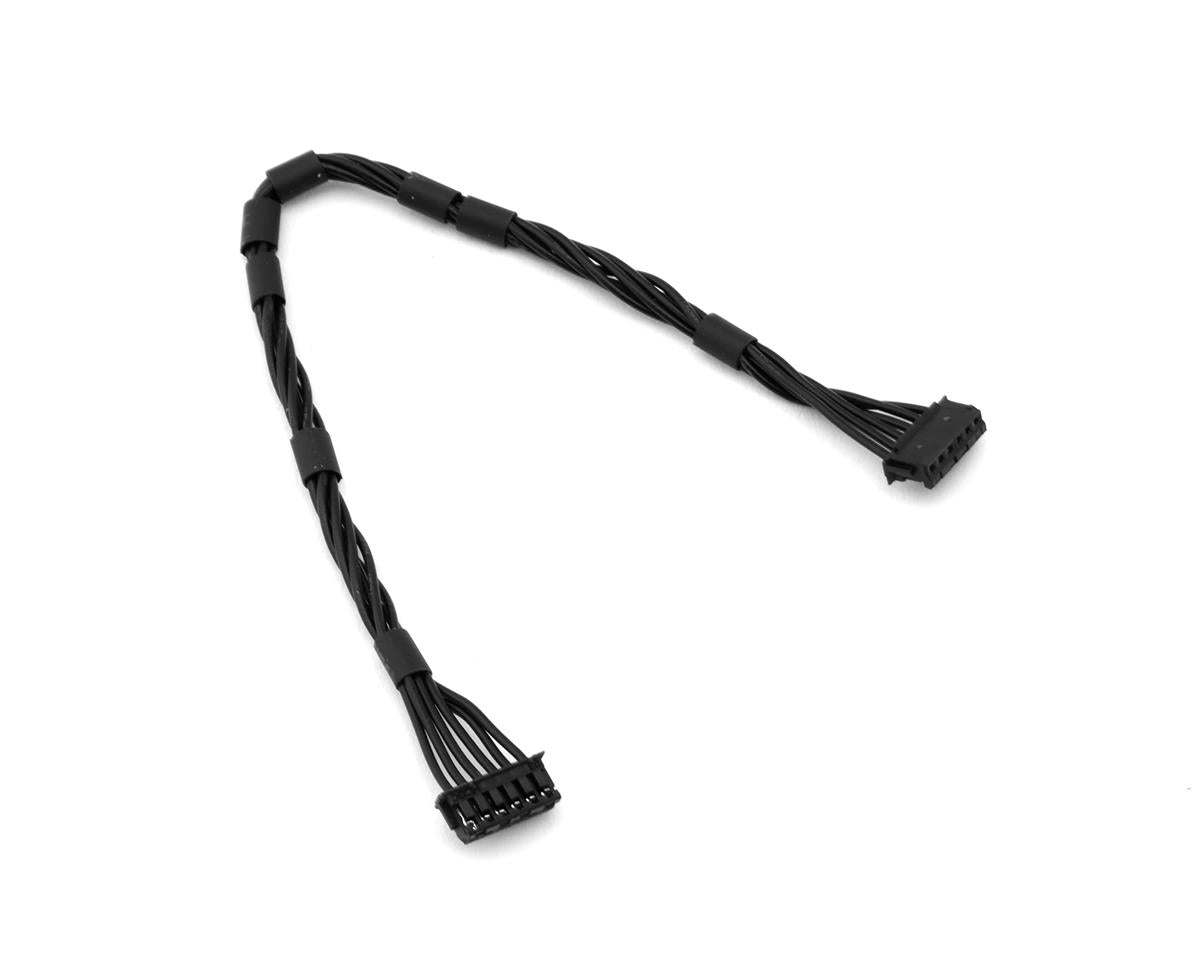

• (1) Sensor Cable
