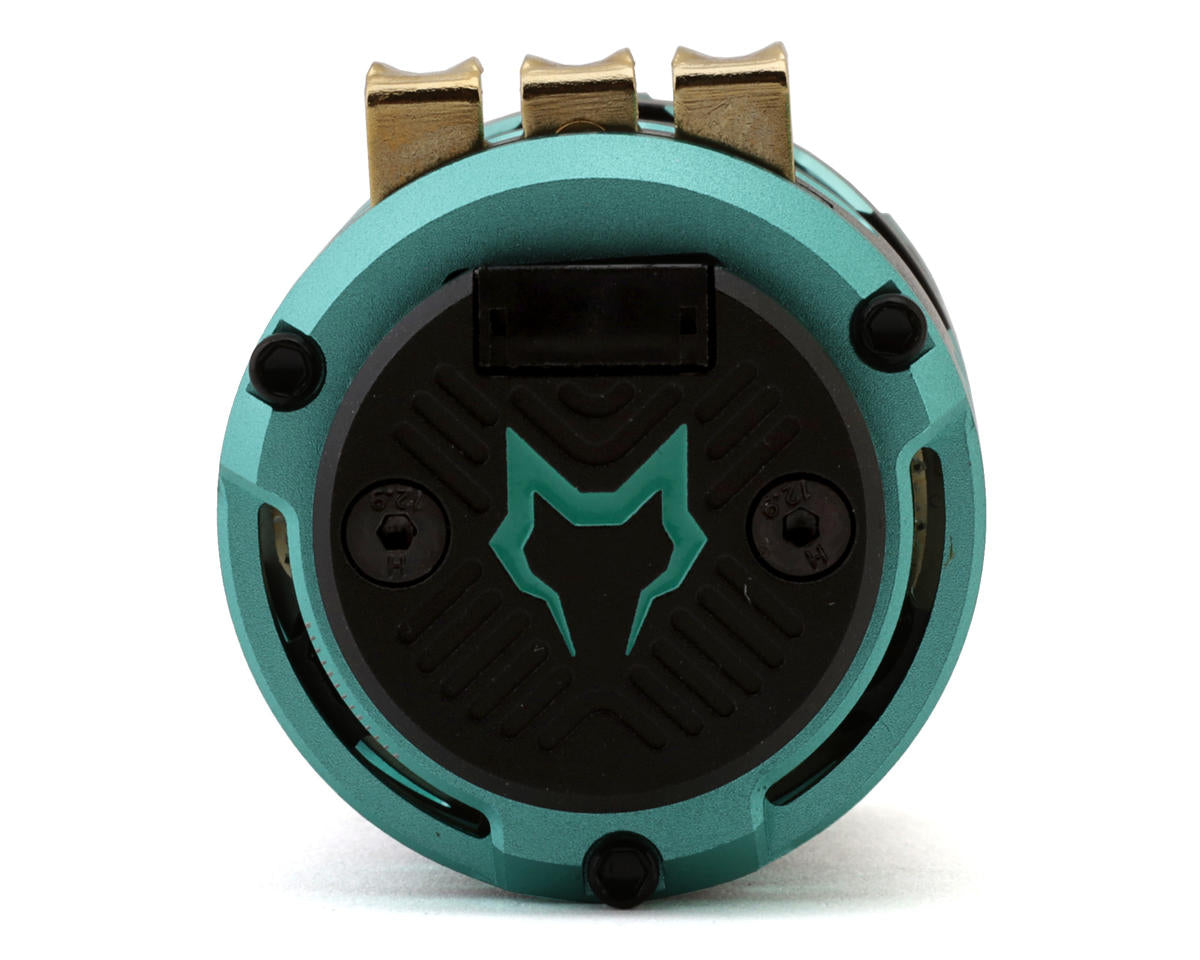

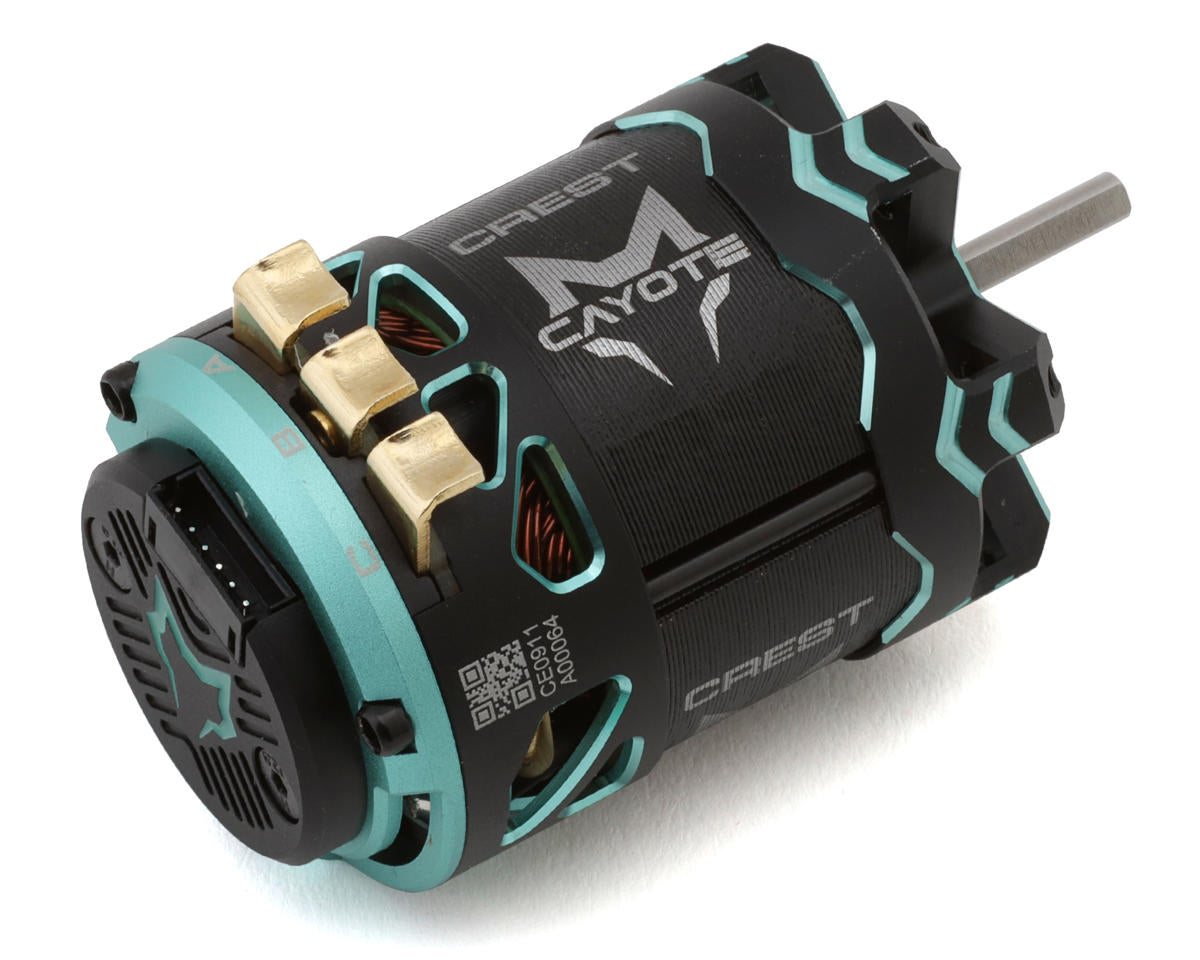

Cayote Crest Modi 540 1/10 Sensored Brushless Motor (4.0T)

The Cayote Crest Modi 540 1/10 Sensored Brushless Motor delivers smooth, linear power with accurate throttle response for 1/10 applications. High-precision Hall sensors, a precision-balanced rotor, and a rebuildable design support consistent operation and maintenance.

Large ventilation openings in both end caps and a center-exposed stator promote airflow around critical components. The motor also features a 220°C high-temperature magnet, adjustable timing, and app-based output adjustments when paired with a compatible Crest X or EVO ESC through the Cayote Team App.

Features

• Sensored brushless design for smooth and accurate throttle response
• High-precision Hall sensors for stable signal detection and control
• Precision-balanced rotor for consistent power delivery
• Large end-cap ventilation holes and center-exposed stator for cooling and airflow
• 220°C high-temperature magnet
• Instant torque response and linear power delivery
• Rebuildable construction
• Adjustable timing
• App-controlled tuning system with compatible Crest X or EVO ESC

Specifications

• Suggested Application: 1/10
• Size: 4.0T (8,350kV)
• Type: Brushless - Sensored
• Voltage: 2S LiPo (7.4V)
• Adjustable Timing: Yes
• Poles: 2
• Connector: Solder Tab
• Dimensions: 2.04x1.41in (51.9x35.8mm)
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 5.78oz (164g)

Includes

• (1) Crest Modi 540 1/10 Sensored Brushless Motor (4.0T)

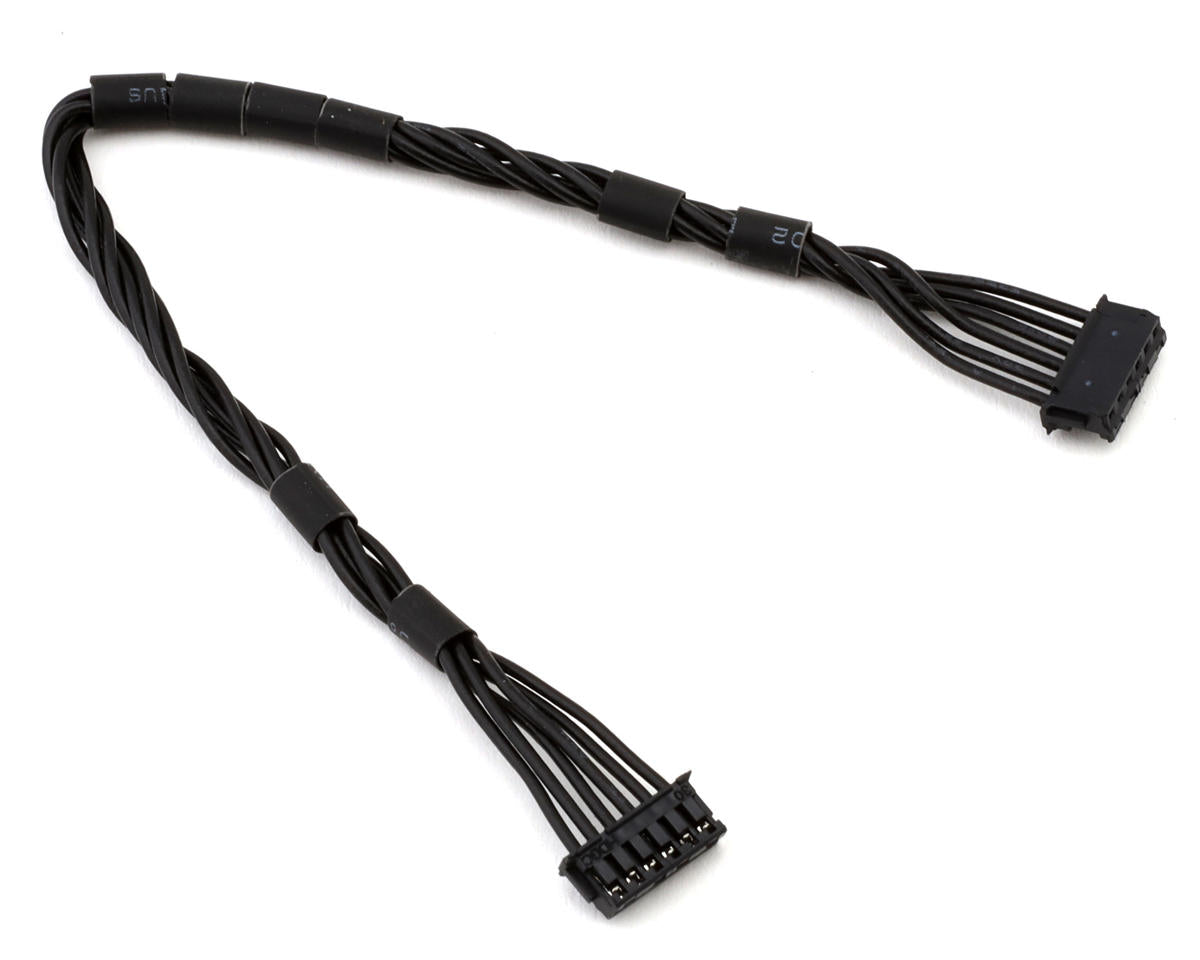

• (1) Sensor Cable

Tech Note: The Infinite Adjustment System is only accessible through the Cayote Team App when used with a compatible Crest X or EVO ESC.
