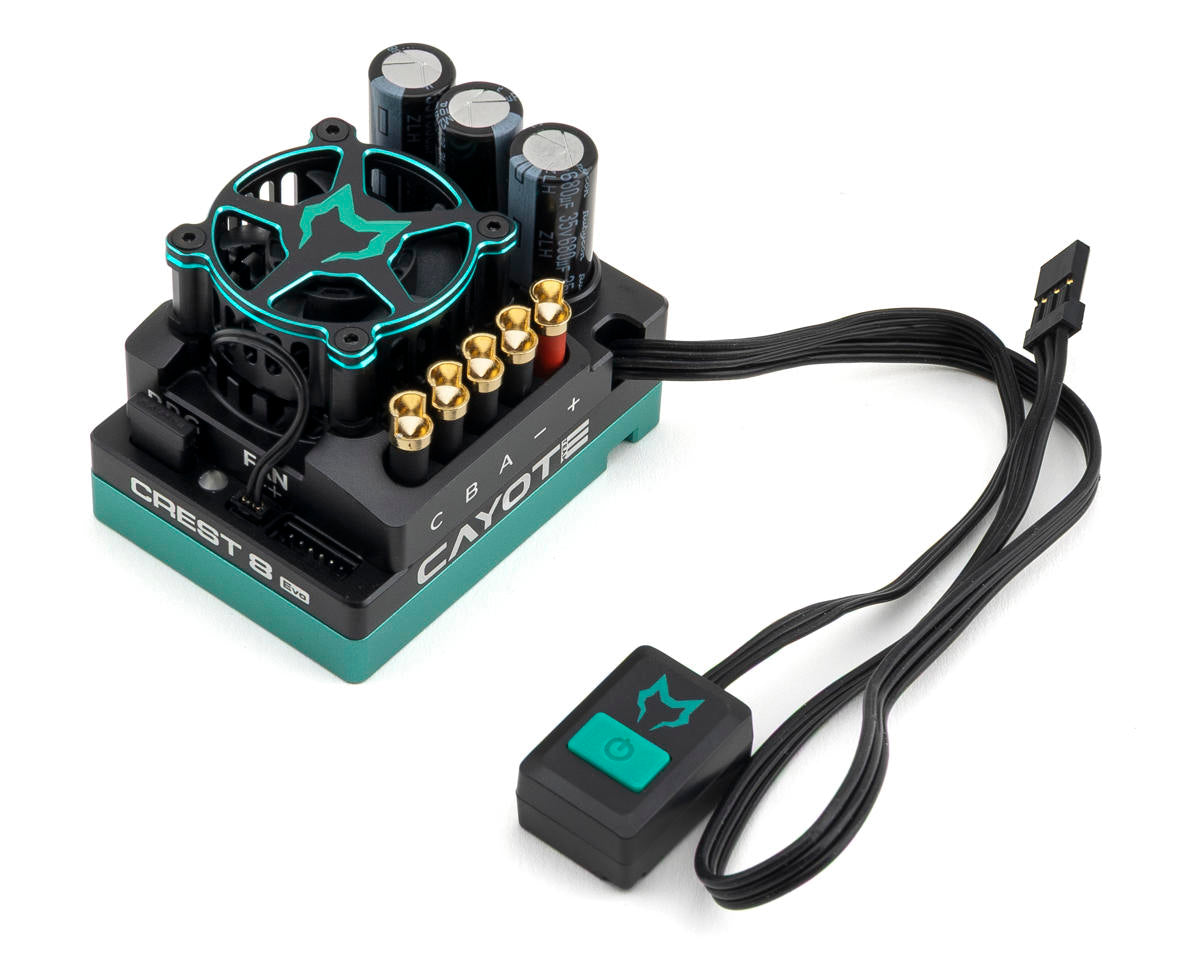

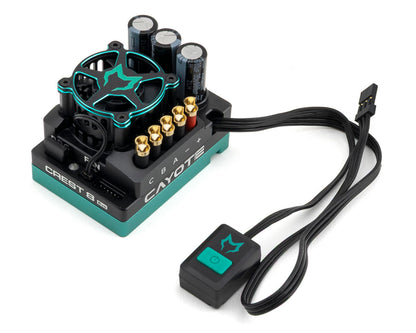

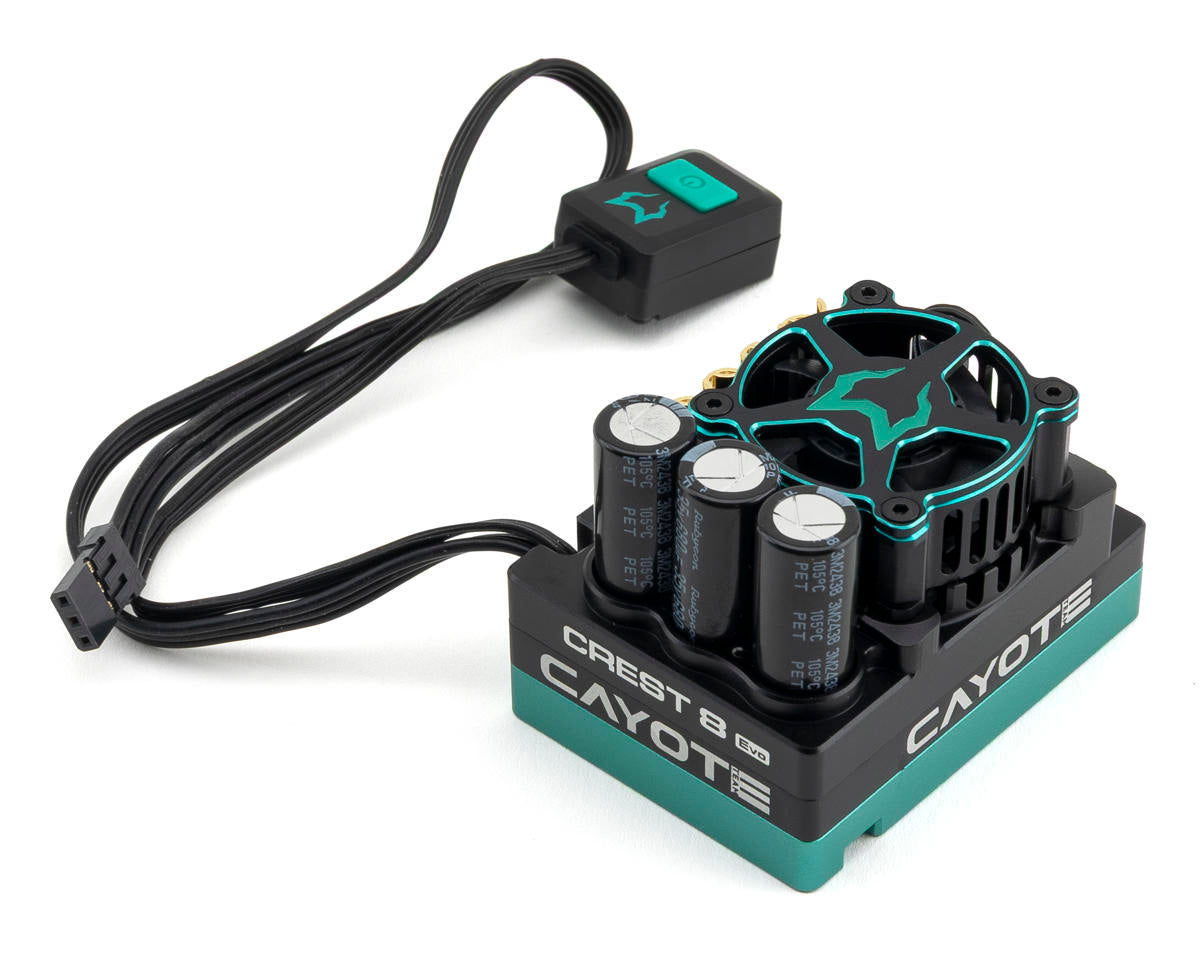

Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/Bluetooth

The Cayote Crest 8 EVO is a 1/8-scale 200A sensored brushless ESC with built-in Bluetooth compatibility, offline data recording, and programmable tuning through the Cayote Team app or Cayote Xlink Multifunction LCD Program Box. Reverse polarity protection and multiple protection functions support reliable operation, while the 32-bit industrial-grade Cortex-M4 core provides up to 108 MHz clock speed.

Features

• Built-in Bluetooth compatibility with the Cayote Team app
• 10% more peak power
• Offline data recording for performance tracking
• Reverse polarity protection
• 32-bit industrial-grade Cortex-M4 core with up to 108 MHz clock speed
• 1-20 adjustable drag break
• Multiple protection functions
• Optional RPM limiting from 10-88K RPM
• Throttle midpoint settings: 4%, 6%, 8%, or 10%

Specifications

• Suggested Application: 1/8 Buggies, Truggies & Trucks
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 200A
• Peak Current: 1080A
• Dimensions (LxWxH): 2.24x1.64x1.57in (56.8x41.6x40mm)
• Weight: 4.3oz (122g)
• Motor Limits: 4268/4274 3000kV Maximum with 4S Lipo
• BEC Voltage: 6.0/7.4V
• BEC Continuous Current: 8A
• BEC Peak Current: 12A
• Motor Connector: Solder
• Battery Connector: Solder
• Motor Wire: 10AWG
• Battery Wire: 13AWG
• Throttle Wire: -
• Programmable: Yes, with Cayote Xlink Program Box or Cayote Team App

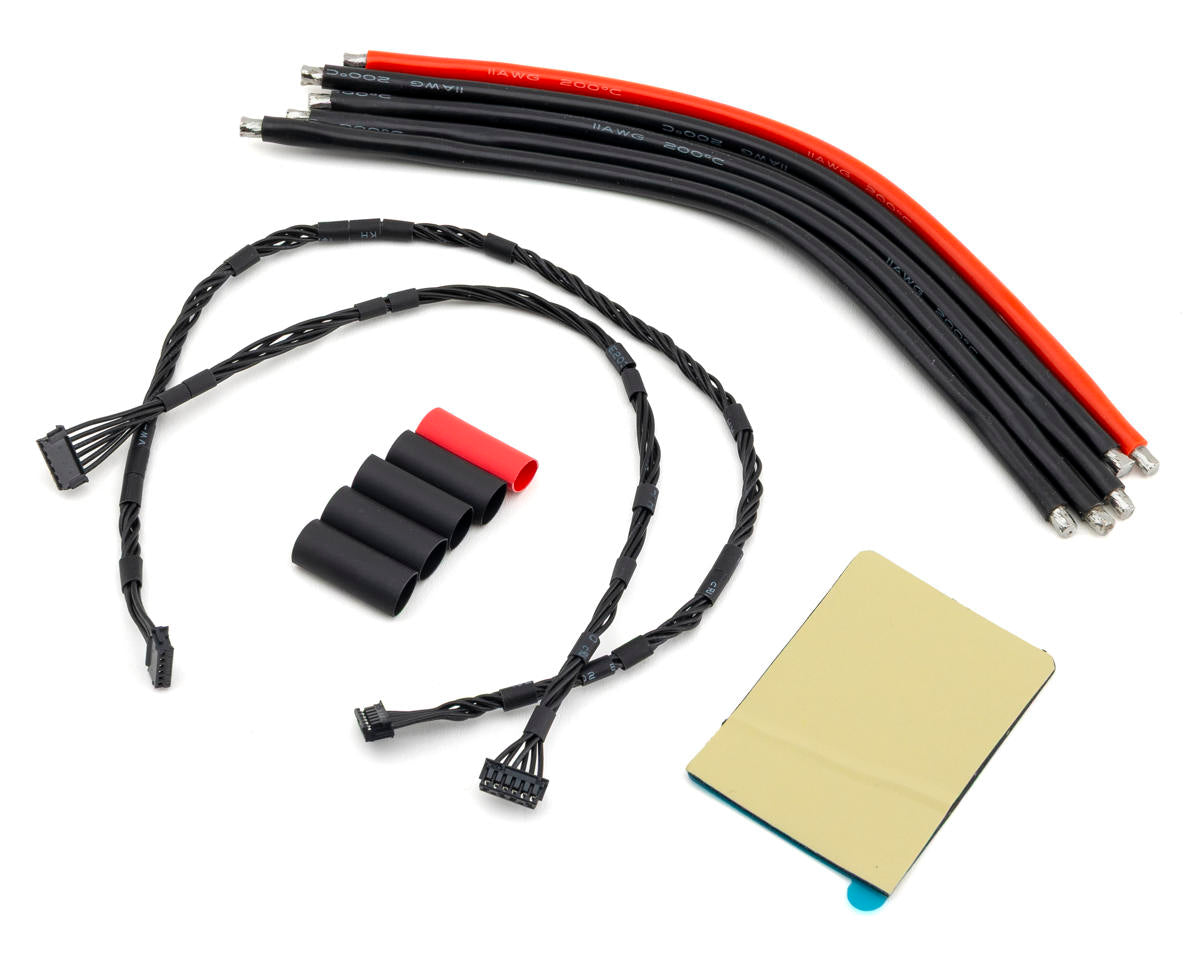

Includes

• (1) Crest 8 Evo 1/8 200A Sensored Brushless ESC
• (1) Sensor Cable
• (3) Black 10AWG Wire Connectors
• (1) Black 13AWG Wire Connector
• (1) Red 13AWG Wire Connector
• (1) Heat Shrink Tube Set
• (1) Double-Sided Mounting Tape
• Instruction Manual

Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read the data.
