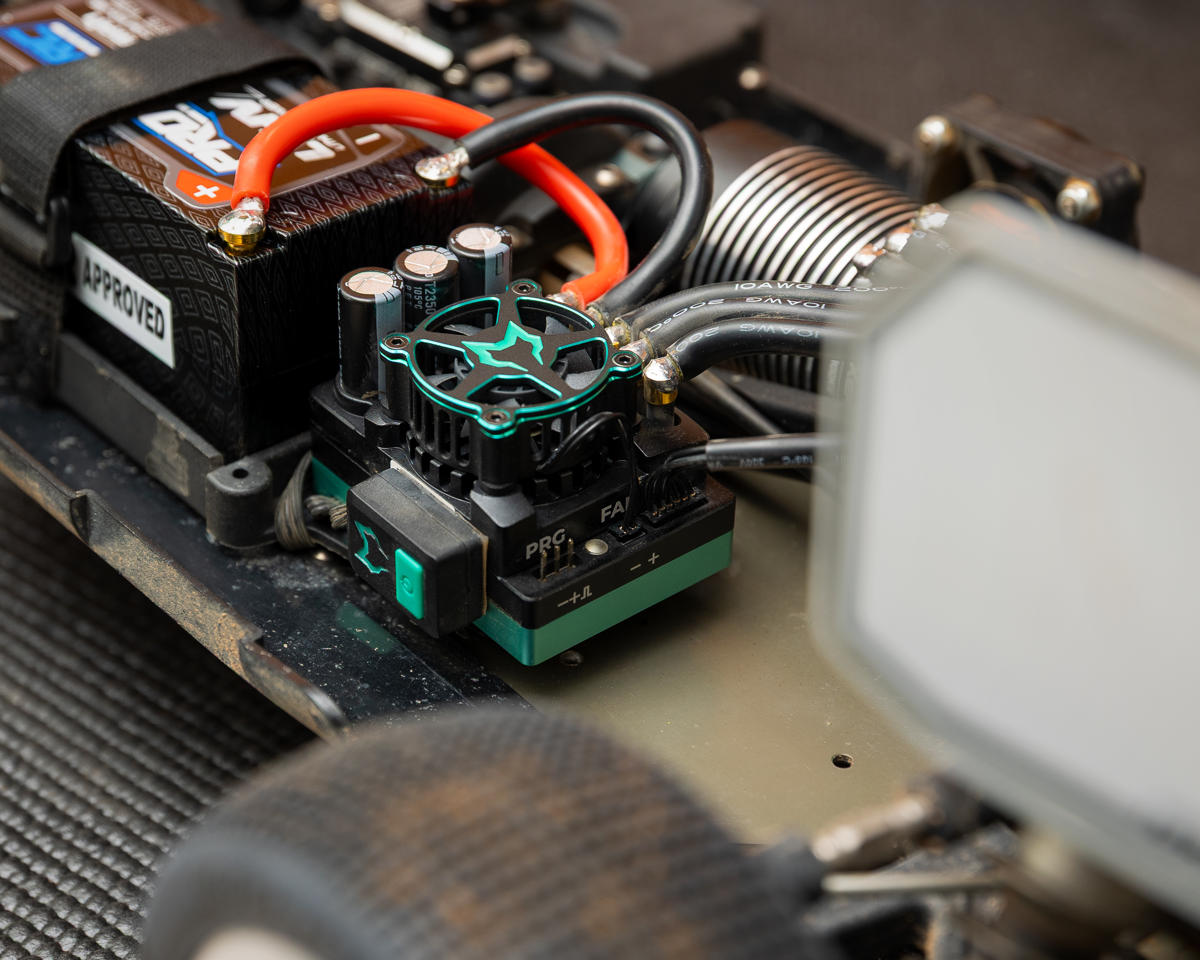

Cayote Crest 8 1/8 200A Sensored Brushless ESC w/Bluetooth

The Cayote Crest 8 1/8 200A Sensored Brushless ESC provides Bluetooth-enabled tuning, offline data recording, and adjustable power control for 1/8 buggies, truggies, and trucks. It supports sensored or sensorless brushless motors and includes a Glitch Buster, sensor cable, connectors, heat shrink, and double-sided mounting tape.

Features

• Built-in Bluetooth compatibility with the Cayote Team app
• Super large 48° boost and turbo timing
• Offline data recording for performance tracking
• Over thirty-three adjustable parameters
• Built-in super switching mode BEC
• Smooth and stable power delivery
• Professional reversing shutdown system
• Multiple protection functions
• Advanced cooling system for heat dissipation
• Lightweight and durable construction

Specifications

• Suggested Application: 1/8 Buggies, Truggies & Trucks
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 200A
• Peak Current: 1080A
• Dimensions (LxWxH): 2.24x1.64x1.57in (56.8x41.6x40mm)
• Weight: 4.3oz (122g)
• Motor Limits: 4268/4274 3000kV Maximum with 4S Lipo
• BEC Voltage: 6.0/7.4V
• BEC Continuous Current: 8A
• BEC Peak Current: 12A
• Motor Connector: Solder
• Battery Connector: Solder
• Motor Wire: 10AWG
• Battery Wire: 13AWG
• Throttle Wire: -
• Programmable: Yes, with Cayote Xlink Program Box or Cayote Team App

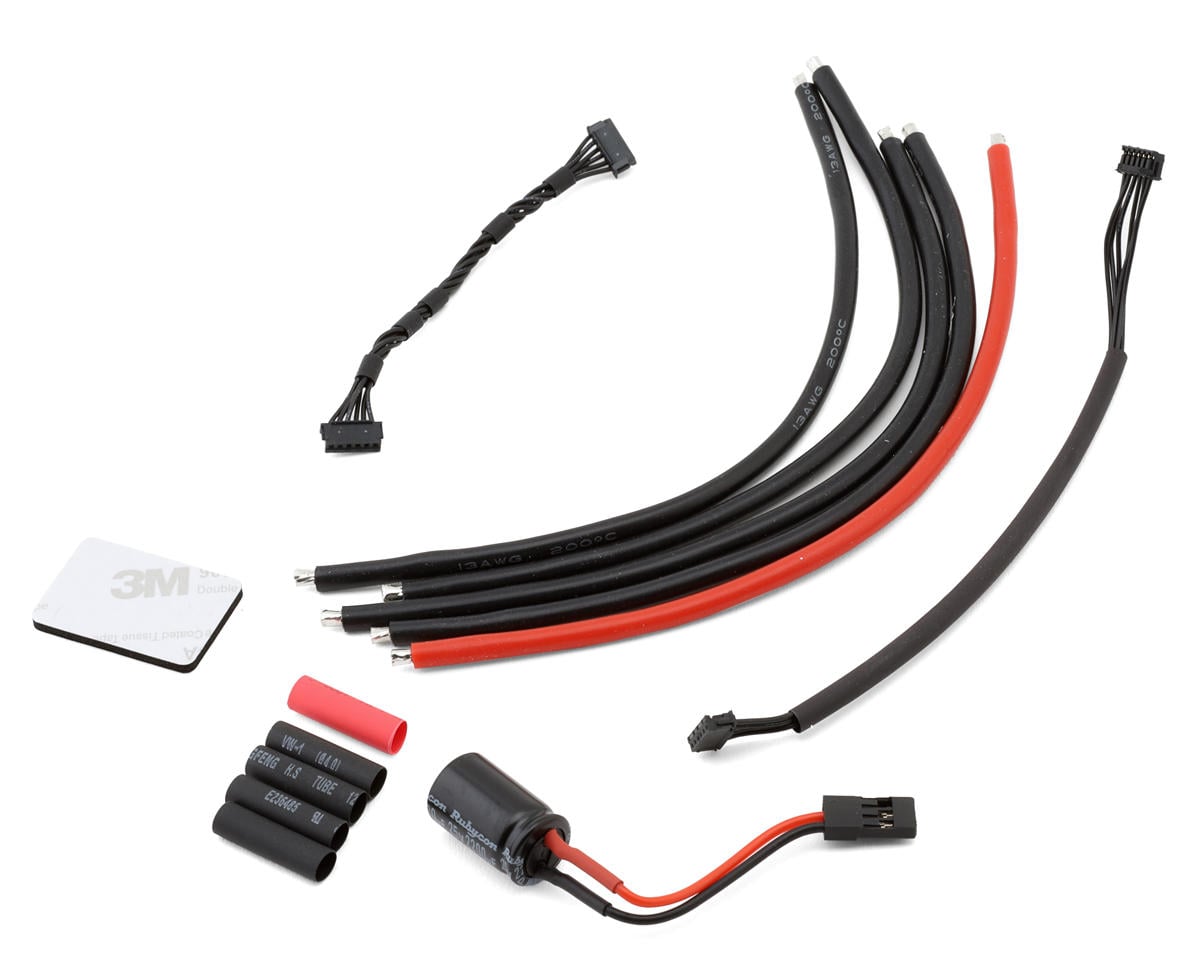

Includes

• (1) Crest 8 1/8 200A Sensored Brushless ESC
• (1) Glitch Buster
• (1) Sensor Cable
• (3) Black 10AWG Wire Connectors
• (1) Black 13AWG Wire Connector
• (1) Red 13AWG Wire Connector
• (1) Heat Shrink Tube Set
• (1) Double-Sided Mounting Tape
• Instruction Manual

The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read the recorded data.
