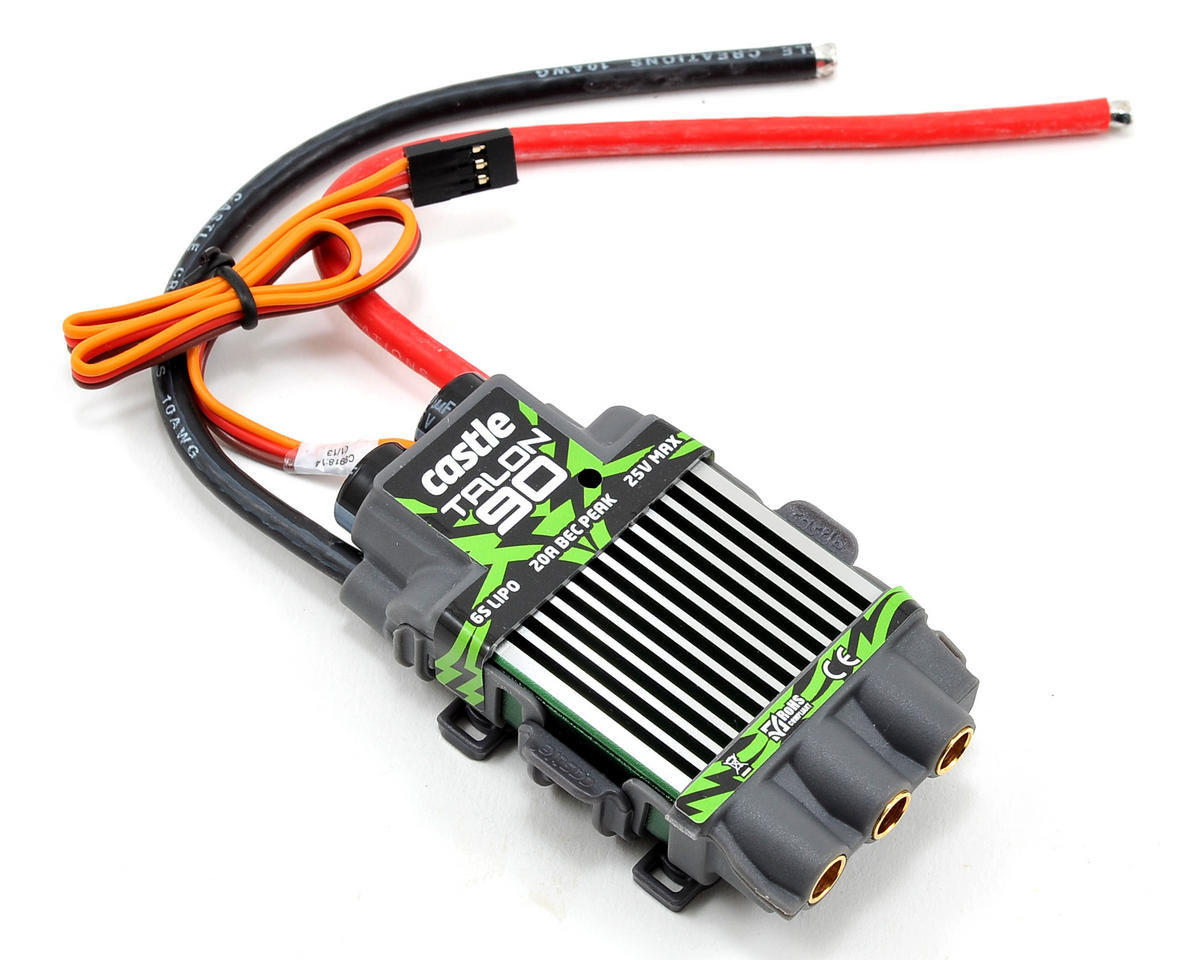

Castle Creations Talon 90 Brushless ESC

The Castle Creations Talon 90 Brushless ESC is designed for helicopters, fixed-wing aerobats, and scale aircraft. Its BEC provides a user-selectable 6 or 8 volt output, with up to 20 amps peak power and 9 amps continuous power for demanding servos.

Applications

• Ideal for helicopters drawing 2,000 watts on 6S
• Suitable for extreme 500 and 550 class helicopters and sport 6S 600 setups
• Designed for aerobats up to 10 pounds and scale ships up to 20 pounds
• Suitable for mounting locations where cooling is challenging

Features

• Castle helicopter functions, including direct entry governor mode
• Fully programmable using a Castle Link USB adapter and freely downloadable Castle Link Windows software
• A coupon for a free Castle Link adapter is included in the package

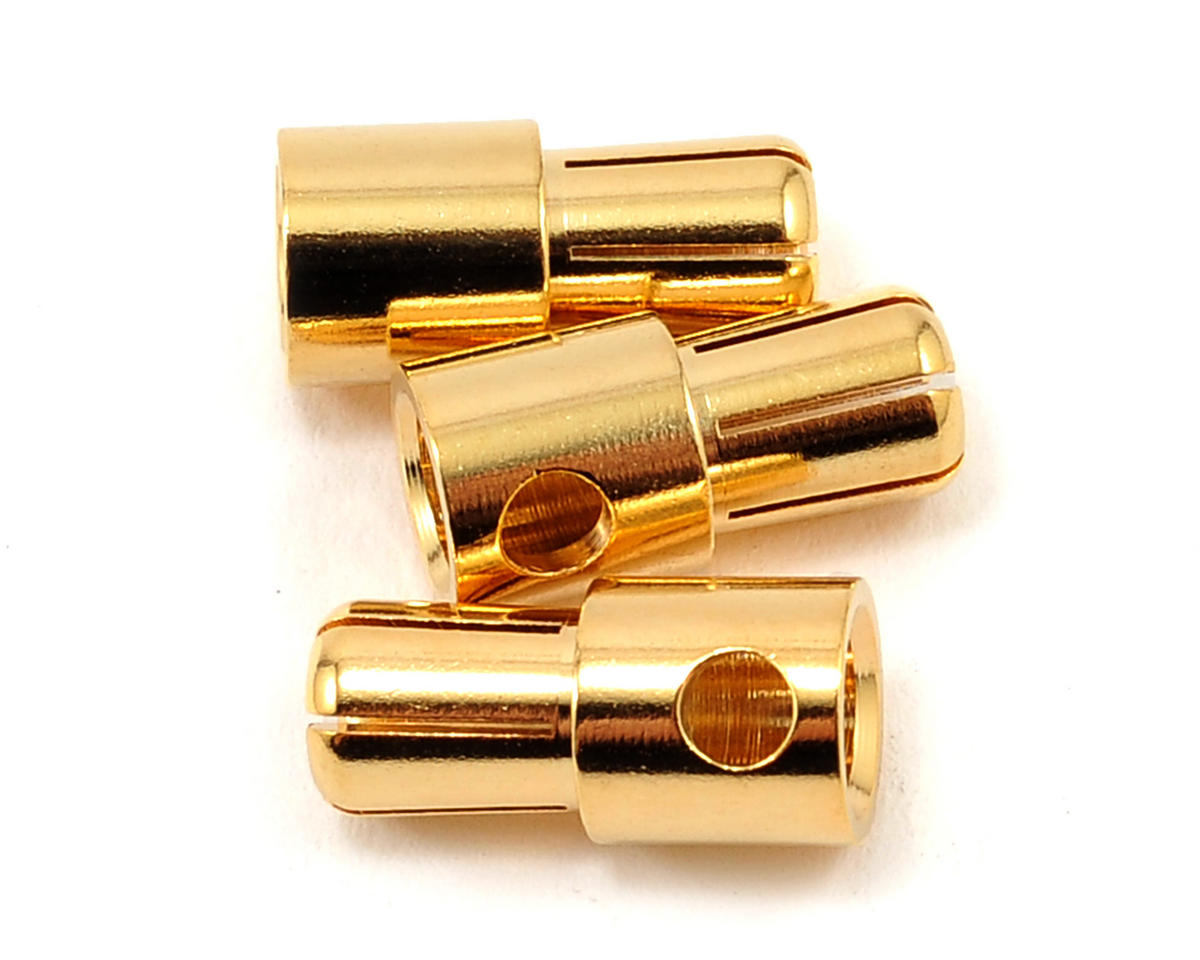

• Female motor bullets are built into the ESC; matching male bullets are included

Specifications

• Input voltage: MIN: 3S LiPo; MAX: 6S LiPo
• Max continuous amperage at full throttle: 90 amps, with 5mph airflow across the ESC
• BEC voltage: User selectable choice of 6 or 8 volt output
• BEC output: 20 amp peak; 9 amp continuous
• Dimensions: Width: 1.7" (43mm); Length: 3.14" (80mm); Depth: 0.7" (18mm)
• Mounting bracket: Adds 2mm depth and 8mm width
• Weight: 3.0 oz. (84.5g) with 150mm power wires and no battery connectors

Needed for Operation or Installation

• Battery connector, sold separately
