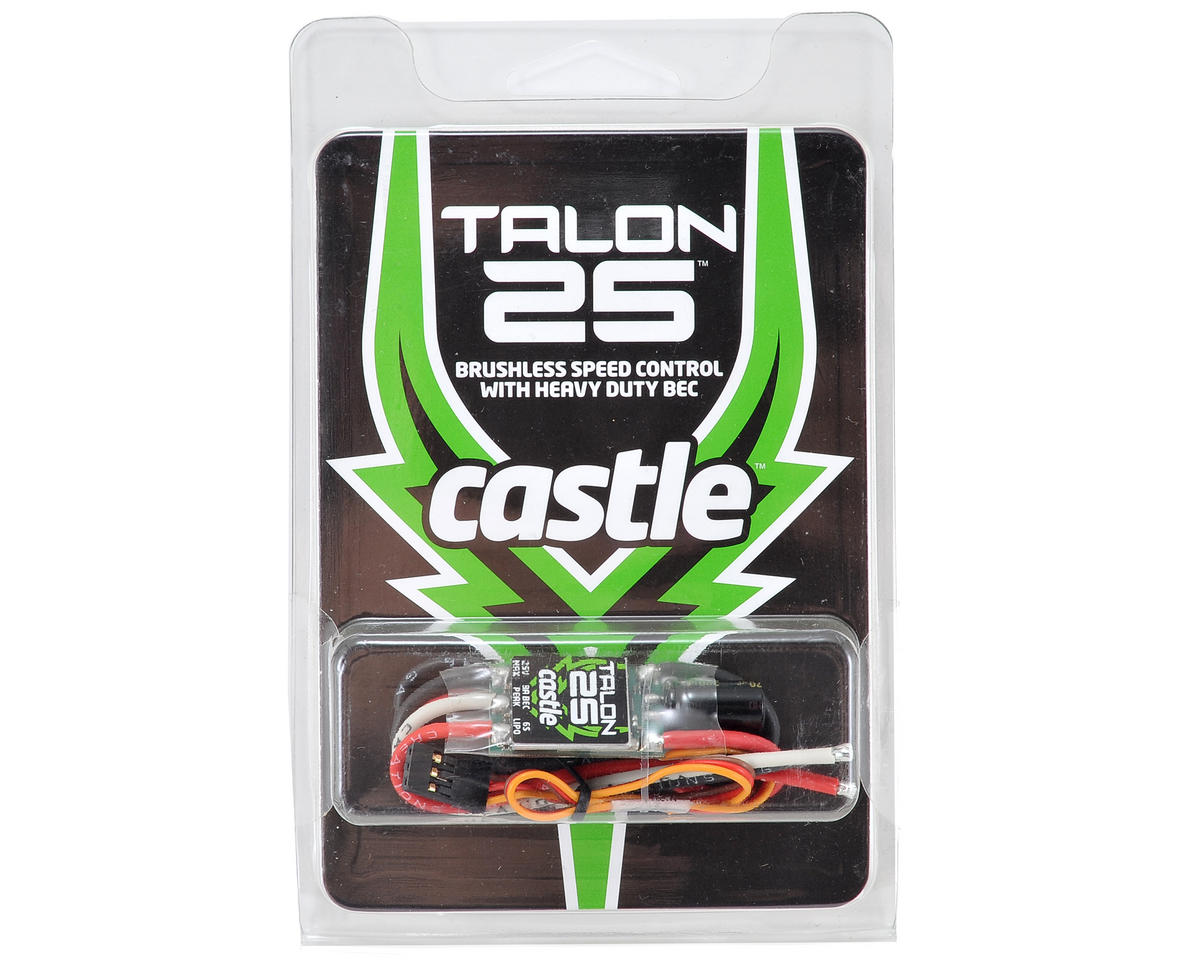

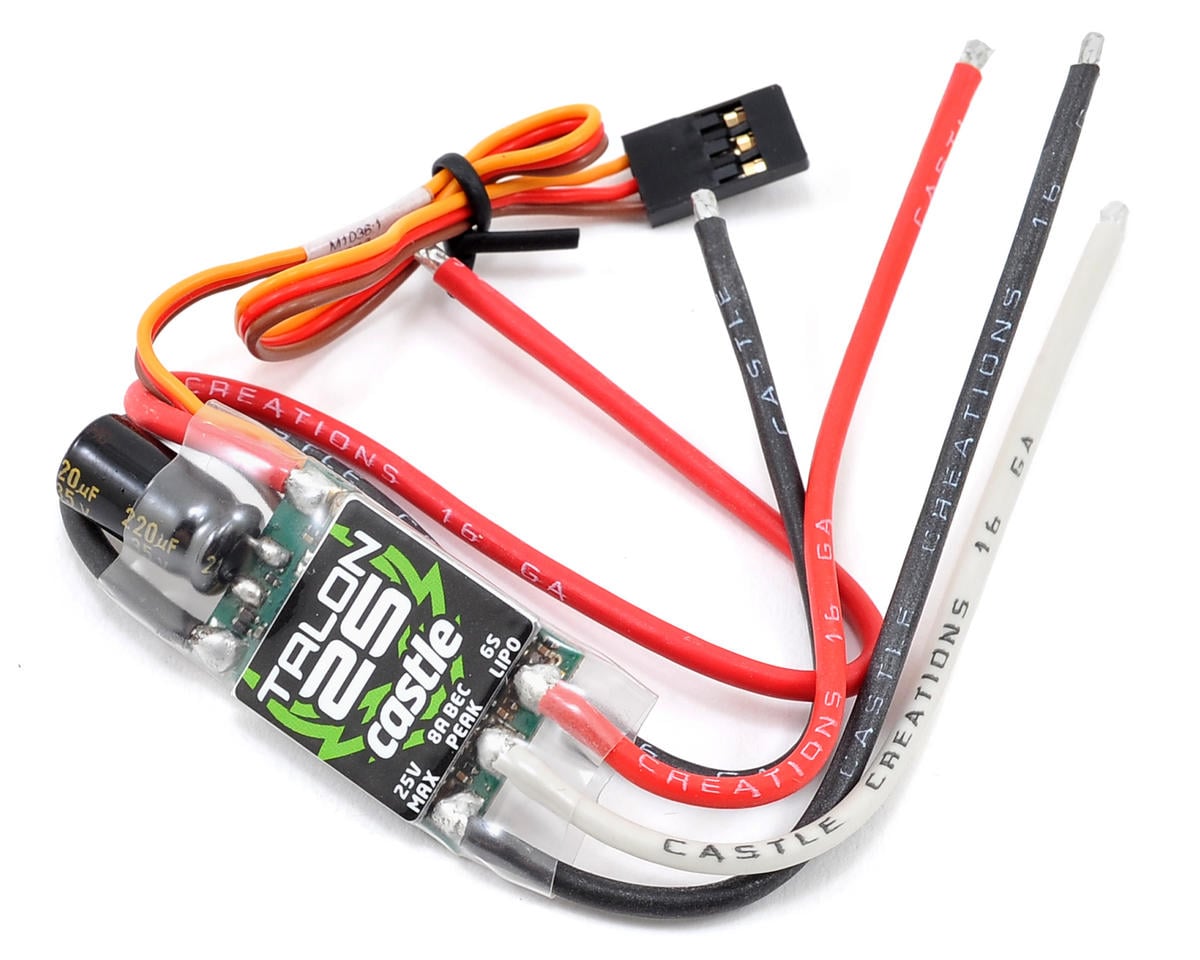

Castle Creations Talon 25 Brushless ESC

The Castle Creations Talon 25 Brushless ESC is designed for most 400-size helicopter setups running up to 6S LiPo, as well as 3D foam aircraft drawing up to 25 amps. It features a 5.5V BEC with 8 amp peak and 3 amp continuous output, plus programmable Castle features through the Castle Link USB adapter.

Features

• Input voltage: MIN: 2S LiPo MAX: 6S LiPo
• Max continuous amperage at full throttle: 25 amps
• BEC voltage: 5.5 volts
• BEC output: 8 amp peak, 3 amp continuous
• Fully programmable Castle feature set
• Coupon for free Castle Link adapter included in package
• Weight with wires: 0.63 oz. (17.9g)

Specifications

• Width: .72" (18.2mm)
• Length: 1.72" (43.7mm)
• Depth: 0.32" (8.1mm)
• Weight without wires: 0.28 oz (7.9g)

Installation Requirements

Battery and motor connectors are sold separately. Always check servo draw prior to the first flight and verify system current draw at full throttle.
