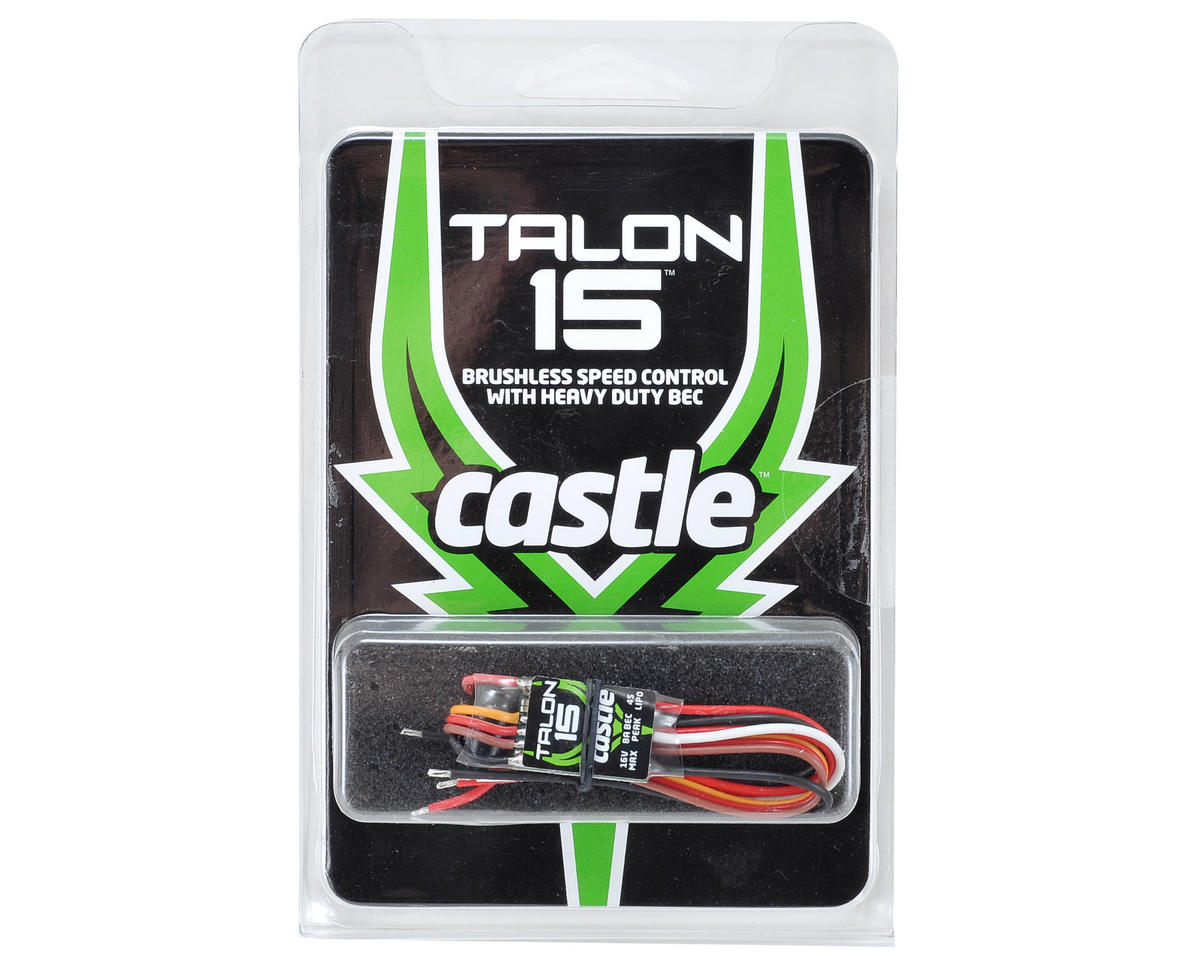

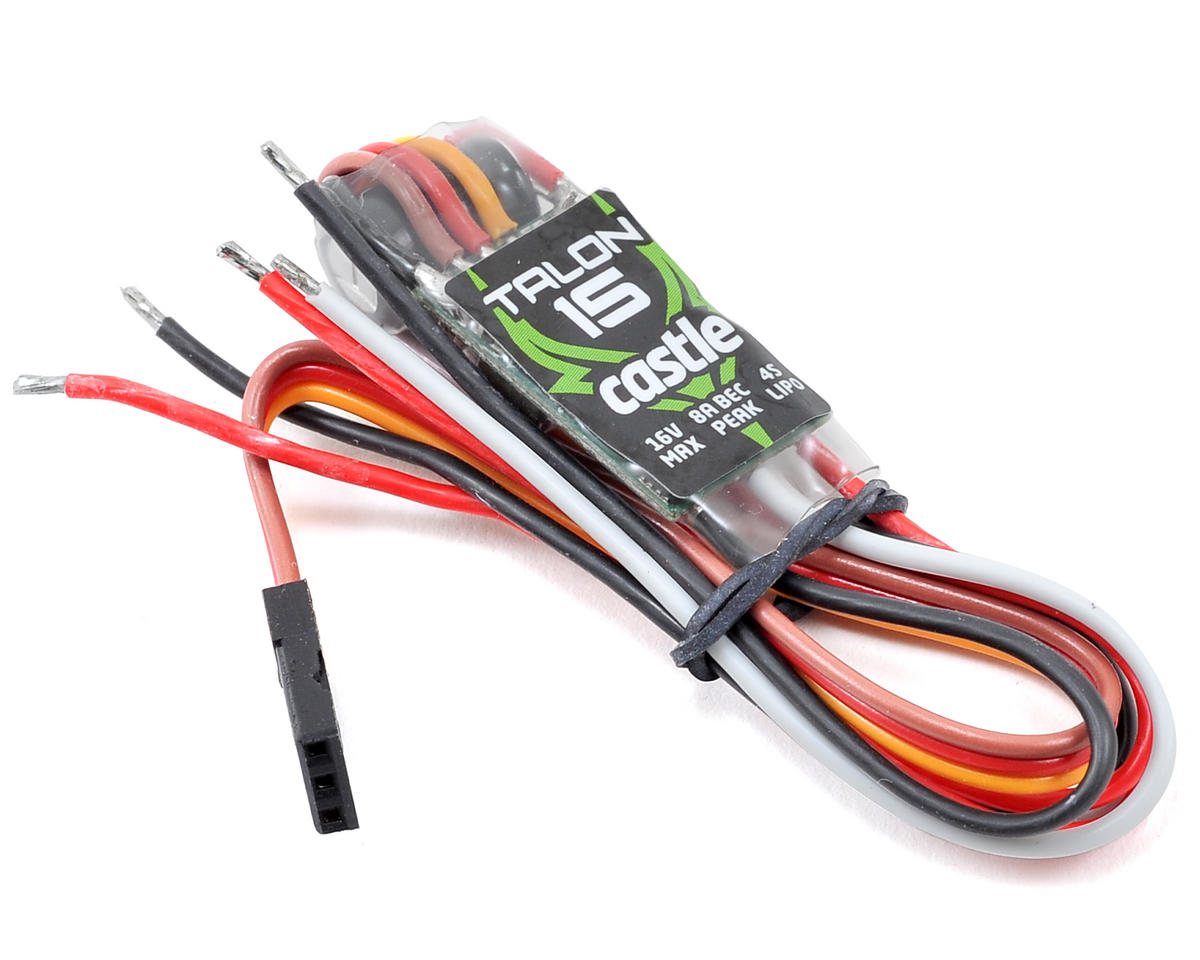

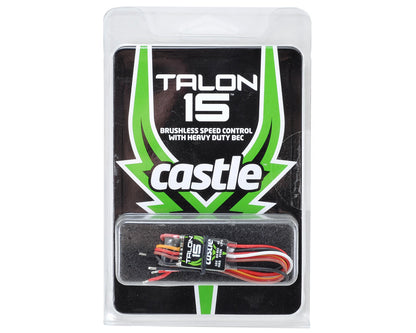

Castle Creations Talon 15 Brushless ESC

The Castle Creations Talon 15 Brushless ESC is a compact controller for foamies, micro helis, and sub-micro helis running up to 4S and pulling 15 amps. It features a 5.5 volt BEC with 8 amp peak and 3 amp continuous output.

Features

• 15 amp maximum continuous amperage at full throttle
• Input voltage: MIN: 2S LiPo; MAX: 4S LiPo
• BEC voltage: 5.5 volts
• BEC output: 8 amp peak, 3 amp continuous
• Fully programmable Castle feature set
• Programmable with the Castle Link USB adapter and freely downloadable Castle Link Windows software
• Coupon for a free Castle Link adapter included in the package

Specifications

• Width: .58" (14.7mm)
• Length: 1.10" (27.9mm)
• Depth: 0.32" (8.1mm)
• Weight with wires: 0.25 oz. (7.2g)
• Weight without wires: 0.12 oz (3.4g)

Installation Notes

Battery and motor connectors are sold separately. Always verify system current draw at full-throttle and confirm servo current draw before the first flight. Controller temperature must never exceed 100C (212F).
