Castle Creations Sidewinder SV3 Waterproof 1/10 ESC/Motor Combo (6900kV)

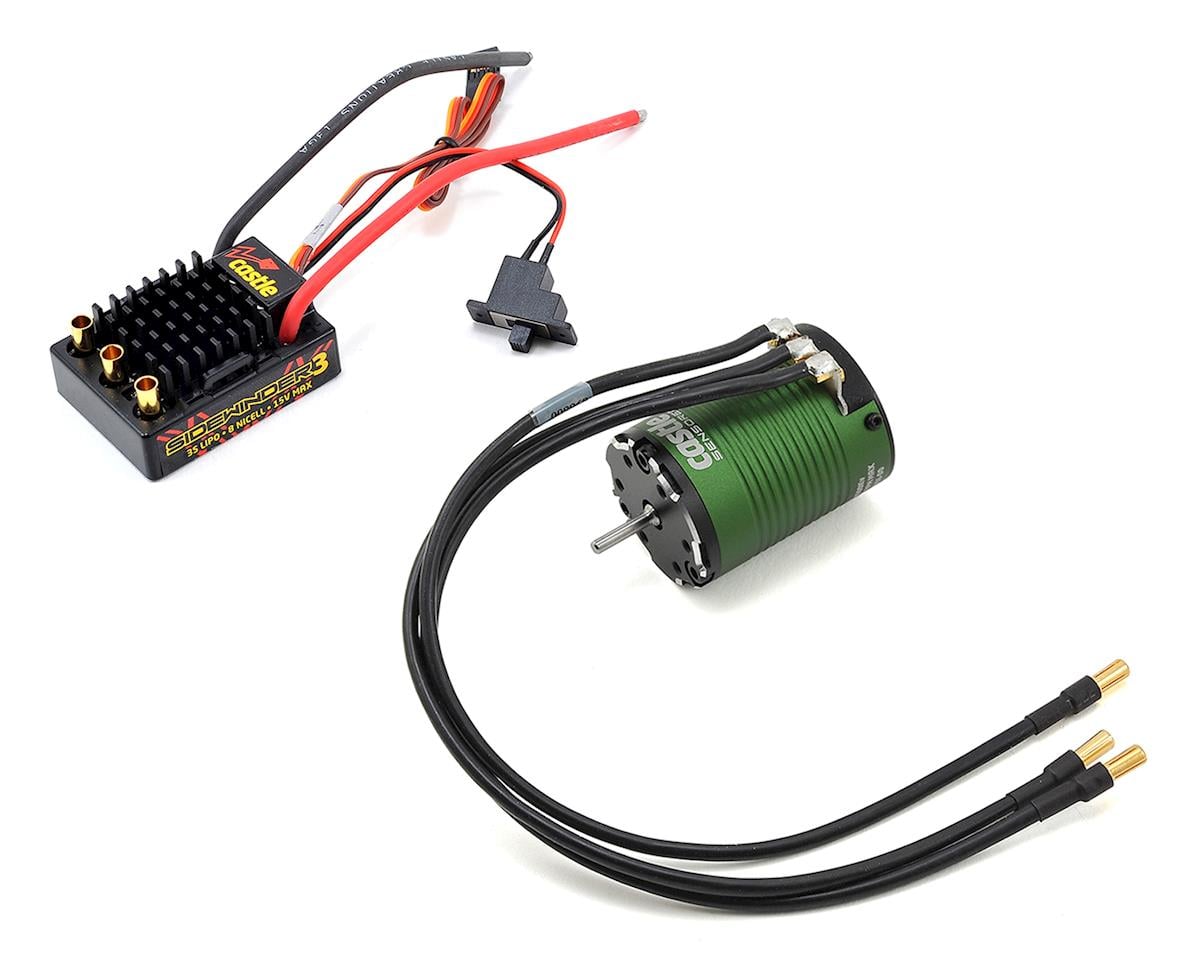

The Castle Creations Sidewinder SV3 Waterproof 1/10 ESC/Motor Combo pairs a Sidewinder SV3 electronic speed control with a sensored 1406 6900kV brushless motor. It is intended for 1/10 scale on-road vehicles using 2S LiPo, as well as lighter off-road 1/10 stadium trucks and buggies with conservative gearing and a vehicle weight up to 4 pounds.

The combo supports up to 3S LiPo, with SMARTSENSE, Sensored, and Sensorless running modes. The ESC includes proportional braking, reversible operation with lockout, updated circuitry, and USB programming capability through a Castle Link USB adapter, sold separately.

ESC Specifications

• Input Voltage: MIN: 2s LiPo; MAX: 3s LiPo
• Environment: Waterproof design for use in nearly any environment
• Brake: Proportional
• Reversible: Yes - with lockout
• Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
• Weight: 1.96 oz (55.5g) with 127mm long battery wires and no battery connector

The ESC is not intended for operation while submerged in liquid. When operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry the unit.

Motor Specifications

• Motor: Sensored 1406 6900kV
• Input Voltage Range: 2-3S LiPo
• Max. RPM: 100,000
• Size: Length: 49.5mm; Diameter: 36mm
• Weight: 193 g / 6.8oz with wires
• Shaft Size: Length: 15mm; Diameter: 1/8" (3.17mm)
• Mounting Hole Specifications: M3 @ 25mm

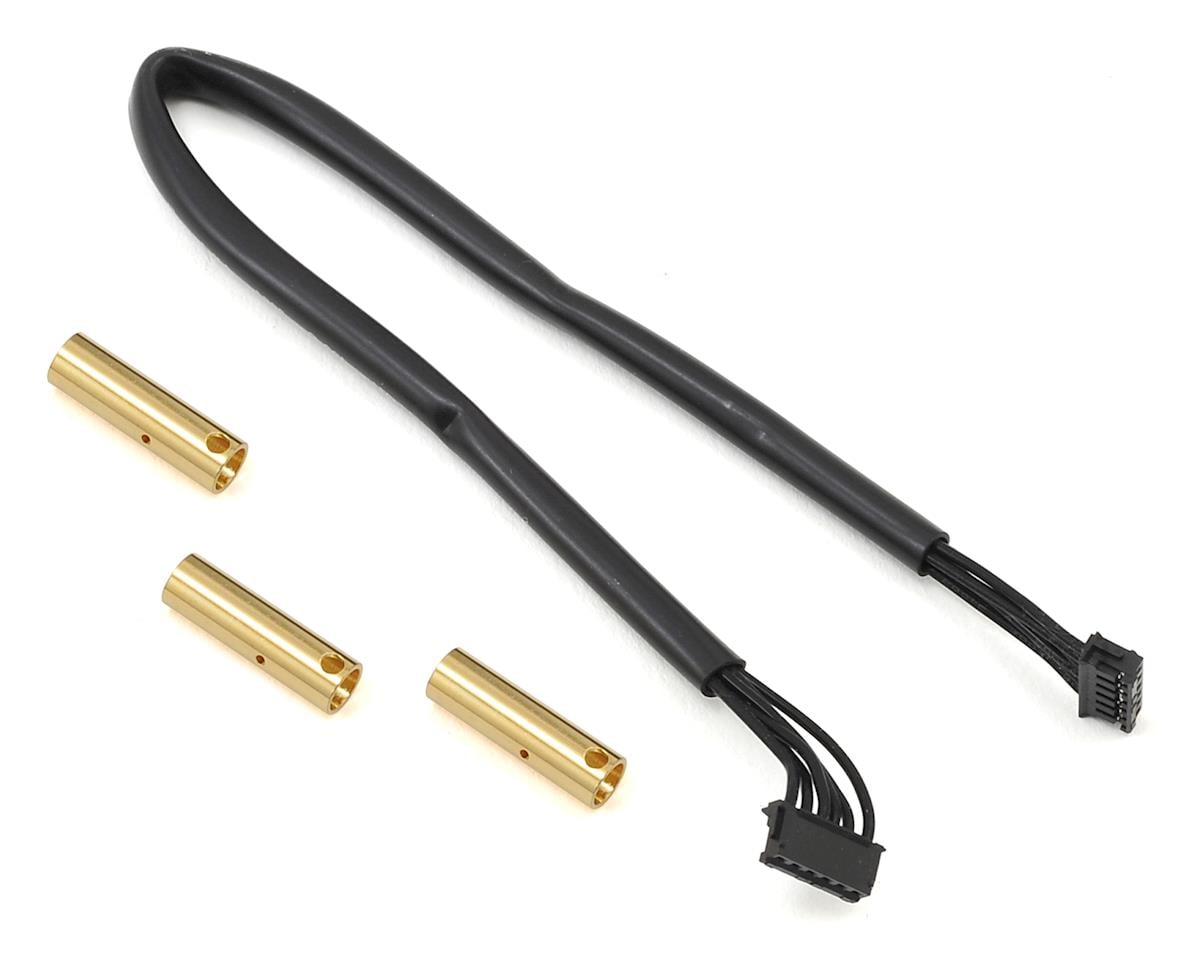

• Connectors: 4mm male Castle Bullet Connectors

Application Guidelines

• Recommended for 1:10 scale on-road use with 2S
• Suitable for lighter off-road 1/10 stadium trucks and buggies with conservative gearing
• Max. recommended vehicle weight: Up to 4lbs
• Not recommended for 2wd or 4wd short course trucks
