Castle Creations Sidewinder SV3 Waterproof 1/10 ESC/Motor Combo (4600kV)

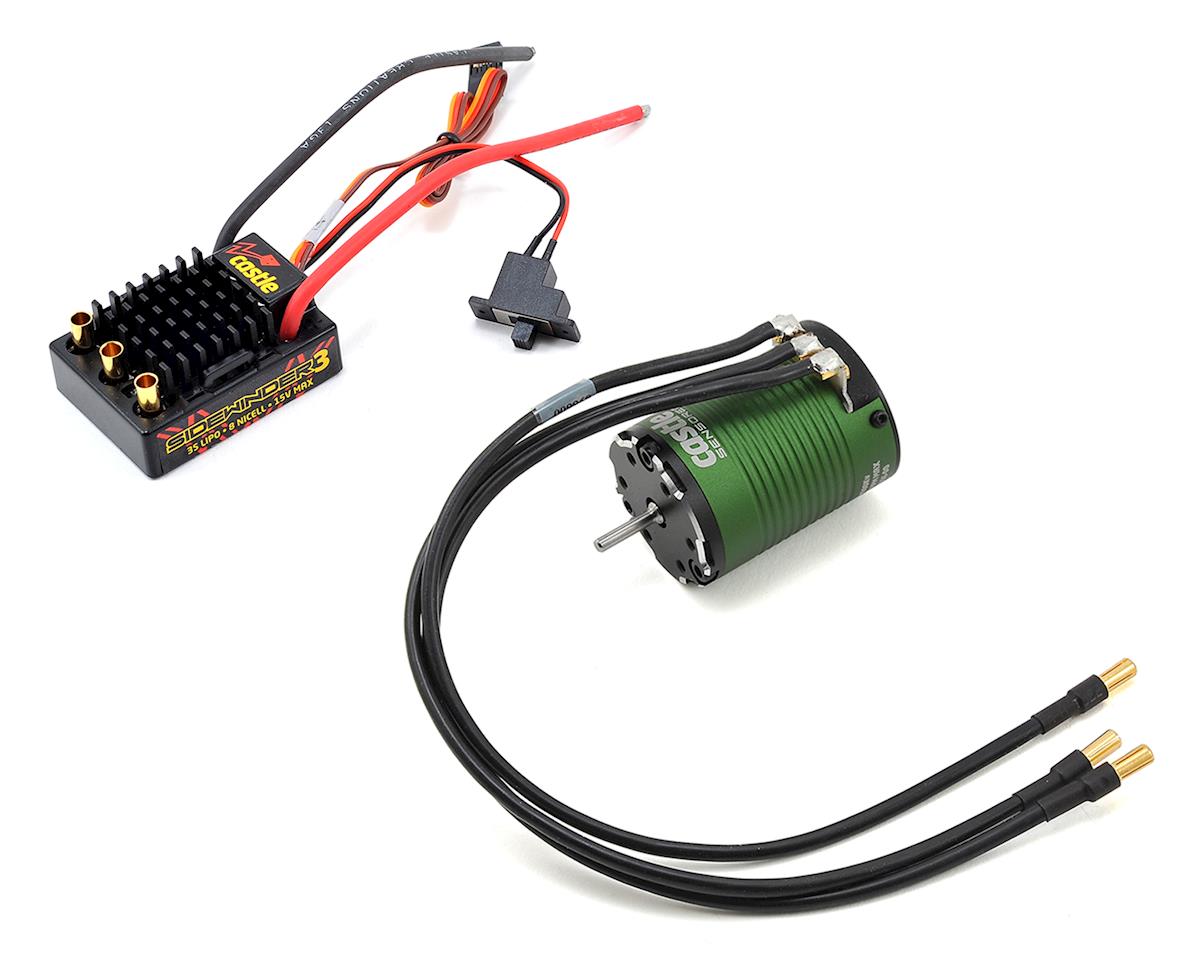

The Castle Creations Sidewinder SV3 Waterproof 1/10 ESC/Motor Combo pairs a Sidewinder 3 waterproof ESC with a Neu-Castle 1406 4600kV brushless and sensored motor. Designed for 1/10 off-road, on-road, rock crawler, stadium truck and buggy applications running up to 3S LiPo, the ESC features updated circuitry, proportional braking, reversible operation with lockout, and USB programming capability via a Castle Link USB adapter sold separately.

ESC Specifications

• Input Voltage: MIN: 2s LiPo; MAX: 3s LiPo
• Operating Environment: Waterproof design for use in nearly any environment
• Brake: Proportional
• Reversible: Yes - with lockout
• Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
• Weight: 1.96 oz (55.5g) with 127mm long battery wires and no battery connector

Not intended for operation while submerged in liquid. If operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry the unit.

Motor Specifications

• Input Voltage Range: 2-3S LiPo
• Kv: 4600
• Max. RPM: 100,000
• Size: Length: 49.5mm; Diameter: 36mm
• Weight: 197 g / 6.9oz with wires
• Shaft Size: Length: 15mm; Diameter: 1/8" (3.17mm)
• Mounting Hole Specifications: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors

Application Guidelines

• Applications: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies
• Maximum Recommended Vehicle Weight: 2WD SCT Trucks up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs
• Running Modes: SMARTSENSE, Sensored, Sensorless
