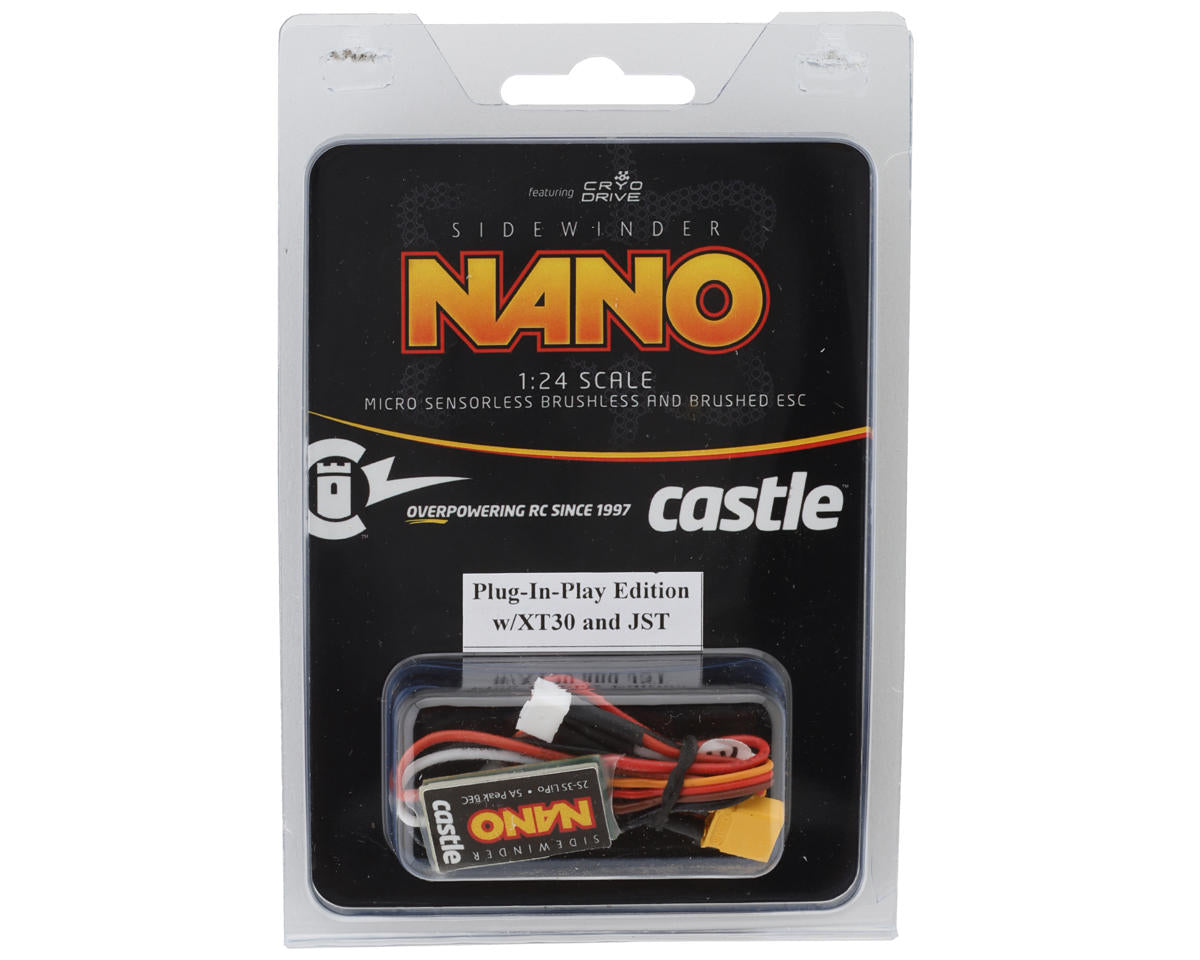

Castle Creations Sidewinder Nano Micro Plug-N-Play Brushless/Brushed ESC (12.6V)

The Castle Creations Sidewinder Nano Micro Plug-N-Play ESC supports selectable sensorless brushless or brushed operation for many 1/24 and 1/18 scale 2WD and 4WD platforms. It accepts 2-3S (7.4-11.1V) LiPo batteries and includes an XT30 battery connector.

Features

• Suitable for most 1/24 and 1/18 micro platforms
• Selectable brushless or brushed operation
• CRYO-DRIVE technology
• Castle B-Link adapter compatible
• Tune-able parameters
• Extremely lightweight and compact

Specifications

• Application: 1/24 and 1/18 scale 2WD or 4WD
• Type: Sensorless Brushless/Brushed
• Input Voltage: 2-3S (7.4-11.1V) LiPo
• Continuous Current: -
• Burst Current: -
• BEC Voltage: 5A Peak
• Battery Connector: XT30
• Motor Leads: Furitek JST
• Programmable: Yes

Tuning

Parameters can be adjusted with a Windows based PC and Castle Link USB adapter or with a mobile device using a Castle B-Link Adapter. Adapters are sold separately.

Includes

• (1) Castle Creations Sidewinder Nano Micro Plug-N-Play ESC
