Castle Creations Sidewinder 3 WP 1/10 ESC/Motor Combo (5700kV)

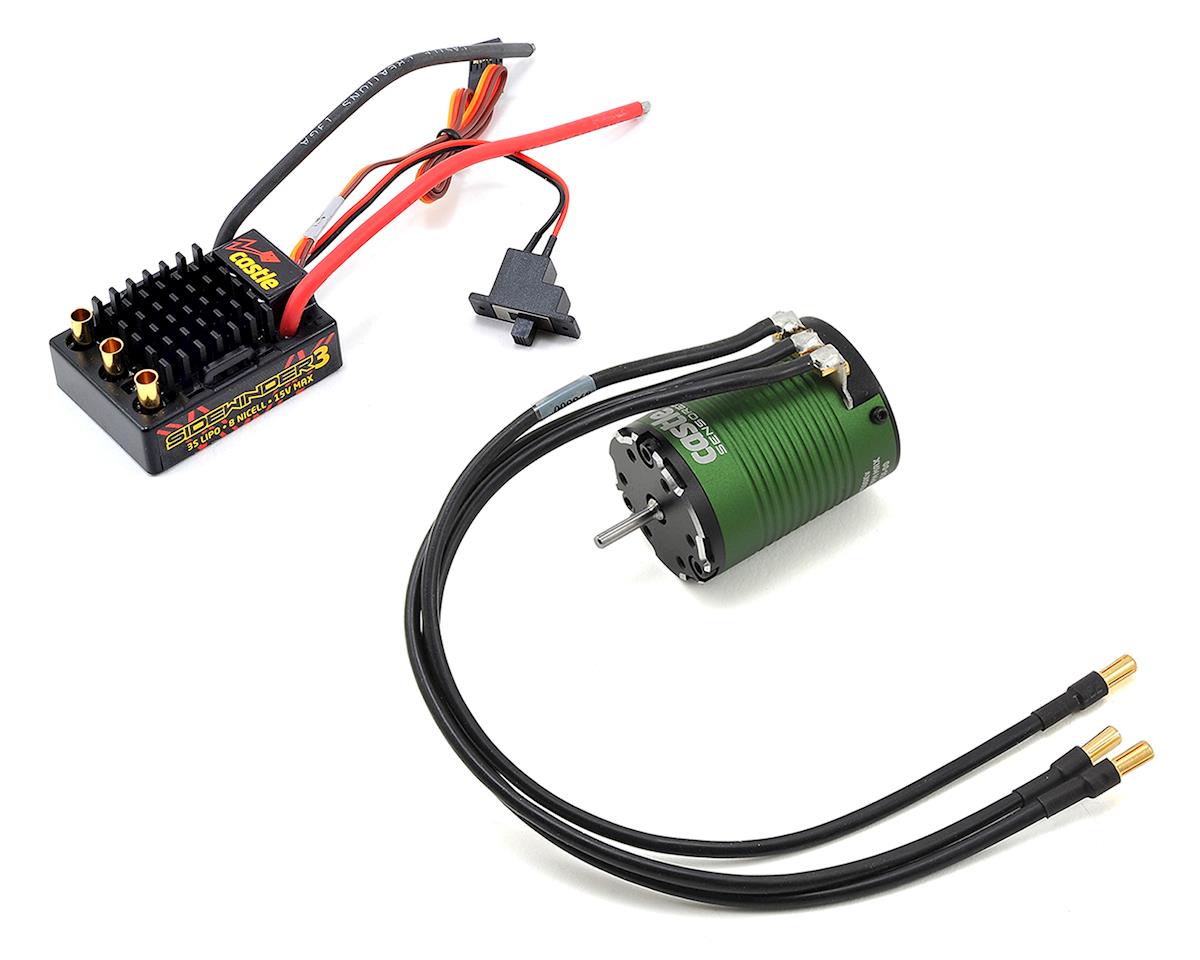

The Castle Creations Sidewinder 3 WP 1/10 ESC/Motor Combo pairs a waterproof Sidewinder 3 ESC with a Neu-Castle 1406 5700kV brushless sensored motor. It is designed for 1/10 scale 2WD SCT, on-road touring, stadium truck, buggy, and rock crawler applications running up to 3S LiPo.

ESC Specifications

• Input voltage: MIN: 2s LiPo; MAX: 3s LiPo
• Operating environment: Waterproof design for use in nearly any environment; not intended for operation while submerged in liquid
• Brake: Proportional
• Reversible: Yes, with lockout
• Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
• Weight: 1.96 oz (55.5g) with 127mm long battery wires and no battery connector
• Running modes: SMARTSENSE, Sensored, Sensorless
• Programming: USB programming capability via Castle Link USB adapter, sold separately

Motor Specifications

• Input voltage range: 2-3S LiPo
• kV: 5700
• Maximum RPM: 100,000
• Size: Length: 49.5mm; Diameter: 36mm
• Weight: 202 g / 7.1oz with wires
• Shaft size: Length: 15mm; Diameter: 1/8" (3.17mm)
• Mounting hole specifications: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors

Application Guidelines

• 2WD SCT trucks: Up to 5lbs
• Stadium trucks, buggies, and on-road vehicles: Up to 4lbs
• If operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry the unit.
