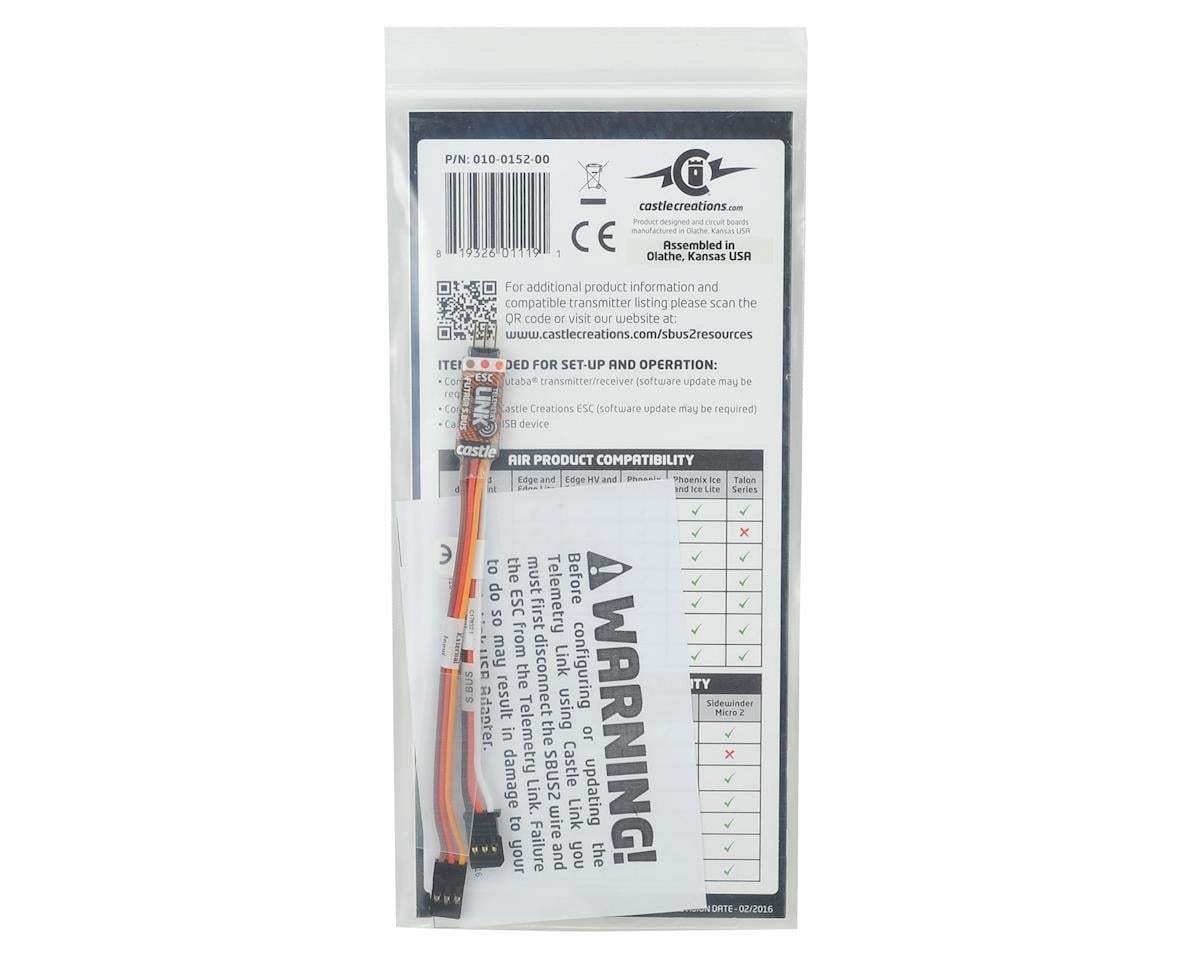

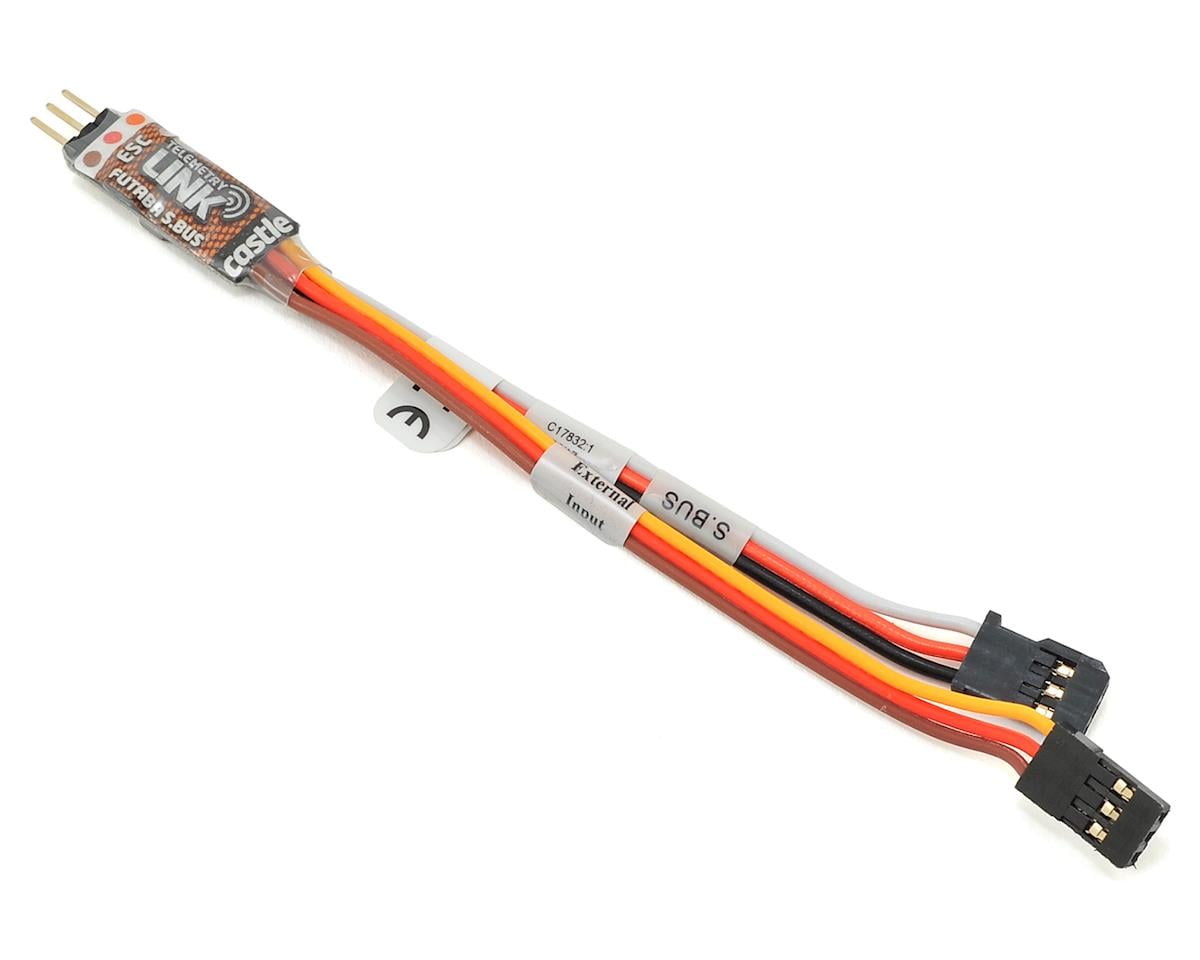

Castle Creations S-Bus 2 Telemetry Link

The Castle Creations S-Bus 2 Telemetry Link sends real-time model data to compatible Futaba S.BUS2 radio systems. Monitor onboard battery voltage, motor RPM, and ESC temperature on the transmitter, with configurable vibration or sound alerts when a defined threshold is exceeded.

Compatibility

• Designed for specific Futaba S.BUS2 radios and compatible Futaba telemetry receivers.
• Requires a compatible Castle Creations ESC with Link Live™ enabled using Castle Link™.
• Will not work when the ESC is programmed for Multirotor or External Governor modes due to the higher PWM frequency.

Specifications

• Circuit board size: 1.0" (25.4mm) x 0.44" (11mm)
• Overall dimensions: 5.25" (133mm) x 0.44" (11mm) including wires
• Weight: 0.192 oz (5.44g) without wires
