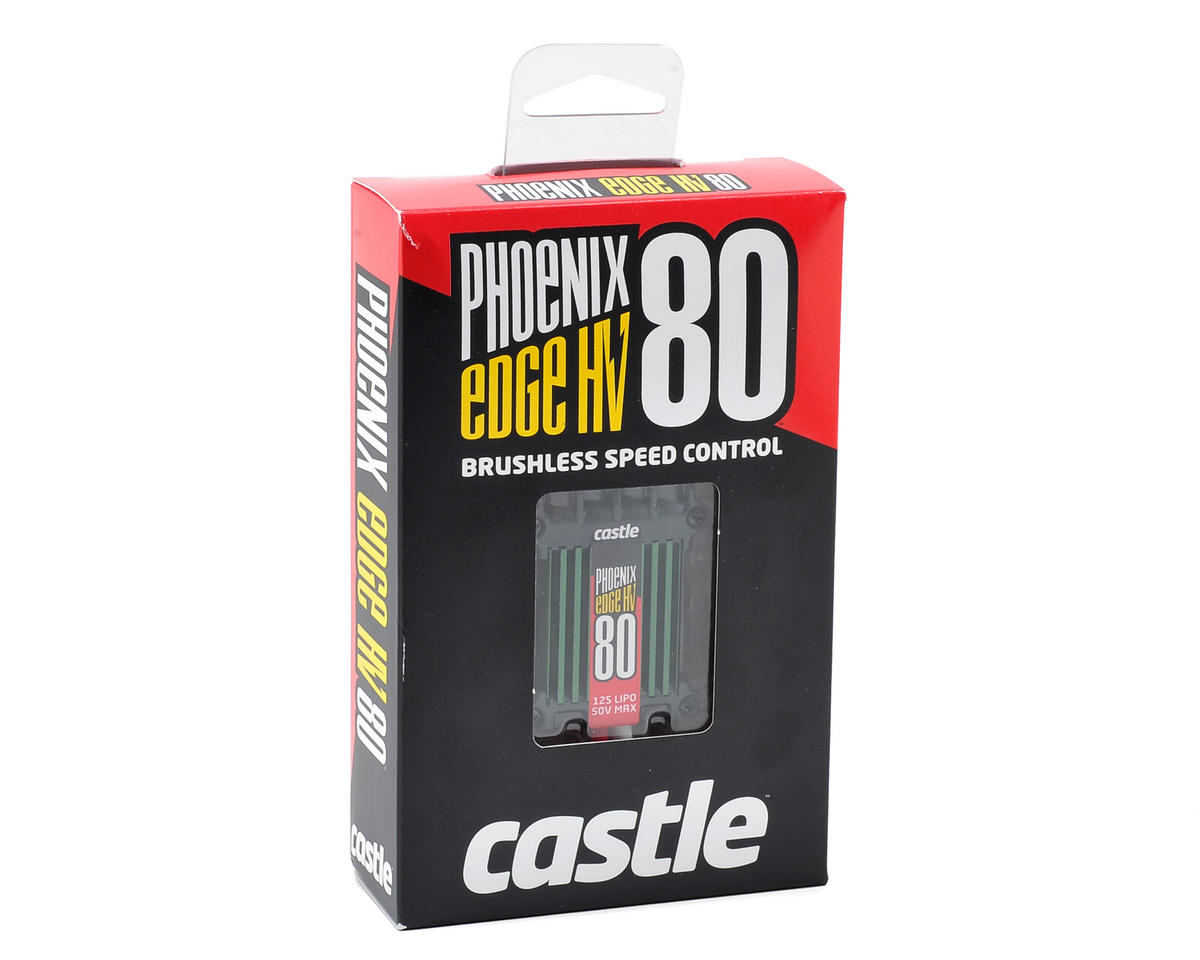

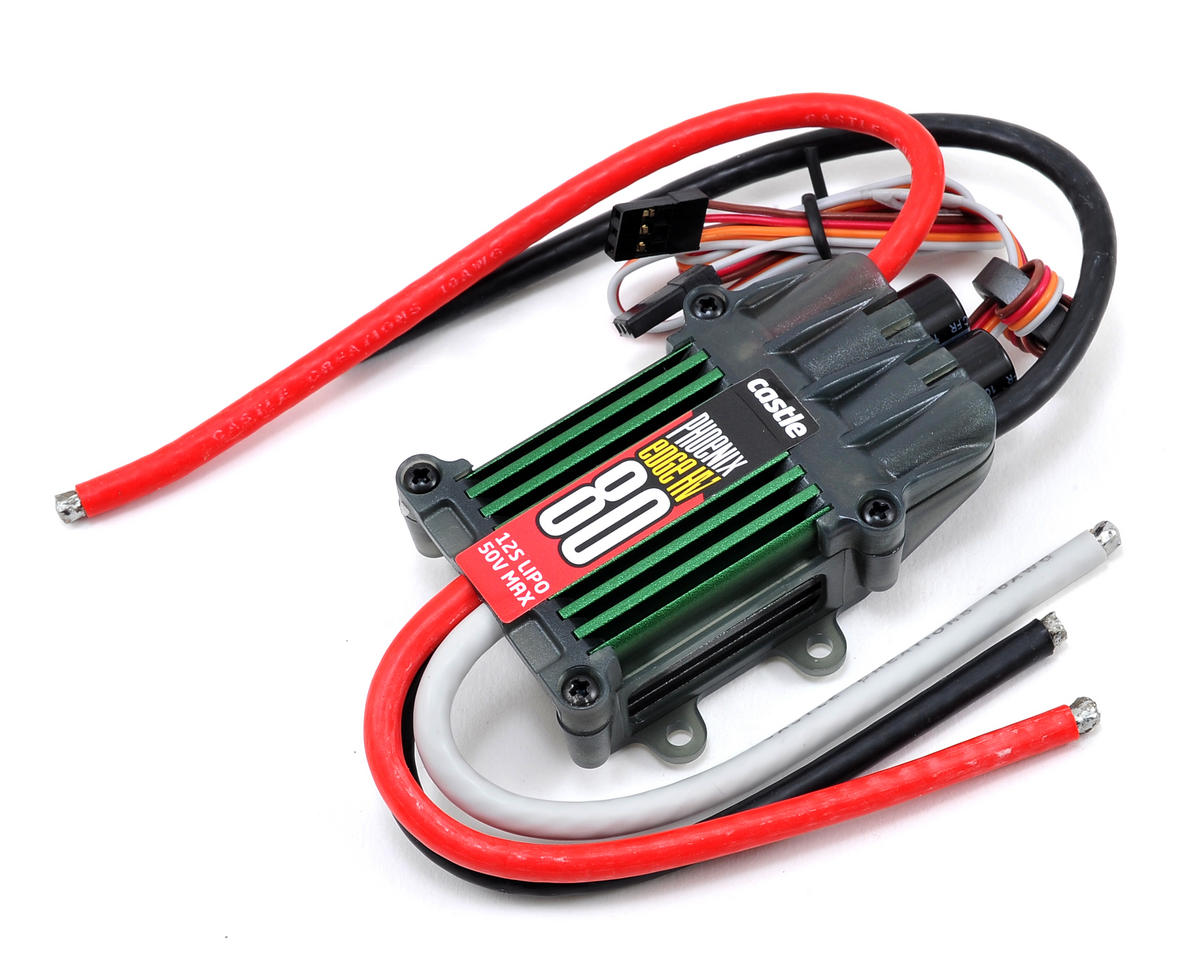

Castle Creations Phoenix Edge 80HV 50V 80-Amp ESC

The Castle Creations Phoenix Edge 80HV 50V 80-Amp ESC provides programmable control, data logging, and a user-configurable auxiliary wire for selected helicopter and fixed-wing applications.

Features

• Fully programmable Castle feature set using the Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Data logging capability.
• USB programming capability via the Castle Link USB adapter.
• The white auxiliary wire supports helicopter governor gain input adjustments mid-flight, an audible beacon after an “unexpected landing,” RPM output for 3-axis gyros that support RPM sensors, ESC arming lock, or receiver arming lock.
• Castle Field Link Programming Card compatible for select functions; sold separately.

Applications

• Helis: 600 Class
• Fixed wing: 1/4 scale

Specifications

• Input voltage: MIN: 3S LiPo; MAX: 12S LiPo
• Max continuous amperage at full throttle: 80 amps
• Width: 2.0" (50.8mm)
• Length: 2.8" (71.9mm)
• Height: 0.9" (23.2mm)
• Weight w/wires: 4.4 oz (124.6g)
• Weight w/o wires: 2.2 oz (62.2g)

Installation Notes

• Battery and motor connectors sold separately.
• A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to power wires.
• The 80-amp rating applies for the duration of a single 5,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air.
• Controller temperature must never exceed 100C (212F). Always verify system current draw at full-throttle.
