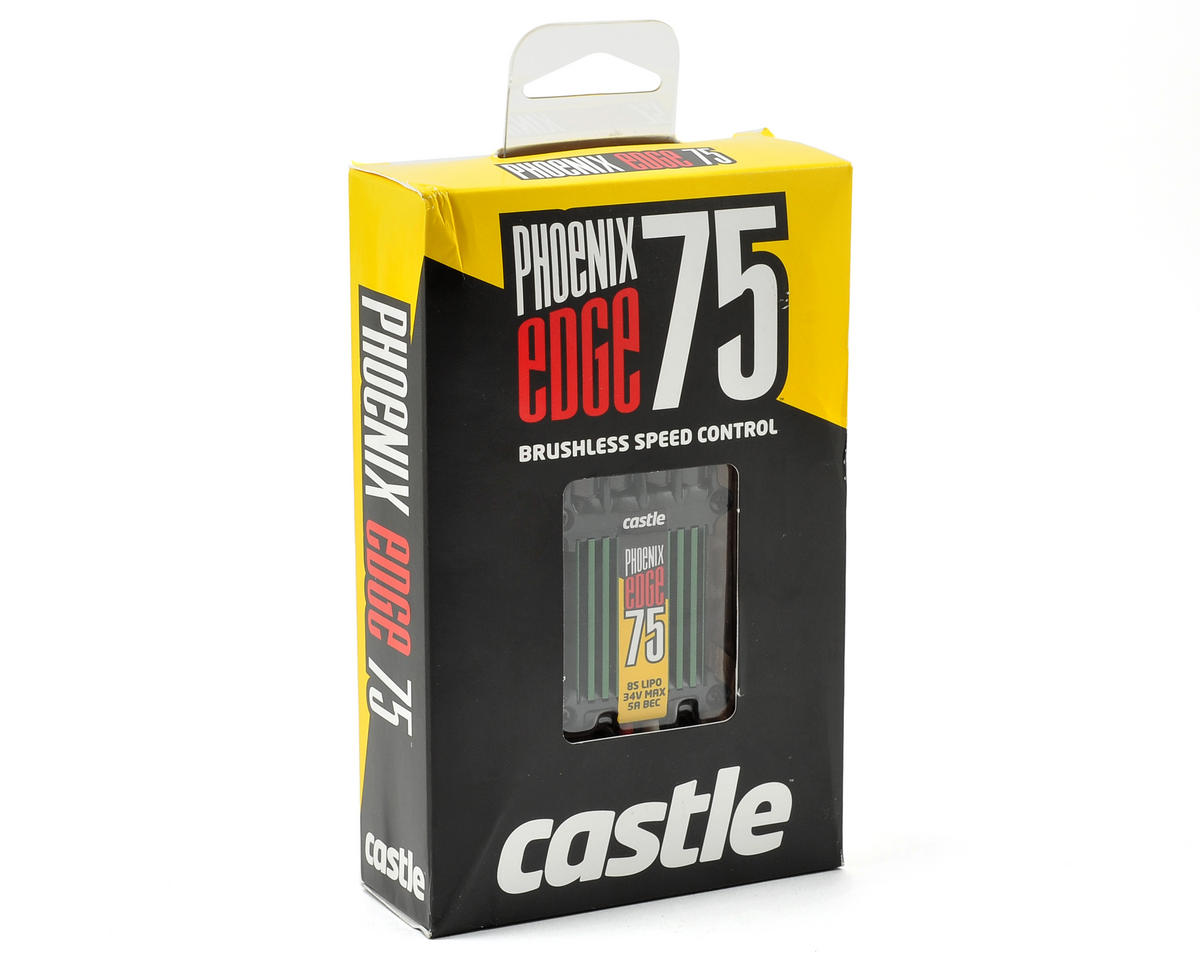

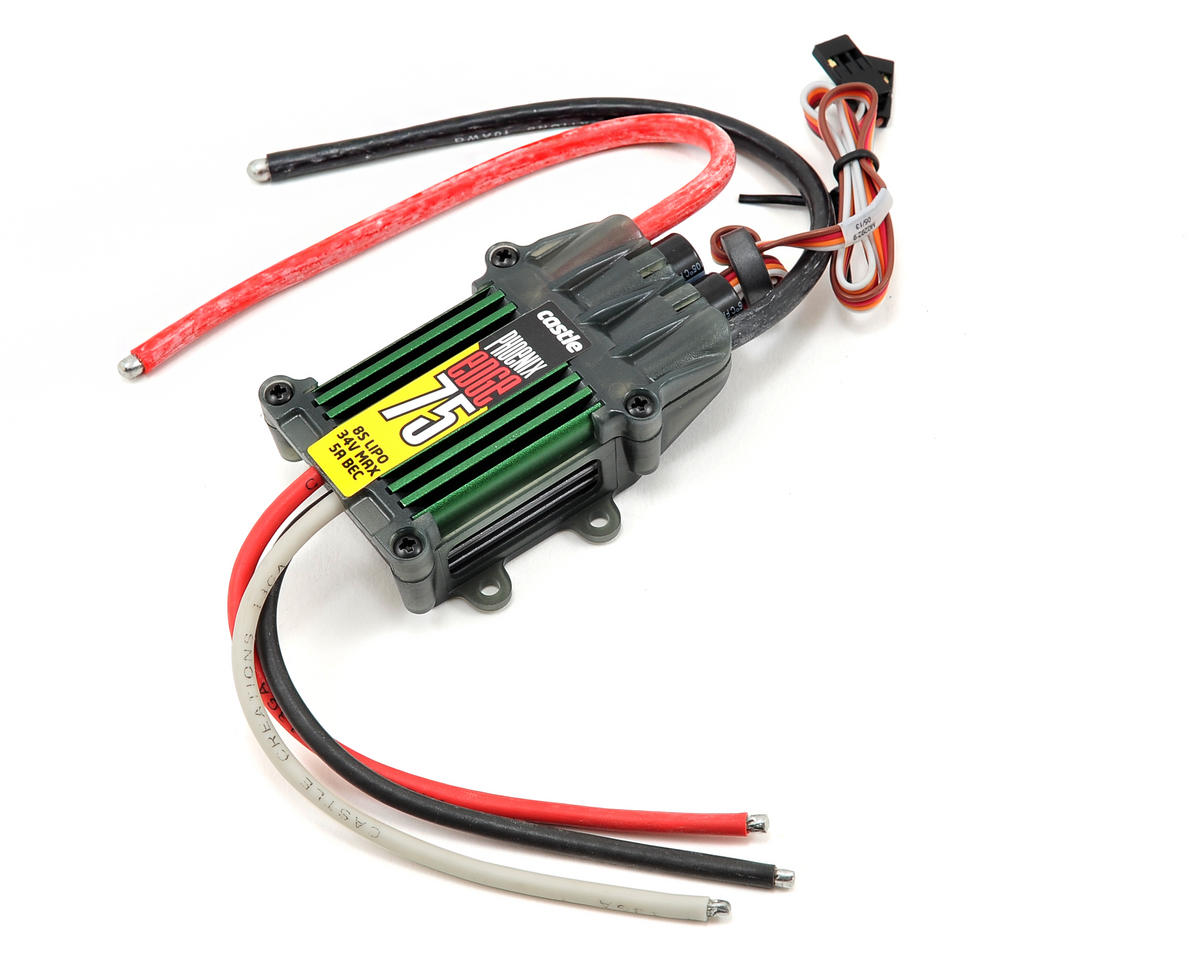

Castle Creations Phoenix Edge 75 32V 75-Amp ESC w/5-Amp BEC

The Castle Creations Phoenix Edge 75 is a 32V, 75-amp electronic speed controller with a 5-amp peak BEC. Designed for 500-class helicopters and .40–.52 size fixed-wing aircraft, it combines programmable Castle features, data logging, and an auxiliary wire with multiple configurable functions.

Features

• Programmable with the Castle Link USB adapter and freely downloadable Castle Link Windows software
• Castle Field Link Programming Card compatible for select functions; sold separately
• White auxiliary wire supports helicopter governor gain input adjustments, an audible beacon, RPM output for compatible 3-axis gyros, ESC arming lock, or receiver arming lock
• Arming Lockout Key required for the ESC arming-lock function; not included
• Data logging capability

Specifications

• Input voltage: MIN: 2S LiPo; MAX: 8S LiPo
• Max continuous amperage at full throttle: 75 amps
• BEC voltage: 5 to 8.4V output
• BEC output amperage: 5 Amp peak
• Width: 2.0" (50.8mm)
• Length: 2.8" (71.9mm)
• Height: 0.9" (23.2mm)
• Weight w/wires: 4.0 oz (113.4g)
• Weight w/o wires: 2.5 oz (70.9g)

Installation Notes

• Battery and motor connectors are sold separately.
• A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to power wires.
• Castle Link USB adapter is not included.
