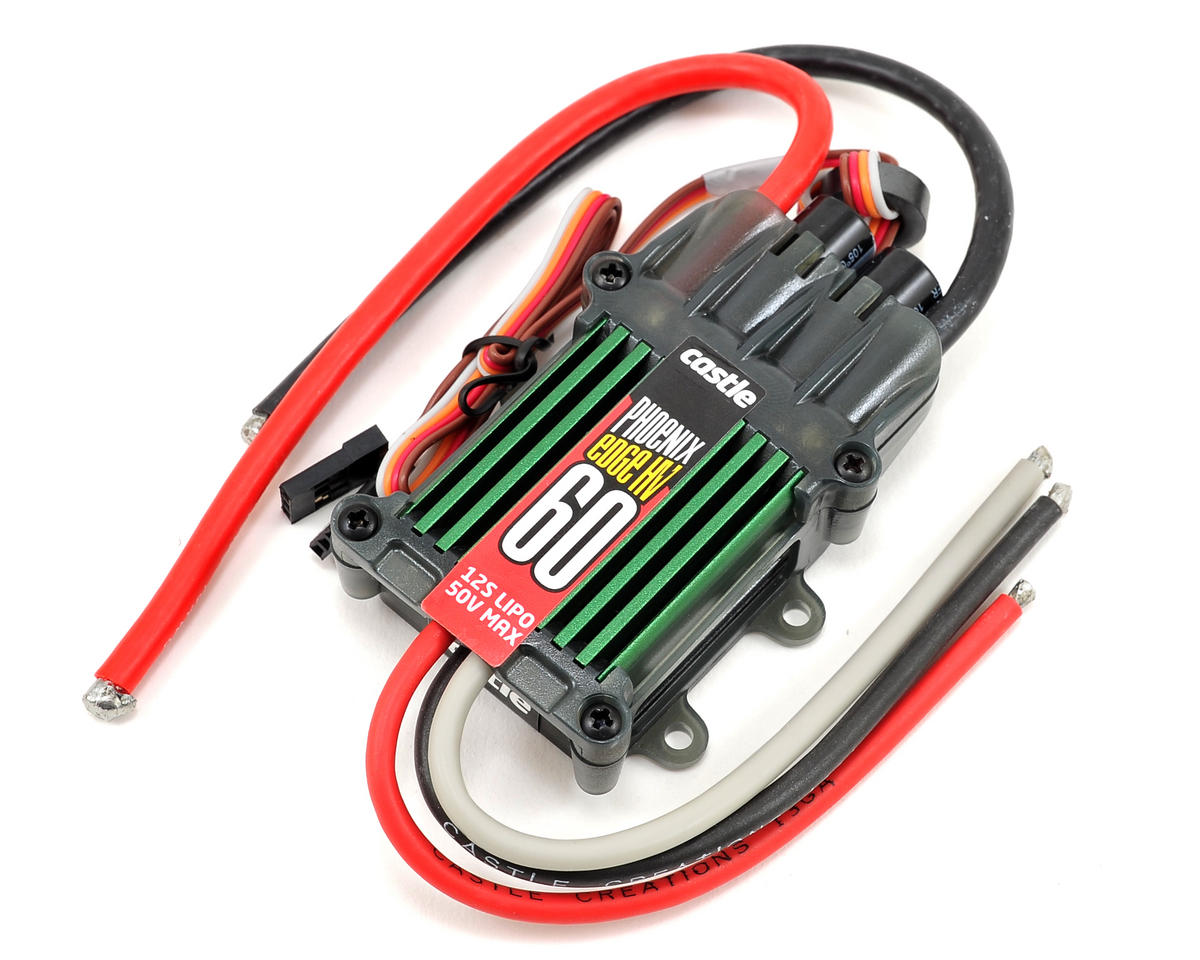

Castle Creations Phoenix Edge 60HV 50V 60-Amp ESC

The Castle Creations Phoenix Edge 60HV 50V 60-Amp ESC provides programmable control functions, data logging, and Castle Link programming capability for RC helicopters and fixed-wing aircraft.

Features

• User-programmable auxiliary wire for helicopter governor gain input adjustments, an audible beacon, RPM output for compatible 3-axis gyros, ESC arming lock, or receiver arming lock.
• Data logging capability.
• Fully programmable Castle feature set using the Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Castle Field Link Programming Card compatible for select functions.
• Intended for helicopters ranging from 450 to 800 size and fixed-wing aircraft up to 1.20 size and larger.

Specifications

• Input voltage: MIN: 3S LiPo; MAX: 12S LiPo
• Max continuous amperage at full throttle: 60 amps*
• Width: 2.0" (50.8mm)
• Length: 2.8" (71.9mm)
• Height: 0.9" (23.2mm)
• Weight w/wires: 3.9 oz (110.2g)
• Weight w/o wires: 2.1 oz (59.2g)

Installation Information

• Battery and motor connectors are sold separately.
• A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to power wires.
• Castle Link USB adapter is not included.
• Arming Lockout Key required for the ESC arming lock function and is not included.

Rating note: The 60-amp RC hobby application rating applies for the duration of a single 5,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Always verify system current draw at full throttle.
