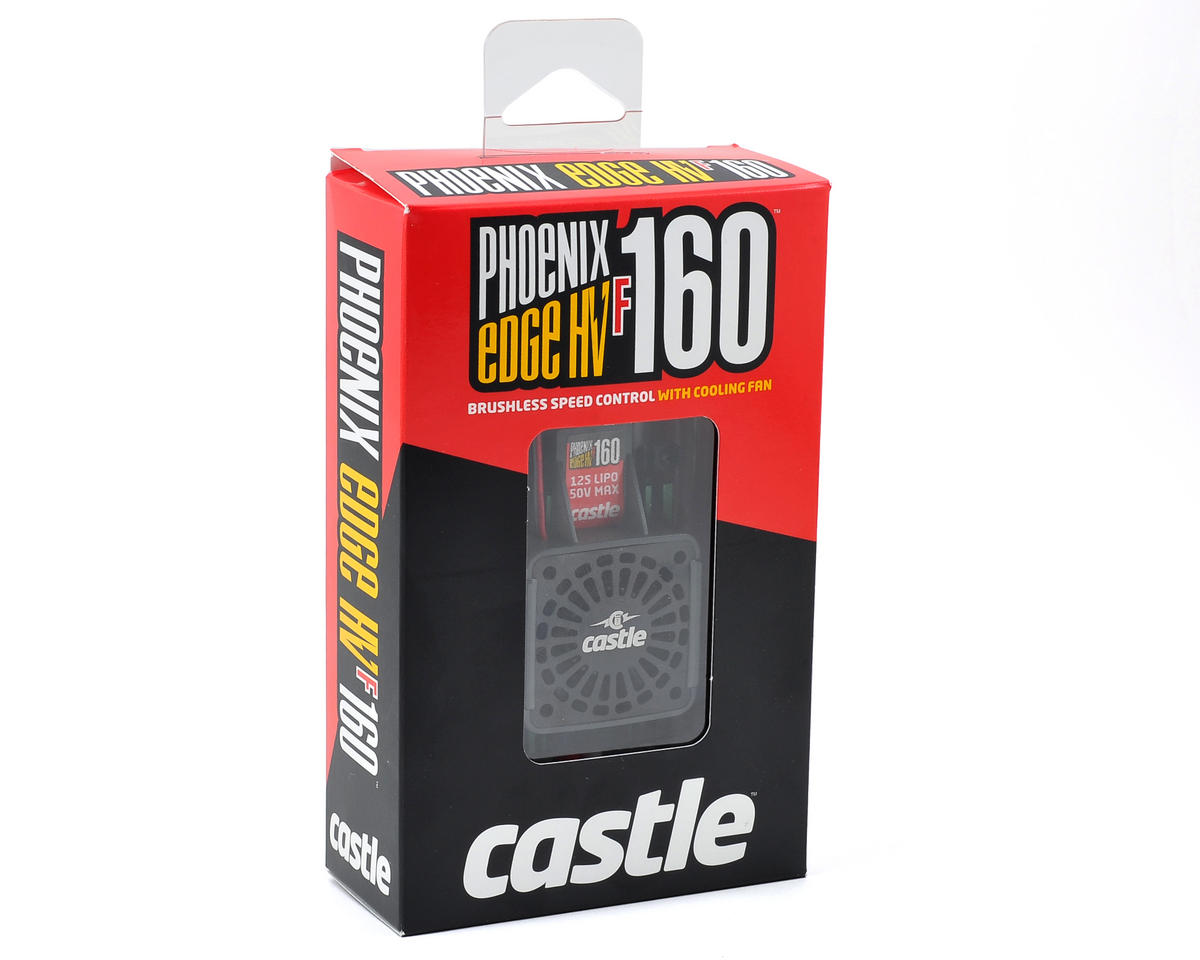

Castle Creations Phoenix Edge 160HVF 50V 160-Amp ESC w/Fan

The Castle Creations Phoenix Edge 160HVF is a 50V, 160-amp electronic speed controller with an included cooling fan. It is intended for 700 or 800 class helicopters and giant scale fixed-wing aircraft.

Features

• Fully programmable using the Castle Link USB adapter and freely downloadable Castle Link Windows software
• Data logging capability
• USB programming capability via Castle Link USB adapter
• White auxiliary wire supports helicopter governor gain input adjustments mid-flight, an audible beacon, RPM output for 3-axis gyros that support RPM sensors, ESC arming lock, or receiver arming lock
• Castle Field Link Programming Card compatible for select functions; sold separately

Specifications

• Input voltage: MIN: 3S LiPo; MAX: 12S LiPo
• Max continuous amperage at full throttle: 160 amps*
• Width: 2.0" (50.8mm)
• Length: 4.3" (108.4mm)
• Height: 1.7" (43.2mm)
• Weight w/wires: 8.5oz (241g)
• Weight w/o wires: 5.6oz (159g)
• Battery and motor connectors sold separately

Installation Notes

A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to the power wires.

*RC hobby application rating: 160 amps for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25°C (77°F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
