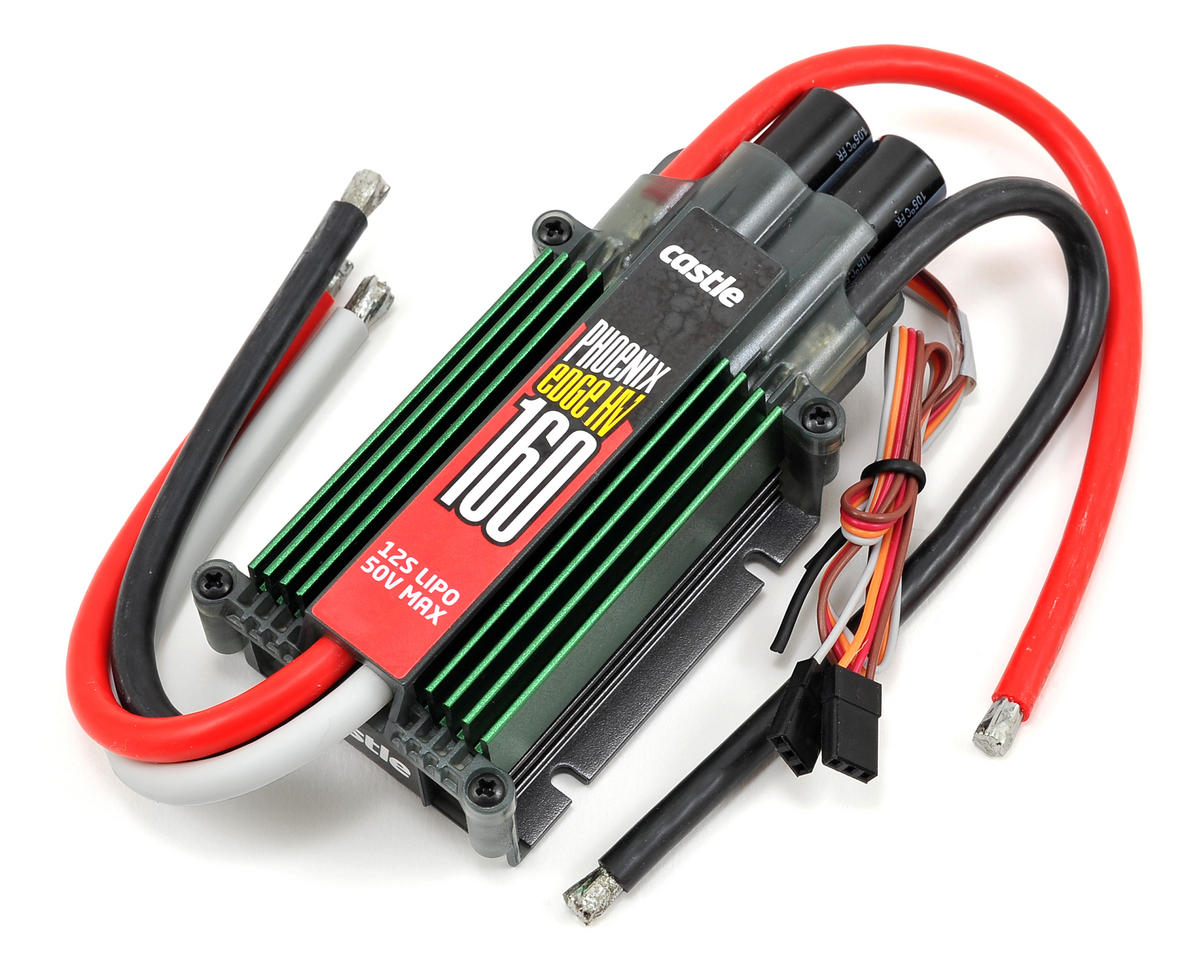

Castle Creations Phoenix Edge 160HV 50V 160-Amp ESC

The Castle Creations Phoenix Edge 160HV is a 50V, 160-amp ESC designed for 700 or 800 class helicopters and giant scale fixed-wing aircraft. It features programmable Castle software functions, data logging, and USB programming through the Castle Link USB adapter.

Features

• White auxiliary wire: Supports helicopter governor gain input adjustments during flight, an audible beacon, RPM output for 3-axis gyros that support RPM sensors, ESC arming lock, or receiver arming lock.
• Fully programmable using the Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Castle Field Link Programming Card compatible for select functions; sold separately.
• Data logging capability.

Specifications

• Applications: 700 or 800 class helicopters; giant scale fixed-wing aircraft
• Input voltage: MIN: 3S LiPo; MAX: 12S LiPo
• Max continuous amperage at full throttle: 160 amps
• Width: 2.0" (50.8mm)
• Length: 4.3" (108.4mm)
• Height: 1.2" (31.5mm)
• Weight w/wires: 8.2 oz (232.8g)
• Weight w/o wires: 5.3 oz (150.6g)

Installation

• Battery and motor connectors are sold separately.
• A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to power wires.
• The 160-amp rating applies for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25°C (77°F) or cooler air.
• Controller temperature must never exceed 100C (212F). Always verify system current draw at full throttle.
