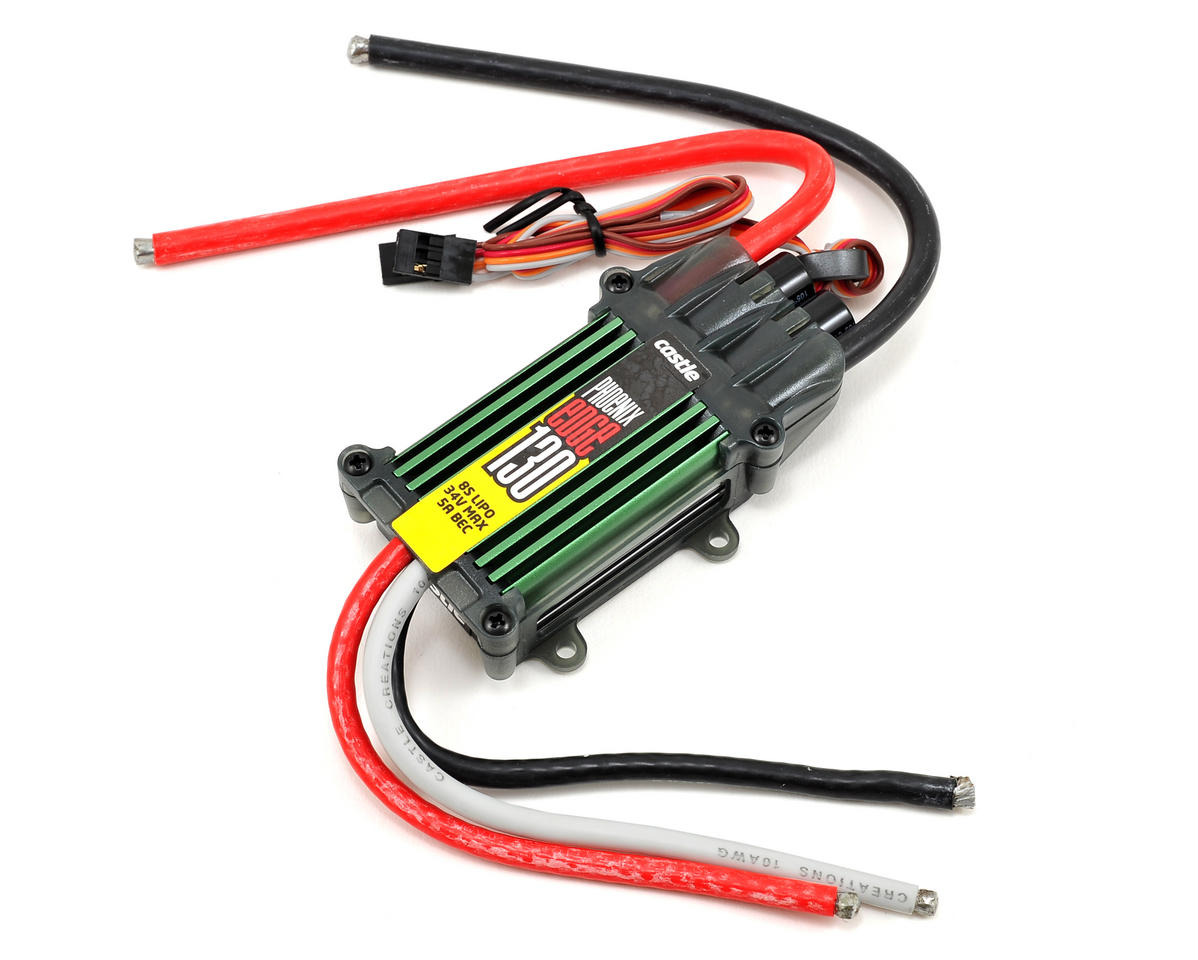

Castle Creations Phoenix Edge 130 32V 130-Amp ESC w/5-Amp BEC

The Castle Creations Phoenix Edge 130 is a 32V, 130-amp ESC with a 5-amp peak BEC for 550 or 600 class helicopters and 1.20 size fixed-wing aircraft. It features programmable functions, data logging, and USB programming through a Castle Link USB adapter.

Features

• Fully programmable Castle feature set using the Castle Link USB adapter and freely downloadable Castle Link Windows software
• Castle Field Link Programming Card compatible with select functions; sold separately
• User-programmable white auxiliary wire
• Auxiliary wire functions include helicopter governor gain input adjustment mid-flight, an audible beacon after an unexpected landing, RPM output for compatible 3-axis gyros, ESC arming lock, and receiver arming lock
• Data logging capability

Specifications

• Applications: 550 or 600 class helicopters; 1.20 size fixed-wing aircraft
• Input voltage: MIN: 2S LiPo; MAX: 8S LiPo
• Max continuous amperage at full throttle: 130 amps
• BEC voltage: 5 to 8.4V output
• BEC output amperage: 5 Amp peak
• Dimensions: 2.0" (50.8mm) width, 3.3" (83.6mm) length, 0.9" (23.2mm) height
• Weight with wires: 5.3 oz (150.6g)
• Weight without wires: 3.0 oz (86.6g)
• Connectors: Battery and motor connectors sold separately

Installation Notes

A soldering iron and solder are needed to attach bullets to the motor wires and a battery connector to the power wires. The 130-amp rating applies for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25°C (77°F) or cooler air. Controller temperature must never exceed 100C (212F). Always verify system current draw at full throttle and servo current draw before the first flight.
