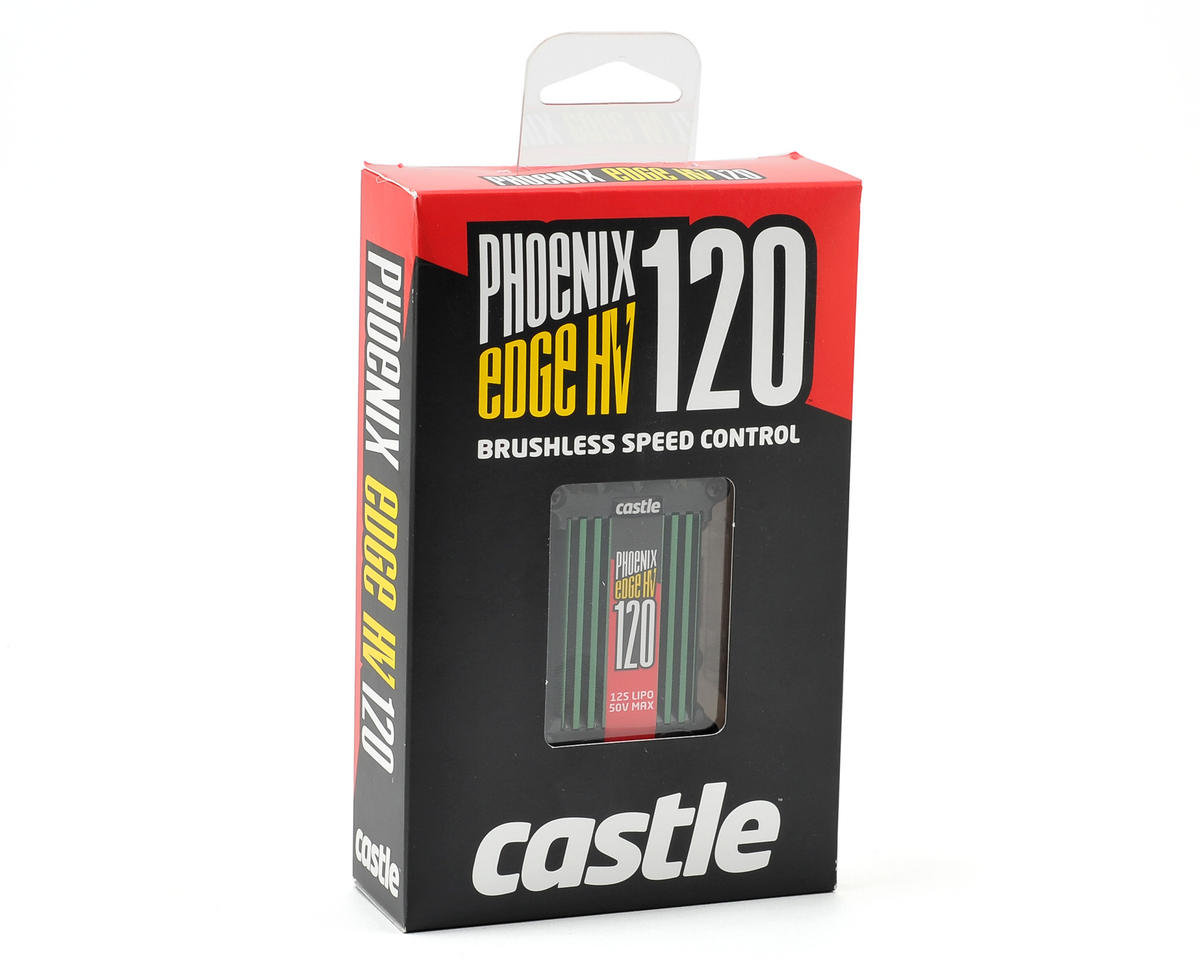

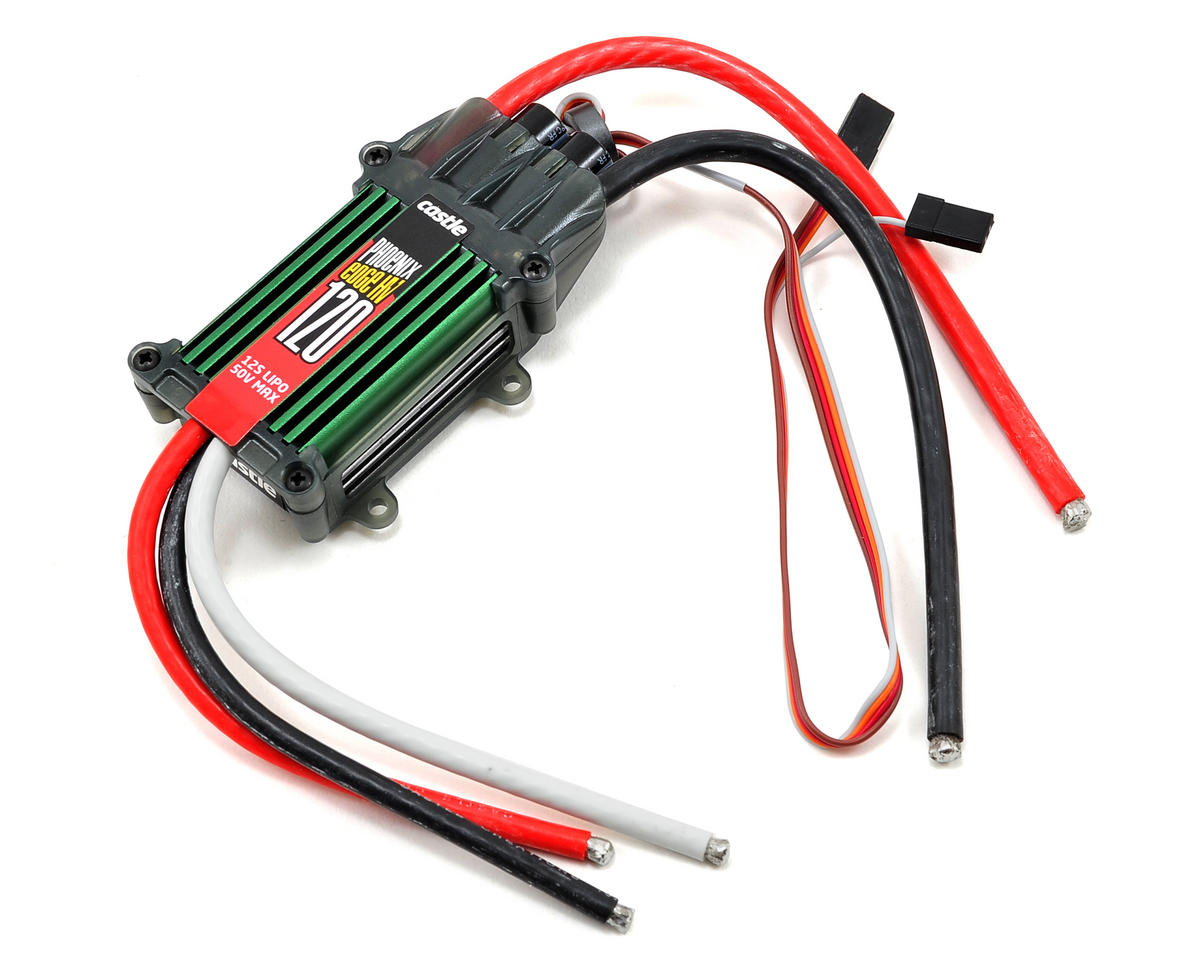

Castle Creations Phoenix Edge 120HV 50V 120-Amp ESC

The Castle Creations Phoenix Edge 120HV 50V 120-Amp ESC is designed for 550, 600, and 700 class helicopters as well as giant scale fixed-wing aircraft. It combines programmable Castle features, data logging, and USB programming capability through a Castle Link USB adapter.

Features

• User-programmable white auxiliary wire for helicopter governor gain adjustments during flight, an audible beacon, RPM output for compatible 3-axis gyros, ESC arming lock, or receiver arming lock.
• Programmable using the Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Castle Field Link Programming Card compatible with select functions; sold separately.
• Data logging capability.

Specifications

• Applications: Helis: 550, 600, or 700 Class; Fixed wing: Giant scale
• Input voltage: MIN: 3S LiPo; MAX: 12S LiPo
• Max continuous amperage at full throttle: 120 amps*
• Width: 2.0" (50.8mm)
• Length: 3.3" (83.6mm)
• Height: 0.9" (23.2mm)
• Weight w/wires: 5.2 oz (148.8g)
• Weight w/o wires: 2.4 oz (69.4g)
• Connectors: Battery and motor connectors sold separately

Installation Note

A soldering iron and solder are needed to attach bullets to motor wires and a battery connector to the power wires. The 120-amp rating applies for the duration of a single 10,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25°C (77°F) or cooler air. Controller temperature must never exceed 100C (212F). Always verify system current draw at full-throttle.
