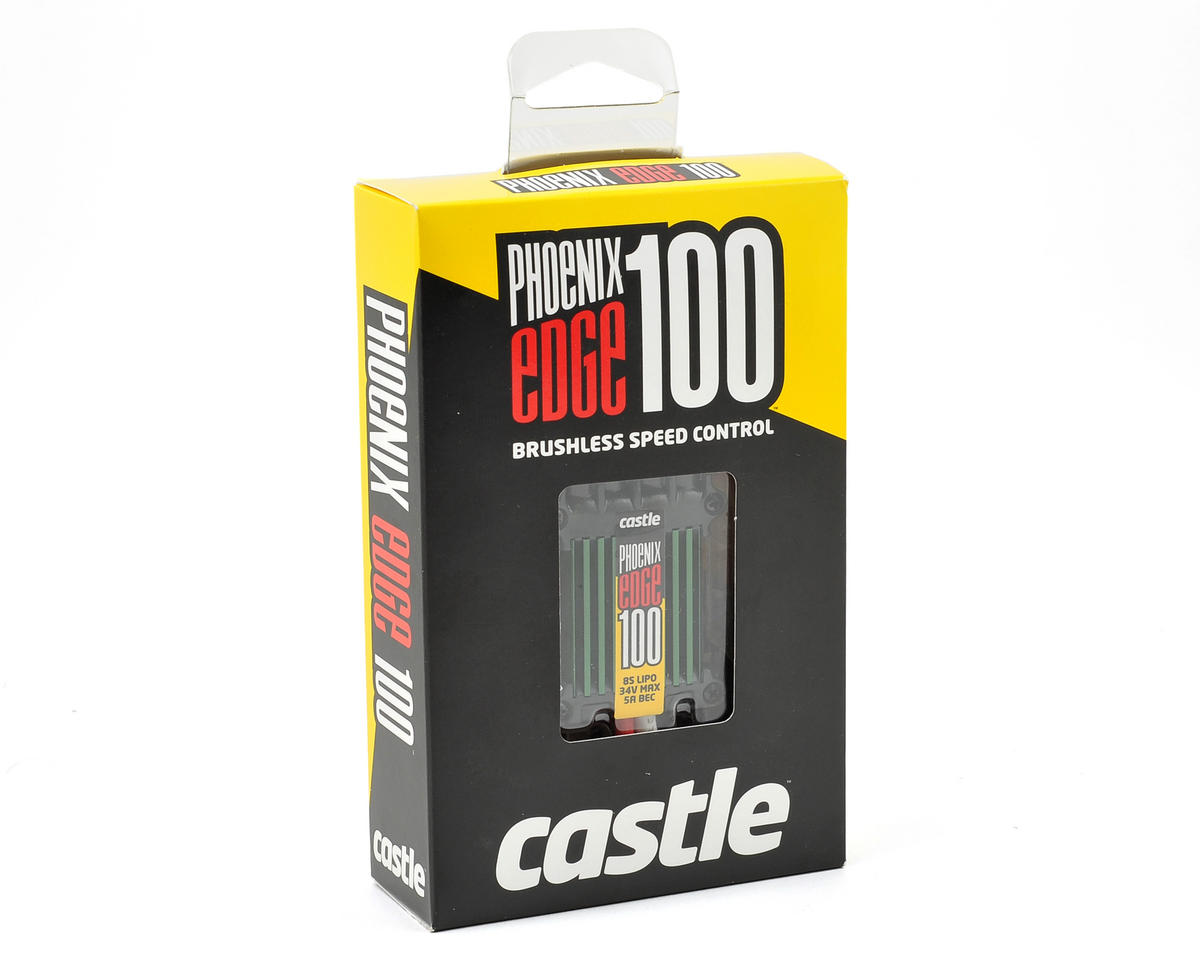

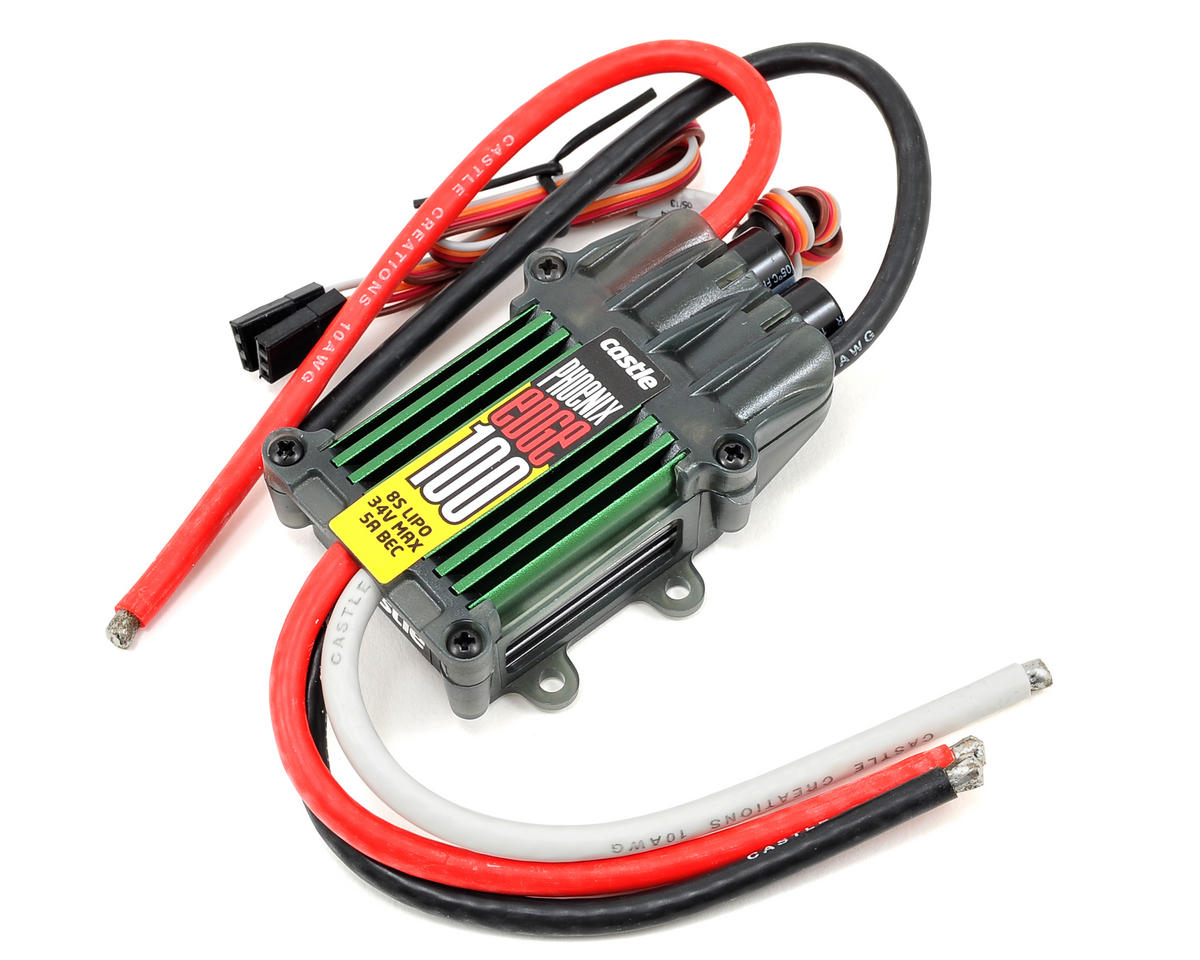

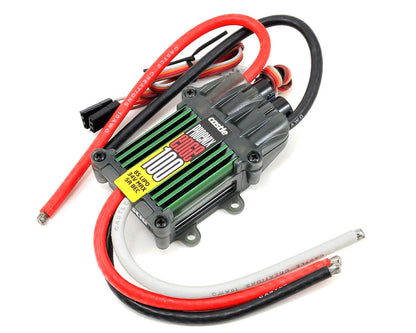

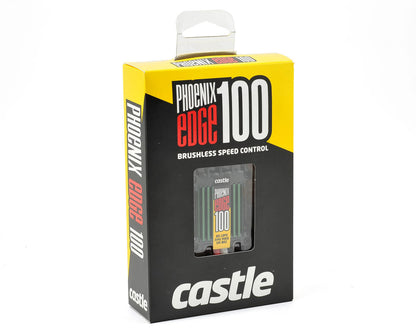

Castle Creations Phoenix Edge 100 32V 100-Amp ESC w/5-Amp BEC

The Castle Creations Phoenix Edge 100 is a programmable 32V, 100-amp ESC with a 5-amp peak BEC for 500 and 550 class helicopters, .40-.90 fixed-wing aircraft, and 600 class helicopters when used with an external BEC or receiver pack.

Features

• User-programmable auxiliary wire for helicopter governor gain adjustments, an audible beacon, RPM output for compatible 3-axis gyros, ESC arming lock, or receiver arming lock.
• Data logging and USB programming through the Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Castle Field Link Programming Card compatible with select functions; sold separately.

Specifications

• Input voltage: MIN: 2S LiPo; MAX: 8S LiPo
• Max continuous amperage at full throttle: 100 amps
• BEC voltage: 5 to 8.4V output
• BEC output amperage: 5 Amp peak
• Width: 2.0" (50.8mm)
• Length: 2.8" (71.9mm)
• Height: 0.9" (23.2mm)
• Weight w/wires: 4.5 oz (126.6g)
• Weight w/o wires: 2.6 oz (72.9g)

Installation Notes

• Battery and motor connectors are sold separately.
• A soldering iron and solder are needed to attach bullets to motor wires and the battery connector to the power wires.
• For 600 class helicopters, an external BEC or receiver/servo power source is required and is not included.
• The 100-amp rating applies for the duration of a single 5,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25°C (77°F) or cooler air. Controller temperature must never exceed 100C (212F).
• Peak BEC amperage indicates amperage sustainable for 0.5 seconds. Confirm servo current draw before the first flight.
