Castle Creations Monster X 1/8 Brushless ESC Combo w/1512 4-Pole Motor (1800Kv)

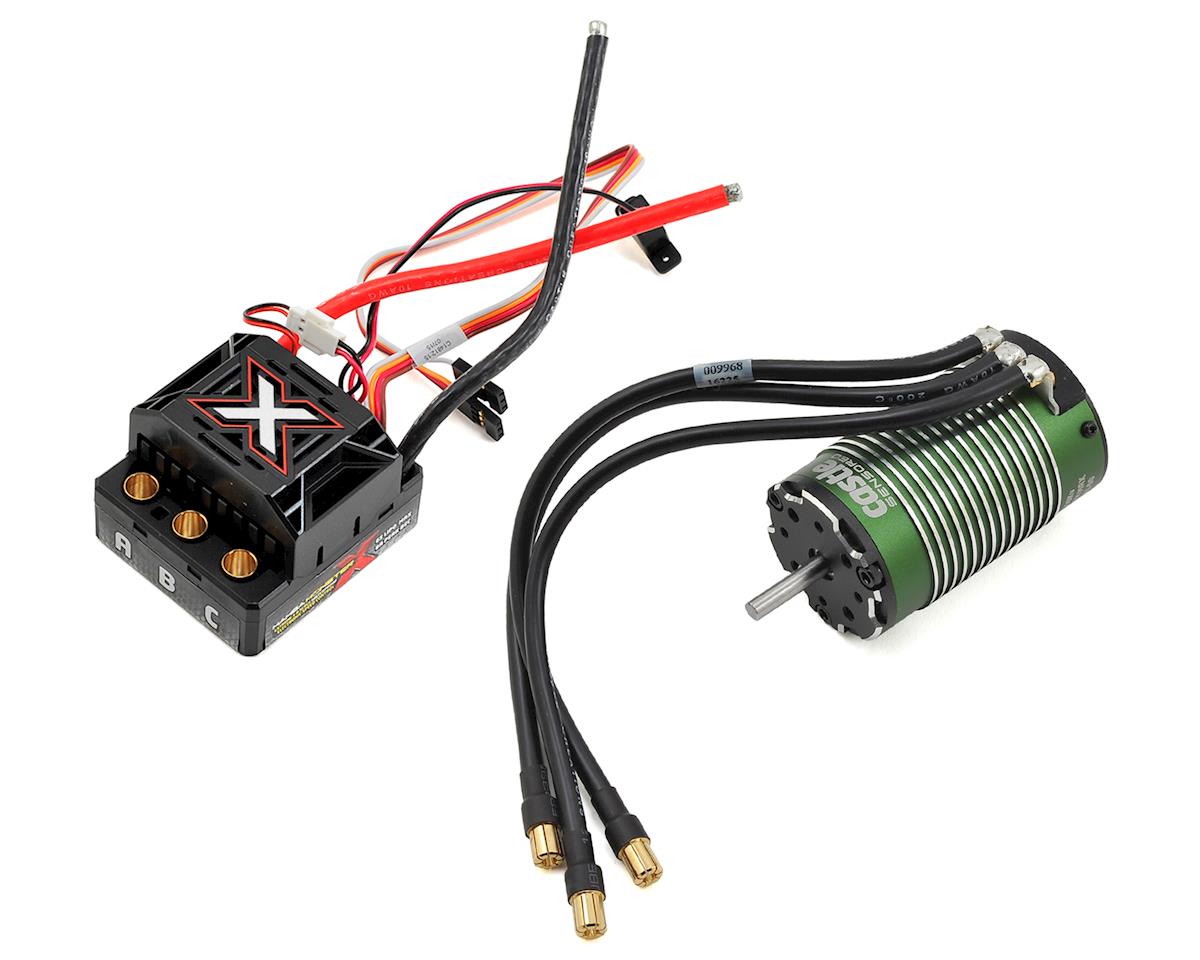

The Castle Creations Monster X 1/8 Brushless ESC Combo pairs a Monster X ESC with a Neu-Castle 1512 4-pole 1800Kv brushless motor. The system is intended for 1/8 scale buggies and on-road vehicles weighing 9lbs or less with batteries, ready to run, and supports up to 4S operation with the included motor.

Monster X ESC Features

• 2S to 6S LiPo input voltage range, with a maximum of 25.2V
• Adjustable BEC voltage: 5.5V, 6.0V, 7.5V and 8.0V with 8 AMP peak
• Programmable auxiliary wire for transmitter-based adjustments to settings such as torque control and maximum throttle
• Castle Link adjustable settings include brake/reverse type, LiPo cutoff voltage, brake amount, drag brake and motor type
• Proportional brake and reversible operation with lockout
• Factory-equipped, removable and replaceable 30mm cooling fan
• Audible alerts for calibration and error conditions

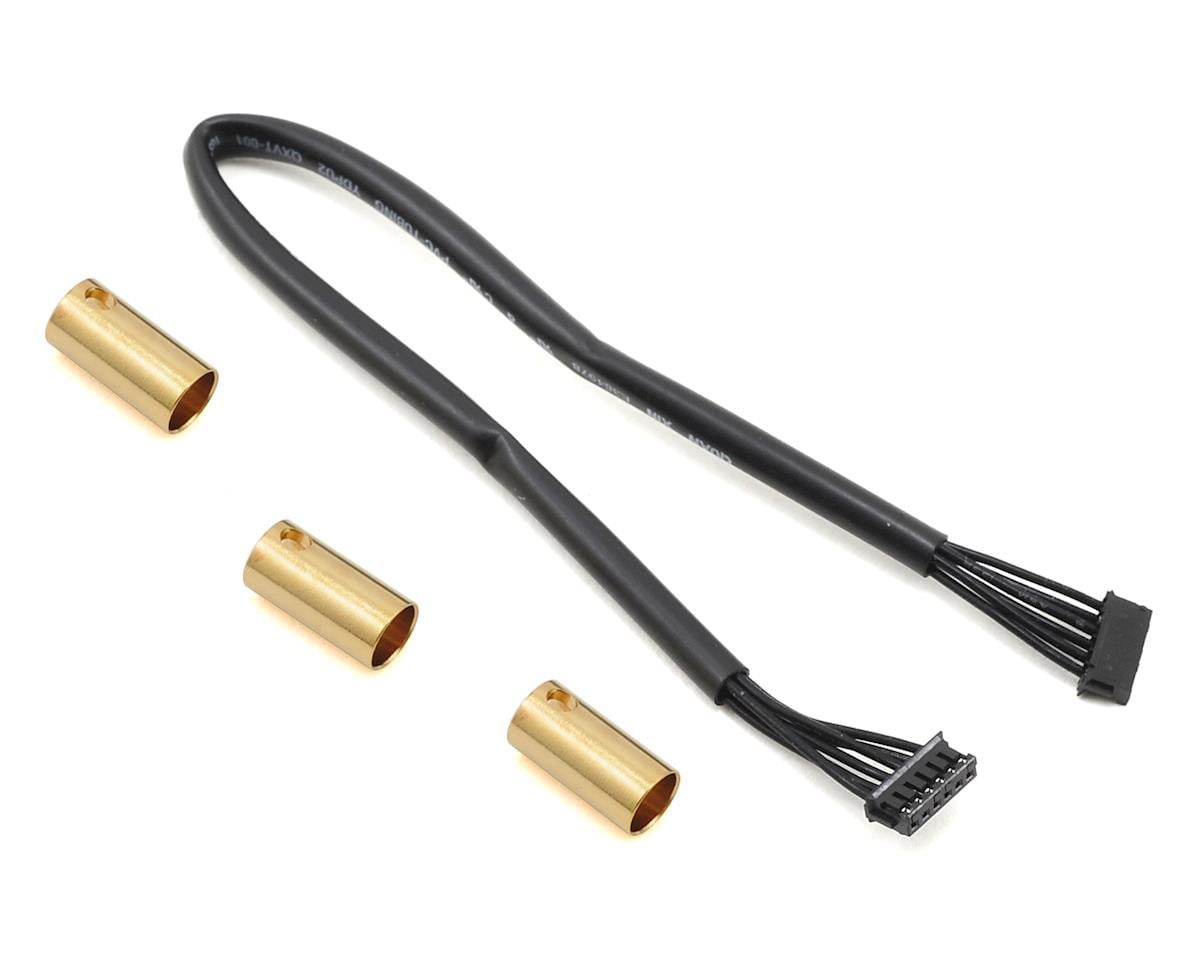

• Sensored brushless motor capable with an optional Sensor Harness from Castle Creations
• Data logging capability and telemetry ready
• Waterproof design for use in nearly any environment; the cooling fan must be removed before driving in wet conditions

ESC Specifications

• Size: 5.3cm x 4.9cm
• Weight: 111.1 g with wires
• Application: Up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs with batteries, ready-to-run
• On/Off switch: Yes

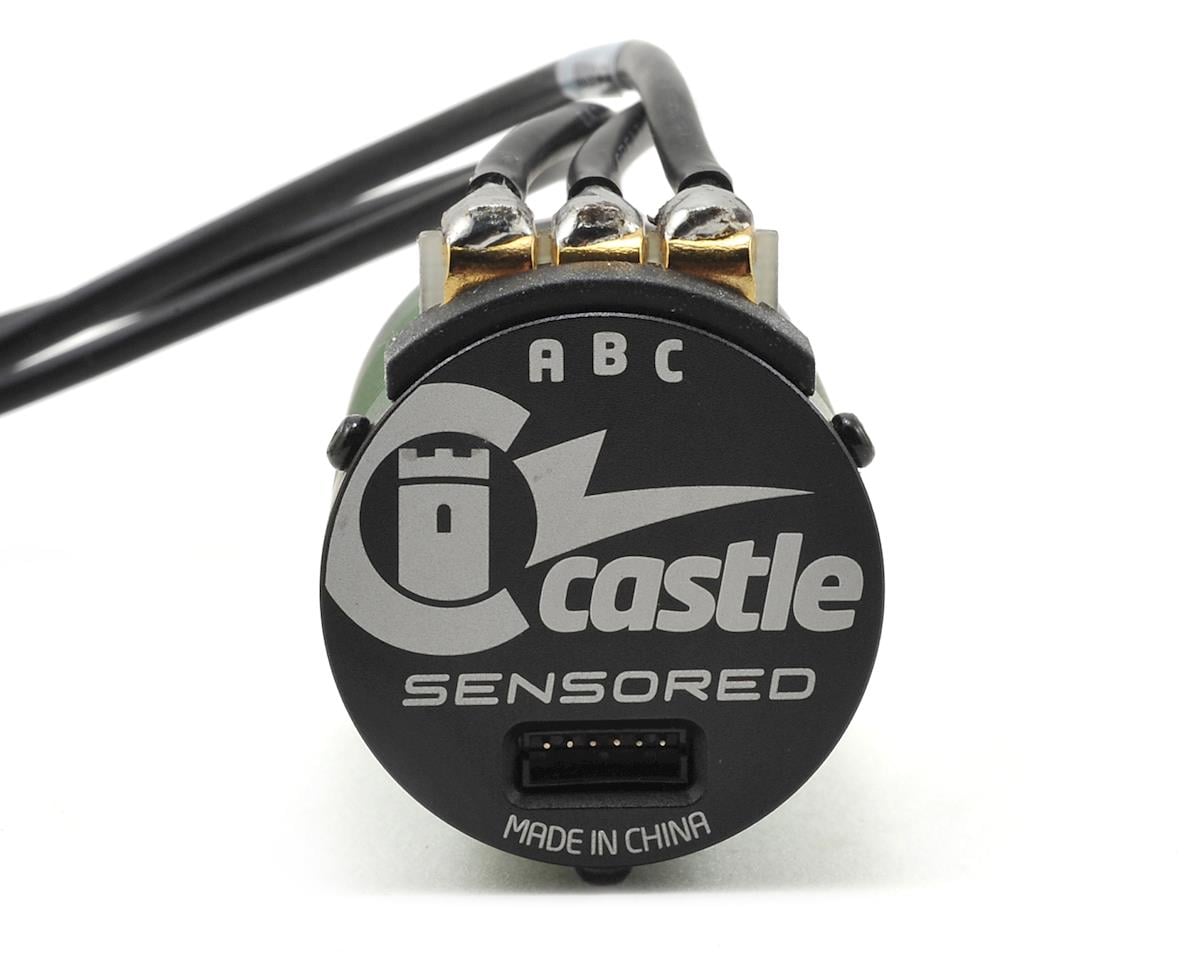

1512 Motor Specifications

• Input voltage range: 2S-4S LiPo
• kV: 1800
• Motor size: 67.7mm length x 40mm diameter; 41.4mm with fins
• Weight: 13.6 oz. (385 g)
• Maximum vehicle weight: 9lbs with batteries, ready to run
• Mounting holes: 3mm and 4mm screw holes at 1" (25.4mm) spacing
• Shaft diameter: 5mm
• Shaft length: 20mm
• Maximum RPM: 60,000

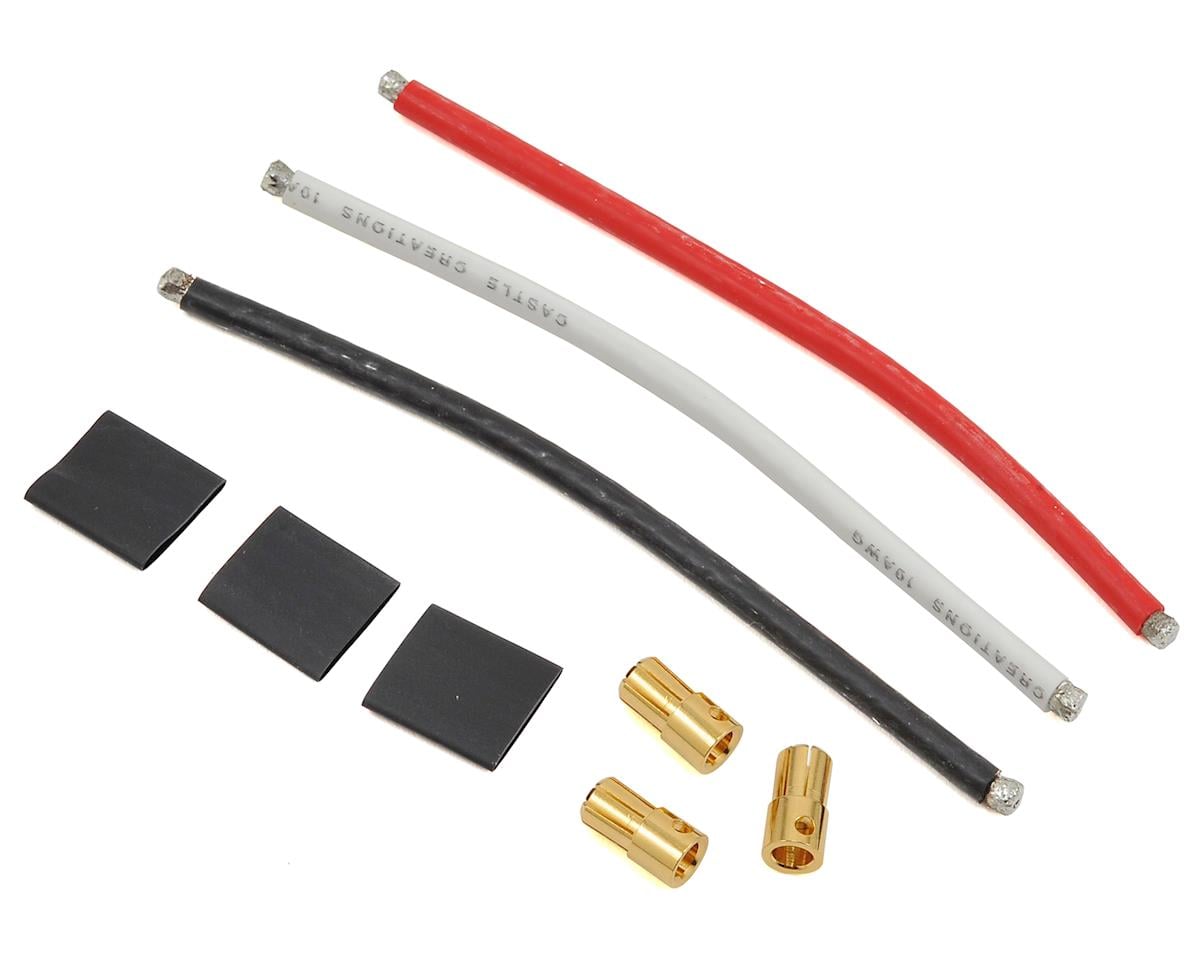

Required for operation: A battery connector is required; Castle 6.5mm Connectors are recommended.
