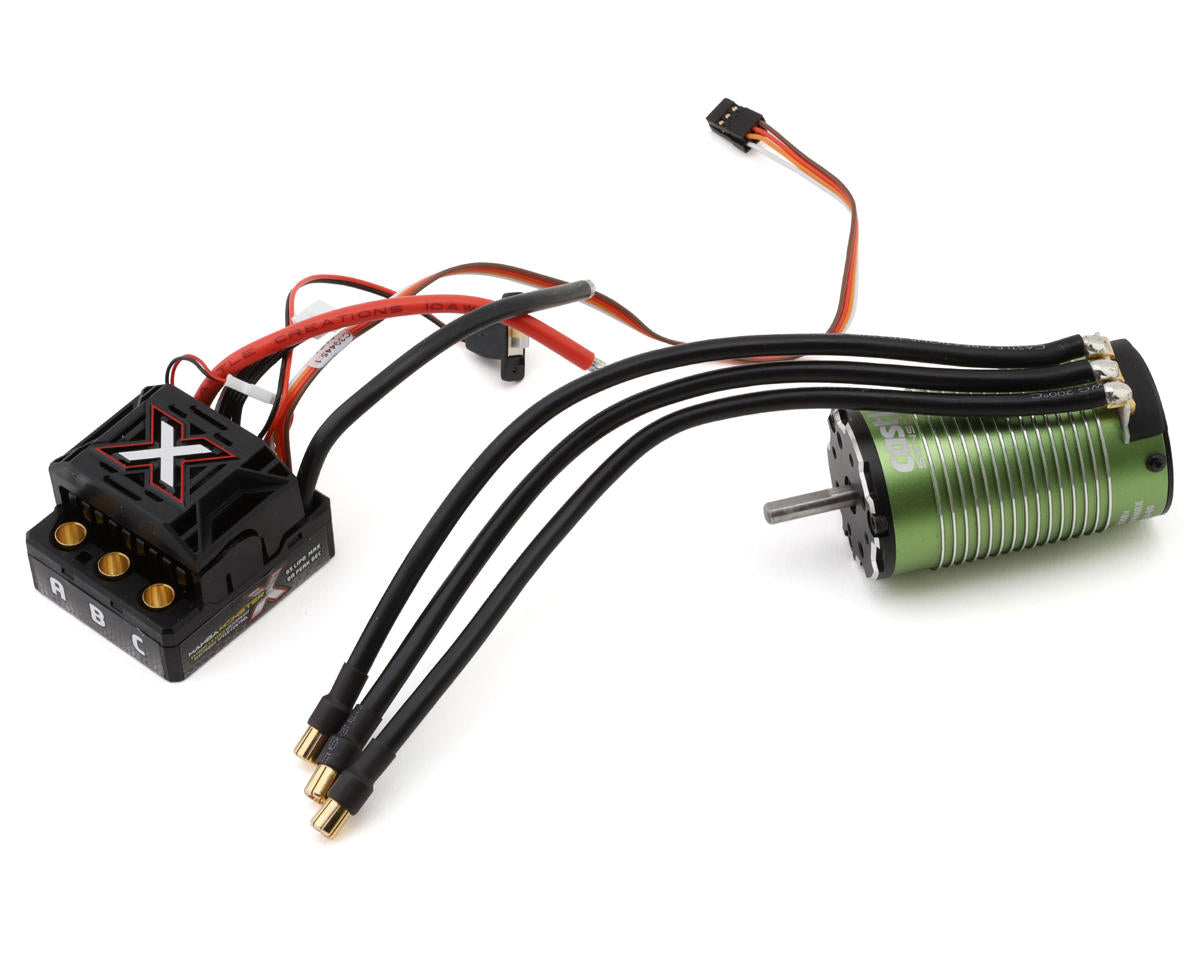

Castle Creations Monster X 1/8 Brushless Combo (2650kV) w/1512 V2 Sensored Motor

The Castle Creations Monster X 1/8 Brushless Combo pairs a Mamba Monster X ESC with a redesigned 1512-2650Kv V2 brushless sensored motor. Designed for 1/8 buggies, on-road cars, short course vehicles and other vehicles up to 9lbs, the system uses SmartSense™ technology for smooth, cog-free starts and controlled low-speed operation.

Features

• SmartSense™ technology for smooth startups
• Waterproof epoxy-potted ESC in a durable injection-molded case
• Adjustable BEC from 5-8V, with 5.5V default
• Data logging and audible diagnostic alerts
• Rebuildable motor design with high-strength Kevlar motor wrap
• Castle Link Windows™ programming; Windows 10+ required
• Backed by a one-year warranty

ESC Specifications

• Suggested application: 1/8
• Motor type: Brushless-Sensored
• Input voltage: 2-6S LiPo (7.4-25.2V)
• Dimensions: 2.1x1.93x1.44in (53x49x36.4mm)
• Weight: 3.92oz (111g)
• BEC voltage: 5-8V (5.5V Default)
• BEC peak current: 8A
• Motor connector: 6.5mm Female Bullets
• Battery connector: Bare Wire

Motor Specifications

• Size: 2650kV
• Type: Brushless-Sensored
• Voltage: 2-4S LiPo (7.4-14.8V)
• Connector: 6.5mm Male Bullets
• Dimensions: 2.67x1.57in (67.7x40mm)
• Shaft length: 0.8in (20mm)
• Shaft diameter: 0.2in (5mm)
• Weight: 13.6oz (383g)
• Maximum recommended vehicle weight: Short Course and 1/8 Vehicles up to 9lbs (144oz)

Included

• (1) Mamba Monster X ESC
• (1) 1512-2650Kv V2 Brushless Sensored Motor

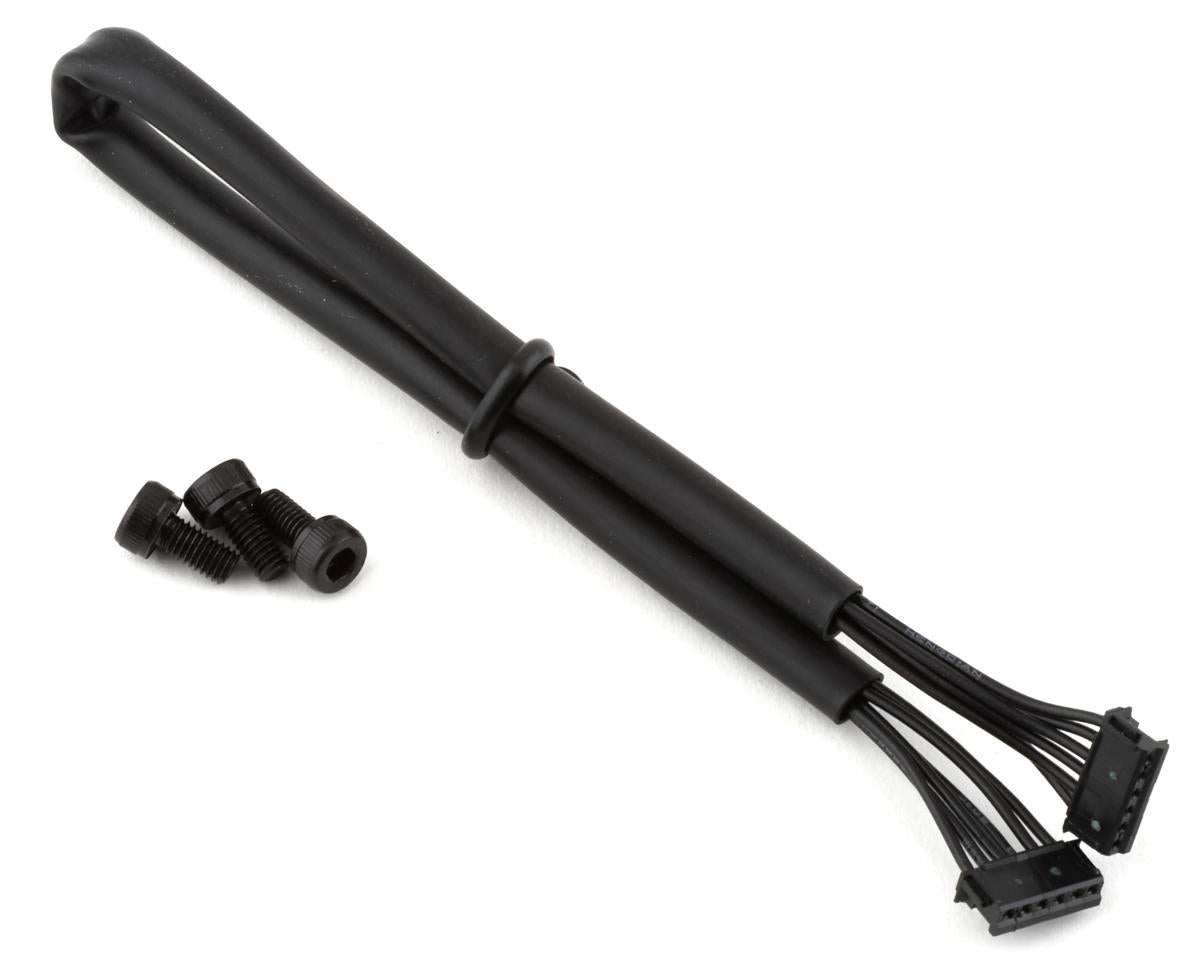

• (1) Castle Sensor Harness Adapter
• (1) 210mm sensor wire
• (1) Castle Link USB coupon
• (1) Quick Start Guide
• Decals

Technical Notes

• Recommended battery capacity for 1:8th scale vehicles is 5000mAh.
• 30C continuous discharge or higher LiPo batteries are recommended.
• A high-current connector rated for 70+ amps is recommended for high-powered electric systems.
