Castle Creations Mamba X Waterproof Sensored Brushless Combo w/2280kV Slate

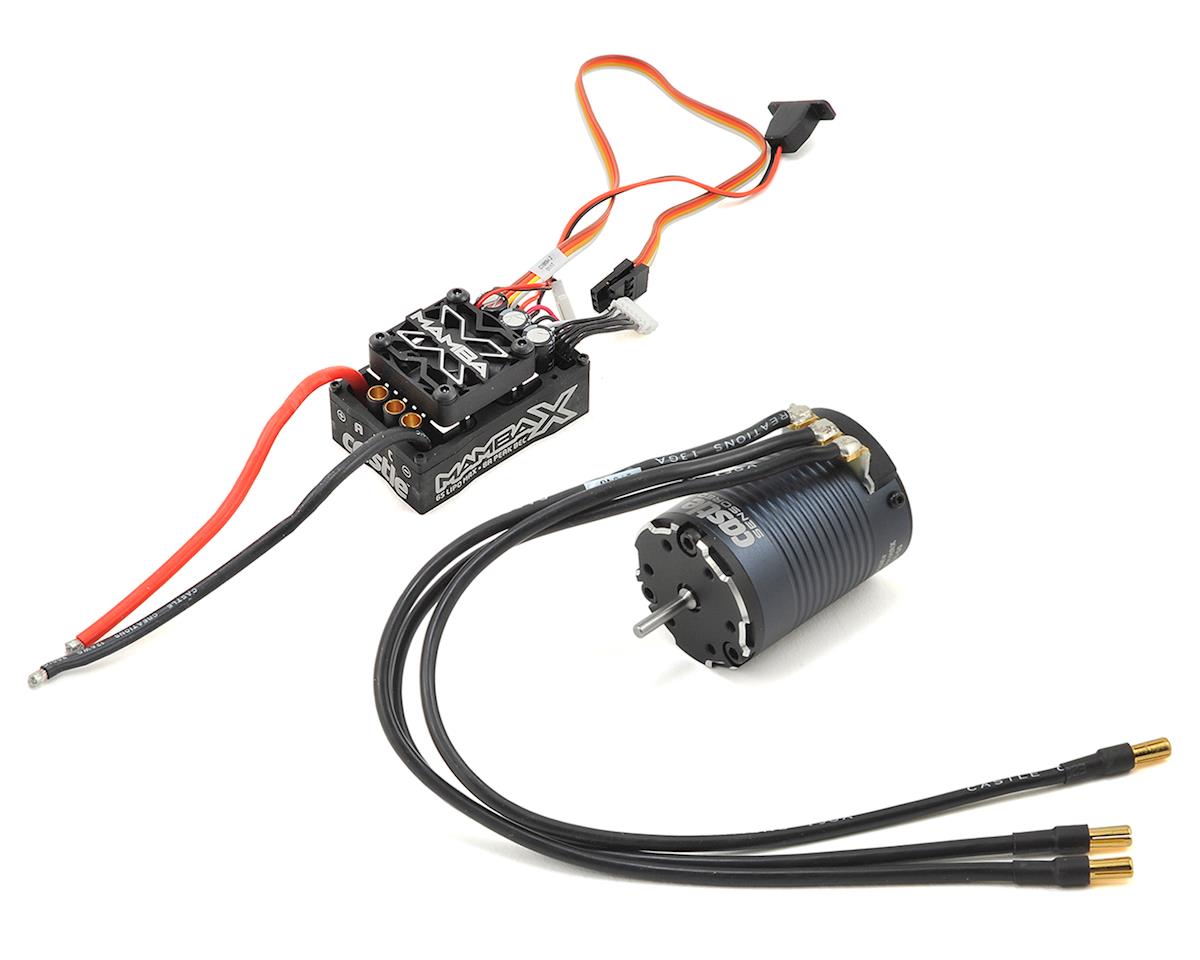

The Castle Creations Mamba X Waterproof Sensored Brushless Combo pairs a Mamba X ESC with a Castle “Slate” 1406 Sensored 4-Pole Brushless Crawler Motor rated at 2280kV. It is suited to 1:10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies using 2S-4S with appropriate gearing.

Mamba X ESC Features

• 2S to 6S input voltage range: 7.4V to 25.2V

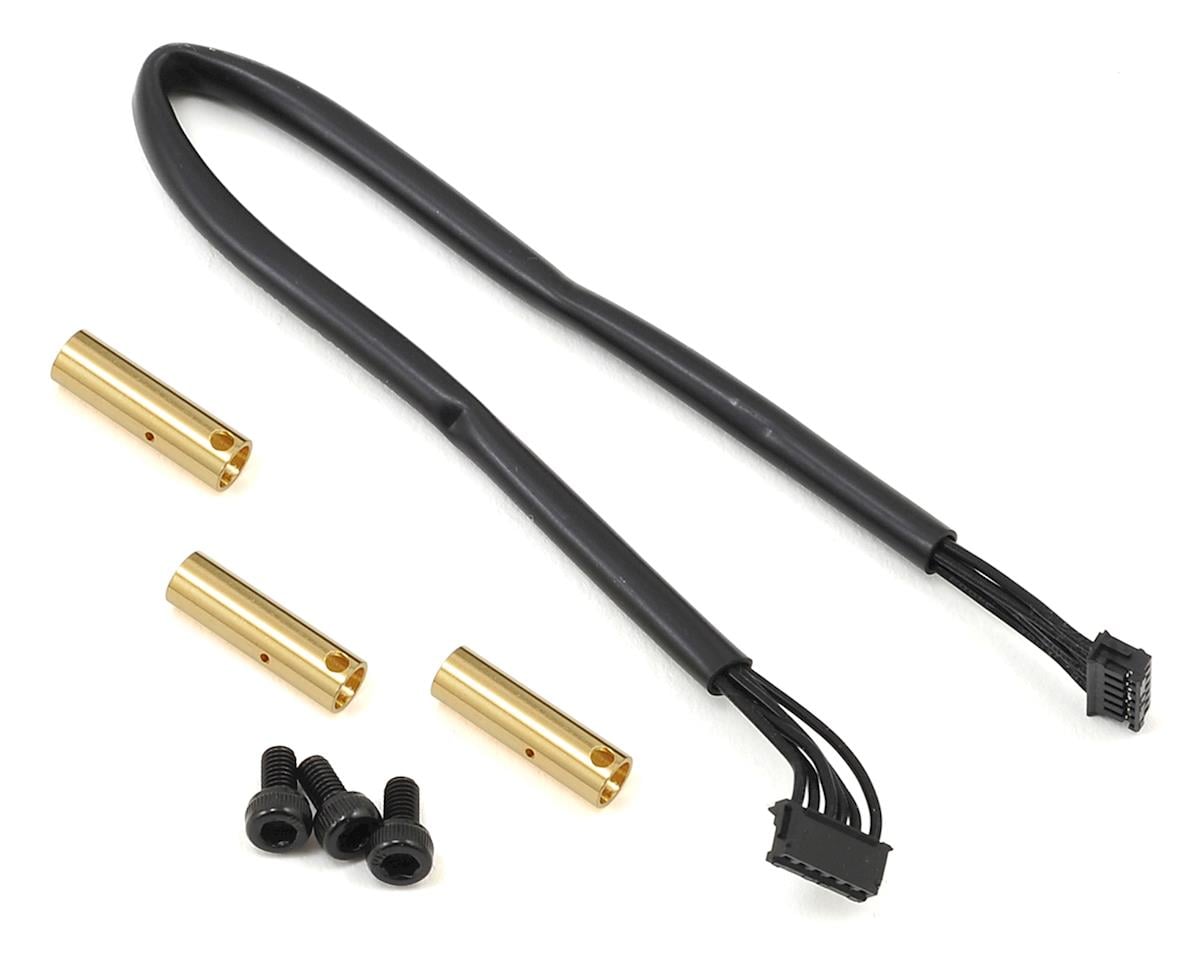

• Sensored motor support with Castle X-Series Sensor Harness included
• Adjustable 8A BEC with 5.5V, 6.0V, 7.5V and 8.0V settings
• Data logging and Castle Link programming support
• Rugged CNC aluminum case
• SmartSense™ integrated capacitors
• Removable 30mm cooling fan
• Integrated 4mm female bullet connectors and 12 AWG power wires
• Waterproof switch and audible alerts
• Telemetry Link capable
• Fully programmable with a Castle Link USB adapter and Castle Link Windows software

ESC Specifications

• Size: 2.14x1.39x1.18" (54.4x35.2x30.0mm)
• Weight with wires: 3.56 oz. (101g)
• Brake: Proportional
• Reversible: Yes; may be disabled for racing
• On/Off switch: Yes
• Cooling fan: Factory equipped 30mm fan
• Motor connectors: 4.0mm female bullets
• Recommended motors: Castle 1406, 1410 and 1415 sensored motors
• Maximum recommended vehicle weight: Less than 9 lbs/4kg with batteries, ready-to-run

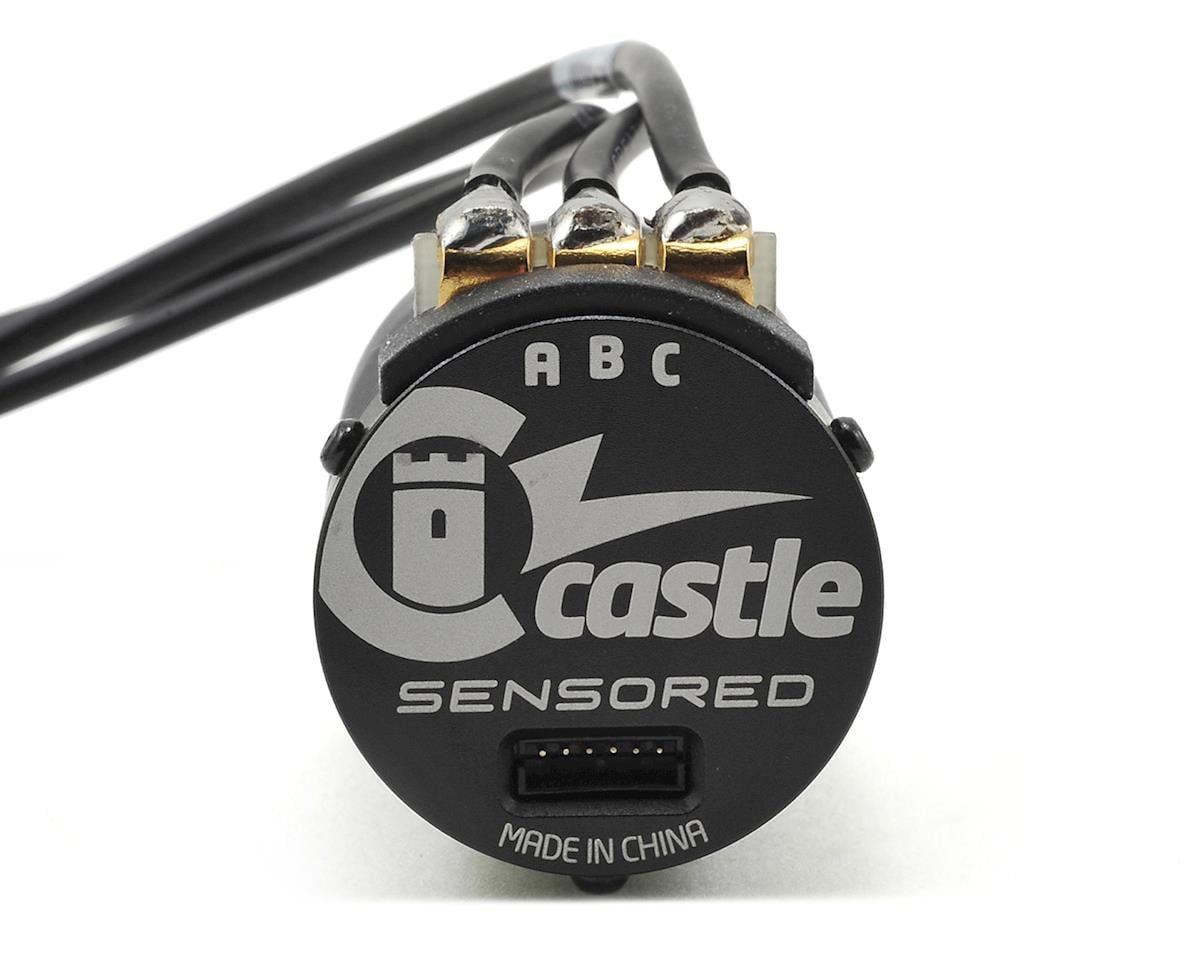

Slate 1406 Motor Specifications

• Input voltage range: 2S-4S LiPo
• kV: 2280
• Maximum RPM: 100,000
• Can length: 49.5mm
• Can diameter: 36mm
• Weight with wires: 197 g / 6.9oz
• Shaft length: 15mm
• Shaft diameter: 1/8" (3.17mm)
• Mounting holes: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors
• Running modes: SMARTSENSE™, Sensored and Sensorless with Castle sensored capable ESCs

Use and Care Notes

• The Mamba X waterproof design is intended for use in nearly any environment, but it is not intended for operation while completely submerged in liquid.
• Remove the cooling fan before driving in wet conditions; the fan is not waterproof.
• Rinse the ESC and motor with clean water after exposure to corrosives or dirt.
• Confirm that the rest of the vehicle, including the batteries, servos, radio and chassis, is waterproof before exposure to liquids.
• Applying voltages higher than 25.2V will cause irreparable damage to the ESC.
• A battery connector is needed for operation.

The Mamba X is designed and manufactured in Olathe, Kansas, and is backed by Castle Creations’ 1-year warranty and “make-it-right” customer support.
