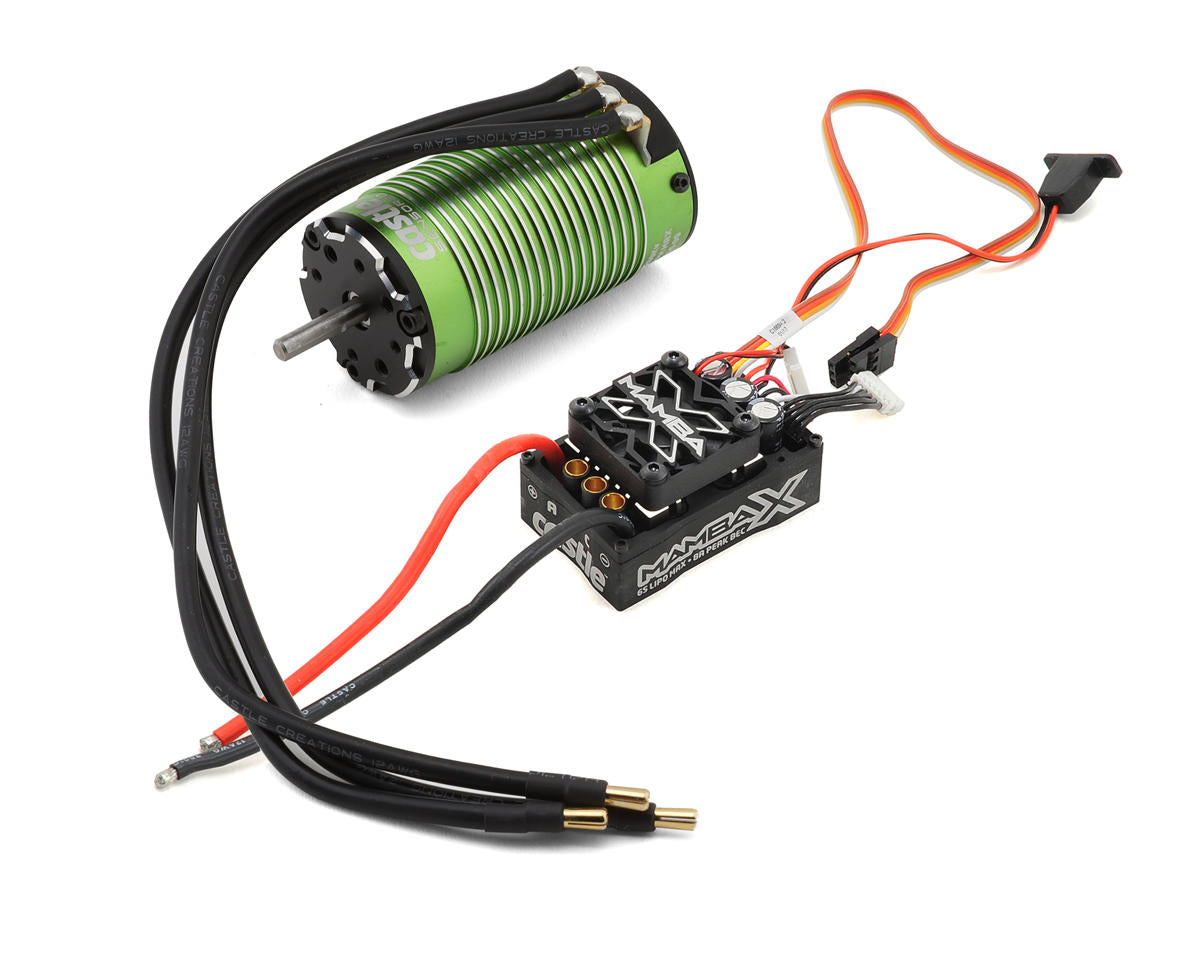

Castle Creations Mamba X Waterproof 1/8 Brushless Combo

The Castle Creations Mamba X Waterproof 1/8 Brushless Combo pairs a Mamba X ESC with a redesigned 1515-2200Kv V2 sensored motor. It supports Sensored, Sensorless, and SmartSense™ running modes, with a 2S-6S LiPo input range for the ESC.

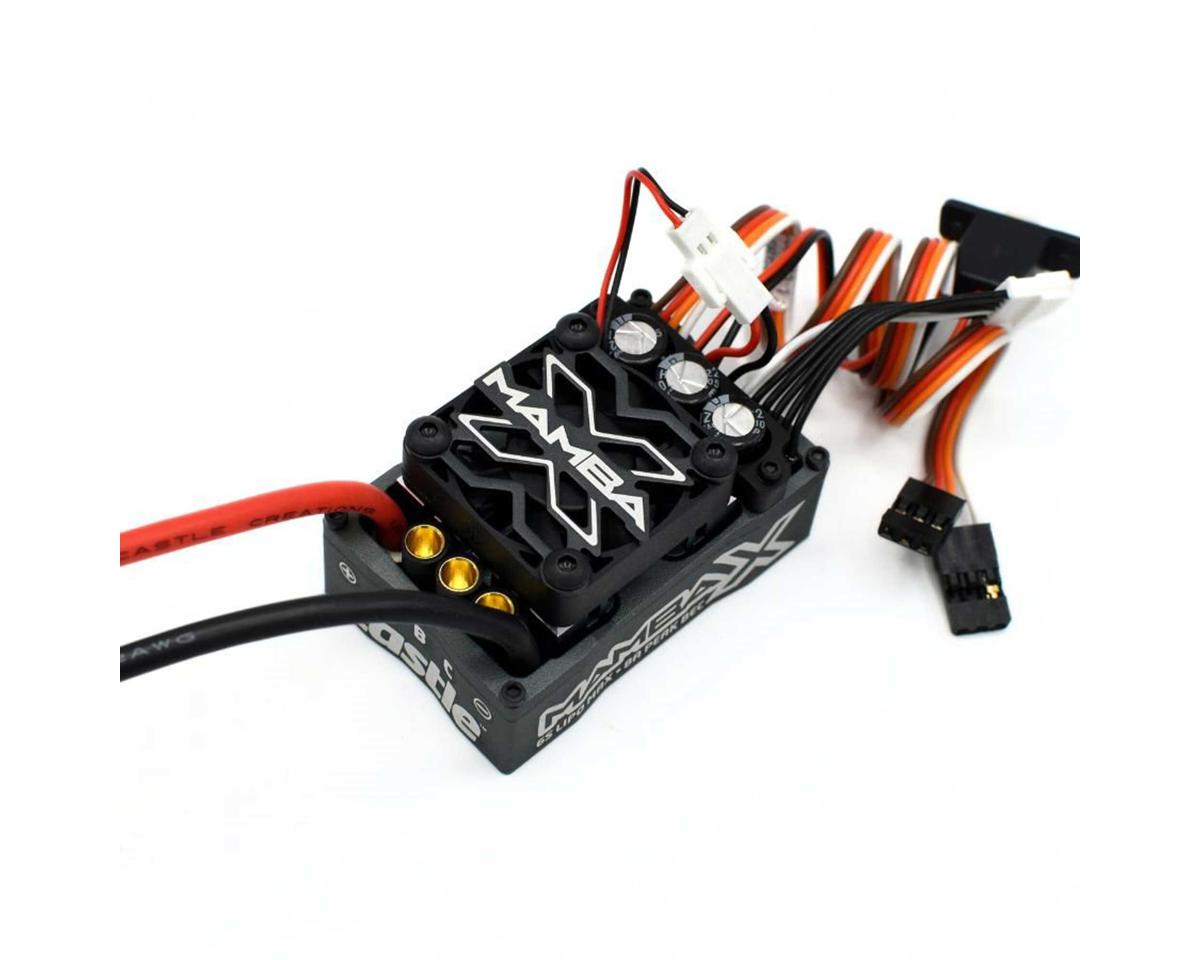

The ESC features a waterproof CNC aluminum housing with integrated capacitors, a thermally controlled removable cooling fan, built-in data logging, audible and LED alerts, and an auxiliary wire for on-the-fly adjustments. Programming is supported through Castle Link USB or the optional B-LINK™ Bluetooth Adapter.

Features

• Redesigned 1515-2200Kv V2 motor with enhanced rotor and stator assemblies
• Sensored, Sensorless, and SmartSense™ running modes
• Wide input voltage range: 2S-6S LiPo
• Waterproof CNC aluminum ESC housing with integrated capacitors
• Thermally controlled, removable cooling fan
• Auxiliary wire for on-the-fly adjustments
• Data logging and programming via Castle Link USB or B-LINK™ Bluetooth Adapter
• 12 AWG silicone-coated copper power wires with 4mm bullet connectors
• Audible and LED alerts for easy diagnostics
• Backed by Castle Creations' 1-year warranty

ESC Specifications

• Suggested application: 1/10-1/8
• Motor type: Brushless-Sensored
• Input voltage: 2-6S LiPo (7.4-25.2V)*
• Dimensions (LxWxH): 2.14x1.39x1.18in (54.4x35.2x30.0mm)
• Weight: 3.56oz (101g)
• BEC voltage: 5-8V (5.5V Default)
• BEC peak current: 8A
• Motor connector: 4mm Female Bullets
• Battery connector: Bare Wire
• Battery wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Suggested application: 1/10-1/8
• Size: 2200kV
• Type: Brushless-Sensored
• Voltage: 3-6S LiPo (4S Max w/Mamba X ESC)
• Connector: 4mm Male Bullets
• Dimensions: 2.97x1.57in (75.4x40mm)
• Shaft length: 0.83in (20mm)
• Shaft diameter: 0.2in (5mm)
• Weight: 15.1oz (429g)
• Max. recommended vehicle weight: 1/10-1/8 Vehicles up to 9lbs (144oz) on 4S LiPo

Includes

• (1) Mamba X ESC with sensor harness
• (1) 1515-2200Kv V2 sensored motor
• (1) Castle Link USB coupon
• (1) Mamba decals
• (1) Driver's Ed Guide/Quick Start Guide

Tech Note

Mamba X setups frequently hit 100+ amps in peaks, and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. Castle Creations recommends using 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas® Power Cell.
