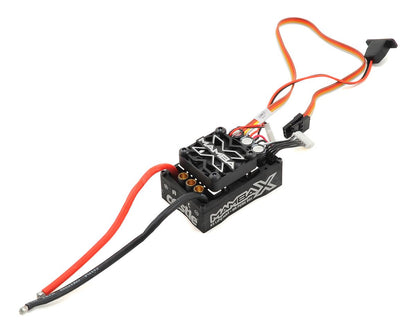

Castle Creations Mamba X Waterproof 1/10 Scale Brushless ESC

The Castle Creations Mamba X Waterproof 1/10 Scale Brushless ESC is built for a wide range of 1/10 scale vehicles, including buggies, monster trucks and crawlers. Its rugged CNC-machined aluminum case is potted in waterproof epoxy to protect the electronics while helping dissipate heat.

Key Features

• Wide 2S to 6S input voltage range
• Sensored motor support with Castle X-Series Sensor Harness included
• Waterproof 8A adjustable BEC with 5.5V, 6.0V, 7.5V or 8.0V settings; default 5.5V
• SmartSense technology for smooth sensored starts and efficient sensorless operation
• Data-logging for motor RPM, battery current and voltage, ESC and motor temperature, throttle input and more
• Castle Link programming support with a coupon for the Castle Link adapter included in the package
• Integrated capacitors and 4mm bullet connectors
• Removable 30mm cooling fan
• 12 AWG power wires, waterproof switch and audible alerts
• Telemetry Link capable

Specifications

• Input Voltage Range: 2S LiPo (7.4V) to 6S LiPo (25.2V)
• BEC: Adjustable 5.5V, 6.0V, 7.5V or 8.0V, 8A Peak
• Brake: Proportional
• Reverse: Yes; may be disabled for racing
• Cooling: Factory-equipped, fully removable 30mm fan
• Size (LxWxH): 2.14x1.39x1.18" (54.4x35.2x30.0mm)
• Weight with wires: 3.56 oz. (101g)
• Motor Connectors: 4.0mm female bullets
• Recommended Motors: Castle 1406, 1410 and 1415 Sensored motors
• Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run

Use Notes

The Mamba X is designed for waterproof operation but is not intended to be completely submerged. The cooling fan must be removed before driving in wet conditions because it is not waterproof. Rinse the ESC and motor with clean water after exposure to corrosives or dirt, and confirm that the vehicle's batteries, servos, radio and chassis are also waterproof before exposing them to liquids.

For 1/8 scale setups, the Mamba X is intended for off-road racing buggies weighing up to 9 lbs, including batteries and ready-to-run. These setups should use 4S LiPo (16.8V) maximum and appropriate gearing.

The Mamba X is proudly designed and manufactured in Olathe, Kansas, and is backed by Castle Creations' 1-year warranty and "make-it-right" customer support.
