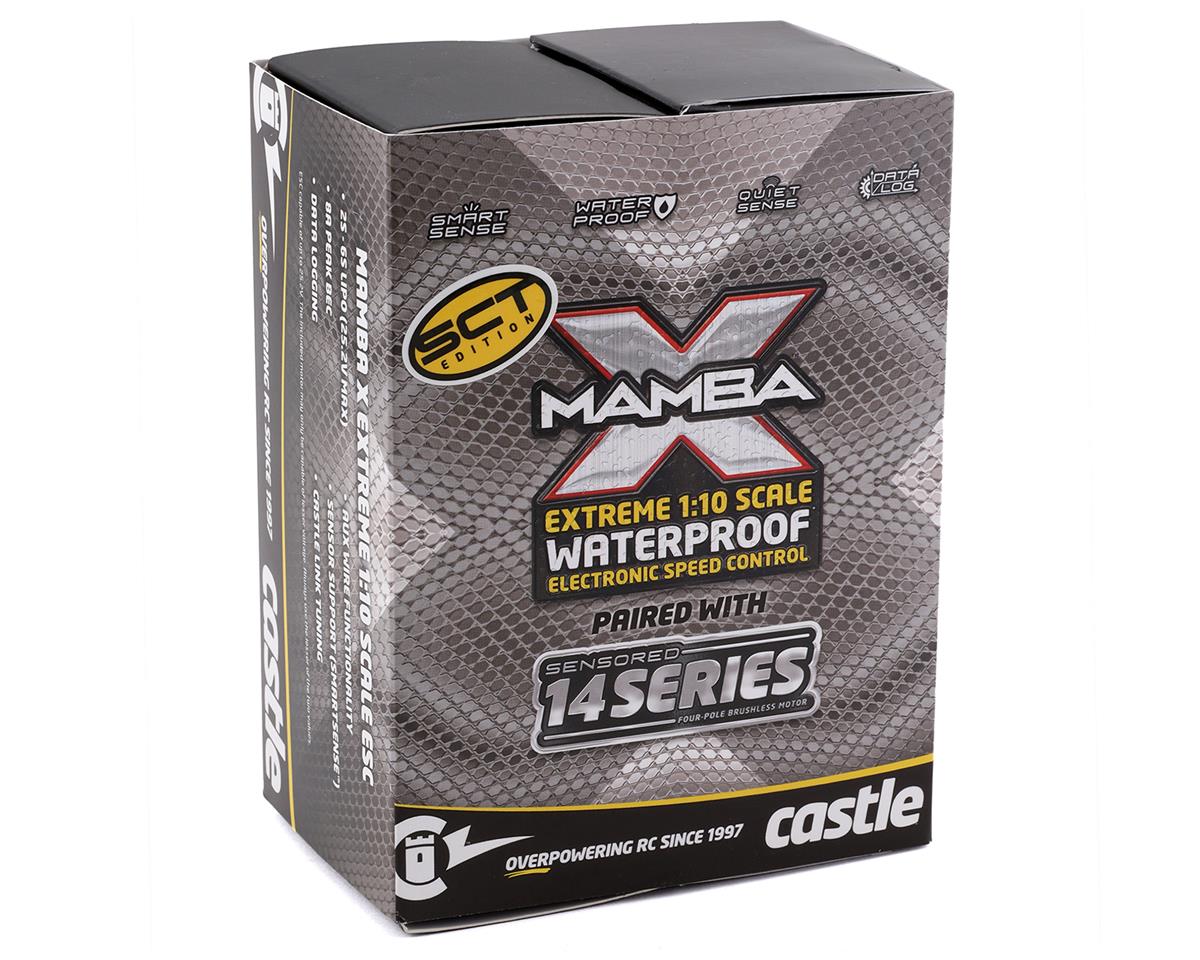

Castle Creations Mamba X SCT 1/10 Brushless Combo w/1412 (2100kV) (5mm Shaft)

The Castle Creations Mamba X SCT 1/10 Brushless Combo pairs a Mamba X sensored ESC with a 1412-2100Kv 4-pole, 12-slot sensored motor. It is intended for 1:10 scale 2WD and 4WD short course trucks, as well as 1:10 scale buggies and stadium trucks.

Mamba X ESC Features

• Input voltage: 2-6S LiPo (7.4-25.2V); 4S maximum with the included 1412-2100Kv motor
• Sensored motor support with Castle X-Series Sensor Harness included
• Waterproof design with an adjustable 8A BEC
• Adjustable BEC output: 5.5V, 6.0V, 7.5V or 8.0V; default 5.5V
• Data logging and Castle Link programming support
• Rugged CNC aluminum case with integrated capacitors
• Removable 30mm cooling fan
• Integrated 4mm bullet connectors and 12 AWG power wires
• Proportional brake and reversible operation, with reverse disable capability for racing
• Size: 2.14x1.39x1.18" (54.4x35.2x30.0mm)
• Weight with wires: 3.56 oz. (101g)

1412-2100Kv Motor Features

• 4-pole, 12-slot sensored brushless design
• SmartSense and QUIETSENSE™ technology for precise, efficient startups and smooth throttle control
• High strength 180°C neodymium sintered magnets
• High-quality, temperature-stabilized sensors
• Hardened stainless steel shaft
• Kevlar wrapped rotor
• 4mm male Castle Bullet Connectors
• Motor input voltage range: 2-4S LiPo
• Maximum RPM: 75,000
• Length: 62.5mm; diameter: 36mm
• Weight with wires: 265.4g (9.4oz)
• Shaft length: 21mm; shaft diameter: 0.197" (5mm)
• Mounting holes: M3 @ 25mm

Includes

• Mamba X ESC with Sensor Harness
• 1412-2100Kv 4-pole, 12-slot sensored motor
• User manuals

Operation note: A battery connector is required. The ESC is waterproof, but it is not intended for completely submerged operation. Remove the cooling fan before driving in wet conditions, as the fan is not waterproof.
