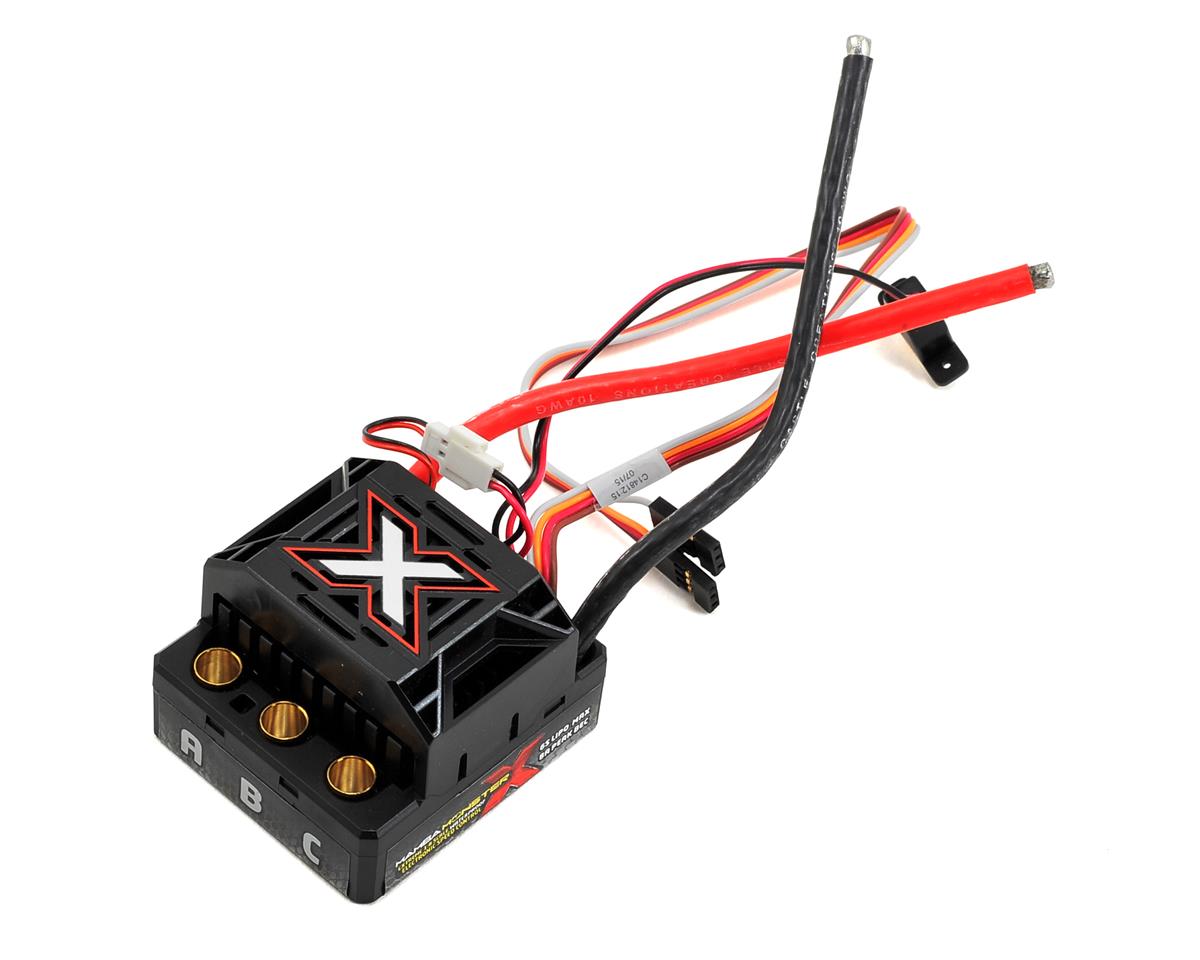

Castle Creations Mamba Monster X Waterproof 1/8 Scale Brushless ESC

The Castle Creations Mamba Monster X is a waterproof 1/8 scale brushless ESC for 2S to 6S LiPo power. It is suited to 1/8 scale off-road and on-road vehicles, as well as 1/10 scale monster trucks and custom vehicles weighing less than 15 lbs with batteries, ready-to-run.

Features

• 2S to 6S LiPo input range, with a maximum of 6S LiPo (25.2V)
• Adjustable BEC: 5.5V, 6.0V, 7.5V or 8.0V, with 8A peak output
• Programmable Auxiliary Wire for on-the-go adjustments through a compatible transmitter and receiver auxiliary channel
• Sensored brushless motor capable with an optional Castle Creations Sensor Harness
• Data logging for recording performance data from recent runs
• Telemetry ready for the Castle Creations S.BUS Telemetry Link when available
• Adjustable settings through Castle Link, including brake/reverse type, LiPo cutoff voltage, brake amount, drag brake and motor type
• Proportional brake and reversible operation with lockout
• Factory-equipped 30mm ESC cooling fan that is removable and replaceable
• Audible Alerts for calibration and error conditions

Specifications

• Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo (25.2V)
• BEC: Adjustable 5.5V, 6.0V, 7.5V or 8.0V; 8A peak; default 5.5V
• Size: 5.3cm x 4.9cm
• Weight: 111.1 g with wires
• On/Off Switch: Yes
• Operating Environment: Waterproof design

Operation Notes

A battery connector is required; Castle 6.5mm Connectors are recommended. Remove the cooling fan before driving in wet conditions, as it is not waterproof. The ESC and motor are not intended for operation while completely submerged and may corrode when exposed to materials such as salt water. Rinse with clean water after exposure to corrosives or dirt, and confirm that the rest of the vehicle and its electronics are suitable for liquid exposure.
