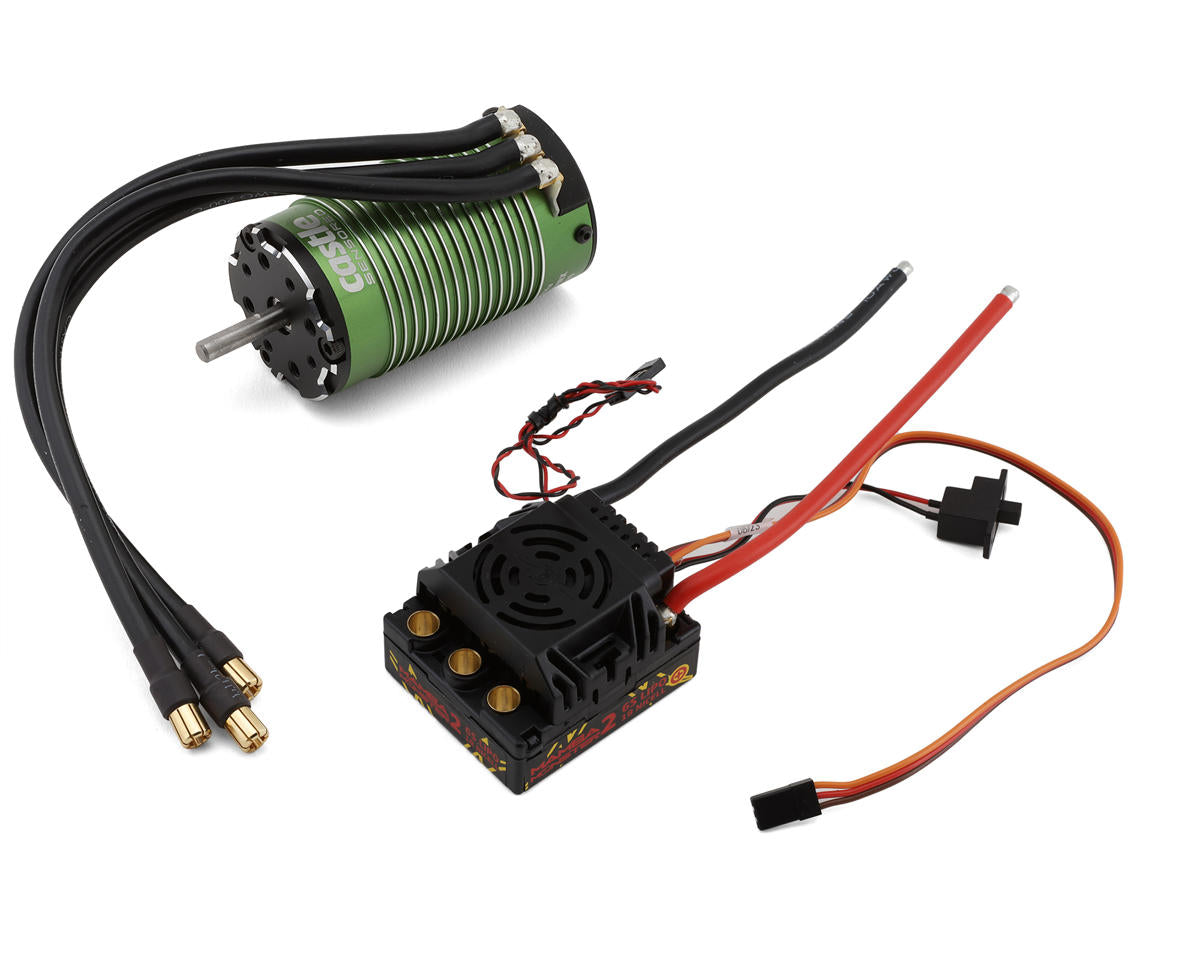

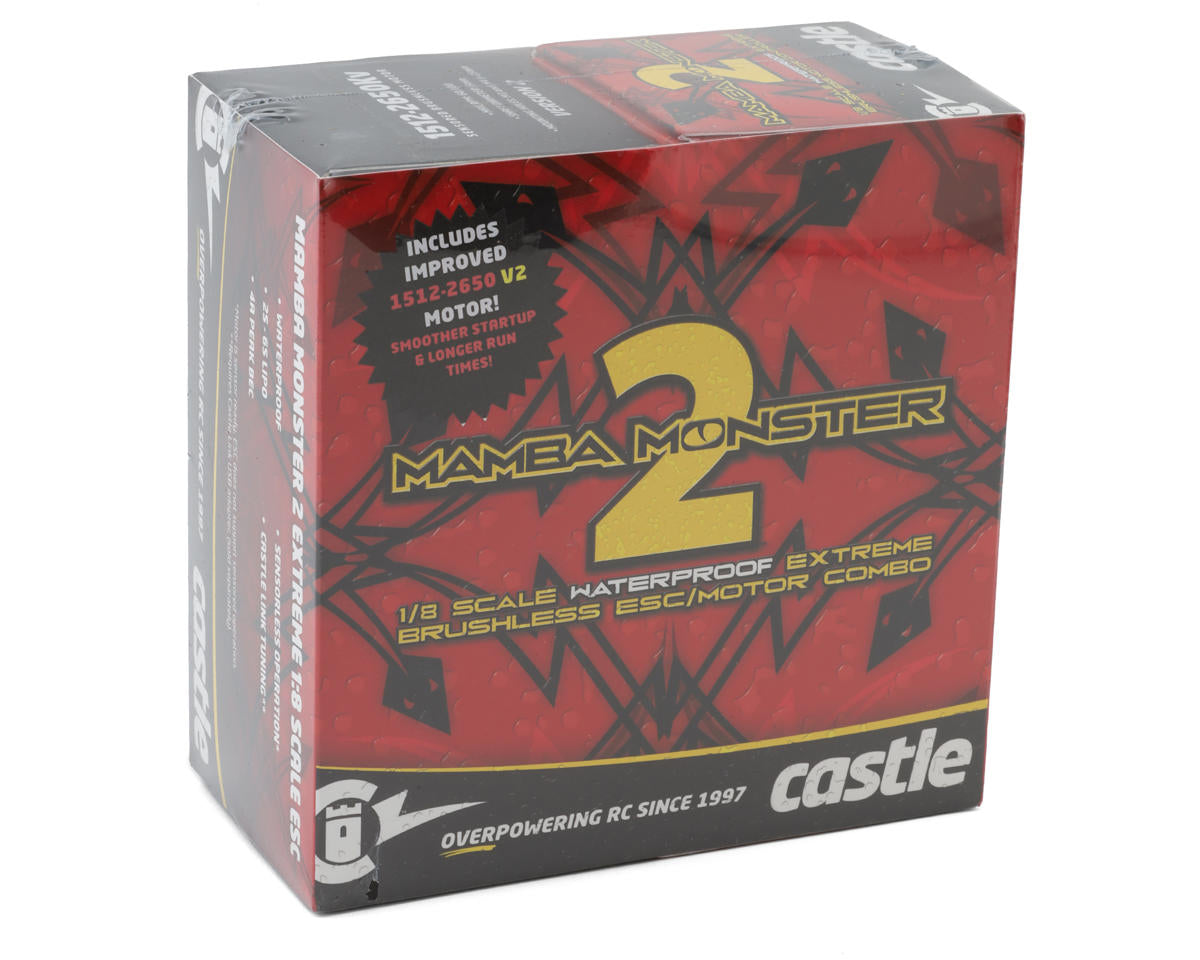

Castle Creations Mamba Monster 2 Waterproof 1/8 Scale Brushless Combo (2650Kv)

The Castle Creations Mamba Monster 2 Waterproof 1/8 Scale Brushless Combo pairs a Mamba Monster 2 Waterproof ESC with a redesigned 1512-2650Kv V2 brushless sensored motor. SmartSense™ technology provides smooth, cog-free startups, while the ESC offers adjustable BEC settings, data logging, and waterproof protection.

Features

• 2S-4S LiPo capable motor
• SmartSense™ for smooth startups
• Waterproof ESC housing
• Adjustable BEC up to 7V
• Data logging functionality
• Audible alerts for diagnostics
• Rebuildable motor design
• High-strength Kevlar motor wrap
• Castle Link USB programming coupon included
• Backed by a one-year warranty

ESC Specifications

• Suggested Application: 1/8**
• Motor Type: Brushless
• Input Voltage: 2-6S LiPo (7.4-25.2V)*
• Dimensions (LxWxH): 2.19x1.86x1.33in (56x47x34mm)
• Weight: 3.92oz (111g)
• BEC Voltage: 5-7V (5.5V Default)
• BEC Peak Current: 5A
• Motor Connector: 6.5mm Female Bullets
• Battery Connector: Bare Wire
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Suggested Application: 1/8**
• Size: 2650kV
• Type: Brushless-Sensored
• Voltage: 2-4S LiPo (7.4-14.8V)
• Connector: 6.5mm Male Bullets
• Dimensions: 2.67x1.57in (67.7x40mm)
• Shaft Length: 0.8in (20mm)
• Shaft Diameter: 0.2in (5mm)
• Weight: 13.6oz (383g)
• Max. Recommended Vehicle Weight: Short Course and 1/8 Vehicles up to 9lbs (144oz)

Includes

• (1) Mamba Monster 2 Waterproof ESC
• (1) 1512-2650Kv V2 Brushless Sensored Motor
• (1) Castle Sensor Harness Adapter
• (1) Castle Link USB coupon
• (1) Quick Start Guide
• Decals

Technical Notes

• Mamba Monster setups frequently hit 100+ amps in peaks. Recommended battery capacity for 1:8th scale vehicles is 5000mAh, and 30C continuous discharge or higher LiPo batteries are recommended.
• A high-current connector designed for high-powered electric systems and rated for 70+ amps is recommended.
