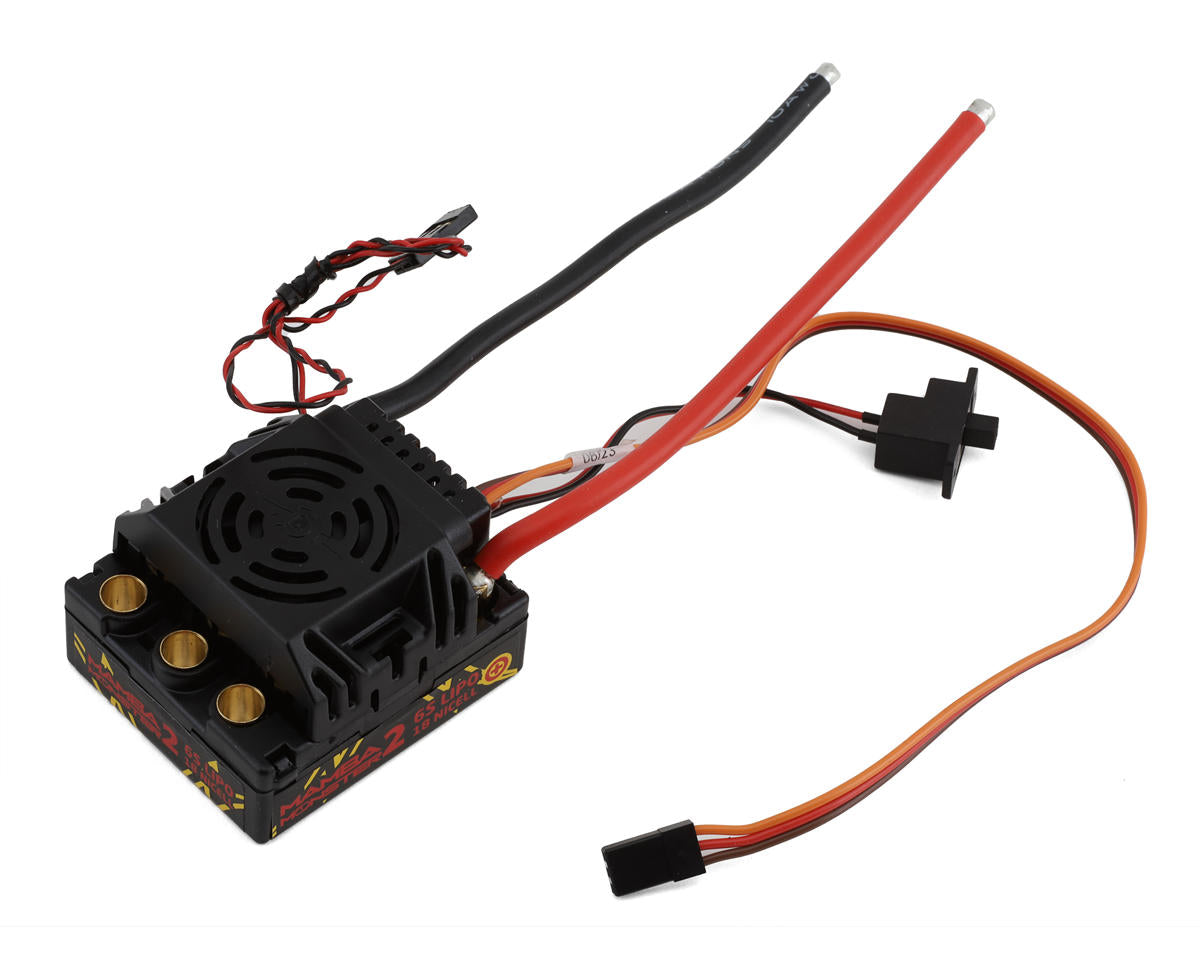

Castle Creations Mamba Monster 2 1/8th Scale Brushless ESC

The Castle Creations Mamba Monster 2 1/8th Scale Brushless ESC is designed for on-road vehicles, 1/8 buggies and truggies, and monster trucks running up to 6S LiPo and weighing up to 15lbs. Its waterproof* design supports use in a variety of conditions, while solder posts allow battery wire length and direction changes.

Features

• Designed for 1/8th scale buggies, truggies, monster trucks, and on-road vehicles
• Supports up to 6S LiPo input voltage
• 120A maximum continuous amperage with cooling airflow
• User-selectable BEC output between 5 and 7 volts
• Proportional brake
• Reversible operation with lockout
• Replaceable fan design
• USB programming capability via Castle Link USB adapter

Specifications

• Input voltage: MIN: 2s LiPo; MAX: 6s LiPo
• Max continuous amperage: 120A (full throttle continuous operation with cooling airflow)
• BEC specifications: User selectable output between 5 and 7 volts
• Operating environment: Waterproof* design allows for use in nearly any environment
• Brake: Proportional
• Reversible: Yes - with lockout
• Size (LxWxH): 1.86x2.19x1.33" (47x56x34mm)
• Weight: 3.93 oz (111.5 g), without battery connector soldered to ESC

Important: The fan is not water proof and should be removed before use in wet conditions. Although the Mamba Monster 2 and Castle brushless motors are waterproof, they can corrode when exposed to corrosive materials such as salt water. Rinse the ESC and motor with clean water after exposure to corrosives or dirt. Confirm that the batteries, servos, radio, chassis, and other vehicle components are also waterproof before exposing the vehicle to liquids. The Castle Link USB cable is available separately, and software is available through CastleCreations.com.
