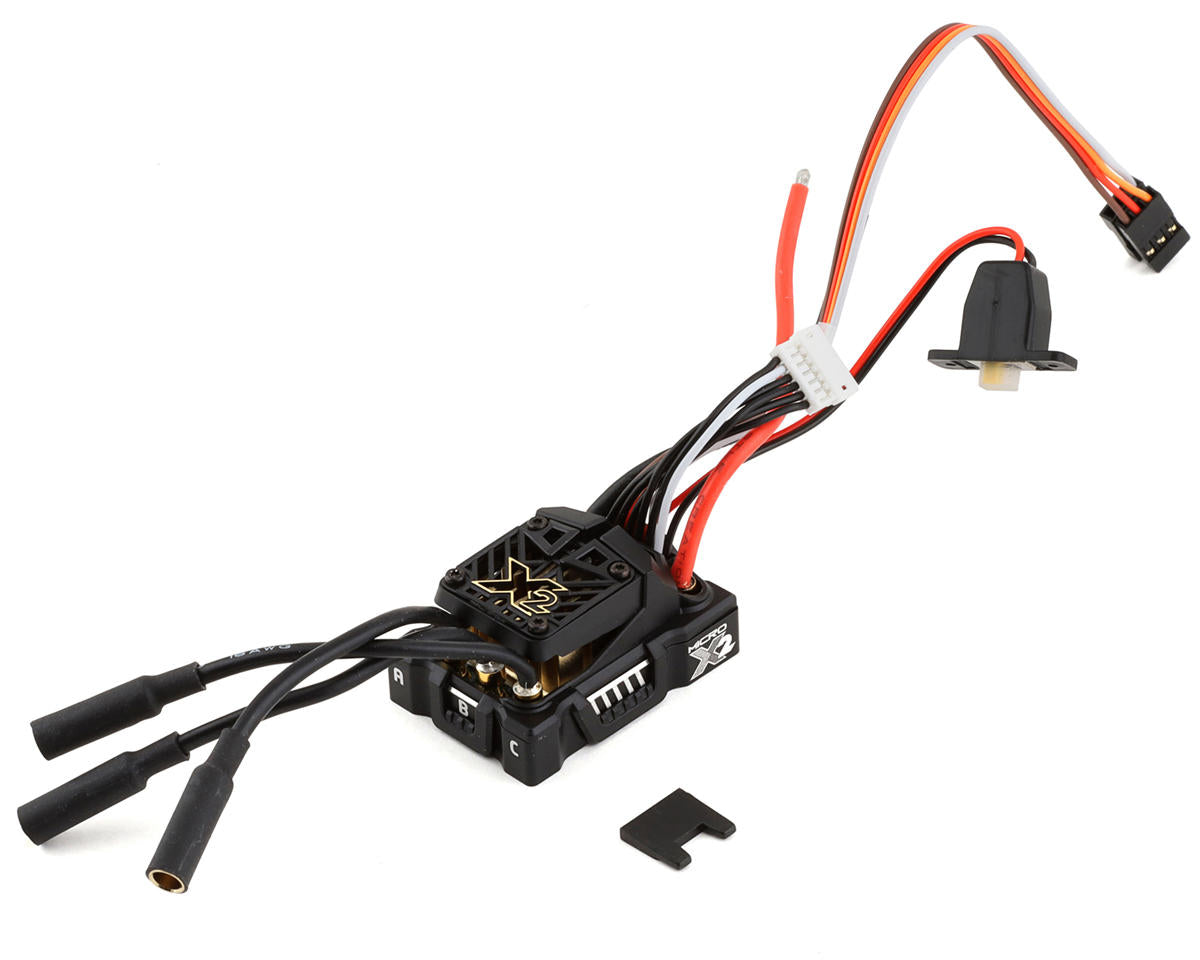

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC supports 2S-4S LiPo power and is designed for 1:18 scale 2WD or 4WD vehicles weighing up to 2.25 lbs. It adds data logging, Cryo-Drive Technology for cooler and more efficient partial-throttle operation, and sensored motor support with an optional sensor harness.

Features

• Input voltage range: 2S-4S LiPo (16.8V Max)
• Waterproof design for use in nearly any environment; not intended for complete submersion
• Sensored motor capable with optional sensor harness
• Telemetry ready with the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Transmitter programming for six common adjustable settings
• Additional settings and software updates through Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS with a B-LINK Bluetooth Adapter
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• Proportional, reversible brake; reverse may be disabled
• Waterproof on/off switch
• Cooling fan not included

Specifications

• BEC: 2A Peak, 5.5V or 7.5V
• Size: 41.6x29.9x21.3mm (1.64 x 1.16 x 0.84")
• Weight: 1.66 oz / 47 grams with wires
• Connectors: 3.5 mm bullets
• Recommended vehicle weight: 2.25 lbs, with batteries, ready-to-run
• Warranty: Manufacturer 1-year warranty

Recommended Motors

• Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH
• Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH
• Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH

Included

• Mamba Micro X2 ESC with 3.5mm connectors
• Coupon for free Castle Link USB adapter
• Quick Start Guide
• Castle Decals

Important Notes

• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• The battery input wires are bare; add the connector of your choice. Castle recommends a high current connector rated for at least 40 amps. Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
• The minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Castle recommends 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas® Power Cell.
• Rinse the ESC with clean water after exposure to corrosive materials or dirt. Confirm that the batteries, servos, radio and chassis are also waterproof before exposing the vehicle to liquids.
