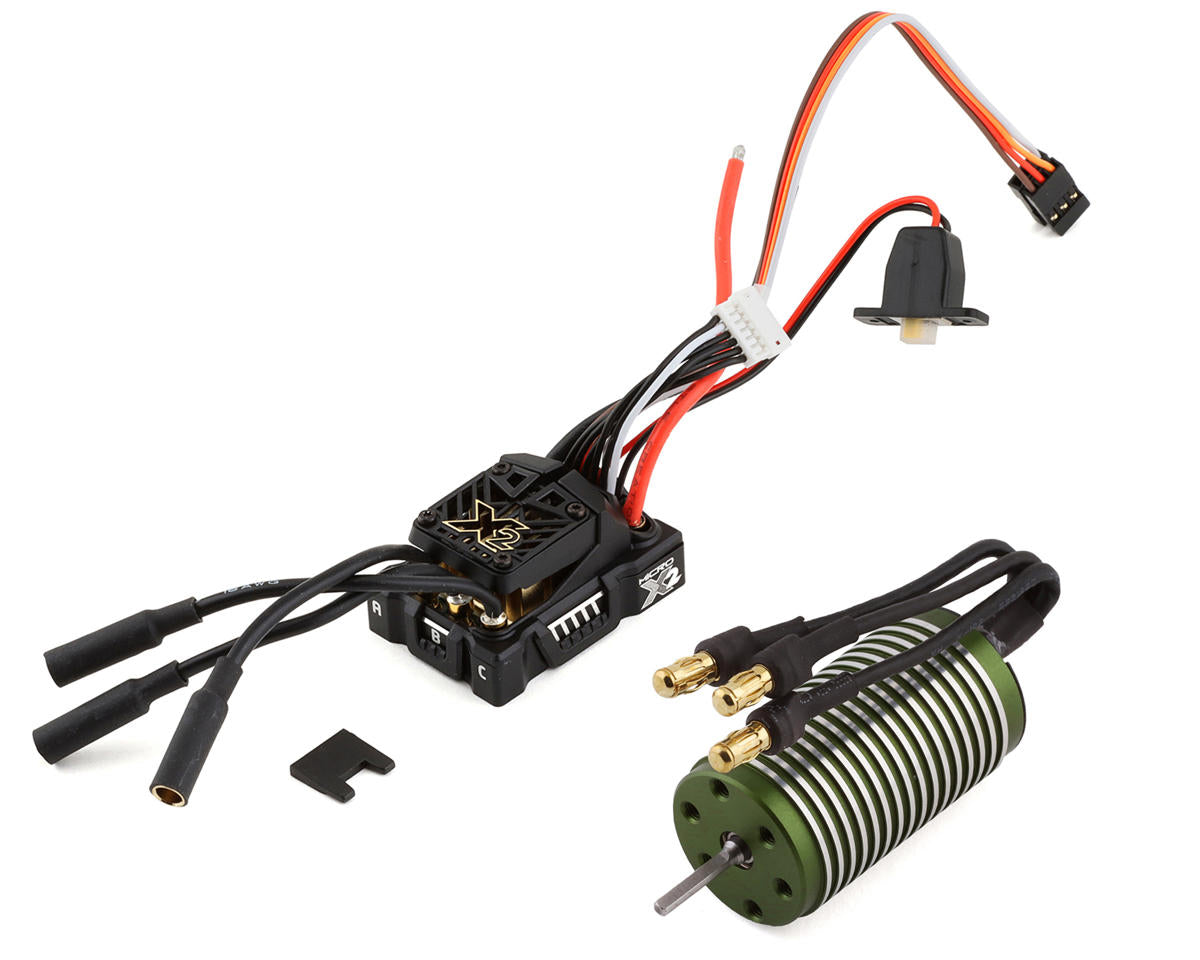

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (8200Kv)

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo pairs a Mamba Micro X2 ESC with an 0808-8200Kv brushless sensorless motor. It is intended for 1:18 scale RC vehicles and supports 2S LiPo power for vehicles weighing up to 1.5 lbs with this motor.

ESC Features

• Input voltage range: 2S-4S LiPo (16.8V Max)
• Waterproof design for use in nearly any environment*
• Sensored motor capable with optional sensor harness
• Data logging and Cryo-Drive Technology
• Telemetry ready for the Castle Creations Telemetry Link for S.BUS2 and compatible Futaba transmitters
• Transmitter programming for six common adjustable settings
• Additional settings and software updates through Castle Link software and USB adapter or the Castle Link App with a B-LINK Bluetooth Adapter
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions

ESC Specifications

• BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
• Brake: Proportional
• Reversible: Yes, but may be disabled
• On/Off switch: Yes, waterproof
• Cooling fan: Not included
• Size (LxWxH): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• Weight with wires: 1.66 oz / 47 grams
• Connectors: 3.5 mm bullets
• Application guideline: 1:18 scale RC hobby vehicles weighing up to 2.25 lbs

Motor Specifications

• Input voltage range: 2S LiPo, 4-7 cell NiMH
• Kv: 8200
• Length: 1.5" (38mm)
• Diameter: 0.79" (20mm)
• Weight with wires: 1.8 oz. (50g)
• Shaft diameter: 0.08" (2mm)
• Mounting holes: 2.5mm holes @ 1/2", 14MM, 5/8"
• Cooling fan: No
• Connectors: 3.5mm male bullets
• Application guideline: Up to 2S LiPo and weighing in at up to 1.5lbs
• Not intended for 1/16th scale or 1/14th scale vehicles, including Losi Mini-8ight/T and Traxxas Mini E-Revo

Included

• Mamba Micro X2 ESC
• 0808-8200Kv Brushless Sensorless Motor
• Coupon for free Castle Link USB adapter
• Quick Start Guide
• Castle Decals

Important Product Information

• Battery input wires are bare; add a connector of your choice. Castle recommends a high current connector rated for at least 40 amps.
• Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• The minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Use 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas Power Cell.
• Although the Mamba Micro X2 is waterproof, it is not intended for completely submerged operation. Rinse the ESC with clean water after exposure to corrosives or dirt.
• Confirm that the rest of the vehicle, including the batteries, servos, radio and chassis, is waterproof before exposing it to liquids.
• Never exceed 180°F on the motor or ESC. The product is backed by a manufacturer 1-year warranty.
