Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (5300Kv)

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo pairs a Mamba Micro X2 ESC with an 0808-5300Kv brushless sensorless motor for 1:18 scale RC vehicles. The combo is intended for vehicles weighing up to 2lbs with up to 3S LiPo power.

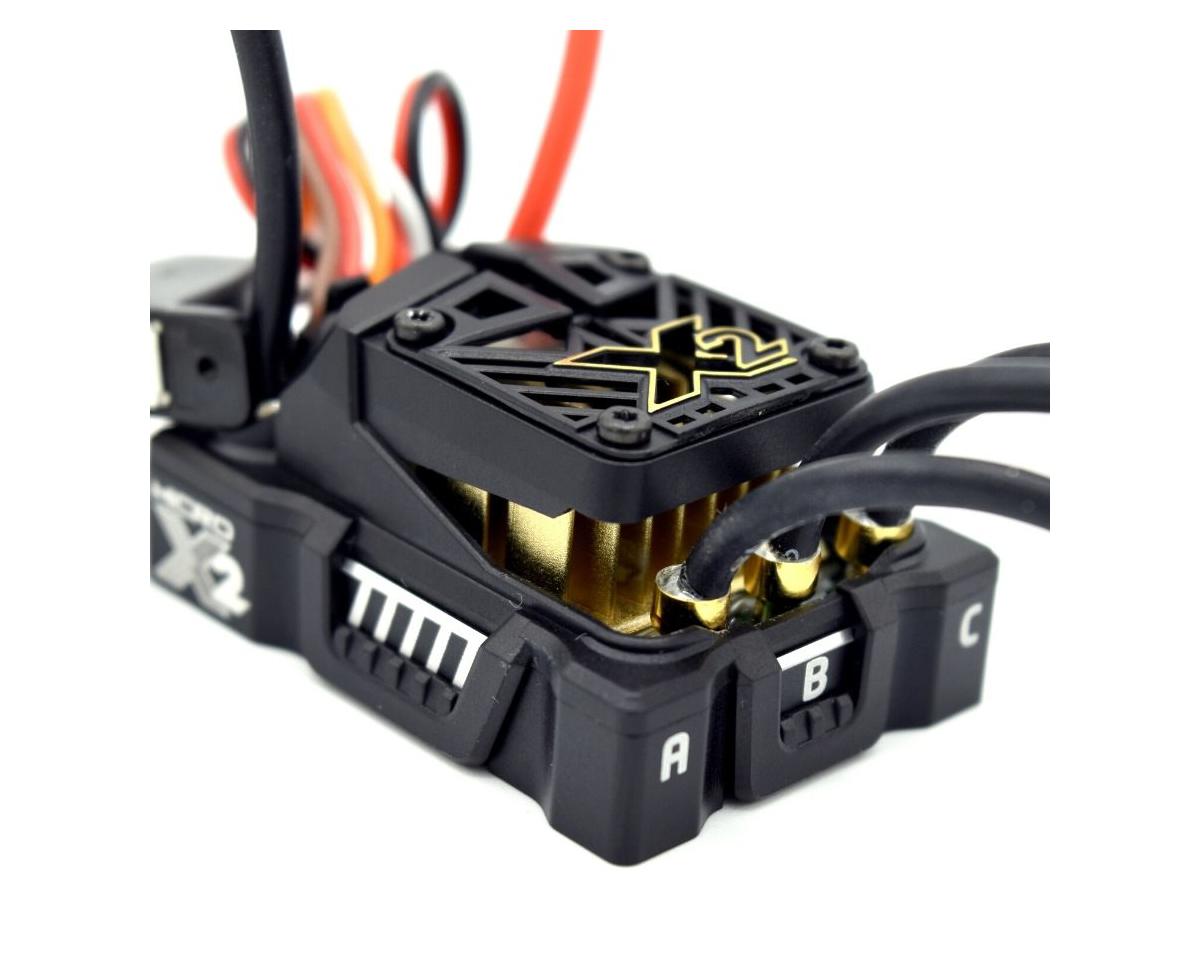

ESC Features

• 2S-4S LiPo input voltage range, with a 16.8V maximum
• Waterproof design for use in nearly any environment
• Sensored motor capable with an optional sensor harness
• Telemetry ready for the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Data logging and CRYO-DRIVE TECHNOLOGY
• Transmitter programming for six common adjustable settings
• Additional settings and software updates through Castle Link software or the Castle Link App
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• 2A peak BEC with selectable 5.5V or 7.5V output; 5.5V default
• Proportional brake and reversible operation, with reverse disable capability
• Waterproof on/off switch
• 3.5mm bullet connectors

ESC Specifications

• Size: 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• Weight with wires: 1.66 oz / 47 grams
• Cooling fan: Not included
• Application: 1:18 scale RC hobby vehicles weighing up to 2.25lbs

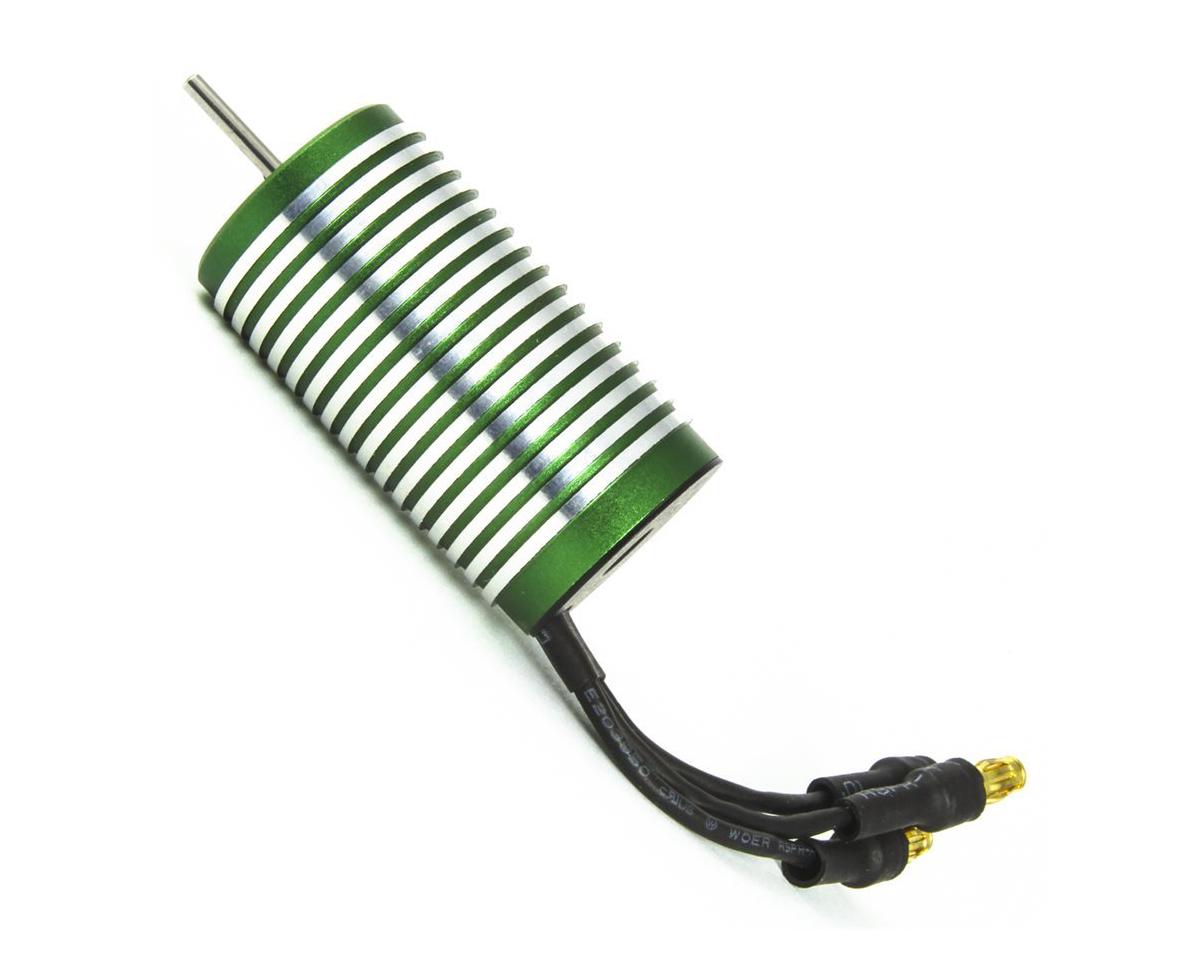

Motor Specifications

• Model: Castle 0808-5300Kv
• Input voltage range: 2S-3S MAX LiPo, 4-9 cell NiMH
• Kv: 5300
• Length: 1.5" (38mm)
• Diameter: 0.79" (20mm)
• Weight with wires: 1.8 oz. (50g)
• Shaft diameter: 0.08" (2mm)
• Mounting holes: 2.5mm holes @ 1/2", 14MM, 5/8"
• Cooling fan: No
• Connectors: 3.5mm male bullets

Application Notes

• Recommended for vehicles up to 3S LiPo and weighing up to 2lbs.
• Not intended for 1/16th scale or 1/14th scale vehicles, including Losi Mini-8ight/T and Traxxas Mini E-Revo.
• Battery input wires are bare; a battery connector must be added. Castle recommends Castle 4.0mm Polarized Connectors, Deans Ultra Plugs or XT60 connectors.
• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Castle recommends 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas Power Cell.
• Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged. Rinse the ESC with clean water after exposure to corrosive materials or dirt.
• Never exceed 180° F on the motor or ESC.

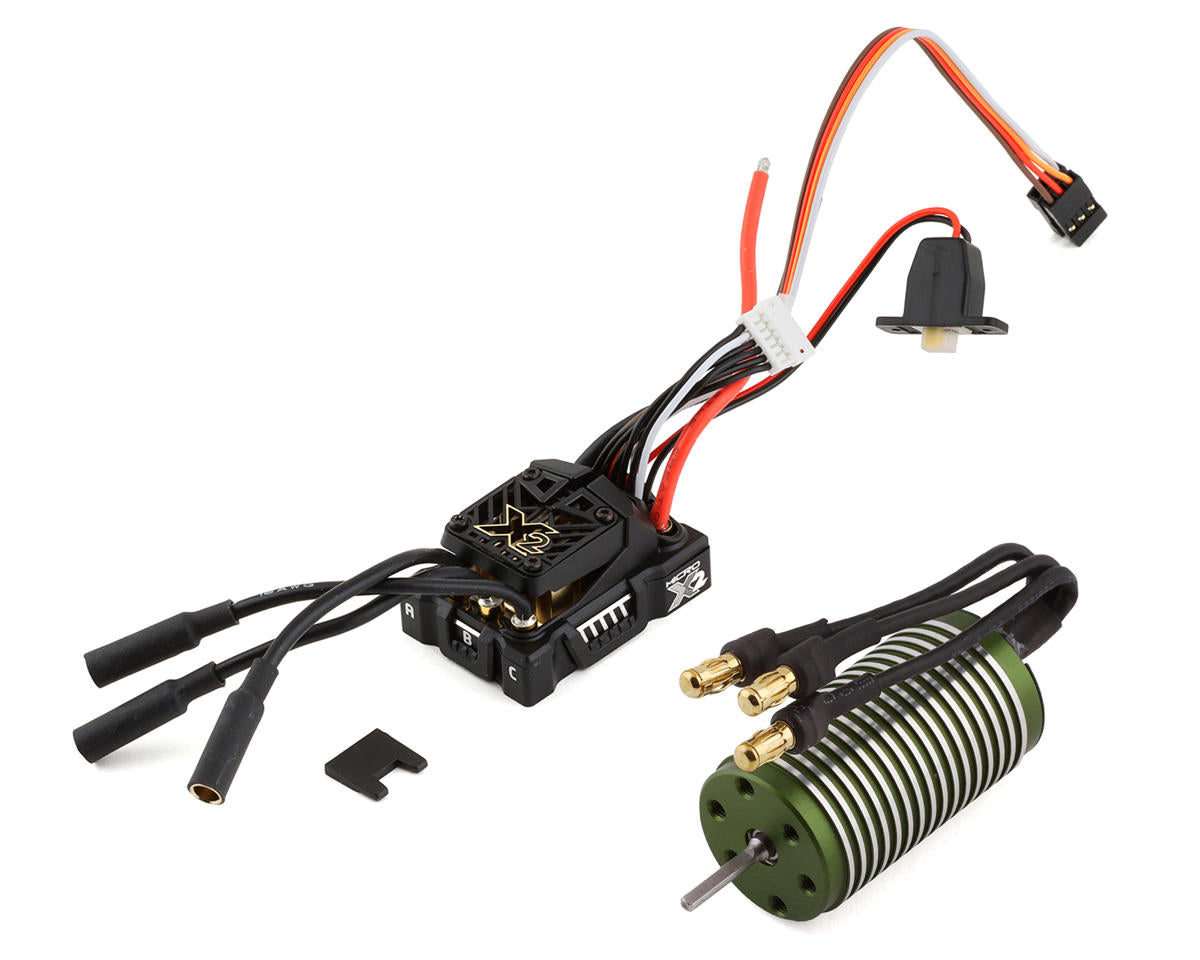

Includes

• Mamba Micro X2 ESC
• 0808-5300Kv brushless sensorless motor
• Coupon for free Castle Link USB adapter
• Quick Start Guide
• Castle decals

The ESC is backed by a manufacturer 1-year warranty.
